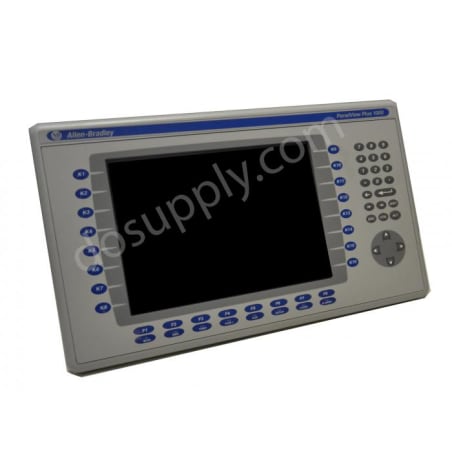

Allen Bradley Panelview Plus 1000 2711P-B10C6D2X

Product image is representative; revision or series may vary. Contact us to request a specific version.

2711P-B10C6D2X

|
Need a Specific Revision?

The part number 2711P-B10C6D2X from Allen Bradley represents an operator interface terminal designed for robust functionality in control applications. This unit features a 10.4-inch color TFT LCD display with a resolution of 640 x 480 pixels, ensuring clarity for users during operation.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more
Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Technical specifications for 2711P-B10C6D2X

ManufacturerAllen Bradley
Product TypeOperator Interface Terminal
Product LinePanelview Plus 1000
Part Number2711P-B10C6D2X
Weight9.63 lbs (4.37 kg)
Communication PortsDH+, DH-485, Ethernet, RS-232
Input Voltage Range (DC)18–32 VDC
RAM128 MB
Operating Temperature0 to 55 °C
Display Size10.4 in
USB Ports1x USB Host
Nominal Input Voltage24 VDC
Backlight Life50,000 hours (typical)
Storage Temperature-25 to 70 °C
Display Resolution640 x 480 pixels
Mounting TypePanel Mountable
Display TypeColor TFT LCD
Input TypeKeypad & Touchscreen
View as PDF
Request a Repair

The 2711P-B10C6D2X is an operator interface terminal from Allen Bradley's PanelView Plus 1000 series. With a display size of 10.4 inches, it provides impressive visual output, characterized by its color TFT LCD screen that operates at a resolution of 640 x 480 pixels. Users can interact with the terminal via both a keypad and a touchscreen, improving accessibility and ease of use.

This model is engineered for harsh conditions, capable of functioning effectively in ambient temperatures ranging from 0 to 55 °C. It features a robust input voltage range of 18 to 32 VDC, with a nominal voltage of 24 VDC for optimal performance. The terminal incorporates a RAM capacity of 128 MB, enabling efficient operation in various applications.

Installation can be accomplished easily through the provision for panel mounting, making it versatile for different setups. The unit also includes a USB host port for convenient external connectivity and data transfer. Its backlight is rated for approximately 50,000 hours under typical use, ensuring long-lasting illumination for daily operations. With an operational weight of 10 lbs, the unit is manageable for installation and maintenance. Moreover, it can be stored in temperatures ranging from -25 to 70 °C, adding to its overall versatility in various environments.
