The GE Emerson PACSystems RSTi-EP series includes standalone PLCs, backplane PLCs, and remote I/O systems. These systems are designed for industrial automation applications and can connect to Fieldbus structures using network adapters. One RSTi-EP station can support up to 64 active I/O modules. Both active and passive I/O modules are available in the PACSystems RSTi-EP series. Passive I/O modules do not support fieldbus communication. The PACSystems RSTi-EP series also includes functional safety modules, end plates, and endbrackets.
Browse available units in our catalog of PACSystems RSTi-EP.

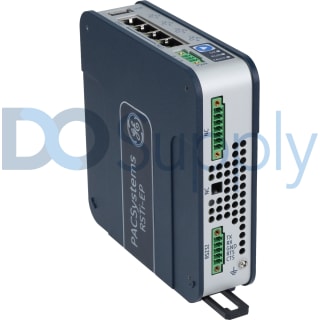

Incorporated within the PACSystems RSTi-EP series, the EPSCPE100 model features two Ethernet ports, facilitating flexible network connections that include both a 10/100 Ethernet and a 3-port switch. S
This module supports configurations with 2, 3, or 4 wires. It maintains operational reliability across an environmental temperature range of -20 to 60°C and can be stored at temperatures as low as -40
This network adapter supports a maximum data transmission rate of 100 Mbps across Fieldbus and 48 Mbps on the RTSi-EP system bus. It is suitable for various industrial applications with a supply volta

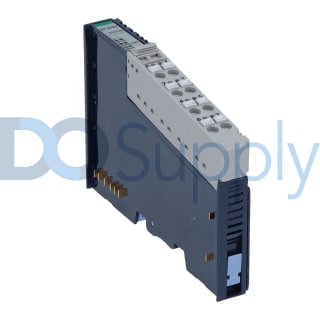

The GE Fanuc Emerson ST-3702 RTD input module consists of two input channels. It supports diverse RTD input configurations, enabling use with numerous sensor types. The device allows for a diagnostic
This input module supports a robust connection utilizing a 1-wire interface with Type 1 and Type 3 sensors. It has a transfer rate for the system bus of 48 Mbps and includes features such as reverse p
This digital output module employs positive logic and features 16 outputs with a maximum output current of 0.5 Amps per channel. It supports various load types, including inductive, ohmic, and lamp lo
This I/O module features four analog input channels, each capable of handling multiple voltage ranges including 0 to 5 V and ±10 V, among others. It consumes 8 mA from the system current path and an a
This digital input module supports a supply voltage of 24VDC, with an operational range of 20.4 to 28.8 VDC. It operates effectively across a temperature range of -4 to 140 degrees Fahrenheit and can
This solid-state relay output module comprises four outputs, utilizing SSR and Triac types. It features a maximum switching current of 1 A per channel or 4 A for the total module. The switching voltag
This network adapter module features dual RJ-45 copper ports and can handle an I/O data size of 2048 bytes for both input and output. It boasts a transfer speed of 100 MB/s and supports diagnostic fea
