The Schneider Electric TSX Micro PLC series includes compact and modular programmable logic controllers tailored for small to medium automation applications. These controllers can accommodate up to 484 local I/O points and support the fast processing speeds needed for real-time control tasks. TSX Micro PLCs come with several built-in options for communication: Modbus, CANopen, and Uni-Telway, allowing for proper integration with industrial networks. With its expandable architecture and easy-to-use programming environment, this PLC series is suitable for machine control, process automation, and building management applications.
Browse available units in our catalog of TSX Micro PLCs.
This module supports a maximum of 64 connected devices over Ethernet and accommodates up to 2 devices via a modem serial link. With an RS-232 interface, it ensures reliable data transmission and has a

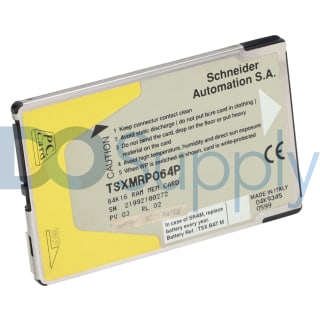

This flash memory module has a form factor of 2.5 inches in height, 4 inches in width, and a thickness of 1 inch. Weighing 0.1 pounds (0.05 kilograms), it utilizes a lithium battery for memory backup,
Equipped with four analog outputs, the TSXASR401 module delivers a voltage of 10 V DC. It boasts a resolution of 12 bits and a settling time of less than 5 milliseconds. With a power consumption of 5

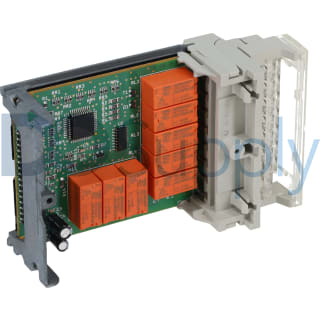

With a compact dimension of 5.5 cm in height, 18 cm in width, and 26 cm in length, this relay output module has a weight of 361 g. It operates with a conventional free air thermal current of 3 A, ensu
This resistor adapter functions within a temperature range of -10°C to +60°C and can operate in humidity levels between 5% and 95% RH without condensation. It has an accuracy of ±1% and utilizes screw
This PLC CPU module includes a real-time clock, offering internal memory of 14 Kwords RAM and 15 Kwords Flash data. It supports operational contexts such as one master task, eight event tasks, and one
This controller includes three slots for additional expansion. Communication capabilities consist of an RS-232 port. Its dimensions measure 85 mm in width, 65 mm in height, and 55 mm in depth. Designe
This nano PLC, measuring 130mm in width, 100mm in height, and 70mm in depth, is a brick-style device housed in a compact form factor. It operates efficiently at temperatures ranging from 0°C to 60°C,
This terminal block features 24 outputs and supports screw connections. Designed for a clean indoor environment, this module operates efficiently at temperatures ranging from 0 to 40 degrees Celsius.
The TSXDEF804 module is equipped with isolated input capabilities, accommodating up to eight inputs. It's designed to handle input voltages of 110 Volts AC. The device has a storage temperature range
