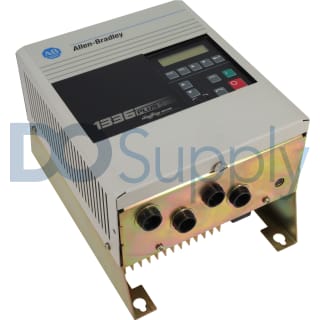

The 1336 PLUS II drive series by Allen-Bradley is a series of compact and high-performance adjustable frequency AC drives with sensorless vector control that is designed to provide speed control solutions to a wide range of applications. The 1336 PLUS II drives offer common designs, control interface options, and device communication options that are found across the entire series which makes integration, installation, operator training, and maintenance simple. The 1336 PLUS II drives are available in ratings from 0.37 to 448 kiloWatts (0.5 to 600 Horsepower) with voltage ranges from 200 to 240 Volts AC, 380 to 480 Volts AC, and 500 to 600 Volts AC. They are available in 9 different frames (A1, A2, A3, A4, B1, B2, C, D, and E), and they have constant torque and variable torque capabilities. The 1336 PLUS II drives use programmable pulse width modulation frequency with adjustable output voltage for exceptional speed and torque control, and these outputs can be easily fine-tuned to provide the desired performance under varying loads.
The 1336 PLUS II drives have built-in fault detection and overload protection, and they also have real-time preventive and fault reporting capabilities that alert operators to any faults through alarms and plain text diagnostic messages for quick corrective measures. The 1336 PLUS II drives offer the users motor control with the standard Volts per Hertz control (with a customizable Volts per Hertz curve) and the sensorless vector control (SVC) which provide outstanding speed and torque performance, and a higher starting torque of up to 250%. The 1336 PLUS II drives have configurable I/O interfaces, optional human-machine interface modules, Remote I/O, RS-232/422, DeviceNet, and Enhanced DeviceNet modules, control interface modules (with and without encoder interfaces), and multiple language options. The 1336 PLUS II drives are available in IP 00 (Open), IP 20 (NEMA Type 1), or IP 54 (NEMA Type 12) installations, and they are CE, CSA, UL, C-TICK certified.
Browse available units in our catalog of 1336 PLUS II Drives.
This Allen Bradley adjustable frequency AC drive supports AC voltage from 380 to 480 volts and DC voltage from 513 to 620 volts. It delivers a total power rating of 7.5 horsepower. The unit is enclose
The Allen-Bradley 1336F-A007-AA-EN-GM1-HCSP 1336 Plus II adjustable frequency AC drive is designed to provide speed and torque control solutions to high-performance motion control systems. The 1336F-A
The Allen-Bradley 1336F-A007-AA-EN-HAS2-LA4-LA7-L6 1336 Plus II drive is an AC drive. It features an integrated HMI. The maximum output power rating of the 1336F-A007-AA-EN-HAS2-LA4-LA7-L6 drive is 7.
This model operates within an open enclosure rated at IP00, suitable for various environments. It includes a TTL contact control interface and is designed for programming with a Human Interface Module
The catalogue number 1336F-A007-AN-EN-HASP-L6 is used for an Allen-Bradley 1336 Plus II AC drive that supports sensorless vector control and a variety of other features. This Allen-Bradley/Rockwell Au
This Allen Bradley drive supports a voltage range from 380 to 480 VAC and is rated for approximately 27 Amps. It delivers 20 horsepower, equivalent to 15 kW, is positioned for panel mounting, and is p
This adjustable frequency drive operates at an AC voltage range of 380-480 volts, with a corresponding DC voltage rating of 513-620 volts. It has an IP20 rating and a NEMA 1 enclosure type, suitable f
This drive is rated for a power output of 2.2 kW and is enclosed in an open type housing designated with an IP00 protection rating. The unit is suitable for operation within an ambient temperature ran
Operating as an adjustable frequency AC drive with a power capability of 45 kW, the 1336F-BX060-AX-EN can withstand a minimal operating temperature of 0°C to a maximum of 40°C. This drive also endures
This main control board is designed to be compatible with 1336 PLUS II Drives and features two expansion slots for added functionality. It operates within a broad temperature range of 0°C to 50°C and
