The GE Fanuc Rx7i PACsystem control system was designed to be an expansion for existing GE Fanuc industrial machine systems, and it was designed to be cost-effective and easy to install. It can be installed in an existing system without disturbing that system’s wiring. The controllers in the Rx7i PACsystem series are available with 5 different CPUs that can all be upgraded and that all have fast execution rates and large memory capacities. The Rx7i PACsystem controllers are automation controllers that are used to control industrial automation systems. These controllers can communicate through their Ethernet ports that have dual RJ-45 ports and through their 3 isolated serial ports which are an RS-232 port, and RS-485 port, and an RS-232 Ethernet station manager port.
The GE Fanuc Rx7i PACsystem control system makes device migration easy because it supports most GE Fanuc Genius networks, expansion racks, and Series 90-70 modules and it supports the conversion of the Series 90-70 programs and the conversion of the Logicmaster and VersaPro applications to Machine Edition applications. These convenient features support existing hardware systems and existing system developments, and they provide a smooth transition to PACsystems. The Rx7i PACsystem control system’s hardware includes 1 Rx7i rack and as many as 7 Series 90-70 expansion racks. The system will need to have 1 Bus Transmitter Module or BTM in the main rack if any expansion racks are used. The Rx7i PACsystem control system’s Rx7i rack can support all Rx7i CPU configurations and all Rx7i I/O configurations as well as many VME modules and most Series 90-70 I/O modules.
Browse available units in our catalog of Rx7i PACsystem.
The GE Fanuc IC698CHS009 Rx7i I/O Rack is made for the Rx7i PACsystem. This 9-slot I/O rack is software configurable, and it supports all the Rx7i CPUs and I/O configurations, the Series 90-70 I/Os, a

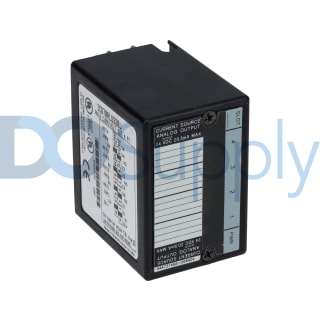

The IC670ALG320 output module is an analog output module. It has been manufactured by GE Fanuc in the Rx7i PACsystem series.
This CPU module is specifically designed for the RX7i PLC system and provides a maximum operating temperature of 0 to 60 °C. It supports a relative humidity level of up to 80% and features vertical mo
The GE Fanuc IC698ACC701 Auxiliary Smart Battery Module is made for the Rx7i PACSystem series. This battery module provides extended RAM backup for RX7i CPUs. This module has 15 Amps of maximum batter

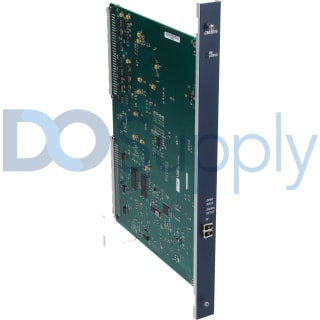

The GE Fanuc IC698CMX016 Control Memory Xchange Module is a module for the Rx7i PACSystem. This CMX module is software-configurable, and it supports network-compatible VMIC 5565 reflective memory devi
The GE Fanuc IC698CHS117 Rx7i I/O Rack for the Rx7i PACSystem. This 18-slot I/O rack is software configurable, and it supports VME64 backplane system for all the Rx7i CPUs and I/O configurations, the
The IC698RMX016 is an Rx7i PACsystem communication module by GE Fanuc. It operates with 5 Volts DC voltage.
This CPU module operates effectively at a maximum altitude of 1000 meters and within a temperature range of 0 to 60 °C. It draws power from the backplane, requiring a supply of 5 VDC, +24 VDC, and -24
The IC698CRE040 CPU is a RX7i series CPU manufactured by GE Fanuc. It comes with an Ethernet port.
Specialized for applications needing reliable power, this module delivers a maximum input power of 550 Watts. It features multiple output rails: 5 VDC at 50 Amps, 12 VDC at 10 Amps, and -12 VDC at 4 A
