The Allen-Bradley 1336 PCB boards make up the family of PCB board spare parts for the Allen-Bradley 1336 PLUS, 1336 PLUS II, 1336 FORCE, 1336 IMPACT, and 1336 REGEN drive families. Spare PCB boards in this family include the main control board PCB for the Allen-Bradley 1336 PLUS, 1336 PLUS II, 1336 FORCE, and 1336 IMPACT drives with firmware versions 2.03 to 4.03, the main adapter board PCBs, the gate drive board PCBs (with or without a conformal coating), the precharge PCBs, and the snubber PCBs. The Allen-Bradley 1336 PCB boards provide excellent and easy to install PCB board spare part options for all the Allen-Bradley 1336 drive families. The wide range of available options makes them ideal spare part accessories for installation, integration, and maintenance.
Another unique property of the 1336 PCB board spare parts is that they can be used and installed in multiple drive models. There are PCB board options for every 1336 PLUS, PLUS II, FORCE, IMPACT, and REGEN drives with voltage ratings from 200 to 600 Volts AC and 1 to 600 Horsepower output. The 1336 PCB boards spare are also available for IP 00 (Open), IP 54 (NEMA 12), and IP 65 (NEMA 4) PLUS, PLUS II, FORCE, IMPACT, and REGEN rated drives. Testing and installing the 1336 PCB boards is easy with the user manuals that are available on the Allen Bradley/Rockwell Automation website. Like all 1336 drives and accessories, the 1336 PCB boards have a rated operating temperature range of 0 to 40 degrees Celsius (NEMA 4 and 12 rated boards) and 0 to 50 degrees Celsius (NEMA Open rated boards).
Browse available units in our catalog of 1336 PCB Boards.
This PCB gate drive offers precise PWM control and operates in a three-phase configuration. It features a programmable carrier frequency range of 4–8 kHz, with an efficiency rating typically around 96
This circuit board is classified under the 1336 PCB Boards series and requires a frame size of C. Its operating frequency ranges from a minimum of 47 Hz to a maximum of 63 Hz. Designed to withstand a
This PCB is mounted onto the main control plate and is characterized by its fastening through eight screws. It is specifically intended for use with 575V drives rated at 125 HP and features an auxilia
Compatible with frame models A through E, this drive board includes six connectors: J2, J6, J7, J8, J9, J10, and J13. It incorporates protection via two fuses and provides indications for replacement
This gate drive PCB component is categorized as a Level 1 spare part and fits within Frame D of compatible drives. It operates effectively at temperatures between 0 and 40 degrees Celsius and can be s
This gate drive PCB is installed internally and interfaces directly with the main control board. It requires a 24 VDC auxiliary supply and features seven jumper connectors to enable flexible configura

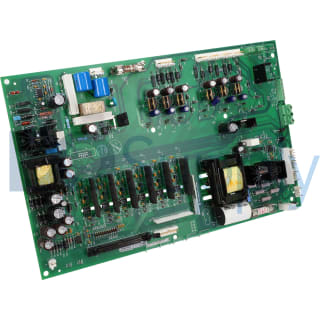

Designed to fit Frame Size E, the 1336-BDB-SP37D drive board requires a single board per drive. It can function in environments with operational elevations up to 1,000 meters and withstands vibration
This gate drive board utilizes a PWM signal output for efficient gate control. It features electrical isolation between input and output signals. Designed for a mounting location beneath the main cont
This board is compatible with 1336 PLUS, FORCE, and IMPACT drive series, featuring a coast-to-stop response for effective operational control. It supports an adjustable frequency AC drive and provides
This precharge PCB is utilized within systems that feature high-capacitive DC buses. It comes equipped with a MOV for protection, rated at 6000 V peak. The board plays a critical role in preparing the
