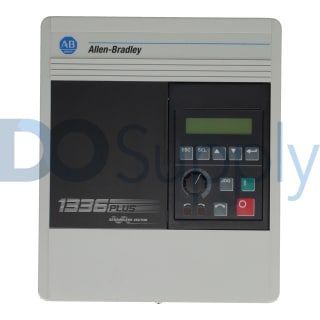

The Allen-Bradley 1336 PLUS drives are a family of microprocessor-based AC drives with sensorless vector control that are designed to provide control for 3-phase motors in critical applications where accurate torque and speed control is necessary. The 1336 PLUS drive series offers easy-to-use and cost-effective motor control solutions to applications with even the tightest speed requirements, and they come with built-in protection features that help to improve performance and save maintenance costs caused by unscheduled downtimes. The 1336 PLUS drives have A1, A2, A3, A4, B1/B2, C, D, E, G, and G frames with input ratings from 200 to 600 Volts AC and 0.37 to 448 kilowatts (0.5 to 600 Horsepower). All 1336 PLUS drives have both variable and constant torque capability, and each drive is sized to 115% of the full load Amps for variable torque applications, and 150% of the full load Amps for constant torque applications.
The 1336 PLUS drives employ the Pulse Width Modulation (PWM) control with programmable carrier frequencies from 2 to 10 KiloHertz. Depending on the application type, the operators can choose between the standard Volts per Hertz control method, which offers customizable Volts per Hertz curve and it is suitable for centrifugal and HVAC applications, and the sensorless vector control (SVC), which provides tighter speed control even under varying loads, higher starting torque, and lower speed operation than other control methods. The 1336 PLUS drives offer easy-to-use human-machine interface module options, communication options (single-point remote I/O, RS-232/422, DF1, DH-485, and DeviceNet networks), and the control interface card option with or without an encoder interface. This drive series features easy-to-read display interface options that support multiple languages for easy configuration, diagnostics, and troubleshooting processes. The 1336 PLUS drive series features drives with IP 00 (Open), IP 20, IP 54, and IP 65 enclosures, and they have a non-derating operating temperature range of 0 to 40 degrees Celsius.
Browse available units in our catalog of 1336 PLUS Drives.
This adjustable frequency AC drive accommodates voltage input of 380 to 480 VAC, as well as a DC rating of 513 to 620 VDC. Rated for a temperature range from 0 to 50 degrees Celsius during operation,
This drive is rated for input voltages of 380-480 VAC and 513-620 VDC. The performance specifications include a power output of 3.7 kW and an IP20 protection level. Its operating temperature range ext
This adaptable frequency drive features a wide output frequency range of 0 to 400 Hz, maintaining frequency precision at ±0.01% digitally and ±0.4% analog. The device is designed with both constant to
The device features an IP20 rating and is housed in a NEMA 1 enclosure, ensuring protection against dust and solid objects. It operates effectively within a temperature range of 0°C to 40°C and suppor
This model has a single point remote I/O communication option. It operates within an IP20-rated enclosure (NEMA 1 type) and operates reliably from 0°C to 40°C. Furthermore, it can be stored at tempera
This drive supports operating temperatures from 0°C to 50°C and storage temperatures between -40°C and 70°C. With an open type enclosure and an IP00 rating, it is designed for installation at altitude
This AC drive operates efficiently at voltages between 380 and 480 volts AC. It has a rated horsepower of 60 HP, making it capable of handling moderate to significant loads. The device functions withi
This drive is part of the Allen Bradley 1336 PLUS Drives series and supports a maximum ambient temperature of 40 degrees Celsius. It operates within a humidity range of up to 80% without condensation
This adjustable frequency AC drive operates within an ambient temperature range from 0°C to 50°C, with storage conditions between -40°C and 70°C. It has an IP00 rating, indicating an open design witho
This drive supports a rated voltage of 380-480V AC and 513-620V DC, rated for 1 Hp. It operates within temperature parameters of 0°C to 40°C. Minimum storage temperatures reach -40°C, and maximum stor
