The 1336 PLUS II drive series by Allen-Bradley is a series of compact and high-performance adjustable frequency AC drives with sensorless vector control that is designed to provide speed control solutions to a wide range of applications. The 1336 PLUS II drives offer common designs, control interface options, and device communication options that are found across the entire series which makes integration, installation, operator training, and maintenance simple. The 1336 PLUS II drives are available in ratings from 0.37 to 448 kiloWatts (0.5 to 600 Horsepower) with voltage ranges from 200 to 240 Volts AC, 380 to 480 Volts AC, and 500 to 600 Volts AC. They are available in 9 different frames (A1, A2, A3, A4, B1, B2, C, D, and E), and they have constant torque and variable torque capabilities. The 1336 PLUS II drives use programmable pulse width modulation frequency with adjustable output voltage for exceptional speed and torque control, and these outputs can be easily fine-tuned to provide the desired performance under varying loads.
The 1336 PLUS II drives have built-in fault detection and overload protection, and they also have real-time preventive and fault reporting capabilities that alert operators to any faults through alarms and plain text diagnostic messages for quick corrective measures. The 1336 PLUS II drives offer the users motor control with the standard Volts per Hertz control (with a customizable Volts per Hertz curve) and the sensorless vector control (SVC) which provide outstanding speed and torque performance, and a higher starting torque of up to 250%. The 1336 PLUS II drives have configurable I/O interfaces, optional human-machine interface modules, Remote I/O, RS-232/422, DeviceNet, and Enhanced DeviceNet modules, control interface modules (with and without encoder interfaces), and multiple language options. The 1336 PLUS II drives are available in IP 00 (Open), IP 20 (NEMA Type 1), or IP 54 (NEMA Type 12) installations, and they are CE, CSA, UL, C-TICK certified.
Browse available units in our catalog of 1336 PLUS II Drives.
This open-type AC drive features E Frame size configuration and supports a frequency range from 50 Hz to 60 Hz. It has an IP00 rating, indicating it is not enclosed for protection against solid or liq
The Allen Bradley 1336F-A007-AA-EN-HASB drive is a 1336 Plus II series adjustable frequency drive. The drive frame size is A4. The 1336F-A007-AA-EN-HASB drive supports sensorless vector control techno
The Allen Bradley 1336F-LA2 Analog Interface Board is an optional analog control interface board for the Bulletin 1336 Plus II series adjustable frequency AC drives. This drive comes with 2 galvanic i

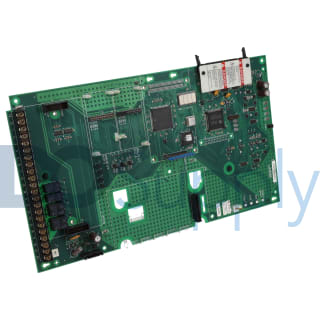

This drive control board supports the 1336F drives, enabling efficient logic and I/O control. It integrates signal conditioning and features a CPU interface. Furthermore, it is field-replaceable, allo
This board accommodates drive frames ranging from B to G. It features both SERCOS and ControlLogix communication interfaces, enhancing connectivity. The relay contact rating is 240 V AC with a capacit
With a rated power of 7.5 kW and capable of handling 10 horsepower, this drive operates on a 3-phase supply. It accepts input voltages from 380 to 480 VAC and adjusts output voltage from 0 to the inpu
This drive features an open enclosure rated at IP00, designed to be operated in temperatures ranging from 0 to 50 degrees Celsius. With a storage temperature capability of -40 to 70 degrees Celsius, i
This AC drive is engineered to function within a frequency range of 0–400 Hz and features a 3-phase phase configuration. It provides robust overload capacity, handling 150% rated current for up to 60
This AC drive operates at line frequencies of 50 or 60 Hz and features PWM control methods for effective performance. It includes an integrated display for monitoring purposes and uses a digital keypa
