Allen Bradley SLC 500
The SLC 500 programmable controller series combines power with flexibility by offering a wide range of communication configurations, features, and memory options at an affordable price. The controllers utilize ladder-logic and structured-text programming to provide exceptional productivity and a smooth user interface. The broad selection of I/O modules, along with Ethernet, DH+, DH-485, ControlNet, and DeviceNet communication capabilities, makes SLC 500 controllers some of the most versatile on the market. Additionally, the SLC 500 series boasts an advanced instruction set, including file handling, sequencer, diagnostic, shift register, immediate I/O, and program control instructions. The modularity of the series offers many customization and configuration options, including but not limited to: adding I/O, memory, or communication interfaces. The SLC 500 modules even include backup options for increased fault tolerance via the ControlNet Hot Backup module or the PLC-5 Backup Communication module. If you are looking for a programmable controller that seamlessly combines power, flexibility, and affordability, then the SLC 500 series is for you.
Learn more
Browse SLC 500
Browse available units in our catalog of SLC 500.
1746-OA16
This output module contains 16 outputs organized into common groups of 8. It functions efficiently within an operating frequency of 47-63 Hz. The device showcases a backplane current consumption of 0.
In Stock Ships Today
4.9

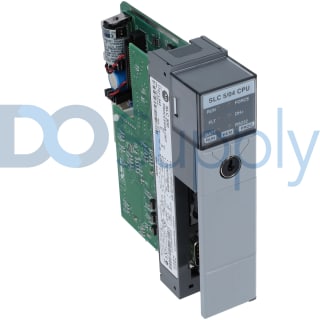

1747-L542
The 1747-L542 processor features a power requirement of 4 watts and supports maximum local system configurations of three chassis or a total of 30 slots. With a typical scan time of 0.9 milliseconds p
In Stock Ships Today
4.7
1746-P4
Designed to operate efficiently with an input power requirement of 190 VA at 120V AC and 230 VA at 240V AC, this power supply module allows a maximum inrush current of 45 amps. Its internal output cur
In Stock Ships Today
4.8
1747-UIC
This converter operates with a DH-485 baud rate of 19.2 Kbps and USB connectivity capable of 12 Mbps. It has both RS-232 and RS-485 ports available for versatile integration. Designed to function unde
In Stock Ships Today
4.6
1746-A10
This modular chassis offers up to 10 slots for mounting and includes six tabs for secure installation. It can interconnect with one or two additional chassis using a dedicated connection cable. The ch
In Stock Ships Today
4.8
1746-OB16
This output module delivers 7.6 Watts of total heat dissipation. It operates within a voltage range of 10 to 50V DC and consumes 0.28 Amps from the backplane at 5V DC. The maximum signal delay recorde
In Stock Ships Today
4.9
1747-SN
This remote I/O scanner module accommodates a maximum of 16 connections in its normal operating mode and expands to 32 device connections in complementary mode. It supports an impressive RIO cable len
In Stock Ships Today
4.7
1746-A7
This mounting chassis accommodates 7 slots for module installation and has four mounting tabs for secure placement in a panel. It can handle a backplane current of 10 Amps at 5.1V DC, and 2.88 Amps at
In Stock Ships Today
5.0
1746-HSCE
With a throughput time of 1.8 ms in sequencer mode and 3.9 ms in range mode, the 1746-HSCE delivers efficient processing of counted signals. It can handle a tested isolation voltage of 1500 volts, pro
In Stock Ships Today
4.8
Showing 11-20 of
234
results
About SLC 500
The SLC 500 series is a series of Allen-Bradley programmable logic controllers that are used for a wide variety of applications. The SLC 500 series features Ladder-Logic with a structured text programming. The units are designed for addressing a broad range of applications that include file handling, sequencer, diagnostics, shift register, and immediate I/O and program control instruction applications. The SLC 500 controllers support built-in RS-232, 422, and 423 communication ports. The unit also comes with the DeviceNet and the ControlNet I/O on the selected processors. The SLC 500 series provides controllers that have powerful and affordable performance. These units are designed and built to provide excellent value.
The Allen-Bradley SLC 500 controllers feature modular processes, power supplies, I/O devices, memory options, and communication interfaces that allow the units to have configurable and expandable systems. The units feature an advanced instruction set that includes indirect addressing and a high level of performance capability for delivering computation instructions. The units are programmed to provide the users with a broad selection of the I/O devices. Therefore, the users can select from over 60 modules that help to control the discrete, analog, and temperature signals. The SLC 500 controllers are designed to deliver power and flexibility with a wide range of communication configurations. The SLC 500 modular hardware style controllers allow for the section of the processor, power supply, and I/O modules. The units also come with optional memory modules that provide a non-volatile memory in a convenient modular form. When using the commercial PROM programmers for programming and erasing the memory module, adapter sockets are required.
SLC 500 troubleshooting
-
Ensure the card is slid into the rack allowing both bottom and top clips to lock into place
-
Check that the entire rack has power
-
Allow a 1-5 min power cycle
-
Check pins on the back side of the card where a connection is made into the rack
-
Take the card out and do a visual inspection of the card outside of the rack, checking that resistors, capacitors, TRIACs and chips all look functional
-
Check to see that power supply is screwed into the rack and properly mounted
Processor Communications
-
Make sure your RS-232 cable is making a good connection with both the computer and processor
-
Check that the proper COMM port and driver is being used in RS-Linx
-
For SLC 5/03 and up apply screwdriver across GND and VBB for 1 min, this will reset COMMS
Read I/O configuration
-
Check to ensure you are reading the correct driver in rs-linx
-
Research error codes
Rack not powering on
-
Check power supply
-
Try inserting power supply into another rack
-
Check voltage going into power supply and ensure correct sumpers are selected if there any
-
Check pins on the back slide of the power supply that plug into the rack
-
Check manual for proper insulation and power requirements for multiple power supplies
-
Add your amperage rating for each device
If the rack is still not powering on, the application you are using could require more amperage than the supply is rated for
Example:
The 1747-L551 draws 1A at 5v DC
The 1746-OV16 requires 0.270 A according to documentation
The 1746-P2 supplies 5A at 5vDC to the backplane
Checking to see if our power supply can handle the load we would use the following formula:
IT=I1+I2+I3
Using this formula, we can see that since 1a + .27a = 1.27a ,
the 1746-P2 would handle this load no problem
If none of these solutions solve the problem, there could be a faulty card killing your whole rack
-
Remove each card one at a time to check if there is a card causing issues in the rack
