SLC505
The Allen Bradley SLC 505 is a SLC 500 SLC 505 Processor. This SLC 505 Processor has the following part numbers: 1747-L551, L552, or L553. These processors have 4096 Inputs and 4096 Outputs.
The SLC 500 programmable controller series combines power with flexibility by offering a wide range of communication configurations, features, and memory options at an affordable price. The controllers utilize ladder-logic and structured-text programming to provide exceptional productivity and a smooth user interface. The broad selection of I/O modules, along with Ethernet, DH+, DH-485, ControlNet, and DeviceNet communication capabilities, makes SLC 500 controllers some of the most versatile on the market. Additionally, the SLC 500 series boasts an advanced instruction set, including file handling, sequencer, diagnostic, shift register, immediate I/O, and program control instructions. The modularity of the series offers many customization and configuration options, including but not limited to: adding I/O, memory, or communication interfaces. The SLC 500 modules even include backup options for increased fault tolerance via the ControlNet Hot Backup module or the PLC-5 Backup Communication module. If you are looking for a programmable controller that seamlessly combines power, flexibility, and affordability, then the SLC 500 series is for you.
Browse available units in our catalog of SLC 500.
The Allen Bradley SLC 505 is a SLC 500 SLC 505 Processor. This SLC 505 Processor has the following part numbers: 1747-L551, L552, or L553. These processors have 4096 Inputs and 4096 Outputs.
With a throughput time of 1.8 ms in sequencer mode and 3.9 ms in range mode, the 1746-HSCE delivers efficient processing of counted signals. It can handle a tested isolation voltage of 1500 volts, pro
With a configuration of eight relay outputs, the 1746-OX8 accommodates AC and DC relay voltage categories. Each output is individually isolated, allowing for consistent performance. The module can han
The module provides multiple voltage output options of -10 to 10 Volts DC, 0 to 10 Volts DC, 0 to 5 Volts DC, and 1 to 5 Volts DC. It draws 55 mA at 5V and 145 mA at 24V on the backplane. An external
The 1747-L541 processor features a maximum of 30 local system options across 3 chassis, facilitating extensive system configurations. It contains a total of 107 programming instructions and demonstrat
The Allen Bradley 1746-NT4 is a SLC 500 Thermocouple/mV Analog Input Module. This Thermocouple/mV Analog Input Module has 4 Inputs and a Backplane Current (5 Volts) of 60 milliamps.
The Allen Bradley 1746-NI16I is a SLC 500 Analog I/O Module. This Analog I/O Module has 16 Inputs and a Backplane Current (5 Volts) of 125 milliamps. It has a Bandwidth of 6-250 Hertz and a Resolution

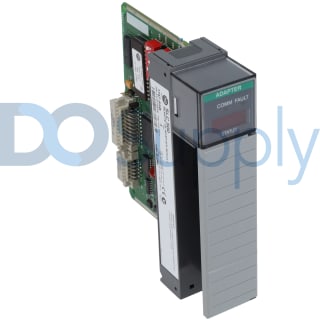

This is a single-slot module that requires no user programming to operate. It features a status display, along with a FAULT LED and a COMM LED for monitoring purposes. The device's backplane current c
This link coupler enables connections for both full-duplex and half-duplex DH-485 networks. It supports the communication of various devices, including data table axis modules and personal interface c
With eight mounting tabs, the chassis can be securely attached through panel mounting. It accommodates a maximum backplane current of 10 amps at 5.1V DC and 2.88 amps at 24V DC. The design permits a 6
The SLC 500 series is a series of Allen-Bradley programmable logic controllers that are used for a wide variety of applications. The SLC 500 series features Ladder-Logic with a structured text programming. The units are designed for addressing a broad range of applications that include file handling, sequencer, diagnostics, shift register, and immediate I/O and program control instruction applications. The SLC 500 controllers support built-in RS-232, 422, and 423 communication ports. The unit also comes with the DeviceNet and the ControlNet I/O on the selected processors. The SLC 500 series provides controllers that have powerful and affordable performance. These units are designed and built to provide excellent value.
The Allen-Bradley SLC 500 controllers feature modular processes, power supplies, I/O devices, memory options, and communication interfaces that allow the units to have configurable and expandable systems. The units feature an advanced instruction set that includes indirect addressing and a high level of performance capability for delivering computation instructions. The units are programmed to provide the users with a broad selection of the I/O devices. Therefore, the users can select from over 60 modules that help to control the discrete, analog, and temperature signals. The SLC 500 controllers are designed to deliver power and flexibility with a wide range of communication configurations. The SLC 500 modular hardware style controllers allow for the section of the processor, power supply, and I/O modules. The units also come with optional memory modules that provide a non-volatile memory in a convenient modular form. When using the commercial PROM programmers for programming and erasing the memory module, adapter sockets are required.
SLC 500 troubleshooting
Ensure the card is slid into the rack allowing both bottom and top clips to lock into place
Check that the entire rack has power
Allow a 1-5 min power cycle
Check pins on the back side of the card where a connection is made into the rack
Take the card out and do a visual inspection of the card outside of the rack, checking that resistors, capacitors, TRIACs and chips all look functional
Check to see that power supply is screwed into the rack and properly mounted
Make sure your RS-232 cable is making a good connection with both the computer and processor
Check that the proper COMM port and driver is being used in RS-Linx
For SLC 5/03 and up apply screwdriver across GND and VBB for 1 min, this will reset COMMS
Check to ensure you are reading the correct driver in rs-linx
Research error codes
Check power supply
Try inserting power supply into another rack
Check voltage going into power supply and ensure correct sumpers are selected if there any
Check pins on the back slide of the power supply that plug into the rack
Check manual for proper insulation and power requirements for multiple power supplies
Add your amperage rating for each device
If the rack is still not powering on, the application you are using could require more amperage than the supply is rated for
Example:
The 1747-L551 draws 1A at 5v DC
The 1746-OV16 requires 0.270 A according to documentation
The 1746-P2 supplies 5A at 5vDC to the backplane
Checking to see if our power supply can handle the load we would use the following formula:
IT=I1+I2+I3
Using this formula, we can see that since 1a + .27a = 1.27a ,
the 1746-P2 would handle this load no problem
If none of these solutions solve the problem, there could be a faulty card killing your whole rack
Remove each card one at a time to check if there is a card causing issues in the rack
