The Field Control distributed I/O and control system from the GE Fanuc company is made up of modular I/O products that can fit many different control system architectures. The devices included in the Field Control system series are I/O modules, I/O terminal blocks, and Bus interface units. The I/O modules are designed to be rugged and they can provide an analog I/O interface. The I/O terminal blocks are the universal field-wiring terminals for 2 of the I/O modules at a time, which means that different kinds of I/O modules can be mounted on the same I/O terminal block. The I/O terminal blocks in turn are mounted on DIN rails, and the DIN rails need to be mounted on panels because they are part of the grounding system. The Bus interface unit can support up to 4 I/O terminal blocks or up to 8 I/O modules in a Field Control “station.”
The DIN Rail that the Field Control I/O terminal blocks are mounted on must be a 35 millimeters x 7.5 millimeters DIN Rail and the rail must have a conductive or unpainted finish to allow for proper grounding. Note that the I/O terminal blocks can protect the I/O modules installed in them from the negative effects of ESD or electrostatic discharge, but that uninstalled I/O modules are sensitive to ESD and static control precautions must be taken when handling and installing them. To ensure that the I/O modules are as secure as possible, the users can utilize the optional module key clips and slots to hold them in place or in a specific position.
Browse available units in our catalog of Field Control.
The Field Control IC670MFP100 Micro Field Processor is a specialized Micro PLC unit designed by GE Fanuc. It comes with 6.5 Volts DC of input voltage, 300 milliamps of input current at 24 Volts DC, 6K
The field control unit with the product code IC670MDL641 is designed by GE Fanuc and it has a rated voltage of 48 Volts DC and an input voltage range 0 to 60 Volts DC. The module has 16 inputs and it

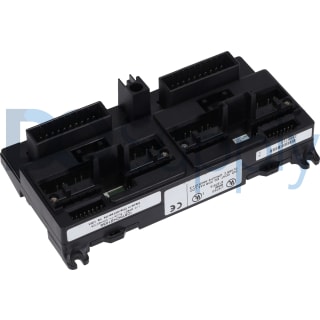

The Field Control IC670CHS103 base is an I/O base unit made by GE Fanuc. The unit supports the hot insertion method of module installation. It is compatible with the following field control modules: t
This terminal block accommodates two modules and connects using screw terminals for secure wiring. It supports a maximum terminal current of 10 Amperes and includes a torque specification of 4.5 pound
The Field Control IC670FBI001 I/O base has a nominal rated voltage of 115 Volts AC and 125 Volts DC, along with an input frequency range of 47 to 63 Hertz. The base unit is manufactured by GE Fanuc an

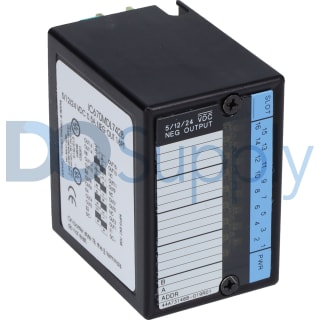

The Field Control IC670MDL742 DC Output Module is a negative logic output module from GE Fanuc. It has 4.75 to 5.25 Volts DC and 10.5 to 28.5 Volts DC of user input voltage, 4.5 to 28.25 Volts DC of o
The IC670MDL643 5/12 Volts DC Positive/Negative Input Module is a logic input module made by GE Fanuc. It has 0 to 15 Volts DC of input voltage, 16 discrete inputs, 1 LED indicator per point, and 150
With a current rating of 110 mA, this mixed I/O module supports both DIN rail mounting and terminal block configurations. Its operating temperature range is suitable for environments from 0 to 55 degr
