The Schneider Electric TSX Micro PLC series includes compact and modular programmable logic controllers tailored for small to medium automation applications. These controllers can accommodate up to 484 local I/O points and support the fast processing speeds needed for real-time control tasks. TSX Micro PLCs come with several built-in options for communication: Modbus, CANopen, and Uni-Telway, allowing for proper integration with industrial networks. With its expandable architecture and easy-to-use programming environment, this PLC series is suitable for machine control, process automation, and building management applications.
Browse available units in our catalog of TSX Micro PLCs.

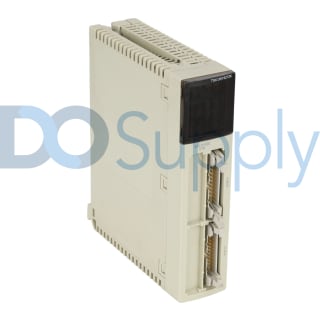

The TSXDSY32T2K is a component in Schneider Electric’s TSX Micro PLC series, designed to accommodate up to 32 discrete outputs. This module supports the parallel connection of outputs, allowing for a

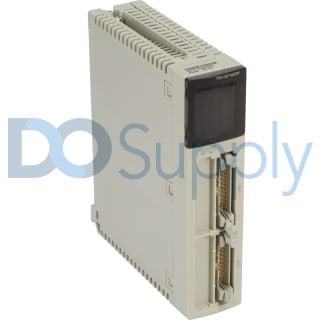

This digital input module features a low power consumption of 2.5 W and a fast response time of just 1 ms. It supports a wide operating temperature range from -25°C to +70°C and can be stored in condi
This Schneider Electric output module supports a maximum current of 5 A across the entire unit and up to 0.1 A per channel. It includes features like response times of 1.2 ms and can handle parallel o
As a component of the TSX Micro PLCs, this output module provides solid-state output functionality with a maximum current of 0.5 A per channel. It includes advanced protection mechanisms such as elect

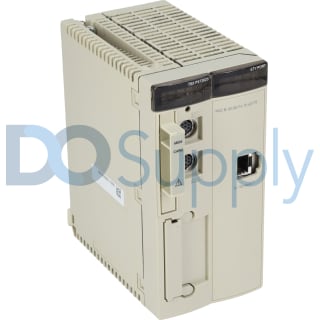

The TSXP572623M operates with a control capacity of up to 30 simple loops using 10 process control channels. This unit can support a maximum of 16 racks, accommodating a significant number of I/O poin
The controller boasts an electrostatic discharge rating of IEC 1000-4-2 level 3 and features 20 Kwords of internal RAM. By utilizing a PCMCIA card, it can enhance its capabilities to 128 Kwords for pr
This card is compatible with the Premium processor TSX 57 series and is designed to function seamlessly with Magelis XBT F terminals. It operates effectively under a temperature range of 0 to 60 °C an

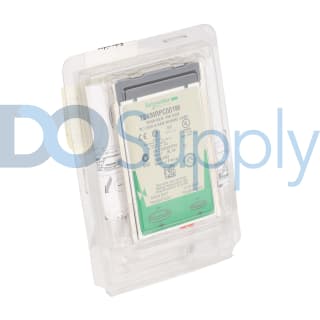

This SRAM module weighs 0.168 lbs. (0.076 kg) and measures 2.6 cm in width, 9.1 cm in depth, and 13.2 cm in height. The TSXMRPC001M is environmentally compliant with the RoHS directive, ensuring it me
This micro PLC supports a discrete I/O processor capacity of 512 I/O and an analog I/O capacity of 24 I/O. Integrated communication is facilitated by a non-isolated serial link with dual mini-DIN conn
This PLC model supports execution times of 0.19 microseconds for Boolean operations without a PCMCIA card and 0.25 microseconds with one. The PLC can handle 512 discrete I/O and 24 analog I/O points,
