1994 results
This single-slot central processing unit operates with a nominal input voltage of 5 VDC and has a current draw rated at 1.2 A. It can function effectively within a temperature range from 0 °C to a maximum of 60 °C while also withstanding storage temperatures down to -20 °C and up to 75 °C. Additiona
This input module is designed to accommodate a total of 32 inputs. It operates effectively within a temperature range of 0 to 60 degrees Celsius when positioned outside the rack. For successful functionality, it requires a current consumption of 130 mA at 5V DC and 400 mA at 12V DC. The ON-state inp
This Versamax micro controller features 40 standard logic inputs and 24 normally open relay outputs, suitable for various automation tasks. It operates on 24 VDC, providing a maximum output load rating of 2 amps at both 24 VDC and 240 VAC. The controller supports a combined maximum current of 435 mi
Functionally, this expansion carrier has two slots: one for the CEP001 and one for the CEE001. The device obtains its input power from the host CEP001 carrier. The IC694CEE001 connects via a PROFINET I/O LAN and can handle up to 1024 bytes of I/O data. It is rated at IP20, suitable for environments
This controller features 16 DC inputs, 1 DC output, and 11 normally open outputs, accommodating expansion with up to 4 I/O units. It has significant logic memory of 9,000 words and can store data of up to 2,000 words. The scan time is efficient at 1.1 milliseconds for every 1,000 words processed, wi
This relay output module operates within a maximum power requirement of 5V DC at 750 mA. It effectively manages temperatures from 0°C to 60°C while installed outside of a rack and can endure storage temperatures from -20°C to 80°C. Each output features individual fuses for enhanced protection, and e
This digital output module employs positive logic and features 16 outputs with a maximum output current of 0.5 Amps per channel. It supports various load types, including inductive, ohmic, and lamp loads. The EP-225F operates in a temperature range from -20 to 60 degrees Celsius, and its storage tem
This arithmetic control module has dimensions of 8.15 x 11 inches for the circuit board and 12.46 x 1.175 inches for the faceplate. It operates efficiently within temperatures ranging from 0 to 60 degrees Celsius and can be stored between 0 and 70 degrees Celsius. The module supports a relative humi
This analog expansion module includes 4 inputs and 2 outputs, offering various input ratings such as 0 to 10 VDC, -10 to 10 VDC, 4 to 20 mA, and 0 to 20 mA. Output ratings also consist of 0 to 10 VDC, 4 to 20 mA, and 0 to 20 mA options. The resolution for input and output is set at 12 bits, ensuring

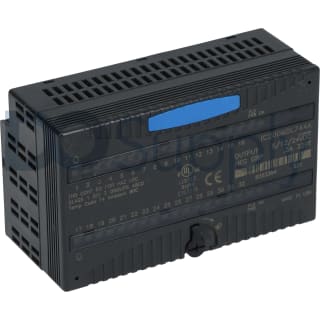

The IC200MDL744 Discrete Output Module is a 5, 12, or 24 Volts DC rated negative logic output module made by GE Fanuc. It has 32 outputs in 2 groups, and 4.75 to 5.25 Volts DC of output voltage in the TTL mode, 10.2 to 30 Volts DC of output voltage in the 12/24 Volts DC mode, and 5 Volts with 140 mi
This I/O module features four analog input channels, each capable of handling multiple voltage ranges including 0 to 5 V and ±10 V, among others. It consumes 8 mA from the system current path and an additional 25 mA from the input current path, plus any sensor supply current requirements. The module
The IC670MDL330 discrete output module from GE Fanuc has 16 output modules and it runs on AC power. Its current rating is 1 Amp and the voltage range is 12 to 120 Volts AC.
