The 1336 Drives are microprocessor controlled, high performance, adjustable frequency drive which are designed to be used to control three phase induction motors for critical industrial applications. The drive also produces a three phase, PWM, adjustable frequency output to supply an adjustable motor speed. These drives output voltage is a function of output frequency and is adjustable to match motor parameters to obtain the optimum motor performance.
Browse available units in our catalog of 1336 Adjustable.
As a remote I/O solution, the 1336-MOD-G2 is compatible with PLC-2/30, PLC-3, and PLC-5 series processors. It supports a remote I/O link distance of 10,000 feet at 57.6 kBd using Belden 9463 cable and
This control interface board supports an internal mounting type and is designed for operation at frequencies ranging from 50 to 60 Hertz. It also has a leakage current of less than 10 milliamperes. Mo
This unit requires a minimum operating frequency of 50 Hz and supports a maximum frequency of 60 Hz. Its IP20 rating indicates limited protection against dust and no protection against water. The 1336
This unit handles a switching frequency between 2 kHz and 10 kHz and features a 6-channel output IGBT control. It prides itself on high-voltage opto-isolation and supports an operating frequency of 50

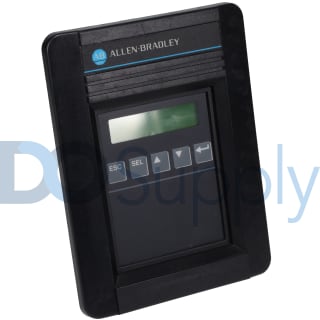

This terminal comes with an enclosure rated Type 4X, ensuring protection against dust and water, suitable for indoor installations. It features an LCD screen and a keypad for user interaction. The uni
This product is classified as an open-style control board that can be mounted securely. It operates effectively within a temperature range of 0 to 60 degrees Celsius and can tolerate humidity levels f
This DeviceNet board operates effectively with an input current of 40 mA. It supports baud rates of 125, 250, and 500 k BPS for flexible data management. The device is designed to function within a te
This unit operates with an input AC voltage of 230 V and is designated for use with several Allen Bradley drive models. It is rated for dynamic braking applications, allowing for effective control of
Compatible with Frame A4, this fan comes with its own grill and four mounting screws for installation. It is designed for mounting directly onto drives, ensuring effective cooling performance up to an
With a frequency range from 50 Hz to 60 Hz, this filter efficiently manages power dissipation of 9.5 watts. It is specifically compatible with frame reference A2. The operating temperature spans from
The 1336 Adjustable series is a series of drives manufactured by Allen-Bradley. The 1336 Adjustable drives are microprocessor-controlled drives that are known to produce the high-level performance that is required for controlling the 3-phase induction motors. The 1336 Adjustable drives are critical for various industrial applications. The 1336 Adjustable drives produce the 3-phase PWM adjustable frequency output for supplying adjustable motor speed. The output of the 1336 Adjustable drives is a function of the output frequency and it is usually adjustable to ensure an exact match to the motor parameters. The 1336 Adjustable drives have been designed as constant torque, adjustable speed control drives and they come with 150% overload capability. The drives under the 1336 Adjustable drives series are adaptable through programming to handle a wide variety of applications.
The 1336 Adjustable series drives feature units that are specially designed to produce an exceptional output voltage with the current waveform. Before deploying the unit with an inverter, notice any special considerations that may be present in the installation area. Note that slow speeds might result in problems related to cooling due to the reduction in the fan rotation speed. The 1336 Adjustable drives could overheat if they are operated at a highly rated torque for long periods. The 1336 Adjustable drives come equipped with the MOV or the Metal Oxide Varistor, providing voltage surge protection. The MOV circuit is also designed for surge suppression only and not for continuous operation. The 1336 Adjustable drives support user parameters for selecting and controlling the operations of the drives. To ensure optimal performance, make sure that the whole system is correctly applied or installed.
