The Flex I/O 1797 system is a module I/O system from Allen-Bradley which mounts directly onto controlled equipment. It is manufactured with advanced technology which allows it to be part of a distributed architecture system even in hazardous areas. The 1797 system is designed in a wide range of variety and specialty modules to meet different application demands. The system offers network flexibility which communicates on the Ethernet/IP, ControlNet, DeviceNet, and the remote I/O networks. The Flex I/O 1797 system has improved plant operations. It uses HART data for asset management software. The I/O system can be operated between -20 and 70 degrees Celsius. When not in use, they can be stored at a temperature range between -40 and 85 degrees Celsius.
The Flex I/O 1797 system is available with modules that come in different variants. These variants have different power dissipation levels, different I/O types, input frequencies, thermal dissipation levels, module field-side power consumption levels, input connectors, voltage ranges, and current consumption ratings. The 1797 system contains a network adapter, terminal bases, and I/O modules. The system can be mounted horizontally or vertically by using the standard 35-millimeter DIN Rail mounting or panel mounting methods without getting derated. The Flex I/O 1797 system has built-in galvanic isolation which eliminates the need for IS barriers and isolators. The modules feature advanced diagnostics that provide real-time status and feedback for quicker and easier troubleshooting. The 1797 modules have reduced wiring, reduced hardware footprints, and reduced costs. They help to improve system reliability and minimize downtime with optional N+1 power supply redundancy. Allen-Bradley offers a 12-months warranty starting from the date of installation. All of the 1797 series modules come with electronic protection including lead break, overload, and short circuit protection.
Flex I/O 1797 | Description | Stock Level |
1791-BIC | The 1791-BIC FLEX Ex Bus Isolator has a 200 g Weight and a 7.2 BTU/hr Thermal Dissipation. |
Available Now
|

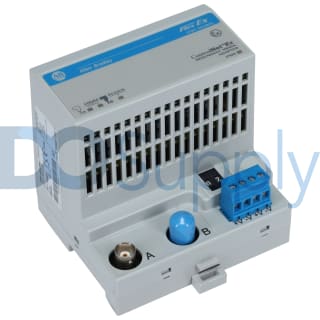

1797-ACNR15 | The 1797-ACNR15 ControlNet Ex Adapter has a 200 g Weight and a 29 BTU/hr Thermal Dissipation. |
In Stock
|
1797-BCNR | The 1797-BCNR FLEX Ex Redundant ControlNet Barrier Module has a -7.84 dB Transmission Attentuation and a 200 g Weight . |
In Stock
|
1797-BIC | The Allen-Bradley 1797-BIC isolator module is a FLEX Ex bus isolator module. The purpose of this FLEX Ex bus isolator... |
Call
|
1797-IBN16 | The 1797-IBN16 FLEX Ex I/O Module has a 9.6 BTU/hr max. Thermal Dissipation and a 2.8 W Power Dissipation. |
In Stock
|
1797-IE8 | The 1797-IE8 FLEX Ex I/O Module has a 17.75 BTU/hr Thermal Dissipation and a 5.2 W Power Dissipation. |
In Stock
|
1797-IE8H | The 1797-IE8H FLEX Ex HART I/O Module has a 17.75 BTU/hr Thermal Dissipation and a 5.2 W Power Dissipation. |
In Stock
|
1797-IE8NF | The 1797-IE8NF FLEX Ex I/O Module with Noise Filter has a 17.75 BTU/hr Thermal Dissipation and a 5.2 W Power... |
Available Now
|
1797-IJ2 | The 1797-IJ2 FLEX Ex Frequency I/O Module has a 14.5 BTU/hr max. Thermal Dissipation and a 4.25 W Power Dissipation. |
In Stock
|
1797-IRT8 | The 1797-IRT8 FLEX Ex RTD Thermocouple I/O Module has a 5.46 BTU/hr max. Thermal Dissipation and a 1.6 W Power... |
Call
|
1797-OB4D | The 1797-OB4D FLEX Ex I/O Module has a 17.07 BTU/hr Thermal Dissipation and a 5 W Power Dissipation. |
In Stock
|
1797-OE8 | The 1797-OE8 FLEX Ex I/O Module has a 18.4 BTU/hr Thermal Dissipation and a 5.4 W Power Dissipation. |
In Stock
|
1797-OE8H | The 1797-OE8H FLEX Ex HART I/O Module has a 20.8 BTU/hr Thermal Dissipation and a 5.4 W Power Dissipation. |
In Stock
|
1797-PS1E | The 1797-PS1E FLEX Ex Power Supply has a 71.67 BTU/hr Thermal Dissipation and a 21 W Power Dissipation. |
Available Now
|

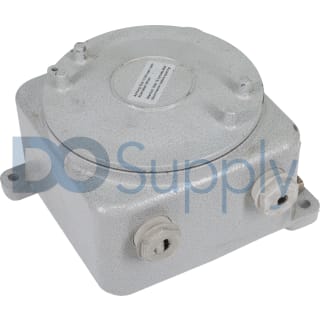

1797-PS1N | The 1797-PS1N FLEX Ex Power Supply has a 71.67 BTU/hr Thermal Dissipation and a 21 W Power Dissipation. |
Call
|
1797-PS2E | The 1797-PS2E FLEX Ex Power Supply has a 71.67 BTU/hr Thermal Dissipation and a 21 W Power Dissipation. |
Available Now
|
1797-PS2E2 | The 1797-PS2E2 FLEX Ex Power Supply has a 71.67 BTU/hr Thermal Dissipation and a 21 W Power Dissipation. |
Call
|
1797-PS2N | The 1797-PS2N FLEX Ex Power Supply has a 71.67 BTU/hr Thermal Dissipation and a 21 W Power Dissipation. |
In Stock
|
1797-PS2N2 | The 1797-PS2N2 FLEX Ex Power Supply has a 71.67 BTU/hr Thermal Dissipation and a 21 W Power Dissipation. |
Call
|
1797-RPA | The 1797-RPA ControlNet Ex Modular Repeater Adapter has a 200 g Weight and a 29 BTU/hr Thermal Dissipation. |
In Stock
|
1797-RPFM | The 1797-RPFM ControlNet Ex Fiber Repeater Module has a 100 g Weight and a 5.4V Input Power. |
In Stock
|
Flex I/O 1797 | Description | Stock Level |
