Allen Bradley SLC 150
The SLC 150 series is a set of easy to progam PLCs using the ladder diagram format. The PLC's capacities include relay logic, switch registers, sequencers, counters and timers. The SLC 100 series can be combined with SLC 100 series or SLC 150 series expansions to increase the I/O value up to 112.
Learn more
Browse SLC 150
Browse available units in our catalog of SLC 150.
1745-LP153
This controller operates on input voltages ranging from 85 to 132 VAC, with line voltage options of either 85-132 VAC or 170-265 VAC. It utilizes CMOS RAM for memory and provides a user memory size of
In Stock Ships Today
4.7

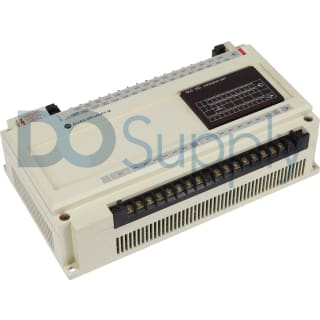

1745-E151
Designed for robust applications, the 1745-E151 accommodates 20 input circuits and 12 output circuits. This unit supports frequencies between 50 Hz to 60 Hz and functions reliably in ambient temperatu
In Stock Ships Today
4.6
1745-PT1
The Allen-Bradley 1745-PT1 programmer module is a pocket programmer module. It comes standard with an LED display and 7-segment LED readouts. This programmer module works in an ambient temperature ran
In Stock Ships Today
4.3
1745-LP154
This processor unit operates with a temperature tolerance between 0 °C and 40 °C, both for operation and storage. It can be installed at altitudes of up to 1000 meters above sea level and functions ef
In Stock Ships Today
4.6
1745-E153
This expansion module utilizes current sinking input circuits operating within a voltage range of 10 to 30 VDC. The outputs are hard contact types, supporting an AC voltage range of 10 to 250 volts an
In Stock Ships Today
4.5
1745-LP156
This processor module features 32 total I/O points, allowing for versatile integration in various control systems. It accepts input signals at voltage levels of 85–132 VAC and 170–265 VAC and manages
In Stock Ships Today
4.9
1745-E156
This expansion module connects using a 1745-C3 communication cable and requires a power supply of 15 VA. Operational voltage ranges from 10 to 30 VDC. The module can handle a maximum OFF-state voltage
In Stock Ships Today
4.9
1745-E155
This expansion module supports 20 input terminals and 12 output terminals, facilitating efficient wiring solutions. It utilizes ribbon cable for connection and includes LED status indicators that disp
Available
4.9

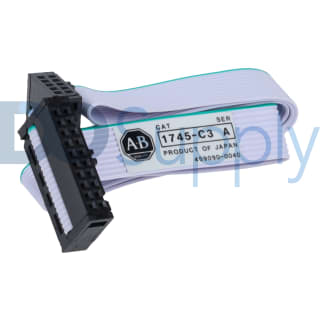

1745-C3
This interconnect cable extends 18.5 inches and connects with 20-pin and 10-pin configurations. It operates effectively at a maximum voltage of 70 V and is designed for compatibility with both SLC-150
In Stock Ships Today
4.5
Showing 1-10 of
15
results
About SLC 150
Manufactured by Allen-Bradley, the SLC 150 series is a series of programmable controllers that can be used with programming and monitoring devices. These devices include the pocket programmer, the PC Software interface convertor, and the time counter access terminal. The devices plug into the communication port of the processor. The SLC 150 controllers are connected by cables into the programming and monitoring devices. The devices plug into the communication ports of the SLC 150 processors. The SLC 150 controllers feature the incoming line wiring terminals with wiring terminals for up to 20 inputs and self-lifting pressure plates. These allow for the easy insertion of wires to secure the connections.
The SLC 150 series controllers also come with up to 5 LED diagnostic indicators. The first diagnostic indicator is the one that serves the DC power source. This indicates that the processor unit has been energized and that the DC power is being supplied. The second LED indicator is the PC Run indicator that indicates that the processor unit is energized and that the DC power is being supplied correctly. There is the CPU fault monitoring LED that indicates when the SLC 150 processor senses that there is an error in the CPU, the expansion units, or the memory. In the case of the CPU fault, the outputs will be switched off and the machine will come to a stop. The low-battery indicator provides an LED alert when the voltage level is below the threshold level. The SLC 150 supports the installation of an expansion unit, and it features an input power fuse compartment.
