The industrial modules that are found in the GE Fanuc Genius I-O series are designed to work with IBM PCs. These modules are known as IBM PC interface modules or PCIMs for short. The Genius I-O modules can be controlled by the IBM PCs or by PLCs or programmable logic controllers. The modules in this series come with the basic PCIM motherboard and daughterboard, a serial bus, I/O blocks, and a handheld monitor. The I/O blocks in the Genius I-O modules are used for diagnostics and troubleshooting. They can detect errors and problems that ordinary PLCs cannot such as short circuits, open circuits, and overloads.
The daughterboard in the GE Fanuc Genius I-O modules is similar to a Series Six PLC Bus controller, and it usually handles general-purpose I/O control applications and controls all the devices on the Genius Serial Bus. This daughterboard can communicate with the other devices on the Genius Serial Bus through background messaging and it can perform initialization and fault management tasks for up to 30 of these devices at a time. The motherboard in the GE Fanuc Genius I-O modules acts as an interface between a host system that is IBM-compatible and a daughterboard with Open Architecture. The PCIM motherboard is a 2-layer board while the PCIM daughterboard is a 4-layer board. All of the data that is shared between the Genius I-O PCIM and the host system passes through the host-shared RAM which is known as the SRI or the shared RAM interface.
Browse available units in our catalog of Genius I-O.
The IC660BBA101 RTD Input Block is a resistive temperature detector block made by GE Fanuc. It comes with 6 input circuits, 115 Volts AC or 125 Volts DC of block power, and 7 Watts of heat dissipation
The IC660BBD021 I/O block is a Genius I-O block. It comes with 16 circuits.

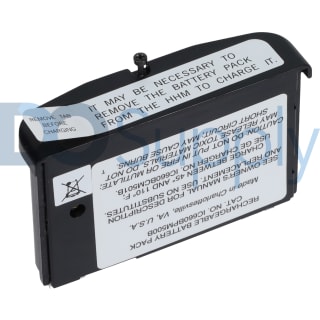

This battery pack syncs with the IC660HHM501 monitor, providing power across a range of 115 to 230 volts AC and 47 to 63 Hertz. It offers a maximum runtime of up to six hours and accommodates operatin

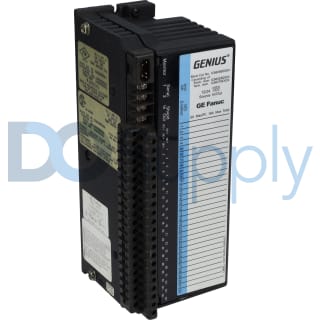

The IC660BBA100 Analog I/O Block is a 115 Volts AC, 4-input, and 2-output analog block from GE Fanuc. It comes with 12 bits of resolution, 4 milliseconds of update time, and 7 Watts of heat dissipatio
The IC660ELB912 network interface board is a Micro GENI daughterboard designed by GE Fanuc. This IBM PC/ AT/XT PCIM-compatible board has 16 KB of memory and 2 status LEDs. It weighs 3 pounds.
The IC660BBA104 current source I/O block is a 115 Volts AC/125 Volts DC I/O block from GE Fanuc. It has 4 inputs, 2 outputs, 2 status LEDs, and 12 Watts of heat dissipation.
The GE Fanuc IC660BSM021 Genius I/O Bus Switching Module (BSM) is for the Genius I/O Bus System. This module has 2 serial connectors and 24/48 Volts DC operating voltage, and it can accommodate up to
The IC660BPM100 block is a GE Fanuc power monitor block. The IC660BPM100 block calculates the RMS values of various power characteristics and transmits them to a host device for analysis.
The IC660BBD120 high-speed counter block from GE Fanuc and the Genius I-O product line can handle 1, 2, or 4 counters at a time. It can count up only, down only, both up and down, or count the differe
The IC660HHC005 hand-held monitor cable is a Genius I/O series HHM cable from GE Fanuc. This IC660HHM501 black HHM cable weighs 2 pounds.
