The industrial modules that are found in the GE Fanuc Genius I-O series are designed to work with IBM PCs. These modules are known as IBM PC interface modules or PCIMs for short. The Genius I-O modules can be controlled by the IBM PCs or by PLCs or programmable logic controllers. The modules in this series come with the basic PCIM motherboard and daughterboard, a serial bus, I/O blocks, and a handheld monitor. The I/O blocks in the Genius I-O modules are used for diagnostics and troubleshooting. They can detect errors and problems that ordinary PLCs cannot such as short circuits, open circuits, and overloads.
The daughterboard in the GE Fanuc Genius I-O modules is similar to a Series Six PLC Bus controller, and it usually handles general-purpose I/O control applications and controls all the devices on the Genius Serial Bus. This daughterboard can communicate with the other devices on the Genius Serial Bus through background messaging and it can perform initialization and fault management tasks for up to 30 of these devices at a time. The motherboard in the GE Fanuc Genius I-O modules acts as an interface between a host system that is IBM-compatible and a daughterboard with Open Architecture. The PCIM motherboard is a 2-layer board while the PCIM daughterboard is a 4-layer board. All of the data that is shared between the Genius I-O PCIM and the host system passes through the host-shared RAM which is known as the SRI or the shared RAM interface.
Browse available units in our catalog of Genius I-O.
This I/O module processes input voltages of 115/230 VAC and supports output voltage ranges of 5 to 250 VAC and 5 to 220 V DC. It is configured with 16 circuits, ensuring ample connectivity for sophist

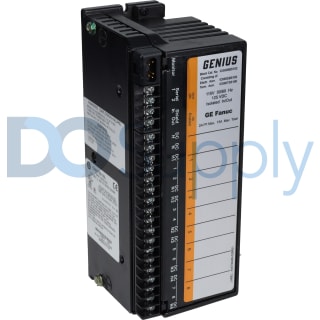

The GE Fanuc IC660BBS102 output block is a Genius I/O output block. There are 8 output circuits on the IC660BBS102 output block.
The IC660BBA103 Thermocouple Block is a 115 Volts AC or 125 Volts DC 6-channel thermocouple input mlock designed by GE Fanuc. It has 6 input circuits, -25 mV to 150 mV of voltage measurements, and 9 W
The IC660BBA021 RTD Input Block is a GE Fanuc resistive temperature detector that comes with 6 channels and 2 block versions. It has 24 to 48 Volts DC of block power, 0.1 degrees Celsius of input reso

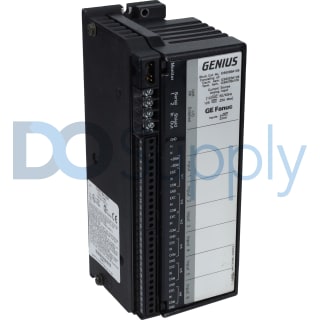

The Genius I-O IC660BBA106 module is a sink I/O module. It has been manufactured by GE Fanuc.
The IC660BBA024 Current Source I/O Block is a 4-input/2-output current source block designed by GE Fanuc. It comes with 24 to 48 Volts DC of block power, 1500 Volts of block to block isolation, and 12
The IC660BBA025 Current-Source Output Block is a 6-output analog current-source block from GE Fanuc. It has 24 to 48 Volts DC of block power, 1500 Volts of block to block isolation, and 12 Watts of he
Designed for compatibility with I/O blocks, this terminal assembly supports vibration levels of 5-10 Hz and 0.2 inches of displacement. It operates effectively within temperature limits of 0 to 40 deg
Designed to ensure efficient operation, the battery charger has a minimum charging time of 15 minutes and can take up to 6 hours for a fully charged state. This unit also features a voltage selection
The IC660BLM506 plug is a terminating plug with a 150-Ohm resistance rating. This device is installed in the Serial 1 and Serial 2 terminals for bus termination on the Genius I-O blocks.
