PanelView Use in Mobile Equipment and Skid Systems

Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.

Learn more

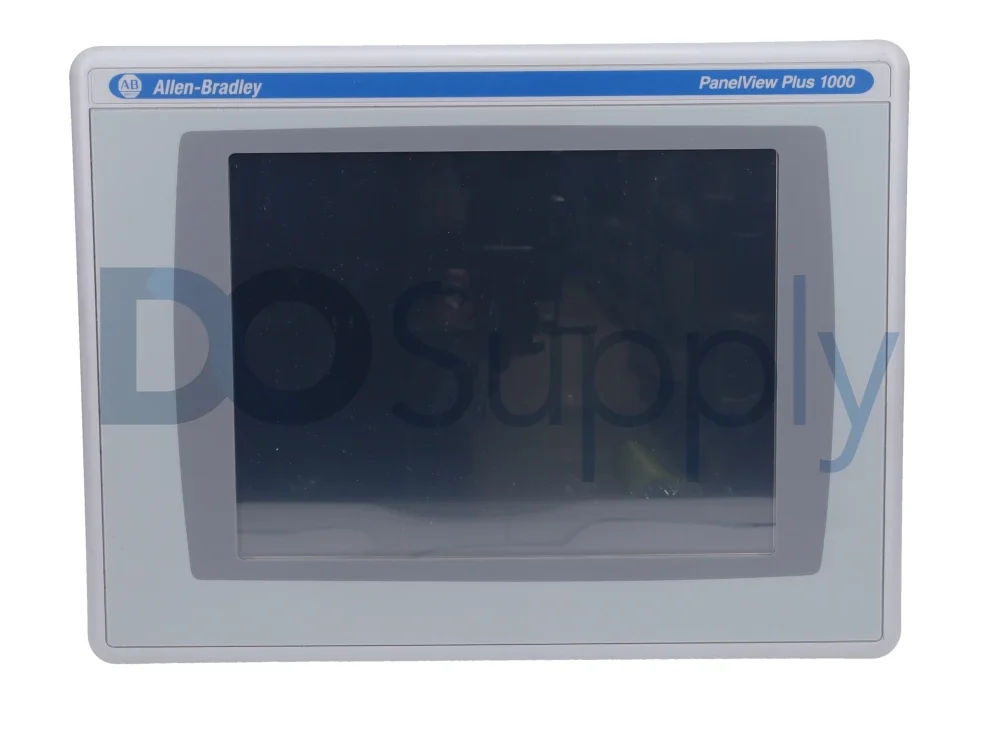

Modern mobile machinery and modular skid systems rely on Human Machine Interface (HMI) devices for real-time visibility, reliability, and durability in rugged operating environments. Rockwell Automation PanelView operator interfaces are designed for machine-level monitoring, control, diagnostics, and visualization. When properly mounted and protected, PanelView terminals can be used on portable industrial equipment, mobile skids, and machine-mounted control stations where operators need local visibility into machine status, alarms, diagnostics, and process conditions. This allows operators to quickly understand machine status and respond to faults and process changes.

PanelView Plus 7 Standard terminals are designed for easy programming and integrate with Rockwell Automation architectures. These interfaces dynamically visualize operating information, making them suitable for systems that require quick operation and troubleshooting.

PanelView Models Available for Mobile Equipment and Skid Systems

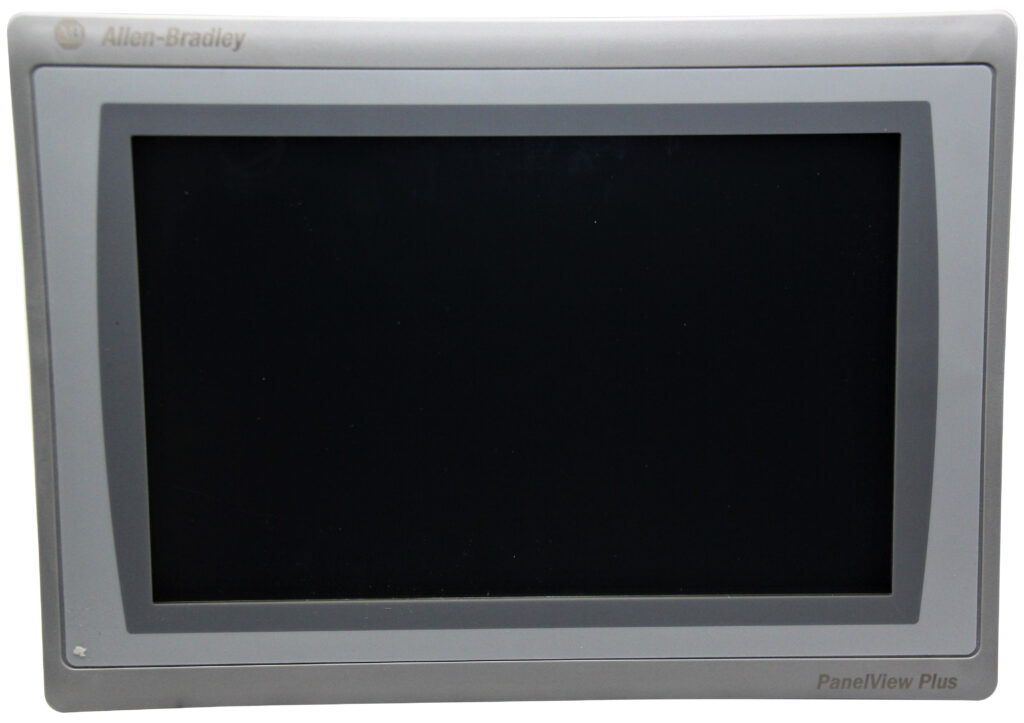

The PanelView Plus 7 Standard series is intended for small and medium-sized machines. Display sizes range from 4 to 15 inches and support one controller, up to 100 screens, and 500 alarms. Communication is provided through EtherNet/IP networks with ControlLogix 5570 and CompactLogix 5370 controllers using touch-screen operation.

PanelView Plus 7 Performance terminals are designed for applications ranging from standalone machines to complex systems. Display sizes range from 7 to 19 inches, including widescreen models. They include high-performance processors, expanded memory, and Ethernet ports supporting Device Level Ring, linear, and star network topologies. Remote Desktop Protocol support allows thin-client operation, while ActiveX support enables embedded HTML pages within applications.

ArmorView Plus 7 provides a fully enclosed 12.1-inch terminal with IP66 protection. Its enclosure-free design reduces installation costs and eliminates the need for additional enclosures and push buttons. Ethernet I/O communication minimizes wiring requirements, while swing-arm, pedestal, and fixed-surface mounting provide installation flexibility.

Advantages of PanelView in Mobile Equipment

Mobile equipment operates under severe conditions involving dust, moisture, vibration, and temperature variations. PanelView terminals are designed to withstand these environments with enclosure ratings including NEMA 12, 13, and 4X, along with IP66 protection. Stainless steel versions offer IP69 and IP69K ratings for high-pressure washdown environments.

Most mobile equipment operates on DC power. PanelView terminals support 18 to 30 VDC inputs, allowing direct connection to vehicle electrical systems without large AC transformers. Performance models also support 100 to 240 VAC inputs. Resistive touch-screen technology allows operation using fingers, gloves, or styluses in wet or dry environments, making PanelView suitable for harsh industrial applications.

PanelView Benefits in Modular Skid Systems

Modular skid systems often require independent commissioning, testing, and troubleshooting. A PanelView terminal mounted directly on the enclosure allows process monitoring and control without relying on plant infrastructure.

PanelView integrates with EtherNet/IP networks and supports ControlLogix and CompactLogix controllers. Ethernet ports support Device Level Ring, linear, and star topologies. IEEE 1588 support keeps network-connected devices synchronized.

Data Logging and Backup Features of PanelView

Reliable data handling is essential, and PanelView terminals include built-in SD card slots for storage expansion, data logging, recipe management, and terminal replication. Hot-swappable SD cards allow backups of configuration files, alarms, and trending data while the terminal remains operational. Copy and restore functions duplicate operating systems, network settings, runtime files, data logs, and recipe files, reducing downtime and accelerating deployment.

Standard terminals provide one USB host port and one USB device port, while Performance models provide two USB host ports and one USB device port. These ports support printers, RFID readers, web cameras, and direct communication with host computers. Depending on the terminal series, PanelView Plus 7 terminals may use Windows CE 6.0 or Windows 10 IoT Core. Because operating system features vary by model and series, users should confirm desktop access, server features, ActiveX support, and peripheral compatibility against the exact catalog number.

Environmental and Hygienic Capabilities of PanelView

Source Allen-Bradley PanelView Terminals Here

PanelView Performance terminals operate between 0 and 55°C, while ArmorView Plus 7 units operate up to 50°C. Nonoperating temperatures range from -25 to 70°C, and humidity tolerance extends from 5 to 95 percent without condensation. All devices are tested for shock and vibration resistance.

Conformal-coated models provide protection against corrosive environments and comply with ANSI/ISA 71.04 severity level G3 and IEC 60721-3-3 severity level CX. Chemical resistance testing confirms that discoloration may occur without affecting functionality. Stainless steel PanelView terminals comply with NSF/ANSI/3-A 14159-1 and NSF/ANSI 169 standards. Conformal-coated circuit boards and food-grade replaceable blue gaskets make them suitable for food, beverage, meat, pharmaceutical, and other hygiene-sensitive applications.

Conclusion

PanelView terminals provide a rugged human-machine interface solution for mobile equipment and skid systems. Available in Standard and Performance versions, they support EtherNet/IP communication, diagnostics, remote connectivity, data logging, and extensive environmental protection. For simpler machine applications, the PanelView Plus 7 Standard terminals provide operators with direct access to status, alarms, and basic process information. For larger skid systems or equipment that needs more memory, stronger networking options, remote access, or expanded display sizes, PanelView Plus 7 Performance terminals provide a more capable platform. ArmorView Plus 7 and stainless steel versions take that idea further by offering enclosure-free mounting, washdown areas, and hygiene-sensitive environments.

Here at DO Supply, we carry many PanelView terminal families to choose from once you have picked the one that best fits your machine. Still not sure? Why not give us a call? Our team can help you find the right terminal, one backed by our two-year warranty.
