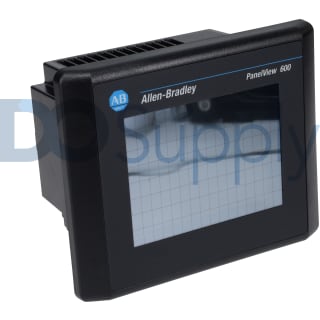

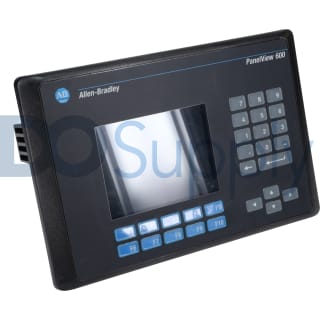

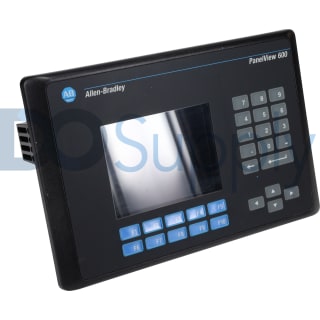

Allen Bradley Panelview 600
The PanelView Standard 600 Operator Interface Terminals have a 5 inch color flat-panel display with 320 x 234 resolution. The PanelView 600 terminal is designed for safe use when installed in a suitably rated NEMA Type 12, 13, 4X, IP54 or IP65 enclosure. These terminals support operator input via keypad, via touch screen or via keypad with touch screen.
Learn more
Browse Panelview 600
Browse available units in our catalog of Panelview 600.
2711-B6C2L1X
This human-machine interface operates at a voltage of 24 VDC with a power rating of 24 Watts. It is designed for flat surface installation and has a protection class of IP65. The device supports opera
In Stock Ships Tomorrow
4.9
2711-B6C2X
This operator interface terminal features a resolution of 320 x 240 (QVGA) and a display size of 5.7 inches. It offers 240 KB of application runtime memory and operates on an input voltage range betwe
In Stock Ships Tomorrow
5.0
2711-B6C3
DH-485 Communication and RS-232 Printer Port
In Stock Ships Today
4.8
2711-B6C3L1
DH-485 Communication and RS-232 Printer Port Keypad and Touchscreen 6 in. Color Display 24V DC
In Stock Ships Today
5.0
2711-B6C5
RS-232 (DH-485) Communication Port
In Stock Ships Today
4.9
2711-B6C5L1
RS-232 (DH-485) Communication Port Keypad and Touchscreen 6 in. Color Display 24V DC
In Stock Ships Today
5.0
2711-B6C5L1X
This operator terminal is equipped with a 6-inch color display, providing resolutions of 320 x 234 pixels for the keypad and 320 x 240 pixels for touch inputs. It features both keypad and touch inputs
In Stock Ships Tomorrow
5.0
2711-B6C5X
This PanelView model features a compact 6-inch display utilizing a color TFT LCD screen and supports keypad inputs with a touch functionality. It has a memory capacity of 240 KB. The device operates e
In Stock Ships Tomorrow
5.0
2711-B6C8
DH+ Communication and RS-232 Printer Port
In Stock Ships Today
4.9
Showing 21-30 of
85
results
About Panelview 600
The Panelview 600 series is a series of standard operator terminals designed and built by Allen-Bradley. These operator terminals feature pixel graphics capabilities with displays that are color active-matrix TFT displays. The Panelview 600 terminals feature keypad and touchscreen operator input options, with units that support both input types together or keypads only for input. The display area measures 115 x 86 millimeters, while the resolution is 320 x 234 and 320 x 240 pixels. These units feature 128 touch cells and come with actuation ratings of 1 million presses. The Panelview 600 terminals also come with 10 function keys and they support real-time clocks that are battery-backed clocks and they support timestamps to provide critical data. The Panelview 600 terminals come with a replaceable battery and the application memory is 190 KB of application runtime memory with 240 KB of non-volatile memory.
The operator terminals feature optional ATA memory card support. The units come with pre-installed PanelBuilder32 software that runs on personal computers. The units support various communication ports such as the EtherNet/IP, DeviceNet, ControlNet, DH+, Remote I/O, DH-485, RS-232, and the DF1 ports. The Allen-Bradley Panelview 600 terminals also support the RS-232 printer port and they run on an input voltage of 18 to 32 Volts DC. The input voltage range is 85 to 264 Volts AC and the power consumption rating is 60 Volts maximum. The Panelview 600 terminals feature color or grayscale graphic displays and they are base-configured units. The communication ports provide add-on capabilities to the base-configured units with modular communication interfaces.
PanelView 600 Startup Failure
If your PanelView 600 fails to startup properly, always check the power supply first. Ensure the terminal is receiving the correct voltage and that the wiring and connections to the power source are valid. In addition, you should also ensure the DC power positive and negative are attached to the proper terminals.
PanelView 600 Status Indicators
The status indicators are located on the back of your PanelView 600 terminal. The COMM indicator is green and reflects communication. The FAULT indicator is red and reflects hardware faults. Upon startup, the fault indicator should be off and the comm indicator on. If the fault indicator flashes a few times at startup, this is not a concern. However, if both indicators are off you should check the power cable. See the table below to interpret the terminal's indicator status:
| Indicator | Status | Meaning |
| Comm | On | Normal Operation |
| Off |
Fault Present- Ensure controller is in run mode. Check baud settings of controller/terminal. Check for proper controller connections. |
|
| Blinking | Failed to establish communication | |
| Fault | On |
Fault Present - Restart terminal. If the error persists, the terminal requires servicing. Click here for information about DO Supply's repair service. |
| Off | Normal Operation | |
| Blinking | No applications loaded/application is corrupt. Reload the application. |
| Indicator | Status | Meaning |
| Comm | On | Normal operation |
| Off | Hardware failure | |
| Blinking | Failed to establish communication | |
| Fault | On | Hardware failure. |
| Off | Normal operation | |
| Blinking | Application not loaded/application is corrupt |
| Indicator | Status | Meaning |
| Comm | On | Normal operation |
| Off | Communication non-functional | |
| Blinking | Failed to establish communication, PLC may be in program mode | |
| Fault | On |
Fault Present - Check baud rate and rack settings. Ensure proper connections from terminal to controller. Verify remote I/O is enabled. |
| Off | Normal Operation | |
| Blinking | Application not loaded/application is corrupt |
PanelView 600 Application Issues
| Issue | Possible Cause | Action |
| Failed Application Download (Initial Attempt) | Disconnected Communication Cable | Check cable type and connection |
| Improper Computer COM Port Selection | Ensure you have the correct COM port number in PanelBuilder32 or WinPFT software | |
| Communication Settings/Rate Incorrect | Ensure computer and terminal share the same communication settings | |
| Failed Application Download (Subsequent Attempts) | Communication Settings/Rate Incorrect | Ensure computer and terminal share the same communication settings. Adjust settings in the Communication Setup screen |
| Application File Name Appears as ******* | Invalid Application | Redownload application |
| Unusable Application Due to Error | Download new application | |
| Failed Application Transfer from Memory Card | Memory card incorrectly installed | Reinstall, verify its installed correctly |
| Application to Large for Terminal Memory | Reduce application size | |
| Incorrect Data Checksum | Ensure memory card is properly seated. It is possible the application may be corrupt | |
| File Format Invalid | Verify file format (.PVA) | |
| Failed Application Transfer to Memory Card | Memory card incorrectly installed | Reinstall, verify its installed correctly |
| Memory Card May be Wire Protected | Change memory card protection switch | |
| Another File on the Memory Card | Erase/reformat card | |
| Application to Large | Reduce application size, erase/reformat card | |
| Memory Card Format Invalid | Replace/reformat card | |
| Incorrect Data Checksum | Ensure card is installed correctly | |
| Application Does Not Exist | Ensure application exists |
Repair Your PanelView 600
Here at DO Supply, we offer repair services for your Allen-Bradley products, such as the Allen-Bradley PanelView 600. For more information or to request a quote, click here.
