Beyond the Basics: Exploring the Features of Power Flex 7 Drives

In industrial machinery, drives play a crucial role, powering various operations that are essential for daily functions. Among these, Power Flex 7 drives hold a significant position in electrical drive technology, offering precise motor control across a wide array of industrial applications. Their adaptability allows for efficient operation in diverse scenarios, from basic fan and pump setups to intricate conveyor systems. With the capability to regulate motor speed and torque, Power Flex 7 drives significantly contribute to energy conservation, operational streamlining, and heightened productivity within manufacturing and industrial environments. Manufactured by Allen-Bradley, a renowned name in industrial automation, these drives epitomize the brand’s commitment to excellence and innovation.

This article will explore the Power Flex 7 drives, including models such as the 755, 753, 700L, 755TS, etc., and their features.

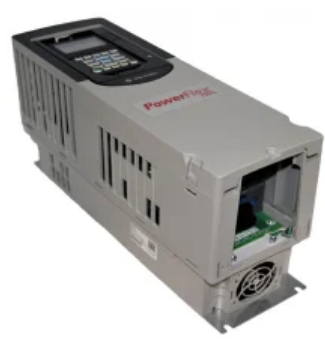

Power Flex 755 Drive

The Power Flex 755 Drive is a high-performance device designed for easy operation, application versatility, and embedded safety features. These drives, which come with various hardware configurations and control options, are best suited for motor control applications, including conveyors, fans, and pumps. A variety of topologies, including the Device Level Ring (DLR) feature for fault-tolerant connectivity, are supported by the Dual-port EtherNet/IP Option Module, while the addition of Integrated Motion on EtherNet/IP guarantees efficient networking compatibility with Kinetix drives.

Technical Features

The Power Flex 755 Drive offers a wide range of power ratings from 200 to 690V, offering power outputs from 0.37 kW to 1500 kW for diverse industrial applications. Its enclosure options guarantee compatibility with a variety of installation conditions, including IP00/IP20 NEMA/UL Type Open and IP54 NEMA/UL Type 12. This drive offers an affordable way to integrate popular power options because it has a pre-engineered Power Option Bay. In Device Level Ring (DLR) networks, the Dual-port EtherNet/IP Option Module simplifies networking compatibility by eliminating the requirement for controlled switches and cabling. Logix controllers with the Automatic Device Configuration (ADC) feature can automatically detect and download configuration parameters for replaced drives, simplifying maintenance procedures.

Control and Connectivity

The Power Flex 755 Drive’s flexible control choices guarantee maximum performance in a range of operating circumstances, including vector control with FORCE technology, sensorless vector control, V/Hz control, and permanent magnet motor control. By extending the life of cooling fans and relay outputs, the drive’s predictive diagnostics reduce the need for maintenance. The LCD Human Interface Module (HIM) and DriveTools SP software are incorporated into the system, making configuration and programming simple and flexible. With an auxiliary 24V DC power supply, five option slots that accommodate feedback, I/O, safety, and communication modules, and an inbuilt EtherNet/IP connection, the Power Flex 755 Drive provides improved functionality and seamless integration for industrial automation systems.

Advanced Safety Options

The Power Flex 755 Drive ecosystem integrates advanced safety features for enhanced protection and operational flexibility. The Safe Torque Off (STO) feature, available in both networked and hardwired configurations, holds SIL 3, PLe, and Cat 3 certifications. To enable quicker restarts following safety activations, rotational power from the motor is quickly removed while maintaining driving activity. Comparably, the SIL 3, PLe, Cat 4 certified Safe Speed Monitor enables users to monitor and regulate application speed securely, maximizing both productivity and safety. The Integrated Safety Functions Option Module extends advanced safety capabilities over an EtherNet/IP network, compliant with IEC 61800-5-2 standards. It enables speed, direction, and position monitoring, ensuring comprehensive safety oversight. When coupled with a GuardLogix 5580ES or Compact GuardLogix 5380ES controller, safety ratings up to SIL CL3 and PLe Cat 4 can be attained; however, compatibility with Studio 5000 Logix Designer program version 31 or later is necessary.

On-Machine Advantages

Mounting an AC drive directly on or near the machine offers significant efficiency and cost-effectiveness benefits. With an IP66 enclosure rating, the Power Flex 755 Drive can be installed close to the machine or motor, reducing cable lengths and cutting installation expenses. This proximity also allows for smaller panels, optimizing floor space utilization for production activities. The drive’s plug ‘n play connections streamline installation and commissioning processes, resulting in quicker deployment and minimal setup time. Using pre-engineered solutions further enhances efficiency by saving design time and ensuring faster, error-free installation, ultimately reducing downtime and maximizing productivity.

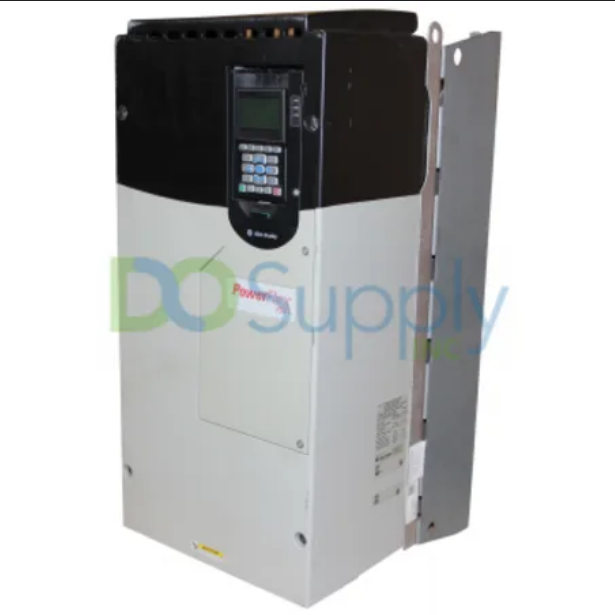

Power Flex 753

Power Flex 753 Drives provides a cost-effective solution for general-purpose applications, emphasizing safety. System integrators and machine manufacturers benefit from standard built-in I/O since it reduces engineering costs and speeds up time to market. Choices with reduced size and power consumption are ideal for low-space applications. Providing a versatile networking solution for a range of industrial environments, the Dual-port EtherNet/IP Option Module improves connection and adaptability.

Technical Features

In order to meet the voltage requirements of different applications, the Power Flex 753 drive provides a wide range of power ratings. For instance, within 200 to 240V applications, power ratings span from 0.37 to 132 kW, or 0.5 to 200 Hp, with corresponding current ratings from 2.2 to 477 A. Similarly, for applications demanding 380 to 480V, power ratings extend from 0.75 to 250 kW, or 1.0 to 400 Hp, with current ratings spanning 2.1 to 477 A. This version also accommodates 600V applications with power ratings ranging from 1.0 to 300 Hp and current ratings from 1.7 to 289 A, as well as 690V applications with power ratings from 7.5 to 250 kW and current ratings from 12 to 263 A. Encapsulation choices that are suitable for a variety of climatic conditions include IP00/IP20 NEMA/UL Type Open and IP54 NEMA/UL Type 12.

Control and Connectivity

In DLR networks, the Dual-port EtherNet/IP Option Module streamlines networking by lowering the requirement for switches and cabling. These drives support V/Hz, vector control, and sensorless vector control. Predictive diagnostics improve equipment longevity. Slot-based architecture accommodates three option slots for various needs.

Available Embedded Safety Options

The Safe Torque-Off option, certified at PLe/SIL3 CAT 3, provides a safety feature that removes torque from the motor to ensure safe operation. The Safe Speed Monitor combines the Safe Torque-Off capability with an embedded safety relay, incorporating Rockwell Automation Safe-Speed Control core technology into the drive. This integrated hardware option, certified at PLe/SIL3 CAT 4, enhances safety measures by monitoring and controlling the speed of the application, further ensuring the protection of personnel and equipment.

Power Flex 700L

The Power Flex 700L AC Drives have a liquid-cooled, completely regenerative power structure and offer users Power Flex 700S or Power Flex 700 Vector Control. This configuration offers low harmonics and energy savings by combining high power and performance in a small form factor. Panel mount and cabinet mount versions are available for these drives, which provide flexible and potent solutions for a variety of applications.

Technical Features

For 380 to 480V applications, the Power Flex 700L AC Drives provide power ratings ranging from 445 to 860 kW / 600 to 1150 Hp / 650 to 1250 A. Housed in IP20, NEMA Type 1 enclosures with included Rittal enclosures featuring input circuit breakers, these drives are compatible with either Power Flex 700 or Power Flex 700S control options.

Control and Connectivity

They enable Common Industrial Protocol (CIP) connections for DeviceNet, ControlNet, and EtherNet/IP in order to guarantee integration into industrial networks. Regenerative braking ensures precise speed and position control. The drive also complies with low AC line harmonics according to IEEE-519 and CE regulations, featuring an integrated active converter and line-side filter to boost input voltage while maintaining consistent system performance. DriveLogix embedded control, which is optional, enables control over auxiliary functions and application programmability. Configuration and programming options include integral LCD keypads, remote keypads, or software, offering flexibility and ease of use. Utilizing the Logix control platform, Premier Integration with Power Flex AC drives streamlines parameter and tag programming, cutting down on development time.

Available Safety Options

The Safe Torque-Off option is compatible with 700S control and has PLd/SIL2 Cat 3 certifications. This safety feature efficiently removes rotational power from the motor while keeping power to the drive intact, ensuring faster start-up following safety system activations. All safety solutions are offered as kits for user installation for easy customization and implementation in accordance with requirements.

Power Flex 755TL, TR, and TM Drives

The Power Flex 755T drives address harmonic challenges, regenerate energy, and offer common bus solutions, prioritizing energy savings, flexibility, and productivity. Featuring TotalFORCE technology, these drives incorporate unique features to enhance system performance significantly.

Technical Features

The Power Flex 755TL drives for Harmonic Mitigation cover power ratings from 7.5 to 1400 kW / 10 to 1800 Hp across global voltages ranging from 400 to 690V. In accordance with IEEE 519, these drives are manufactured to offer power factor adjustment and harmonic reduction.

Similarly, the Power Flex 755TM Drive Systems for Common Bus Solutions are available worldwide with voltages ranging from 400 to 690V and power levels ranging from 160 to 4500 kW / 250 to 6000 Hp (AC) and 70 to 4800 kW (DC). These drive systems feature energy-efficient regenerative capability. Using a common bus drive system allows improved design flexibility, space optimization, and lower installation costs, which makes it easier to coordinate several motors.

Enhanced Power Solutions

A non-regenerative bus supply is now available with Power Flex 755TM drives, making it perfect for common bus applications where low harmonics or regenerative power are not required. This system works well with Power Flex 755TM Bus Supplies and Common Bus Inverters, converting three-phase AC line electricity to DC. The distributed DC bus is housed in modular Rittal cabinets, featuring XT as a standard component. On the other hand, Power Flex 755TR drives are designed for regenerative solutions, offering power ratings from 7.5 to 4500 kW / 10 to 6000 Hp across the globe and voltages from 400 to 690V. These drives prioritize power factor correction and harmonic mitigation, meeting the IEEE 519 standard while also providing energy-efficient regenerative capabilities.

Available Safety Options

Advanced Safety Options: The Power Flex 755 Drive boasts a range of safety features tailored for critical applications. The Hardwired Safe Torque Off swiftly removes rotational power and is certified at SIL3, PLe, and CAT 3. Similarly, the Networked or Hardwired Safe Torque Off, also SIL 3 certified, cuts motor power without halting drive power. The Safe Speed Monitor, SIL 3 certified, enables safe speed control for uninterrupted operation. The Integrated Safety Functions Option Module extends safety capabilities over EtherNet/IP networks, achieving up to SIL CL3 and PLe Cat 4 ratings when integrated with compatible controllers. The drive complies with IEEE 519 standards, offers harmonic mitigation for a smoother and more effective operation, and has a roll-in/roll-out design for simple maintenance and installation. For improved operational safety, safety features like Safe Torque Off and Safe Speed Monitor are integrated. The drive’s integrated dual EtherNet/IP ports provide smooth networking and communication. In addition, it has been manufactured with conformal coating, XT-corrosive gas protection, and other design improvements to guarantee better performance in corrosive gas environments.

Power Flex 755TS

Built for heavy-duty applications, the Power Flex 755TS drives reduce energy and maintenance expenses while increasing productivity and uptime. Featuring patented TotalFORCE smart technology, they offer flexible motor control, real-time operational insights, and simplified application optimization. With versatility across industries, these drives ensure optimal performance for diverse motor control applications.

Technical Features

The Power Flex 755TS drive offers versatile power ratings from 1 to 400 Hp / 0.75 to 270 kW / 400 to 480V / 2.1 to 477 A, suitable for diverse industrial applications. It ensures reliable performance in temperatures from 0 to 60 °C (32 to 140 °F) and supports up to five option cards for enhanced flexibility. It features environmental protection, including IP00/IP20 NEMA/UL Type Open, IP54 NEMA/UL Type 12, and an option for XT enhanced corrosion protection.

Configuration and Connectivity

It has a built-in dual-port Gigabit Ethernet/IP (1000 MB) for faster data handling. It features CIP Security for secure communications. With XT corrosive gas protection, it prevents early equipment failure from corrosion. Integrated TotalFORCE technology ensures flexible, high-performance motor control and operational efficiency.

Enhanced Capabilities for Demanding Industrial Applications

The latest generation of Power Flex variable frequency drives, represented by the Power Flex 755TS, introduces intelligent features designed for demanding industrial environments. These drives are engineered to handle both typical drive applications and specialized requirements with precision motor control. They streamline operations by supporting various motor types and control modes, reducing the need for diverse parts and extensive training. The inclusion of TotalFORCE technology in Power Flex 755TS drives signifies a significant leap, offering adaptable motor control, advanced self-monitoring, and real-time digital capabilities. This smart technology provides valuable insights for optimizing operations, energy efficiency, and predictive maintenance, ultimately enhancing profitability and overall performance.

Applications

The Power Flex 7 drives are engineered to fulfill a wide range of applications in different industry sectors. From material handling to metal manufacturing and mining operations to oil and gas facilities, as well as refining processes and tire and rubber production, these drives offer versatility and reliability. A wide range of industrial settings can benefit from their strong design and innovative features, which ensure efficient and precise motor control to meet the particular needs of each application.

Conclusion

In conclusion, Allen-Bradley’s Power Flex 7 drives provide leading electrical drive solutions, offering accurate motor control and advanced capabilities for a range of industrial applications. Each type, ranging from the heavy-duty Power Flex 755TS Drive to the adaptable Power Flex 755 Drive, is made to maximize efficiency, production, and safety in an industrial environment. With advanced safety options, easy configuration and connectivity, and enhanced capabilities for demanding applications, the Power Flex 7 drives deliver exceptional performance and reliability across diverse industries. Whether in material handling, manufacturing, mining, or refining, these drives offer the flexibility and efficiency needed to meet specific operational requirements, ensuring smooth operation and maximizing overall performance.
