The PowerFlex 700H drive, manufactured by Allen-Bradley, is a prime example of versatility and innovation in industrial motor control solutions. Designed with a wide range of powerful features and capabilities, this drive is specifically designed to meet the diverse needs of industrial applications across different sectors. From mining and oil refineries to heavy manufacturing plants, the PowerFlex 700H drive stands as a dynamic and adaptable solution, delivering precise motor control and optimizing operational performance.

In this article, we will explore the PowerFlex 700H drive in detail, covering its technical specifications, electrical characteristics, enclosure options, standards and certifications, communication features, and the heavy-duty practical functions that it serves in industrial sectors like mining, oil, and gas, and heavy manufacturing.

Technical Overview

The PowerFlex 700H drive is designed to operate within specific voltage ranges and deliver considerable motor control capabilities across various power ratings, making it suitable for a wide range of industrial applications. When supplied with voltage inputs between 380V and 480V, the drive can control motors with power ratings ranging from 32 kW to 1200. For higher voltage inputs of 500V to 600V, the PowerFlex 700H drive can handle power ratings from 150 kW to 1800 KW. At 690V, the drive supports power ratings from 160 kW to 2300 kW. It features two primary motor control modes: V/Hz control and sensorless vector control. V/Hz control provides standard speed regulation by adjusting voltage and frequency, while sensorless vector control offers advanced torque and speed control without the need for motor feedback sensors.

Electrical

The PowerFlex 700H drive features specific electrical characteristics to ensure reliable performance and compatibility with various AC input conditions. The drive can tolerate AC input voltage fluctuations within ±10% of the nominal voltage, providing stability in varying power supply conditions. It operates with a frequency tolerance ranging from 47 Hz to 63 Hz, accommodating standard frequency variations within industrial power systems. The PowerFlex 700H drive maintains a high power factor of 0.98 across its entire speed range, optimizing power efficiency and reducing reactive power consumption. With an efficiency rating of 97.5% at rated amps and nominal line volts, the drive minimizes energy losses and enhances overall system efficiency. In terms of short circuit protection, the drive has a maximum symmetrical short circuit rating of up to 200,000 Amps, ensuring robust protection against electrical faults. The actual short circuit rating is determined by the Ampere Interrupting Capacity (AIC) rating of the installed fuse or circuit breaker.

To ensure reliable operation and motor protection, the PowerFlex 700H drive recommends maintaining a drive-to-motor power ratio not exceeding 2:1. This guideline helps optimize motor performance and longevity while preventing potential issues associated with over-sizing or under-sizing the drive relative to the motor’s power requirements. These electrical specifications highlight the PowerFlex 700H drive’s robust design and compatibility with industrial power systems, ensuring efficient and reliable performance across a range of operating conditions while prioritizing motor protection and energy efficiency.

Drive Enclosure Types

The PowerFlex 700H drive offers versatility through a range of enclosure types, each manufactured to specific environmental needs in industrial settings. These options include IP20/NEMA Type 1, IP21/NEMA Type 1, IP54/NEMA Type 1, and IP54/NEMA Type 12 enclosures. The IP20/NEMA Type 1 enclosure provides basic protection against solid objects and limited protection against dripping water, suitable for indoor environments with minimal dust and moisture exposure. For applications requiring increased moisture protection, the IP21/NEMA Type 1 enclosure offers defense against solid objects and vertically dripping water. The IP54/NEMA Type 1 enclosure extends protection to include dust ingress and splashing water from any direction, which is ideal for indoor settings with moderate dust and moisture levels. The IP54/NEMA Type 12 enclosure safeguards against dust, dirt, and non-corrosive liquid drips, making it suitable for indoor environments with moderate dust and liquid exposure. By offering a choice of enclosure types, the PowerFlex 700H drive ensures optimal performance and reliability in diverse operating conditions, enhancing operational safety and longevity.

PowerFlex 700H Drive Standards, Certifications, and Safety Options

Designed to meet advanced standards and certifications, the PowerFlex 700H drive ensures compliance and operational safety in industrial environments. It is ATEX certified with Safe Torque-off (STO), indicating conformity with ATEX directives for use in potentially explosive atmospheres while incorporating a critical safety function to prevent unintended motor start-up. The drive holds certifications such as C-Tick, UL, c-UL (recognized by Underwriters Laboratories for both the United States and Canada), and CE when used with Rittal enclosures, demonstrating compliance with relevant regulatory requirements in different regions. For global adherence to electrical safety standards, the PowerFlex 700H drive is designed to meet IEC standards when paired with Rittal enclosures and holds TUV FS ISO/EN13849-1 certification, ensuring conformity to safety standards for control systems in machinery. In terms of safety options, the drive features Safe Torque-off (STO), a critical safety function that removes motor torque during emergency stops or safe state conditions, enhancing operator safety and preventing unintended motor movement. These certifications, standards, and safety features underscore the PowerFlex 700H drive’s commitment to reliability, compliance, and safety, providing users with confidence in its performance and adherence to regulatory guidelines.

Communications and I/O Capabilities

With its robust communications and I/O capabilities, the PowerFlex 700H drive is designed to integrate effectively into industrial networks and support flexible programming. With optional communication modules available for Ethernet, ControlNet, and DeviceNet and compatibility with various industrial networks through additional modules, the drive offers versatile connectivity options to suit diverse automation systems. In terms of I/O interfaces, the PowerFlex 700H drive includes six digital inputs, two bipolar differential analog inputs for precise signal measurement, two bipolar single-ended analog outputs for control purposes, and three digital outputs to support different output configurations and external device control. The drive’s programming and hardware interfaces are modeled after the highly regarded PowerFlex 700 AC drive, ensuring a familiar and user-friendly experience for operators familiar with Allen-Bradley’s drive platforms. Standard I/O configurations feature either 24V or 115V digital I/O along with analog I/O options, providing compatibility with various control systems commonly used in industrial settings. For communication, the PowerFlex 700H drive supports NetLinx communication options, including DeviceNet, ControlNet, and EtherNet/IP networks, enabling real-time data exchange and efficient control within complex automation architectures. The PowerFlex 700H drive’s advanced communication capabilities, extensive I/O features, and flexible programming interfaces make it an adaptable solution for industrial motor control applications, optimizing connectivity, control, and monitoring in industrial environments.

Advanced Human Interface Module (HIM) and Configuration Tools

Equipped with a comprehensive LCD Human Interface Module (HIM), the PowerFlex 700H drive features a multi-line, multi-lingual display designed to simplify programming and enhance user interaction. The HIM includes a large backlit display with seven lines and 21 characters, making it easy to read and navigate. It supports various languages, including English, French, German, Italian, Spanish, Portuguese, and Dutch, catering to diverse global users. Alternate function keys provide shortcuts to common tasks, while a calculator-like number pad (available in the Full Numeric version) enables fast and efficient data entry. Control keys on the HIM allow for local start, stop, speed adjustment, and direction control. Remote versions of the HIM are available for panel mount applications, providing flexibility in installation. The HIM’s S.M.A.R.T. Start and assisted startup routines facilitate easy configuration and tuning of the drive, simplifying the commissioning process.

Pull-apart control terminal blocks enable easy wiring and quick disconnect of I/O (Input/Output) connections, streamlining installation and maintenance. The control module is easy to remove and is standardized across all PowerFlex 700H power ratings, ensuring consistency and simplicity in replacements or upgrades.

Environmental Specifications

The PowerFlex 700H drive is designed to operate reliably within specific environmental conditions to ensure optimal performance and longevity in industrial settings. It can function effectively at altitudes up to 1000 meters (3300 feet) above sea level without derating. Beyond 1000 meters, the drive derates by 1% for every additional 100 meters (328 feet) of altitude, with maximum installation altitudes varying based on the AC input voltage. For 380V to 400V AC input, the maximum altitude is 3000 meters (9842.5 feet), while for 415V to 500V AC input and 600V to 690V AC input, the maximum altitude is 2000 meters (6561.7 feet). The drive can be stored safely within a temperature range of -40°C to 60°C (-40°F to 140°F) without affecting its operational integrity. It is important not to install the drive in areas containing volatile or corrosive gases, vapors, or dust. The drive can operate effectively within a relative humidity range of 5% to 95% without condensation, ensuring stable performance in varying humidity conditions. It can withstand non-operational shock of 15G peak for 11 milliseconds duration (±1.0 milliseconds), providing durability against mechanical shocks during handling and transportation. With a vibration tolerance of up to 2 mm (0.0787 inches) displacement and 1G peak, the drive remains stable and operational even in environments with moderate vibrations. These environmental specifications highlight the PowerFlex 700H drive’s resilience and suitability for demanding industrial environments, ensuring reliable operation under specified conditions while maintaining safety and performance standards.

Applications

Some of the practical applications of the PowerFlex 700H drive are given as:

Role of PowerFlex 700H Drive in Mining

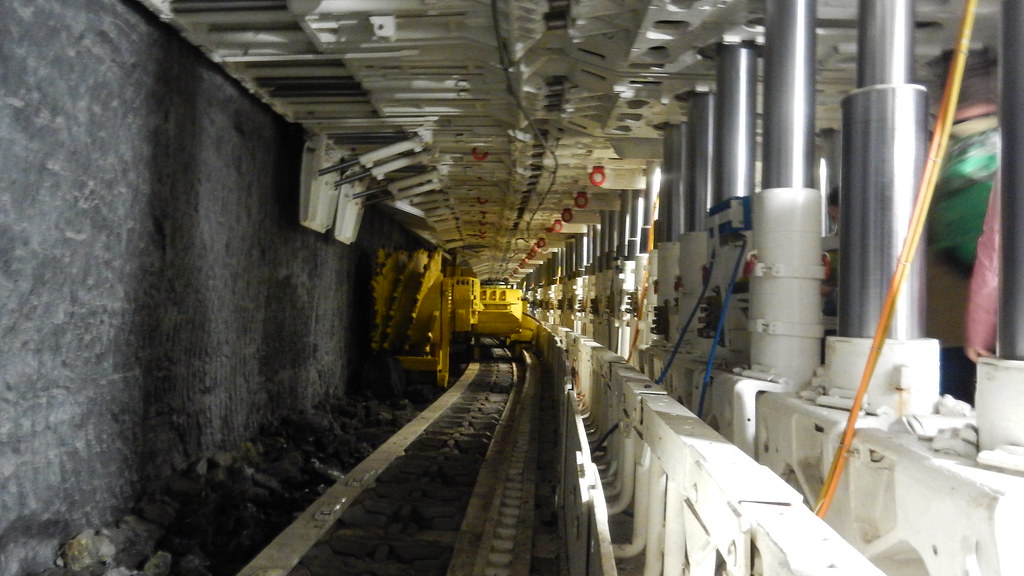

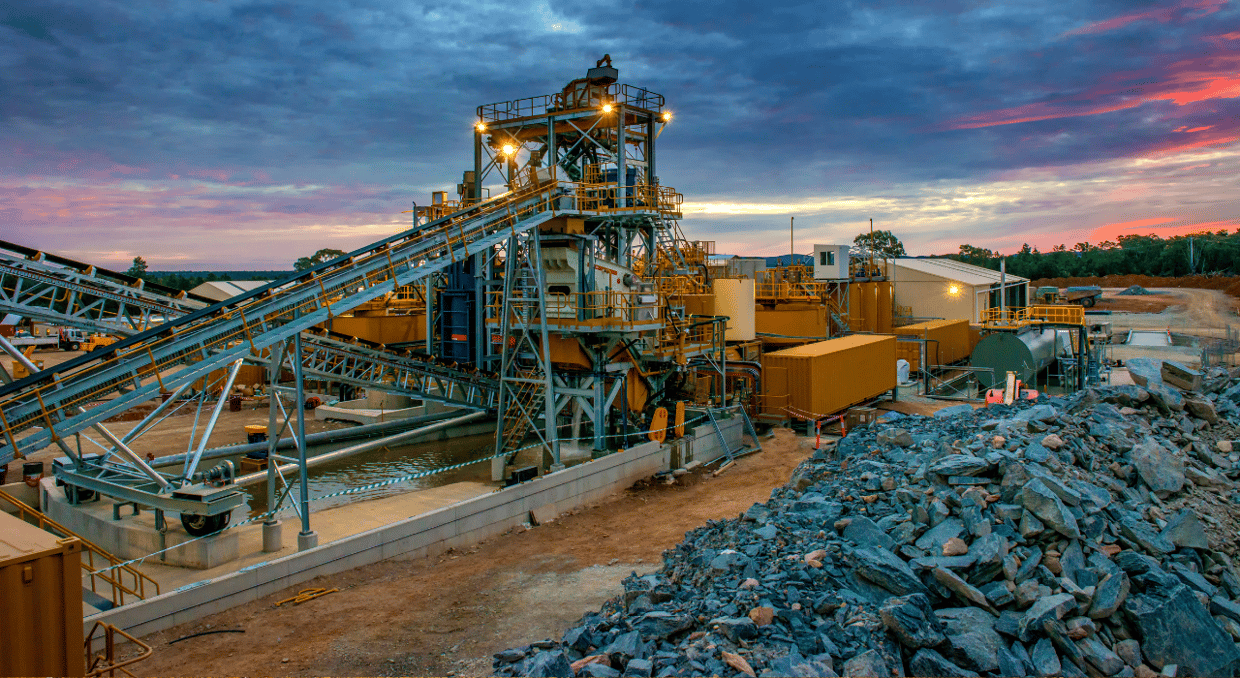

In the mining industry, the PowerFlex 700H drive plays a crucial role in providing precise motor control for large conveyor belt systems that transport ore, minerals, and other materials within mining operations. Its robust design and advanced control capabilities are specifically designed to withstand the harsh environmental conditions encountered in mining settings, ensuring reliable and efficient conveyor belt operation.

One key feature of the PowerFlex 700H drive is its ability to enable variable speed control of conveyor motors based on material flow requirements. This flexibility allows mining companies to optimize material handling processes and output, adapting to changing operational needs and improving overall efficiency. Another important capability of the PowerFlex 700H drive is its ability to handle varying loads, including heavy loads, during peak production periods. By efficiently managing motor loads, the drive ensures consistent performance of conveyor systems, minimizing downtime and maintaining productivity levels.

Deploying the PowerFlex 700H drive in mining conveyor applications has significant benefits. By controlling conveyor belt motors with precision, the drive contributes to increased operational efficiency and reduced energy consumption, translating into cost savings and improved sustainability for mining operations. The drive’s durability and resistance to harsh environmental conditions enhance overall system reliability, ensuring uninterrupted operation of critical conveyor systems essential for mining activities.

Motor Control Solutions for Oil and Gas Applications

In the oil and gas sector, the PowerFlex 700H drive provides essential motor control solutions for a variety of critical applications, including pumps, compressors, and fans in oil refineries, pipelines, and offshore platforms. Its reliable performance and robust design are well-suited to the demanding and challenging environments encountered in the oil and gas industry.

The important area where the PowerFlex 700H drive excels is in controlling pumps used for fluid transfer and circulation within oil refineries and pipelines. Through precise motor control, the drive optimizes pumping operations, resulting in enhanced efficiency and reduced energy consumption. The PowerFlex 700H drive plays a vital role in regulating compressors that maintain pressure levels in processing facilities and offshore platforms. Its advanced control capabilities enable smooth and efficient compressor operation, contributing to overall system performance and safety. The drive provides motor control for essential ventilation fans used in hazardous environments such as offshore platforms. By ensuring reliable and controlled fan operation, the PowerFlex 700H drive helps maintain optimal working conditions and safety standards in oil and gas facilities.

Optimizing Heavy Manufacturing Operations

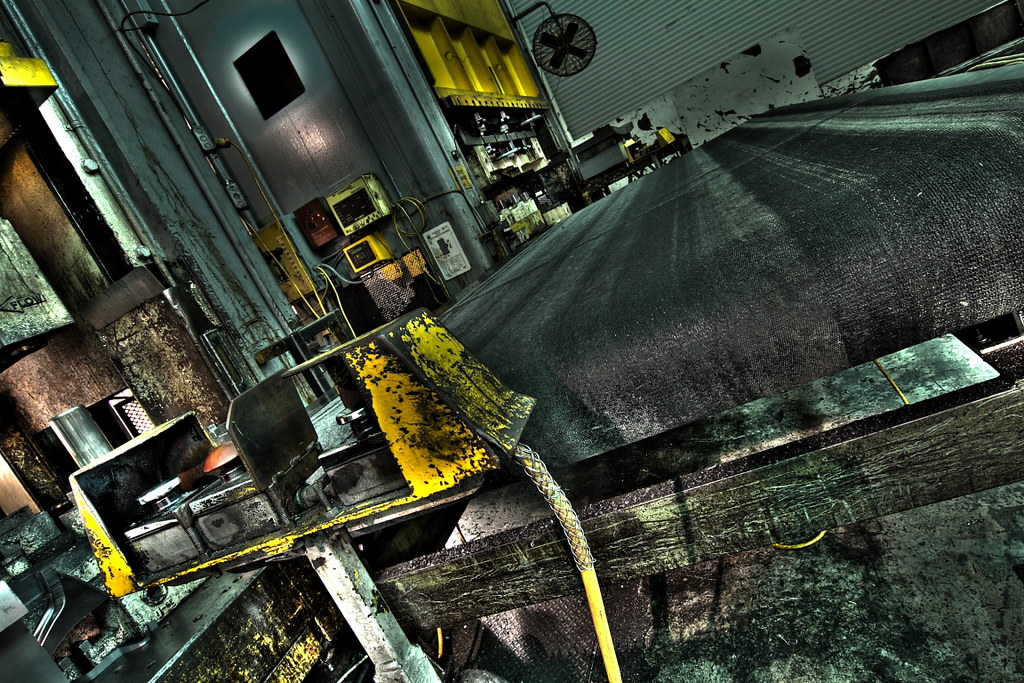

In the domain of heavy manufacturing, including automotive and steel production, the PowerFlex 700H drive plays a vital role in controlling motors that power large machinery and equipment. Its versatility and exceptional performance capabilities are instrumental in optimizing production processes and minimizing downtime within these industries.

The effectiveness of the PowerFlex 700H drive’s ability to provide precise motor control for a wide range of heavy-duty applications. In automotive manufacturing, the drive efficiently manages motors powering assembly line equipment, robotic systems, and conveyors, ensuring smooth and efficient production processes. Similarly, in steel production plants, the PowerFlex 700H drive is deployed to control motors driving rolling mills, extruders, and material handling systems. Its robust design and advanced control features enable precise speed and torque control, contributing to enhanced productivity and product quality. The versatility of the PowerFlex 700H drive allows it to adapt to diverse manufacturing environments and applications, providing manufacturers with the flexibility needed to optimize their operations. By integrating the drive into their machinery and equipment, heavy manufacturing industries benefit from increased efficiency, reduced energy consumption, and improved reliability, ultimately driving operational excellence and competitiveness in the market.

Conclusion

In conclusion, the PowerFlex 700H drive is a versatile and robust solution designed for heavy-duty industrial applications. Its precise motor control capabilities, diverse voltage and power range compatibility, and advanced control modes like V/Hz and sensorless vector control make it ideal for optimizing efficiency and performance in mining, oil and gas, and heavy manufacturing sectors. With a high power factor, efficient operation, and adherence to precise standards and certifications, the PowerFlex 700H drive ensures reliability, safety, and energy efficiency in industrial environments worldwide. From controlling conveyor systems to powering pumps and machinery, this drive exemplifies excellence in heavy-duty motor control, driving operational excellence and competitiveness in industrial automation.
