The PowerFlex 4M Effect: Revolutionizing Routines, One Rotation at a Time

When it comes to motor speed control, the PowerFlex 4M AC Drives stand out as the most compact and cost-effective members of the PowerFlex family. Designed with feed-through wiring and intuitive programming, these drives offer unparalleled flexibility, making them suitable for a wide range of applications. The PowerFlex 4M AC Drives are available in three frame sizes A, B, and C and with power ratings ranging from 0.2 to 11 kW (0.25 to 15 Hp), these drives can handle various applications with ease. The PowerFlex 4M AC Drives are designed and manufactured by Allen Bradley/Rockwell Automation.

Optimized Performance with PowerFlex 4M AC Drives

The PowerFlex 4M AC Drives ensure reliable operation with advanced features. They include a removable MOV for dependable performance in ungrounded or resistive systems and a relay precharge mechanism that limits inrush current for enhanced protection. Frame C models feature an integral brake transistor for dynamic braking with low-cost resistors, balancing efficiency and economy. The drives offer flexible control wiring through a DIP switch settable 24V DC sink or source control, accommodating various installation needs.

• The PowerFlex 4M AC Drives are designed to handle significant overload conditions.
• Overload Capacity: Handles 0.25% to 150% overload for 60 seconds and manages 200% overload for 3 seconds.
• Adjustable PWM Frequency: The PowerFlex 4M AC Drives feature adjustable PWM Frequency, operating up to 10 kHz, ensuring quiet operation.
• Volts per Hertz Control: They also incorporate Volts per Hertz Control, providing consistent performance across a range of operating conditions.
• Auto Boost and Slip Compensation: Automatically provides IR compensation and slip compensation for optimal speed regulation and high torque across the entire speed range.

Electrical Specifications

The electrical specifications emphasize the PowerFlex 4M AC Drives’ robust capabilities, ensuring compatibility across a wide range of voltages, reliable performance in diverse conditions, and effective short-circuit protection.

• Voltage Tolerance: The PowerFlex 4M AC Drives operate with a voltage tolerance of ±10% for different input ranges (200-240V, 380-480V, and 460-600V).
• Frequency Tolerance: The drives accept input frequencies ranging from 48 to 63 Hz.
• Input Phases: While three-phase input provides the full rated capacity, single-phase operation allows for 35% of the rated current.
• Maximum Short Circuit Rating: The drives are rated for a maximum short circuit capacity of 100,000 Amps Symmetrical.
• Actual Short Circuit Rating: The actual short circuit handling capacity depends on the installed fuse or circuit breaker’s AIC (Ampere Interrupting Capacity) rating.
• Transistor Type: Utilizes Isolated Gate Bipolar Transistors (IGBTs), ensuring efficient and reliable performance in diverse industrial applications.

Communications Capabilities of PowerFlex 4M AC Drives

The comprehensive communication features of the PowerFlex 4M AC Drives ensure versatile connectivity options, supporting efficient and effective industrial operations across different platforms and protocols.

• Serial Converter Module: Provides connectivity to controllers capable of initiating DFI messaging.
• Bluetooth – Wireless/DF1 to RS 485/DSI: Enables wireless communication via Bluetooth technology, facilitating connectivity in various configurations.
• Integral RS485/DSI Communications: Allows for use in multi-drop network configurations, enhancing flexibility in industrial applications.
• Optional Integral Communication Cards: Devices such as DeviceNet, EtherNet/IP, PROFIBUS DP, LonWorks, BACnet, and ControlNet can be integrated for improved machine performance. These cards require an external DSI communications kit.
• DSI Wireless Interface Module (WIM): Facilitates wireless communication between devices equipped with Bluetooth technology and Allen-Bradley products supporting the DSI protocol, including Pocket PCs, laptops, and desktop computers.

Environmental Specifications for PowerFlex 4M AC Drives

The environmental specifications ensure the PowerFlex 4M AC Drives operate reliably within a wide range of conditions, making them suitable for diverse industrial applications where robust performance is essential.

• The PowerFlex 4M AC Drives can operate at a maximum altitude of 1000 m (3300 ft) without requiring derating.
• For IP20 rated drives, the operating temperature ranges from -10 to 50°C (14 to 122°F).
• IP20 zero stacking configuration allows operation in temperatures from -10 to 40°C (14 to 104°F).
• Convection cooling supports up to 0.75 kW (1 HP) for 120V 1-Phase and 0.4 kW (0.5 HP) for 240V 1-Phase.
• Fan cooling is suitable for up to 0.75 kW (1 HP) for 240V 3-Phase and 480V 3-Phase drives, and for all other drive ratings.
• The drives can be stored in temperatures ranging from -40 to 85°C (-40 to 185°F).
• It is critical that the drive is not installed in environments containing volatile or corrosive gases, vapors, or dust. During storage periods, ensure the drive is kept in an atmosphere free from corrosive elements.
• Operating conditions support a relative humidity range of 0 to 95% non-condensing.
• The drives can withstand shocks of 15G peak for 11ms duration (±1.0ms) during operation.
• They tolerate vibrations of 1G peak across frequencies ranging from 5 to 2000 Hz, ensuring stable performance in industrial settings.

Revolutionizing Routines

The PowerFlex 4M AC Drives are revolutionizing industrial routines and enhancing operational efficiency “one rotation at a time” through several key practical advantages:

Compact and Cost-effective Design:

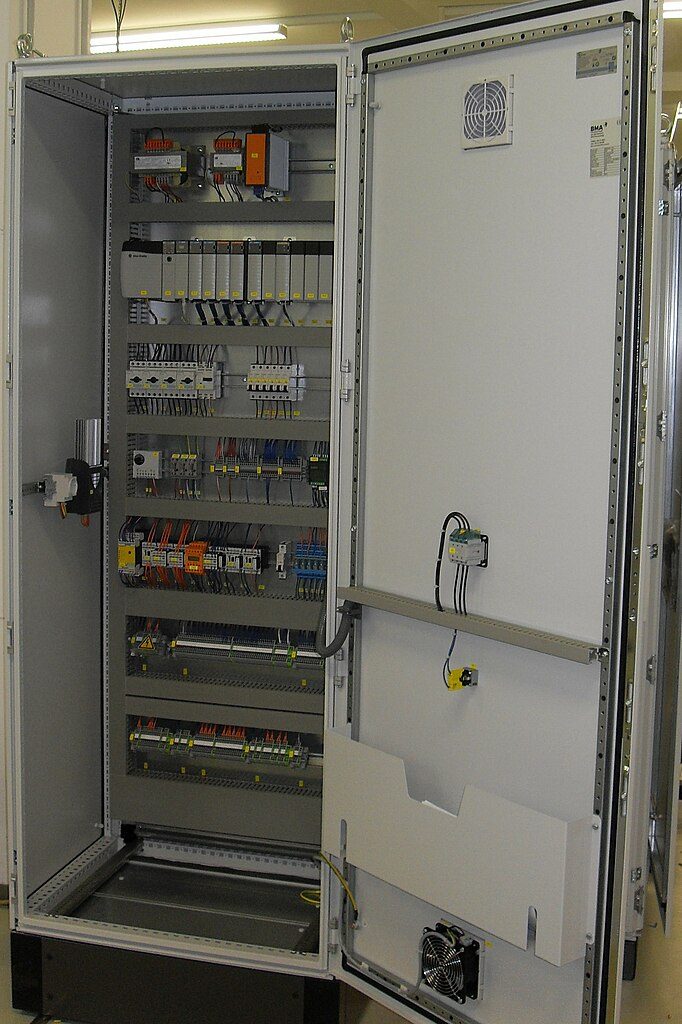

As the smallest and most cost-effective members of the PowerFlex family, these drives offer space-saving solutions without compromising performance. This makes them ideal for a wide range of applications, from simple machinery to complex industrial processes. In a manufacturing facility, the PowerFlex 4M drives are installed in compact control panels to regulate conveyor belt speeds in a production line. Their small size allows for efficient use of space while maintaining high performance, contributing to streamlined operations and reduced footprint.

Versatile Application Capabilities:

With three frame sizes and a wide power rating range (0.2 to 11 kW), the PowerFlex 4M AC Drives cater to diverse application needs across different voltage classes (120V, 240V, and 480V). This versatility ensures they can be deployed in various environments without the need for extensive modifications. At a water treatment plant, the PowerFlex 4M drives are used to control the pumps for different treatment processes. With their ability to handle various voltage classes (120V, 240V, 480V), the drives are deployed across different sections of the plant without needing extensive modifications, ensuring reliable water purification operations.

Enhanced Performance and Control:

These drives provide precise motor speed control with features like adjustable PWM frequency (up to 10 kHz) and Volts per Hertz control, ensuring quiet operation and consistent performance across different operating conditions. Features such as auto boost and slip compensation further optimize speed regulation and torque, enhancing overall efficiency. In an automotive assembly line, the PowerFlex 4M drives regulate the speed of robotic arms used for welding and assembly tasks. The adjustable PWM frequency and Volts per Hertz control ensure precise movement control, reducing cycle times and enhancing manufacturing efficiency with consistent performance across varying operational demands.

Reliability and Protection:

Built-in features like removable MOVs for ungrounded systems, relay precharge for inrush current limitation, and robust electronic motor overload protection (compliant with NEC standards) ensure reliable and safe operation. This reliability extends to their environmental specifications, allowing operation in challenging conditions such as varying temperatures, humidity levels, and mechanical stresses. In a food processing facility, the PowerFlex 4M drives control the mixers and blenders used in recipe preparation. The drives’ built-in electronic motor overload protection and reliable operation in varying environmental conditions ensure uninterrupted production, meeting stringent hygiene and safety standards while minimizing downtime due to motor failures.

Advanced Communication and Connectivity:

Equipped with versatile communication options, including Bluetooth, integral RS485/DSI, and optional communication cards (DeviceNet, EtherNet/IP, etc.), these drives facilitate seamless integration into networked industrial environments. This connectivity enhances overall system flexibility and efficiency. At a pharmaceutical manufacturing plant, the PowerFlex 4M drives are integrated into a networked system using EtherNet/IP communication. This integration allows real-time monitoring and control of critical equipment such as granulators and tablet presses, enabling proactive maintenance and optimizing production output while complying with regulatory requirements.

Conclusion

Conclusively, the PowerFlex 4M AC Drives represent a significant advancement in industrial motor control technology, offering a blend of compact design, cost-effectiveness, and robust performance features. These drives are designed to meet the diverse needs of industrial applications, ranging from manufacturing and water treatment to automotive assembly and food processing. Their ability to handle various voltage classes, coupled with precise motor speed control and advanced protection mechanisms, ensures reliable operation under demanding conditions. The PowerFlex 4M drives enhance operational efficiency through streamlined integration into networked environments, facilitated by versatile communication options like Bluetooth and integral RS485/DSI. This connectivity supports real-time monitoring and control, enabling proactive maintenance and optimizing production output in industries such as pharmaceutical manufacturing. With their compact footprint, versatile application capabilities, and reliable performance across varying environmental conditions, the PowerFlex 4M AC Drives are indeed revolutionizing industrial routines “one rotation at a time.” They exemplify Allen-Bradley’s commitment to innovation and excellence in industrial automation, offering solutions that not only meet but exceed the expectations of modern industrial operations.
