Simplifying Motor Control with the PowerFlex 525: An Essential Guide

The purpose of the PowerFlex 525 drive series is to improve and streamline motor control in various industrial applications. This article explores the advanced features of the PowerFlex 525 series, emphasizing its extensive I/O support for intricate automation jobs, flexible motor control techniques for accurate operation, and integrated Ethernet/IP connection for easy system integration. We have also discussed features like Safe Torque-Off, voltage compatibility, and the capacity to withstand harsh conditions, which tells us that the PowerFlex 525 drives are built to meet the demands of contemporary industries and provide effective, dependable, and flexible motor control solutions. Then we will be discussing some of the example modules of this series.

Features that assist in Simplifying Motor Control

Communication using Integrated Ethernet:

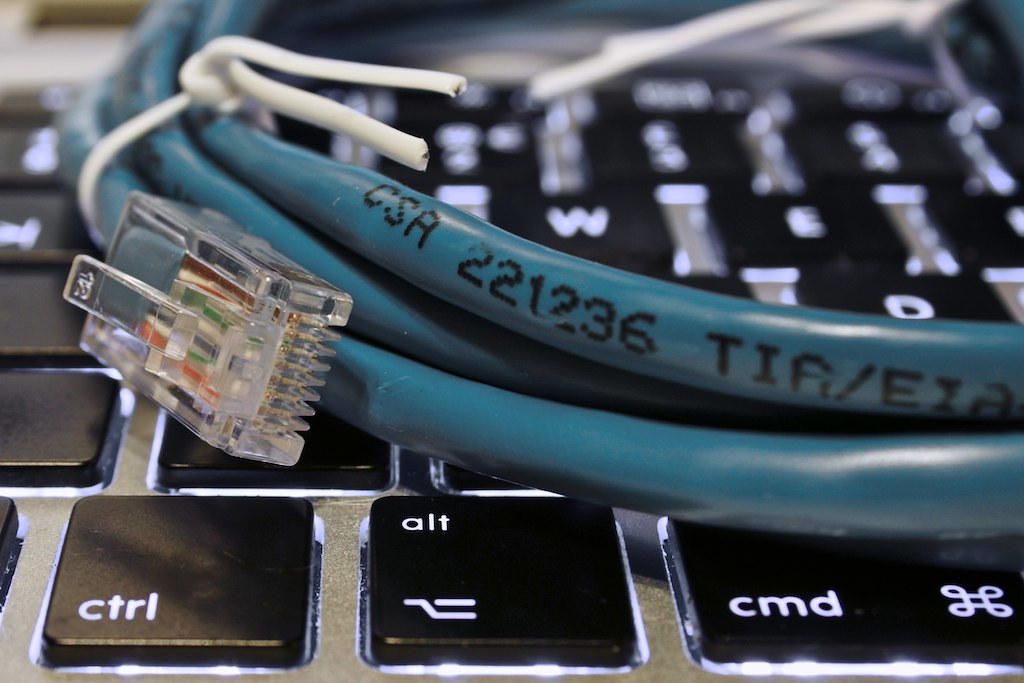

The integrated Ethernet connection interface on the PowerFlex 525 drives, compatible with EtherNet/IP protocols, is one of its best features. This feature makes it possible to control, monitor and seamlessly integrate into current industrial networks. Additionally, the drives have a dual-port Ethernet card that is optional and supports the Device Level Ring (DLR) architecture, which adds redundancy to the network. The drives are perfect for critical applications because of this, which guarantees ongoing functioning even in the case of a network outage.

Wide Voltage Range:

The worldwide voltage classes that the PowerFlex 525 drives are intended to handle range from 100 to 600 Volts AC. The drives’ wide voltage range makes them compatible with different power systems, making them adaptable and appropriate for use in several global contexts. Inventory management is made simpler and more affordable with the elimination of the requirement for distinct drive models for different locations thanks to the worldwide voltage support.

Advanced Methods for Motor Control:

Volts per Hertz, sensorless vector control, closed-loop velocity vector control, and permanent magnet motor control are among the sophisticated motor control techniques available on the PowerFlex 525 drives. Accurate speed and torque management is necessary in some applications, and these control approaches optimize performance by enabling precise and economical motor operation. The drives are appropriate for a variety of industrial operations, including those needing a high degree of accuracy, thanks to their sophisticated control capabilities.

Options for Positioning Control:

Advanced positioning control features, such as point-to-point positioning mode and closed-loop feedback with an optional encoder, are also supported by PowerFlex 525 drives. For applications like robotics and automated material handling systems, which demand precise positioning and motion control, these characteristics are essential. The drives’ greater suitability in high-tech and precision-driven sectors stems from their capacity to provide accurate placement.

Extensive I/O Support:

With two analog inputs, seven digital inputs, one analog output, two opto outputs, and two relay outputs, the PowerFlex 525 drives provide a wide range of input/output (I/O) possibilities. Numerous sensors, actuators, and control systems may be integrated in a variety of ways thanks to this extensive range of I/O choices. The drives are appropriate for advanced automation applications because of their extensive I/O capabilities, which allow them to execute complicated control duties.

Safe Torque-Off (STO) Function:

One of the critical safety features of the PowerFlex 525 drives is the Safe Torque-Off (STO) functionality. This feature prevents the motor from generating torque without cutting off the entire power supply, making it safe for maintenance or intervention. The STO function is crucial for enhancing worker safety and protecting equipment, especially in applications requiring compliance with global safety standards.

 Environmental Features:

The PowerFlex 525 drives are engineered to function in an extensive variety of environmental circumstances. Drives in Frames A through D have a storage temperature within the range of -40 ^oC-85^oC, while drives in Frame E can be stored in the range of -40 ^oC-70 ^oC.

Applications and Power Rating:

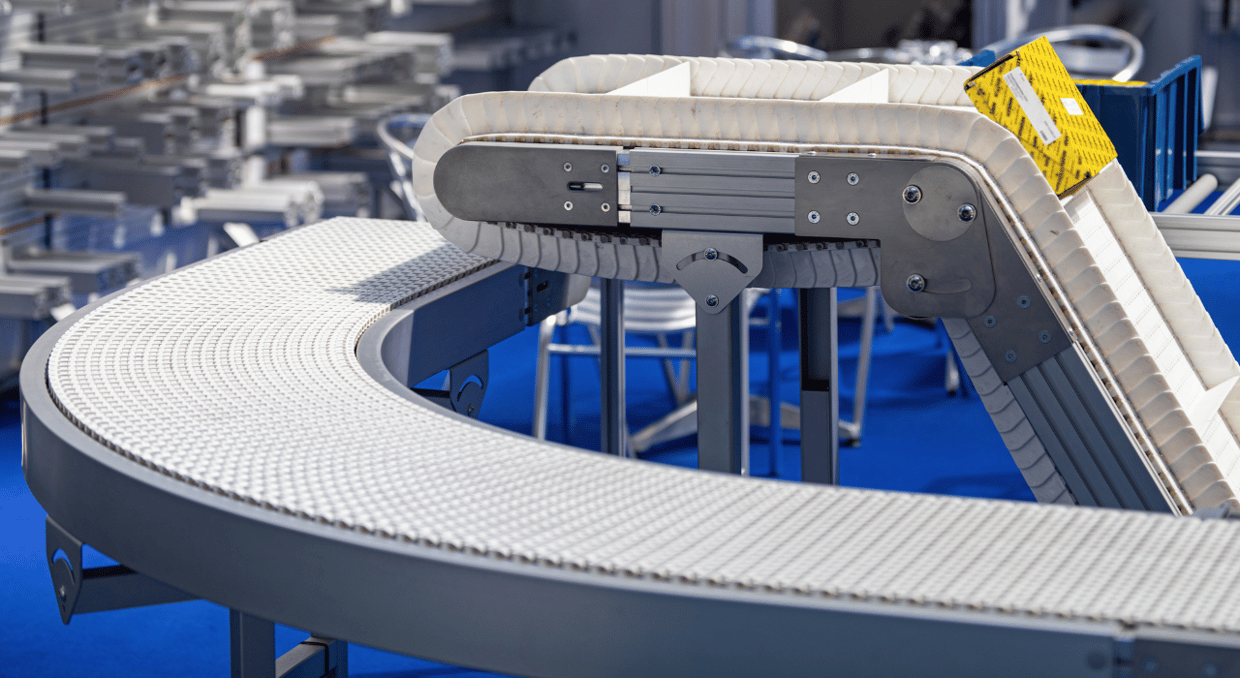

With power ratings of up to 30 horsepower, the PowerFlex 525 drives are perfect for a vast range of industrial settings, including pumps, fans, and conveyors. Because of its broad power rating range, the drives may be used in high- and low-power applications, giving system designers more options. The power ratings’ flexibility guarantees that the drives can satisfy the unique requirements of various industrial processes, maximizing motor efficiency and reducing energy consumption.

Model Specific Characteristics

25B-A011N114:

With its 240V AC single-phase input and 11 Amp output, the 25B-A011N114 PowerFlex 525 AC drive simplifies motor control while offering 3 HP (2.2 kW) of power. It has a standard brake module and an EMC filter to lessen electromagnetic interference, all housed in an IP20 NEMA-rated shell. SVC, sinusoidal PWM, Volts per Hertz and other flexible control techniques are implemented by this drive. The tiny 25B-A011N114, which has various certifications, is made for dependable and uncomplicated motor control, making installation and operation simple. Optimal performance is ensured by proper installation.

25B-B062N104:

The modular architecture of the 25B-B062N104 drive, includes removable control and power modules, that streamline motor control. It runs on a 3-phase 240V AC voltage, producing 61.1 Amps and accommodating 15 HP for heavy load and 20 HP for standard use. With pulse width modulation up to 16 kHz, this module has different control choices, including Permanent Magnet Motor Control, Volt per Hertz and SVC. With features including DSI/RS-485 connectivity, an inbuilt Ethernet/IP interface, and flexible input/output choices, the 25B-B062N104 guarantees accurate and dependable motor control in different industrial settings.

25B-D037N114:

With its small, space-saving form, the 25B-D037N114 PowerFlex 525 AC Drive provides a simplified method of motor control, making it perfect for panels with limited space. It produces 20 HP for heavy-duty applications and 25 HP for standard-duty applications while running on 480V AC 3-phase input. Through Ethernet/IP and RS-485, the drive easily connects into Logix settings, making network connection with PACs, HMI, and SCADA systems simple. Versatile control choices are possible due to its communication interfaces, inbuilt keypad and input/output channels. Additionally, operating efficiency is improved by the integrated brake IGBT and innovative motor control techniques. Reliable performance in difficult situations is ensured by the drive’s EMC filtering and IP20 NEMA casing.

25B-E012N104:

The varied features of the 25B-E012N104 PowerFlex 525 VFD, which include speed and torque management for AC motors, simplify motor control. It supports motors up to 10 HP and operates on a 446-660V AC 3-phase input. Its output voltage is up to 575V AC with a 12A current rating. The drive has several control options, including PI control, Sensorless Vector Control, and Sinusoidal PWM. Its smooth Ethernet/IP integration allows for remote operation, and its IP20 casing guarantees longevity in non-hazardous settings. The customizable output frequency and sophisticated control features of the 25B-E012N104 make it a dependable alternative for enhancing motor performance in a range of industrial applications.

25B-V6P0N104:

The 25B-V6P0N104 PowerFlex 525 VFD offers sophisticated features for accuracy in industrial applications while streamlining motor control. Through superior integration, this Ethernet-capable drive improves system performance when used with Allen-Bradley’s CompactLogix and ControlLogix controllers. It can support motors up to 1.5 HP and operates on a 100-120V AC, 1-phase input. It can give up to 230V AC, 3-phase output with 6.0A current. It also comes with an analogue loop automation PID control method. The 25B-V6P0N104 has a built-in IGBT brake, a conventional HIM for local operation, and a USB connection for flexible setup. Its 97.5% efficiency and 0-500 Hz output frequency, along with its efficient design, make it the perfect choice for energy-conserving applications.

Conclusion

In conclusion, The PowerFlex 525 drive series provides cutting-edge motor control options intended to boost dependability and efficiency in a range of industrial applications. These drives offer smooth integration and accurate operation with features including variable motor control techniques, global voltage support, and integrated Ethernet/IP connection. Their wide I/O choices and safety features, such as Safe Torque-Off, make them perfect for complicated automation jobs, and their sturdy architecture assures performance in tough conditions. For enterprises looking for trustworthy and efficient motor control solutions, the PowerFlex 525 series provides a flexible and adaptable option.  Towards the conclusion, we covered various sample modules, such as 25B-A011N114, 25B-B062N104, 25B-D037N114, 25B-E012N104, and 25B-V6P0N104. If you would like to see how the PowerFlex 525 stack up against the PowerFlex 40 drives, you can check that article out HERE.
