Your One Stop Selection Guide for the PowerFlex 755 Drive

The PowerFlex 755 series is a family of variable frequency drives (VFDs), designed to control the speed and torque of AC motors in various applications. This article offers detailed insights into different features of the drives’ voltage and power ranges, control options, safety features, and communication capabilities. We will also look at the versatile enclosure options, programming tools, and pre-engineered power bays that enhance operational efficiency and ease of maintenance. We will also discuss different modules of this drive series in the later part of the article.

Features of the PowerFlex 755 Series

Voltage and Power Ranges:

PowerFlex 755 drives are designed to accept input voltages ranging from 200V AC to 690V AC, providing flexible voltage and power ranges. These drives may be tailored to meet diverse industrial needs due to their power capacities, which are appropriate for a range of applications. Because of their versatility, they can effectively handle a variety of motor control applications, ranging from low-power machinery to high-power industrial equipment.

Control Options:

PowerFlex 755 drives support different control choices which include permanent magnet motor control, sensorless vector control, volts per Hz control, and vector control using FORCE technology. These various control techniques provide accurate and effective motor management, allowing users to customize drive performance to meet the demands of particular applications and guarantee optimal performance in a variety of industrial environments.

Safety Features:

Safe Torque-off and Safe Speed Monitor are two optional inbuilt safety features included in the PowerFlex 755 drives. By offering safe pausing and monitoring during emergencies or maintenance, these features improve operational safety by safeguarding both people and equipment. Global requirements are met by integrated safety choices, guaranteeing dependable and secure motor control in industrial settings.

Communication Capabilities:

EtherNet/IP modules with integrated motion allow these drives to easily integrate with different industrial communication networks. This enables effective data sharing and control by supporting integration into ring, star, and linear topologies. Across various network configurations, the strong communication capabilities guarantee dependable performance and seamless operation.

Options for Enclosures:

There are several enclosure types for PowerFlex 755 drives such as IP 00, IP 20, NEMA/UL type open, flange-mounted, and IP 54 NEMA/UL type 12. These choices enable the drives to be utilized in a variety of industrial conditions while retaining excellent performance and durability. They offer varied degrees of protection against dust, water, and physical damage.

Automatic Device Configuration:

With the help of the Automatic Device setup function, Logix controllers may automatically download setup parameters to newly installed SSDs. This makes maintenance easier and cuts down on downtime, guaranteeing that the drives can be restarted promptly and effectively. This function reduces the burden of drive replacements while increasing productivity.

Tools for Programming and Configuration:

DriveTools software, an LCD HMI module, the SP software or the Connected Components Workbench (CCW) software, can be used for the programming and configuration of PowerFlex 755 drives. The setup procedure is streamlined by sophisticated tools and user-friendly interfaces, making it simple to adjust and optimize drive settings to match the demands of particular applications.

Motor Control Applications:

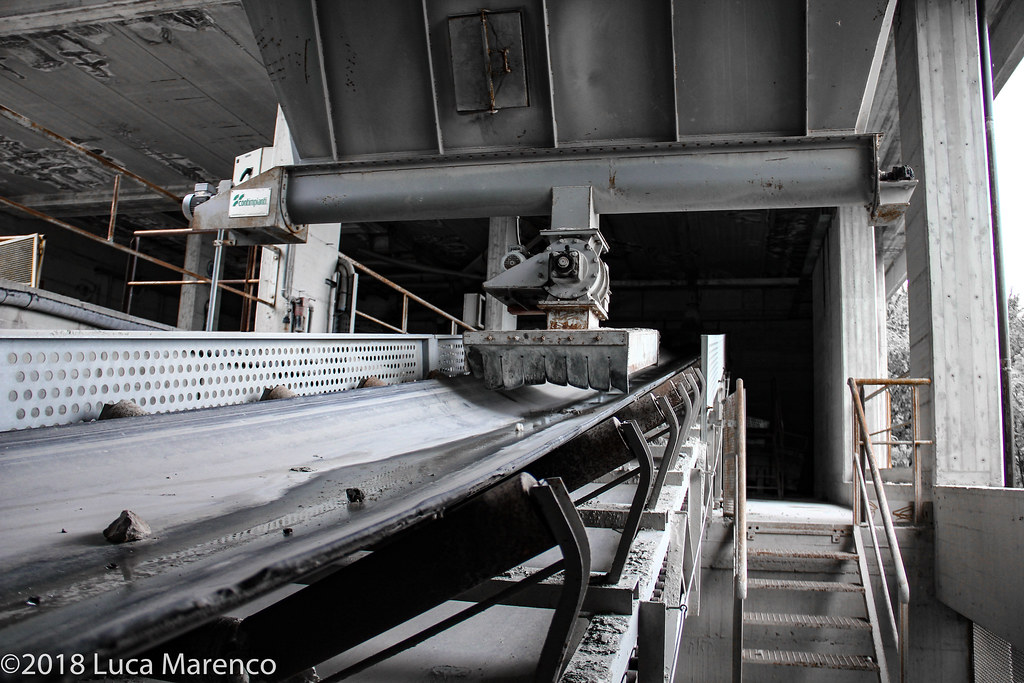

Conveyors, pumps, and fans are just a few of the motor control applications for which these drives are intended. Because of their versatility, they may be used in various industrial processes, offering accurate torque and speed control to improve these applications’ effectiveness and performance. Because of their adaptability, the drives can satisfy a range of operating requirements.

Pre-designed Bays for Power Options:

The PowerFlex 755 series’ pre-engineered power option bays offer affordable alternatives for well-liked power choices. These bays ensure a simplified and effective setup by making it easier to integrate extra power features, which eliminates the need for bespoke engineering. The drives’ adaptability to varying power requirements is improved by this feature.

Now we will discuss some of the example modules:

20-750-ENETR:

The 20-750-ENETR is a dual Ethernet/IP adapter module for the PowerFlex 755 drives. With communication speeds of 10 Mbps and 100 Mbps, both full and half duplex, it supports the adapter and tap modes. In addition to supporting 16 MSG commands at once, the module supports up to 30 Ethernet connections. In addition to supporting star, linear, and DLR topologies, it has incorporated motion over Ethernet and the Drive DPI protocol. The module guarantees simple network integration and configuration with included EDS files and IP address switches. Temperatures range from -10 to +50 °C for operation and -40 to +85 °C for storage. For improved performance and dependability, DeviceLogix technology and predictive diagnostics are included in this module.

20-750-S3:

Within the PowerFlex 755 series drives, the 20-750-S3 integrated safety module supports the safe torque off (STO) feature. For mechanical operations on machines, the STO function—which blocks illegal motor activation via hardwired or networked commands—is perfect. A 24V DC PELV or SELV supply is needed for it. With an off-state maximum of 5V DC and an on-state input voltage range of 11–30V DC, the module has current-sinking inputs. It needs an IP 54 enclosure or a contamination-free environment, and it employs conductors that are between 28 and 18 AWG. The 20-750-S3 satisfies safety laws since it is UL-registered and approved by CE, C-Tick, and TUV standards.

20-750-UFB-1:

From the PowerFlex 755 series, the 20-750-UFB-1 universal feedback option module is necessary if you want to use the safe speed monitor option. It may be configured to connect to either the primary, secondary, or both safety channels. It has two status indicators and DIP switches. It is compatible with a 10mA current sink and allows differential or single-ended operation with Heidenhain, SSI, Stegmann, BiSS, Stahl, and Temposonics encoders. With a maximum wire length of 30 meters and an input frequency of up to 250 kHz, the module runs at 3.5-7.5V DC. The PowerFlex 755 drives’ adaptability and security are increased by the 20-750-UFB-1, which installs easily into a variety of configurations.

20G11BC1K6JN2NNNNN:

With a catalogue number of 20G11BC1K6JN2NNNNN, the PowerFlex 755 drive is a high-performance motor control device that can deliver up to 250 kW, 300 HP, and 265 amps at 400V AC/540V DC. It has an IP20, NEMA/UL Type 1 enclosure, standard cabinet colour (RAL 7032), and a 600 mm depth. It has an AC & DC input with pre-charge, filtering, and a default common mode (CM) cap connection with a jumper installed. It is not equipped with an internal resistor or transistor. This drive is perfect for industrial applications because it provides sturdy performance, flexibility, and dependable motor control.

20G11BD1K2AN0NNNNN:

The PowerFlex 700 series AC drive, 20G11BD1K2AN0NNNNN, has cutting-edge features for improved performance. Discrete inputs and onboard status data are used by this drive, which is backed by predictive diagnostics to keep an eye on cooling fans and relay outputs. Its choice cards and slot-based architecture simplify the handling of spare parts and inventories. All PowerFlex 755 AC drives may simply have an EtherNet/IP connection interface added to them. It has a 3-phase input and runs at 480 volts AC. It can support 1100 horsepower for light duty, 1000 horsepower for regular duty, and 800 horsepower for heavy load.

20G11FC030AA0NNNN:

The 20G11FC030AA0NNNN AC drive has different motor control applications like conveyors, fans, and pumps because of its excellent performance and versatility in application design. Predictive diagnostics are included in the drive to measure runtime hours for the machine and motor bearings, as well as to monitor the cooling fans and relay outputs. It has an integrated EtherNet connection and option cards for dependable internal connectivity, all thanks to its slot-based design. To satisfy different environmental requirements, the drive is offered in enclosures that may be installed in the field or at the plant. Its typical power structure is shared by other devices, therefore its size and power range remain constant. Drive control and discrete outputs are supported by the DeviceLogixTM embedded control technology in the 20G11FC030AA0NNNN.

Conclusion

In conclusion, the PowerFlex 755 series provides a flexible selection of variable frequency drives made to accommodate a variety of industrial requirements. These drives cater to both low- and high-power applications since they provide a range of power capacities with input voltages from 200V AC to 690V AC. Precise motor control is possible in different settings because of the vast array of control choices, which include FORCE technology and sensor-less vector control. Optional features that safeguard persons and equipment, such as Safe Torque-off and Safe Speed Monitor, improve safety. With the help of EtherNet/IP modules, the strong communication capabilities enable a smooth integration into a variety of network topologies, improving control and data exchange. In addition, the PowerFlex 755 series simplifies setup and maintenance with its advanced programming tools, automated device configuration, and flexible enclosure options. The 20-750-ENETR, 20-750-S3, and 20-750-UFB-1 modules, among others, enhance the functionality of the drives by meeting the demands of certain applications and safety regulations. A variety of variants, including the 20G11BC1K6JN2NNNNN, 20G11BD1K2AN0NNNNN, and 20G11FC030AA0NNNN, make up the PowerFlex 755 series, which offers dependable performance and versatility, making it a good option for a broad range of motor control applications.
