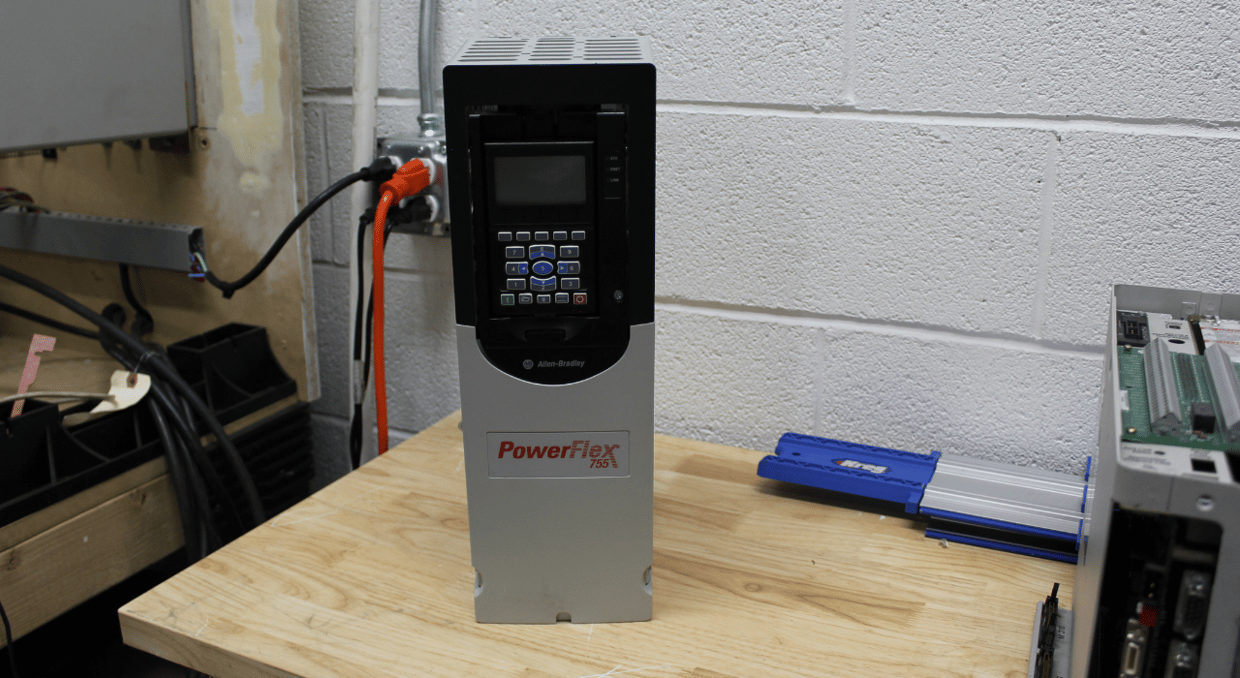

Maximizing operational efficiency and dependability is essential in today’s industrial environment. PowerFlex 755 series of AC drives combine state-of-the-art technology and strong features to improve performance in various applications. These drives provide unmatched versatility, smooth integration, and user-friendliness, ranging from high-performance motor control to cutting-edge safety solutions. This article explores the sophisticated features of the PowerFlex 755 series, emphasizing the ways in which these drives may enhance industrial operations, increase safety, and simplify tasks for a variety of applications, including conveyors, pumps, fans, and more. Then we will be discussing different example modules of this series.

Features of PowerFlex 755 series

High-Performance Control and Application Flexibility

With their high-performance control and versatility, the Allen-Bradley PowerFlex 755 AC drives are ideal for industrial applications including fans, pumps, and conveyors. These drives improve motor control efficiency on the manufacturing floor by integrating with a range of hardware and control solutions to fulfill varying operating demands.

Integrated Motion Control with EtherNet/IP Modules

Integrated motion control is supported by PowerFlex 755 drives with EtherNet/IP modules. With the support of linear, star, and ring topologies, this feature facilitates smooth access to industrial communications networks, allowing for flexible and dependable system integration.

Automatic Device Configuration for Simplified Setup

With the help of the Automatic Device Configuration function, replacement PowerFlex 755 drives may have their configuration parameters immediately retrieved from Logix controllers. By doing this, the setup procedure is streamlined, decreasing downtime and guaranteeing uniform operating settings between drive replacements.

Wide Voltage and Power Range Accommodations

With voltage ranges of 200V to 240V AC, 380V to 480V AC, and up to 690V AC, PowerFlex 755 drives are very adaptable. Compatibility with a wide range of industrial applications and power requirements is ensured by this broad range of voltage and power options.

Flexible Enclosure Mounting Options

A variety of enclosure styles, such as IP 00, IP 20, NEMA/UL type open, flange-mounted, or IP 54 NEMA/UL type 12 rated enclosures, are available for mounting these drives. Installation in a variety of situations and protection levels is made possible by this versatility.

Versatile Control Options with Advanced Technologies

Several control choices are supported by the PowerFlex 755 series, including sensorless vector control, voltages per Hz control, permanent magnet motor control, and vector control using FORCE technology. These choices offer sophisticated control strategies to maximize motor function.

Pre-Engineered Power Option Bays for Cost Efficiency

Pre-engineered power option bays are a feature of PowerFlex 755 drives, which provide an affordable solution for common power needs. Through the integration of standard power options into the drive system, this design lowers costs and simplifies configuration.

Programming and Configuration Tools

DriveTools software, the LCD HMI module, Connected Components Workbench software, or SP software can be used to program and configure drives in the PowerFlex 755 series. A crucial component that offers an easily navigable and user-friendly configuring experience is the LCD interface.

Embedded Safety Capabilities

Optional inbuilt safety features are included with the PowerFlex 755 drives to improve operational safety and compliance. These characteristics offer further security and dependability in industrial settings where worker safety is a top priority.

Optimized for Industrial Motor Control

The PowerFlex 755 drives are made to withstand the rigors of industrial flooring and are particularly designed for industrial motor control. Their sturdy construction and adaptable features guarantee efficient motor control in a range of industrial applications, improving system performance as a whole.

Integrated Safety Solutions Accredited by SIL2/PLd

The PowerFlex 755 drives provide integrated safety solutions with Safety Integrity Level 2 (SIL2) and Performance Level d (PLd) certification for applications needing increased safety. By assisting in the protection of both people and equipment, these safety measures enable hazardous situations to satisfy strict safety regulations.

Example Modules of PowerFlex 755 Series

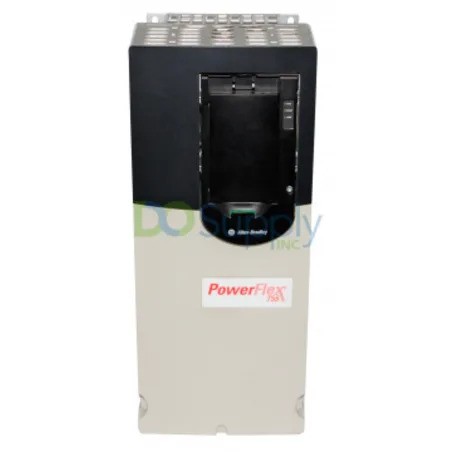

20G11BD1K2AN0NNNNNN

With cutting-edge features like predictive diagnostics and adaptable communication options, the PowerFlex 755 AC drive, model 20G11BD1K2AN0NNNNNN, is made to improve operating efficiency. With a sturdy 3-phase output and a 480V AC input support, it can produce up to 1100 HP in light-duty mode. Inventory control and spare parts management are made easier by the drive’s slot-based design. Because it has an EtherNet/IP connection interface, it fits in with industrial networks easily. The drive can endure storage temperatures of -40 to 70°C and works within the range of 0 to 50°C. It is enclosed in an enclosure of type 1/IP20. It is designed to be dependable and has an ambient humidity range of 5–95%. Qualified personnel with experience with PowerFlex 755 drives should do the installation.

20G11FD034JA0NNNNN

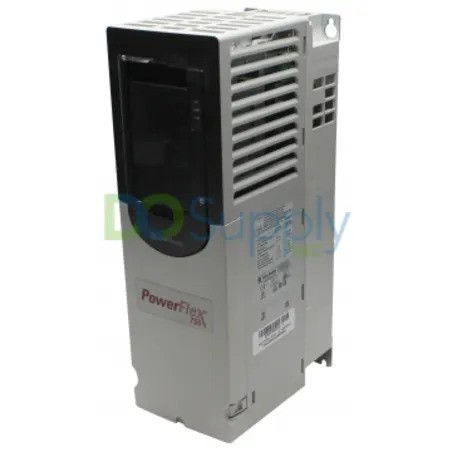

The PowerFlex 755 AC drive, 20G11FD034JA0NNNNN, has a streamlined configuration and programming procedure, making it easy to use and deploy quickly. The user experience is improved by its integrated high-definition, multilingual LCD screen, which makes it easier to understand drive fault messages and provides clear parameter explanations. When paired with other smart devices, the drive’s smooth integration into the Logix Control Environment allows for extensive analytics and visualization. It has a preinstalled inbuilt transistor and a default CM Cap connection. It runs at 480V AC or 650V DC. Reliable connectivity is further ensured by the drive’s inherent dual-port EtherNet/IP communication capability. The 20G11FD034JA0NNNNN drive is perfect for increasing efficiency and simplifying processes in a variety of industrial applications since it is designed for maximum performance.

20G11FD040JA0NNNNN

The PowerFlex 755 AC drive, model 20G11FD040JA0NNNNN, has a power option bay that makes power disconnection easier and other standard choices. It is made for economical power management. Its enclosed cooling channel lowers contamination by using outside air for mains cooling, and its integrated fusing eliminates the need for separate short-circuit protection. An LCD panel shows the drive’s state, making troubleshooting simple. Options that are perfect for safety-critical applications, such as safe torque-off and safe speed monitor, provide enhanced safety. Additionally, the 20G11FD040JA0NNNNN incorporates EtherNet/IP connection for smooth system integration and supports DeviceLogix control technology, which enables users to modify functionality. When combined, these characteristics improve the drive’s dependability and performance, making it an effective tool for streamlining industrial processes.

20G11FD3P4AA0NNNNN

With a maximum power output of 2000 HP and 1500 kW, the PowerFlex 755 AC drive, model 20G11FD3P4AA0NNNNN, offers exceptional versatility and performance. For motors, pumps, conveyors, and fans, it functions at 480V AC or 650V DC. The NEMA/UL Type 4X/12 (rear) enclosure is necessary for the drive, which has a flange mount. It has an integrated Ethernet connector for smooth networking and an output of 3.4 amps with a 2 HP power rating. Dynamic braking, filtration, and safety features are added to the drive, improving its dependability and functionality. Sturdily constructed, it functions in the 0 to 40°C temperature range and is certified by CE, EAC, and c-UL, among others. The 206.2 x 481.8 x 212 mm compact design maximizes space and performance in challenging situations.

Final Thoughts

In conclusion, The PowerFlex 755 series AC drives offer a wide range of features that improve efficiency, safety, and flexibility, making them a valuable tool for streamlining industrial processes. These drives are perfect for many different applications such as conveyors, pumps, fans, and high-performance control. Their capabilities, such as Automatic Device Configuration, simplify the setup process and minimize downtime, while their interaction with EtherNet/IP modules enables seamless communication across industrial networks. The drives are adaptable to a variety of industrial settings since they can handle a broad voltage and power range. Furthermore, pre-engineered power option bays, sophisticated control technologies, and flexible enclosure mounting choices provide economical and effective solutions. Operational security is further strengthened by the addition of inbuilt safety measures that are certified to SIL2/PLd requirements. Because every model in the series—including the 20G11FD034JA0NNNNNN and 20G11BD1K2AN0NNNNNN—is made to perform at its best, the PowerFlex 755 series is an essential part of contemporary industrial motor control.

Here at DO Supply, we offer an extensive catalog of PowerFlex 755 series drives that are available to ship today and backed by expert support readily available via email or phone. If you would like to inquire on a specific drive, feel free to give us a call and our team will help you pick the perfect one for your needs. Or if you would rather read more on these drives, we have a piece about PowerFlex features that you might not have heard of.
