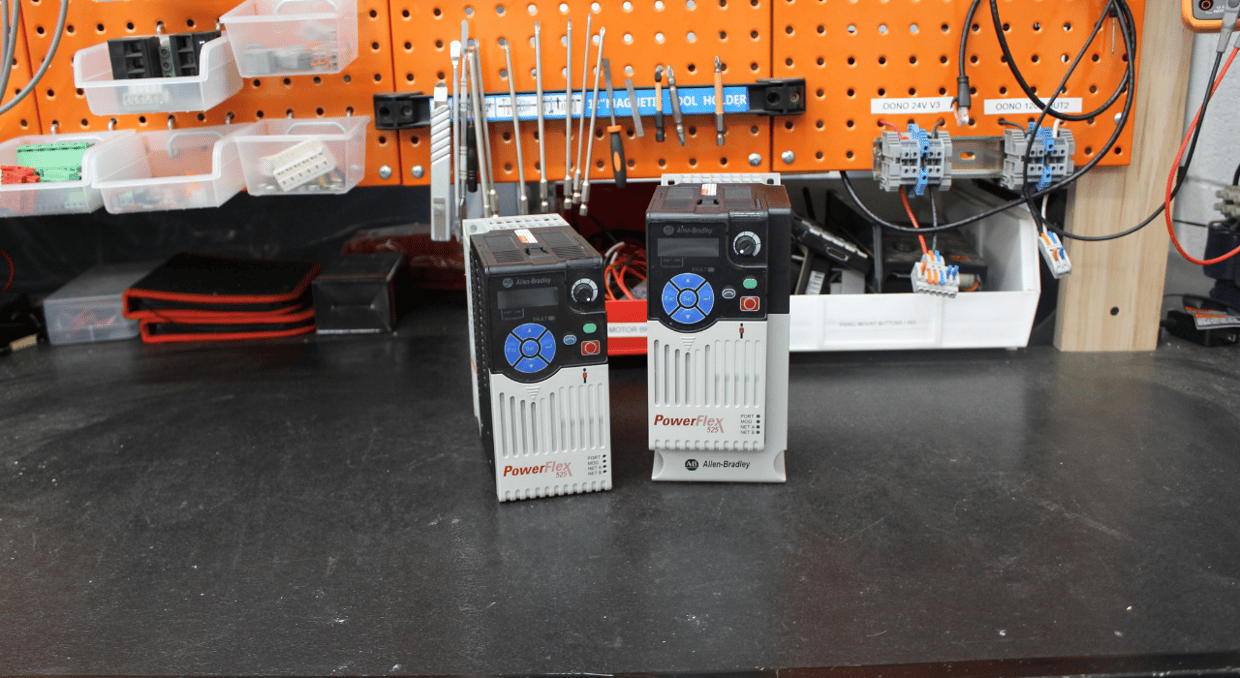

Top 5 Hidden Features of PowerFlex 520 That Can Streamline Your Operations

From standalone devices to integrated systems, the PowerFlex 520-series AC drive provides a flexible and cutting-edge approach to motor control in a range of applications. While its fundamental qualities are widely known, a few more sophisticated ones are sometimes overlooked yet can greatly improve the effectiveness and efficiency of your business operations. This article explores five PowerFlex 520 series hidden gems, particularly those that increase energy efficiency, control precision, and productivity.

Enhanced Control Performance with Multiple Motor Control Options

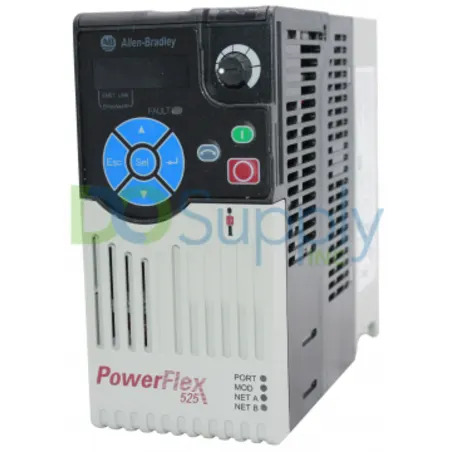

The wide range of motor control options available in the PowerFlex 520-series drives is a very powerful but lesser-known feature. The PowerFlex 525 model, in particular, provides exceptional control over the behavior and performance of the drive and for different types and applications of motors.

• Volts-per-Hertz (VHz) control offers a reliable method for simple and general applications where speed regulation is not a concern.
• Another important feature, Sensorless Vector Control (SVC), provides precise control over the motors by estimating the motor speed and torque without the need for any feedback sensors.
• The Closed Loop Velocity Vector Control is a feature exclusive to the PowerFlex 525. This option provides exact speed control for heavier and demanding applications using a feedback signal from an encoder, taking efficiency one step further.
• The PowerFlex 525 also provides Permanent Magnet motor control, which enables the pairing of high-efficiency motors, which are growing in popularity in the industry.

For positioning tasks, the PointStop function allows motor loads to stop at consistent positions without feedback sensors, an invaluable feature for machines where precision is critical, such as packaging or material handling systems. The flexibility of combining these motor control features ensures that operators can adapt the drive for a wide array of machinery with minimal need for additional hardware.

Advanced PID Control for Application Flexibility

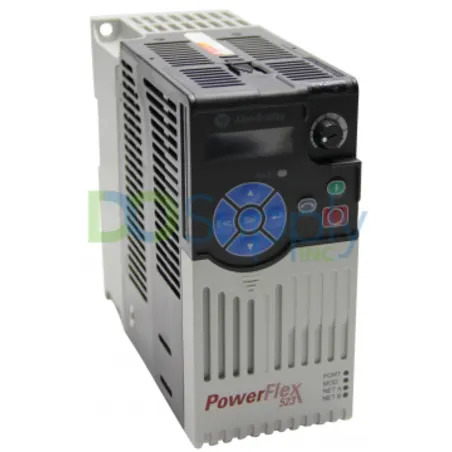

The Proportional-Integral-Derivative (PID) is a built-in feature in both the PowerFlex 523 and 525 drives. This feature eliminates the need for external controllers to maintain stable process variables like temperature, pressure, and flow.

The PowerFlex 523 is only available with a single PID loop. In contrast, the PowerFlex 525 doubles the efficiency by offering dual PID loops for enhanced application flexibility and simultaneous control of two process variables.

For example, in a complex pumping system, one of the PIDs can be programmed to control the rate of flow while the other PID would take care of the pressure levels, decreasing the complexity and the need for another controller. The PowerFlex 525 significantly reduces the system complexity and cost by enabling multiple process variables to be controlled simultaneously, making it the ideal choice for industrial processes requiring precision.

Integrated Communications for Seamless System Integration

The PowerFlex 520-series drives provide exceptional communication capabilities that are crucial in today’s industrial systems. It comes equipped with an embedded Ethernet port, which enables effortless communication and integration into modern networked control systems. This feature significantly improves the drive data’s configuration, control, and monitoring, ultimately boosting operational efficiency and diagnostics.

The PowerFlex 525 also offers a dual-port EtherNet/IP option card supporting Device Level Ring (DLR) topologies. This feature offers unhinged communication even in the case of faults and unfavorable circumstances, such as a network cable failure. It is a vital feature for applications where downtime is unacceptable. Multi-drop networks can be created by virtue of the RS485/DSI communication available in the PowerFlex 525, minimizing wiring complexity and simplifying system architecture.

For facilities already utilizing communication protocols like DeviceNet or PROFIBUS DP, optional communication cards are available, enhancing machine performance without requiring a complete overhaul of existing systems. These communication options significantly reduce setup time and troubleshooting, particularly in larger installations.

Optimized for Common DC Bus Installations

Another underutilized feature of the 520-series drives is the optimization for common DC bus configurations. This option simplifies power distribution and makes the system more energy efficient by allowing multiple drives to share a Common DC Bus.

The PowerFlex 520-series drives can efficiently absorb energy from braking loads across all the drives on the shared bus, not requiring individual braking resistors, by utilizing the enhanced internal precharge control. This feature not only makes the system energy efficient but also reduces its cost by minimizing the need for separate braking equipment.

Furthermore, this feature offers a significant operational advantage in scenarios where energy efficiency, cost saving, and time constraints are paramount, as it reduces the installation time by simplifying the system wiring with the help of direct DC Bus connection to Power Terminal blocks.

Improved Ride-through Capabilities for Critical Operations

For industries involving critical operations like manufacturing and water treatment, the improved ride-through capabilities of the PowerFlex 520-series drives can be a game-changer as it provides stable operation even during low voltage or brownout conditions, and such facilities or industries cannot afford downtime due to fluctuations in power supply.

The PowerFlex 520-series drives offer ½ line voltage operation to its users, which provides continuous drive output even when the supply voltage drops by 50% of its nominal value. This feature can be a huge innovation for the regions where running applications are often hindered by unreliable power grids or where brownouts are common. Additionally, the drive is backed up by the stored kinetic energy from the load, which proves to be useful in events of brief power outages and helps maintain stable operation, all due to the drive’s enhanced inertia ride-through feature.

This improved ride-through feature of the drives ensures uninterrupted operation during unwanted transient power disturbances for critical systems such as production lines, HVAC systems, or water treatment plants, and protects sensitive equipment from potential damage.

Conclusion

The PowerFlex 520-series AC drives, particularly the PowerFlex 525, offer a range of hidden features that can greatly streamline your operations, especially in demanding industrial environments. From enhanced motor control options and advanced PID loops to integrated communications, optimized DC bus functionality, and superior ride-through capabilities, these drives are designed to deliver exceptional performance and reliability.

By leveraging these often-overlooked features, users can increase the efficiency and precision of their operations and reduce overall system costs through improved energy management and minimize downtime. Whether you’re looking to upgrade or design new systems, the PowerFlex 520-series drives provide the flexibility and control needed to meet the challenges of modern industrial applications.

Here at Do Supply, we specialize in Allen Bradley drives just like these and many more. Our specialized team of sales and technician experts are ready to help you find the perfect drive for your automation needs. Whether you are searching for a new PowerFlex 520 series drive or another comparable unit, our website has what you’re looking for. If you would like to read another article like this one, we have a blog going over the installation of these drives here.
