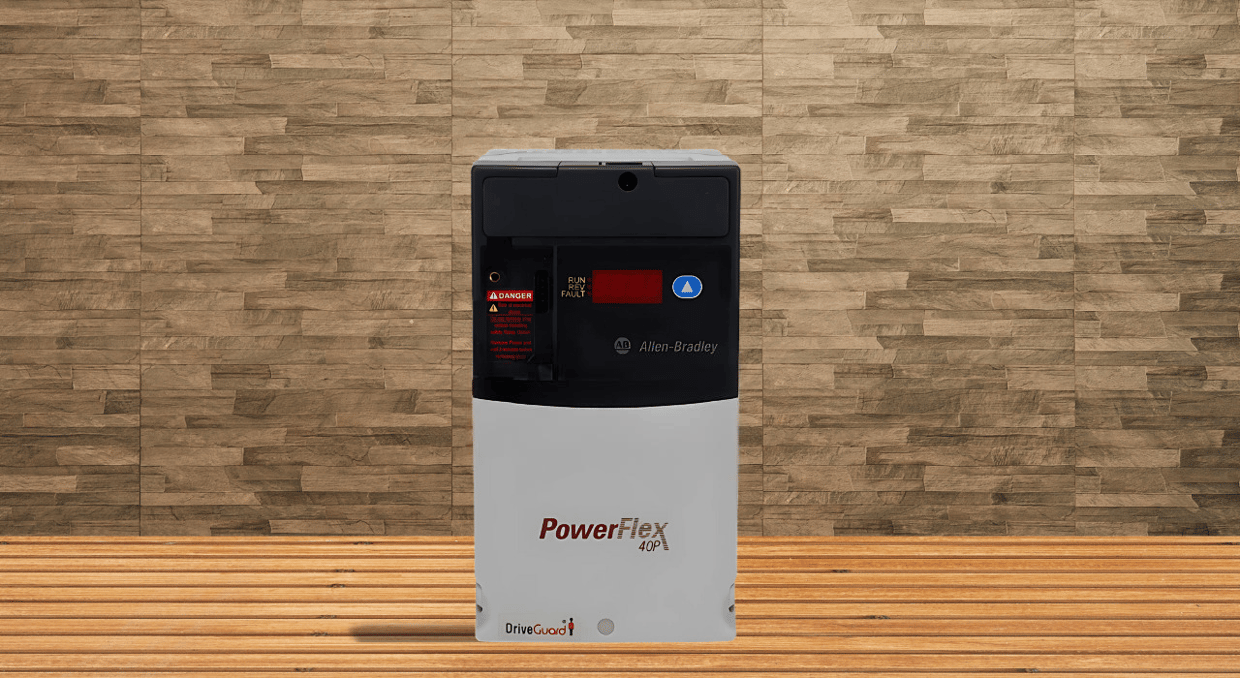

The Small Drive with a Big Impact: The PowerFlex 40P

The PowerFlex 40P AC drive is a space-effective solution with advanced functionality. It further exemplifies innovation with its flexibility and performance. The drive is built on the foundation of the famous Powerflex 40 with more enhanced features in closed-loop control, category 3 Safe-off, and position control capability. With all that, the PowerFlex 40P drive can be utilized in diverse applications. This article deep-dives into the features of the PowerFlex 40P.

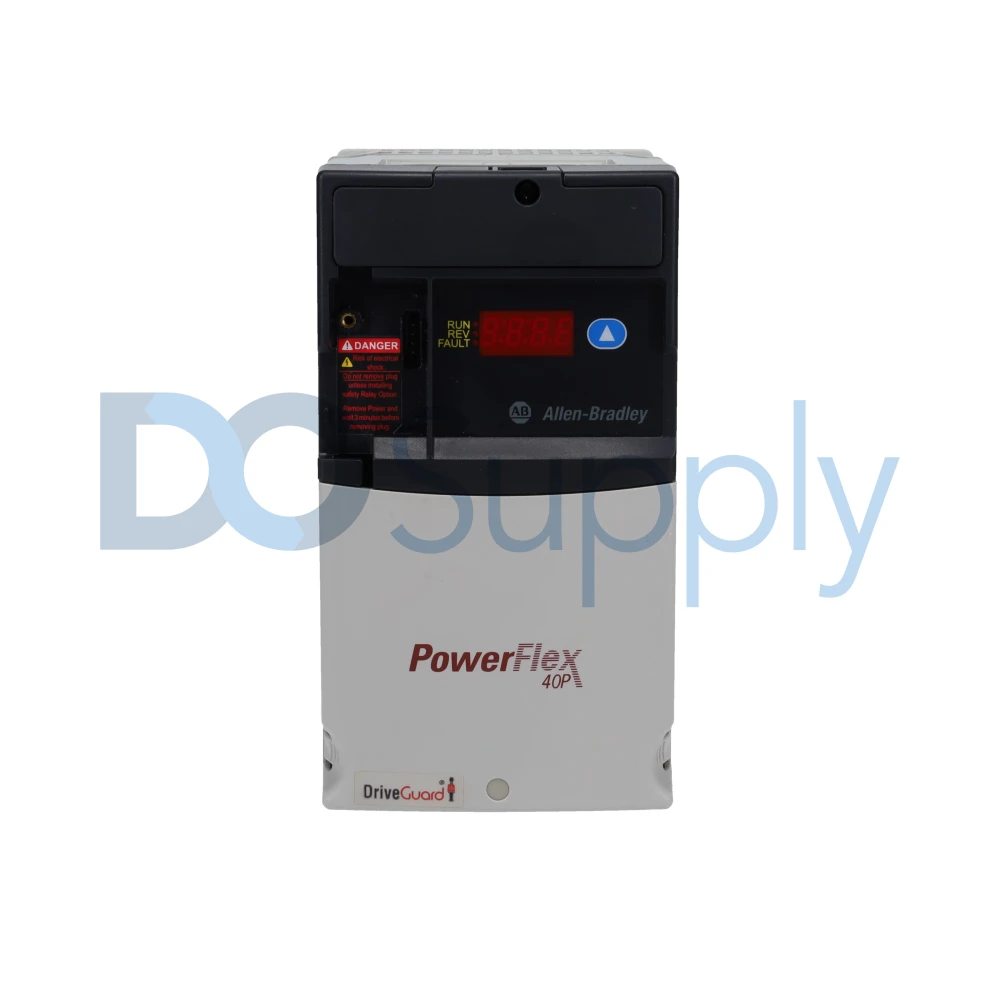

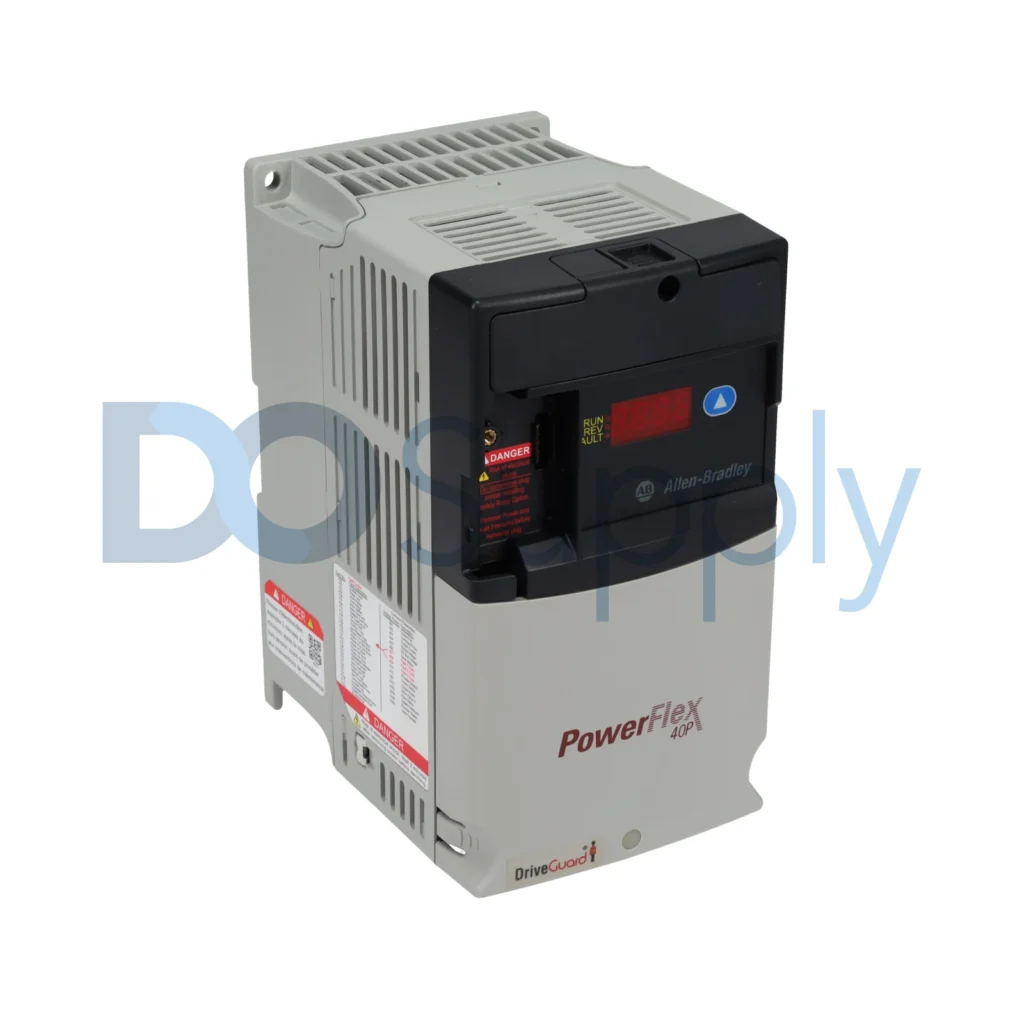

PowerFlex 40P Overview

The power ratings for the PowerFlex 40P drive range from 0.4 kW to 11 kW (0.5 HP to 15 HP). The drive is available in 240V, 480V, and 600V voltage classes. With advanced features like closed-loop control and encoder feedback, it is an effective solution for various industries like automotive and textiles. The PowerFlex 40P drives’ compatibility with  PowerFlex 40 options and accessories ensures seamless integration into existing systems. The global adaptability highlights its design for Original Equipment Manufacturers and end users.

Flexibility in Mounting and Packaging

Versatile Enclosure Options

The PowerFlex 40P offers several enclosure configurations for different application needs.

• NEMA 1/IP30 is a panel mount configuration that offers standard protection.
• NEMA 4/IP66 refers to Plate/Flange drives that enable mounting with enclosures.

Compact Design

The PowerFlex 40P drive has zero stacking capability, allowing installation with no additional space between drives for ambient temperatures up to 40°C. However, for temperatures around 50°C, minimal spacing is needed. This feature, combined with the NEMA 4/IP66 (Plate/Flange drives), can reduce the enclosure size by 75% and save valuable panel space.

Simplified Installation

• DIN Rail Mounting makes the installation process for B-frame drives quick and secure.
• IP20 (NEMA Open Type) drives can be changed into IP30 (NEMA 1) by adding an optional conduit box for higher environmental ratings.

Enhanced Filtering

External filters are available for all the PowerFlex 40P ratings, complying with EN55011 Class A and B electromagnetic compatibility standards.

Streamlined Startup, Programming, and Operation

Various tools and interfaces are available that ease the process of programming and accessing the drive.

• External HIM (Human Interface Module) enables intuitive drive configuration.
• Resident DSI Connection supports PC-based programming.

The integral RS485 communication port supports programming via a PC or multi-drop network configurations. The Serial Converter Module (SCM) allows controllers featuring DF1 ports to be connected, adding to the drive’s flexibility.

Enhanced Display

A 4-digit display and 20 LED indicators provide clear insights into status and operation. The integral display also includes a reset button for quick fault resolution.

Performance Features

Optimized Performance

• Sensorless Vector Control delivers exceptional torque and speed regulation across the entire speed range.
• The Autotune Feature adapts the drive to the individual motor’s characteristics for precision control.
• Dynamic Braking with an integral brake transistor supports cost-effective braking with simple resistors.
• A relay precharge caters to inrush currents.

Overload Protection

The protection offered by the PowerFlex 40P is robust.

• 150% Overload for 60 Seconds
• 200% Overload for 3 Seconds

Quiet Operation

The Pulse Width Modulation (PWM) frequency is adjustable to up to 10 kHz, which reduces noise during operation.

Closed-Loop Capabilities

A closed loop with encoder feedback utilizes trim in place of slip compensation and improves speed regulation and range.

I/O Configuration

The PowerFlex 40P has a versatile I/O configuration that enhances its application range.

• There are two semi-programmable digital inputs for the Start and Stop functions. This makes wiring simple and troubleshooting easy.
• There are five fully programmable digital inputs that support applications like position control and fiber enhancements.
• The system has one programmable form C relay output and two opto-isolated outputs. These can be utilized to report various motor or drive statuses.
• An analog output is adjustable using a DIP switch. It supports either a voltage range of 0 to 10 V or a current range of 0–20 mA. With 10-bit scalability, it can monitor or provide a speed reference to another drive.
• A single analog input is configurable for either current or voltage through a DIP switch. It is electrically isolated from the other inputs and outputs. Its bipolar functionality ensures more precise zero-cross performance.

Communication and Networking

Multiple communication options allow for integration within various industrial systems.

• RS485 communication integrated within the drive for integration in multi-drop networks.
• The drive also supports protocols such as;
• DeviceNet
• EtherNet/IP
• PROFIBUS DP
• LonWorks
• ControlNet.
• DSI Wireless Interface Module (WIM) facilitates wireless communication with Bluetooth-enabled devices for remote monitoring and programming.

These features help configure the network using standard RTU commands (03, 06, 16) and create multi-drive solutions (connecting as many as five drives on a single DeviceNet node.

Application-Specific Features

Material Handling

• The compact embedded encoder has a cost-efficient design.
• Encoder feedback in the sensorless vector control betters reliability.
• StepLogic programming for position and velocity management may be utilized in smart conveyors and palletizers.

Textile and Fibers Industry

• FibersFirmwaresupports speeds up to 500Hz with synchronized input ramps and traverse functionality.
• Applications like drafting and ring spinning machines leverage dynamic braking and ½ DC Bus operation. This ensures uncompromised performance during low-voltage conditions.

Automotive Applications

• Embedded encoders curb the need for additional sensors and are cost-efficient.
• Category 3 Safe-Off complies with EN954-1 standards.

Beverage Industry

• Real-time process adjustments for varying production recipes are possible with local logic.
• Zone control makes the processes safer.

Safety and Ride-Through Features

Safety Inside with DriveGuard Safe-Off

The DriveGuard option provides category 3 Safe-Off functionality. Combining safety with zone control to reduce component cost. DriveGuard’s relay board option is certified for AC drive control per EN954-1.

Improved Ride-Through

Selectable ½ line voltage operation ensures continued output in critical conditions, where drive output is required to be continuous even in brownouts. Enhanced inertia ride-through further mitigates power loss effects.

Common DC Bus Optimization

Shared DC bus installations leverage internal pre-charge control for energy absorption and increase the system’s efficiency.

Why Choose the PowerFlex 40P?
