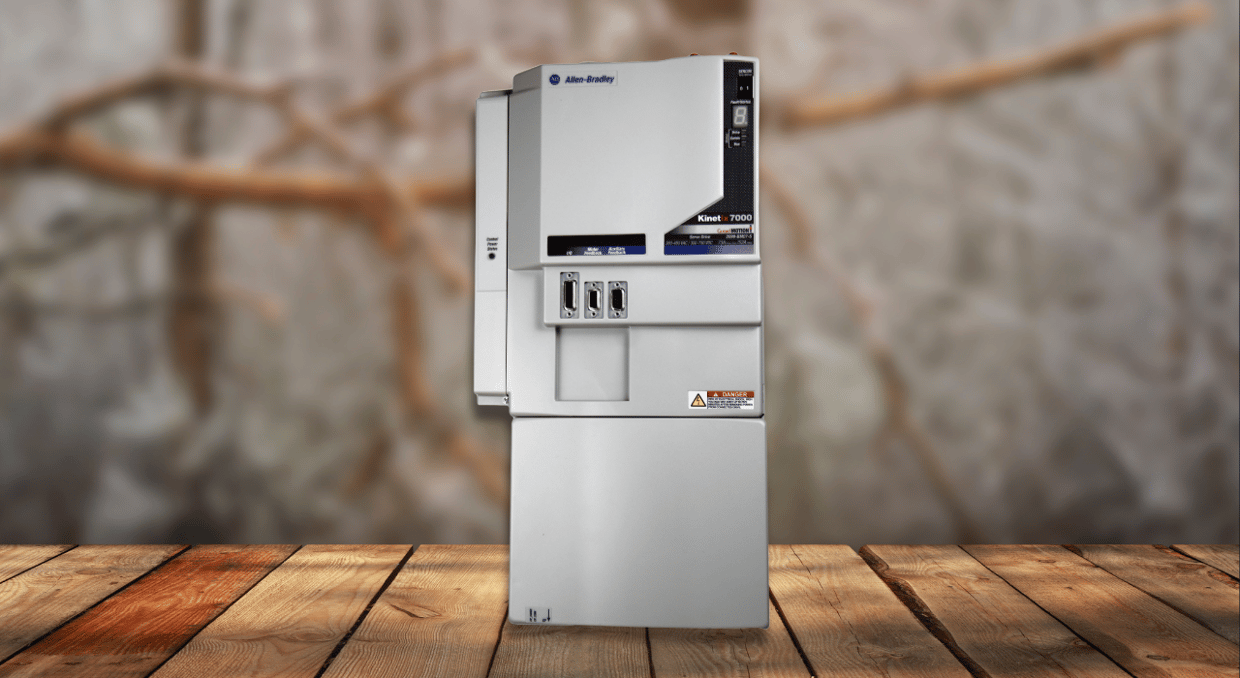

The Kinetix 7000 servo drives from Allen-Bradley stand out in industrial automation due to their exceptional power, performance, and integration capabilities, particularly in high-power, single-axis applications. Compared to competitors like Siemens’ SINAMICS S120 and Allen-Bradley’s own Kinetix 6000, the Kinetix 7000 excels in several key areas, including motor compatibility, control dynamics, communication integration, and safety features. This article explores what makes the Kinetix 7000 the ideal choice for industries requiring high-speed, high-torque motion control. It also examines how it compares to other series regarding flexibility and overall system performance.

Features of Kinetix 7000 Vs Competitors

Power and Voltage Capabilities

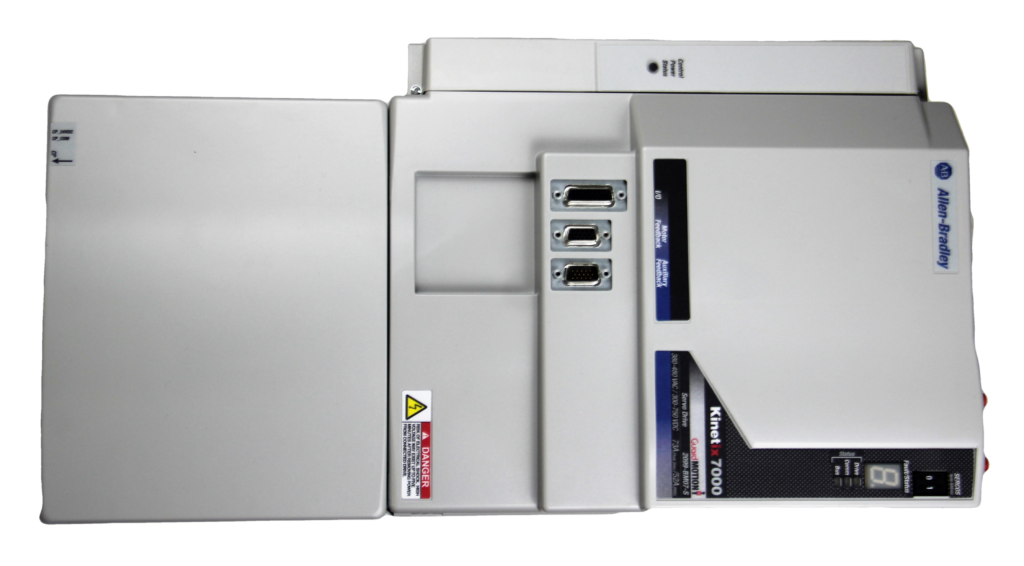

Allen-Bradley’s Kinetix 7000 servo drive’s power and voltage capabilities set it apart from other models, such as the Siemens SINAMICS S120 and Kinetix 6000, making it an excellent option for high-demand applications. Conveyors, presses, and heavy machinery are just a few of the challenging industrial settings where the Kinetix 7000, designed for high-power output ranging from 22 to 150 kW and operating at 380 to 480 V AC (3-phase), shines.

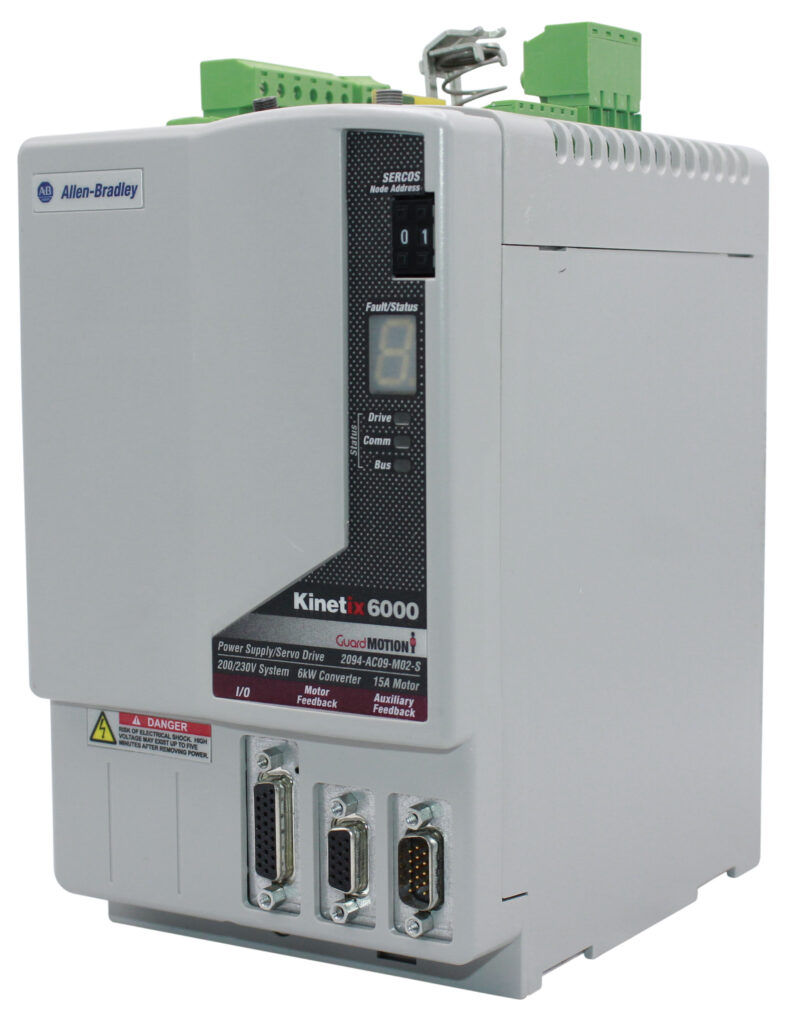

 The Kinetix 6000, on the other hand, focuses on small, multi-axis motion control and is designed for low—to mid-range power applications. Its restricted output is 0.3–3 kW and supports 195–265 V AC or 324–528 V AC. Although its power range restricts scaling, it is effective for applications with a tight budget.

With its adaptable design and wide voltage compatibility (200–690 V AC), Siemens’ SINAMICS S120 is ideal for businesses needing adaptability, although it complicates setup. With its smooth integration into Allen-Bradley’s Logix ecosystem, the Kinetix 7000 distinguishes itself by providing unmatched scalability and dependability for single-axis, high-power applications that need accuracy and performance.

Motor Compatibility

The broad motor compatibility and smooth integration into high-power, single-axis motion systems are two features that set the Allen-Bradley Kinetix 7000 servo drive apart. It supports both permanent magnet synchronous motors and asynchronous induction motors, serving a variety of applications requiring accuracy and scalability, including large industrial systems and production lines.

The Kinetix 6000, in contrast, is more suited for Allen-Bradley motors and actuators, which makes it perfect for integrated multi-axis motion control. However, although small and effective, it is less flexible in terms of motor selection.

The SINAMICS S120 is compatible with induction, servo, linear, torque, and main motors, providing unmatched versatility. This makes it a preferred choice for sectors that value motor selection flexibility. However, due to its wide scope, deployment becomes more complicated.

The Kinetix 7000 excels in unified high-power motion systems inside Allen-Bradley’s simplified Logix environment, striking the ideal mix between motor compatibility and simplicity of integration.

Control and Dynamic Performance

The Allen-Bradley Kinetix 7000 is perfect for high-speed, high-power applications because of its exceptional control and dynamic performance. It guarantees outstanding responsiveness in motion systems by concentrating on velocity loop bandwidth, allowing for accurate management of difficult industrial operations. Its use of SIL3-certified Safe Torque Off (STO) technology offers strong safety features that guarantee operator protection while preserving high productivity. With a 500 Hz velocity loop bandwidth and a 1300 Hz current loop bandwidth, the multi-axis Kinetix 6000 solution emphasizes small, effective designs for systems with minimal power requirements. Its safety measures are designed for multi-axis topologies rather than single-axis high-power systems, even if it has STO.

With its vector and servo control capabilities and minimal rise times for torque and speed changes, Siemens’ SINAMICS S120 sets the standard. Its extensive safety suite, which includes Safely-Limited Speed (SLS) and Safe Brake Control (SBC), serves a variety of industries’ intricate, highly precise needs. A hallmark of Allen-Bradley’s industrial automation prowess, the Kinetix 7000 stands out for its straightforward integration into the Logix ecosystem. It guarantees smooth operation, quicker setup, and improved high-power, single-axis motion control performance.

Communication and Integration

With its smooth interoperability with the Logix platform, the Allen-Bradley Kinetix 7000 excels at communication and integration, creating a cohesive automation architecture. The Kinetix 7000 is perfect for high-power motion control inside Allen-Bradley’s stable environment because of its integration, which makes programming, diagnostics, and system scaling easier. Its scalability guarantees that it can adjust to changing industry demands without requiring extensive reengineering, and its sophisticated diagnostics simplify troubleshooting.

Another good option is the Kinetix 6000, which is built for multi-axis systems in the Kinetix ecosystem. It offers dependable motion capabilities for intricate applications and interfaces easily with Logix controllers. However, its emphasis on multi-axis arrangements constricts its scalability in high-power, single-axis applications.

The Siemens SINAMICS S120 is notable for its remarkable communication adaptability. It supports PROFIBUS, a universal fieldbus for broad compatibility; PROFIdrive, a standard drive interface for a variety of industrial applications; and PROFINET, which enables high-performance IT connection. The S120’s adaptability makes it appealing to sectors that need a wide range of communication protocols, but it also complicates system integration.

On the other hand, the Kinetix 7000 has a user-friendly design and simplified integration. Its capacity to integrate high-power motion applications into the Logix architecture makes it the best option for sectors that value performance, ease of use, and efficiency in a unified automation environment.

Safety Features

The Kinetix 7000 is notable for its extensive and reliable safety features, especially its Safe Torque Off (STO) capability, which is SIL3 certified. This cutting-edge safety feature ensures that the drive instantly cuts torque in the case of a malfunction or emergency, reducing the dangers to both people and equipment. External relays are necessary for the STO function to comply with EN954-1 and Category 3 requirements, which offer superior safety and protection in industrial settings with significant power consumption.

In contrast, the Kinetix 6000, a formidable rival, has an integrated Safe Torque Off feature that prioritizes secure operation in multi-axis installations. It does not, however, provide the Kinetix 7000’s significant external relay needs.

The SINAMICS S120 offers a wider range of safety features, such as Safe Torque Off (STO), Safety-Limited Speed (SLS), and Safe Position (SP). Additionally, it adds cutting-edge features like Safe Direction (SDI) and Safe Operating Stop (SOS), increasing its adaptability in safety-critical applications across various sectors. Nonetheless, the Kinetix 7000 prioritizes simplified safety features designed for high-power, single-axis systems, guaranteeing simplicity of integration while upholding strict safety regulations.

Application Suitability

Because of its exceptional performance in high-power applications, the Kinetix 7000 is perfect for sectors including big production lines, material handling, and heavy machinery. Because of its single-axis system-specific design, it offers strong motion control for high-torque, high-speed applications. This makes it ideal for use where power and performance are crucial, including automated manufacturing lines and conveyors, and where accurate, dependable, and scalable motion solutions are needed.

On the other hand, the Kinetix 6000, a rival, is made for multi-axis motion control and performs very well in small applications where time and cost-effectiveness are crucial. It works well for machine builders who are more concerned with smaller, simpler motion systems where system complexity is less of an issue.

A wider range of applications, including those in the automotive, packaging, and electronics sectors, are suitable for the SINAMICS S120. It is ideal for high-precision applications and systems needing diversified motor integration because of its adaptability in supporting different motor types and safety precautions. Kinetix 7000, on the other hand, is unique in that it focuses on high-power, single-axis applications, providing unparalleled performance for demanding sectors that need power and precision in a single solution.

Final Thoughts

In conclusion, the Allen-Bradley Kinetix 7000 servo drive stands out for its exceptional performance, scalability, and seamless integration, particularly in high-power, single-axis applications. Compared to competitors like Siemens’ SINAMICS S120 and Allen-Bradley’s own Kinetix 6000, the Kinetix 7000 excels in motor compatibility, control dynamics, communication capabilities, and safety features. Its focus on high-torque, high-speed motion control makes it ideal for demanding industrial environments such as material handling and heavy machinery. Overall, the Kinetix 7000 offers unmatched reliability and precision, making it the optimal choice for industries requiring robust, scalable motion solutions.

If your application demands high torque, high speed, and high reliability, the Kinetix 7000 is built for the job. Whether you’re replacing legacy drives or building a new high-power axis, DO Supply can help you find the exact Allen-Bradley servo solution you need. We carry a full stock of Kinetix 7000 drives, compatible motors, and accessories, all backed with fast shipping, expert support, and our industry-leading 2-year warranty. Don’t hesitate to give us a call or email today for a quote to take your automation solution to the next level. If you would like to read more about the Kinetix 7000s features, we have an article here for you.
