High-Speed Precision: What Sets the Kinetix 7000 Apart in Servo Control

Servo control systems are critical to modern industrial automation, as they deliver the high-speed, precise motion required by a variety of complex applications such as semiconductor manufacturing, CNC machining, and robotics. Servo control systems are essentially closed-loop mechanisms that continuously compare the desired input commands against real-time feedback to provide precise motion control, enabling operational consistency, improved productivity, and energy efficiency. As industries continue to demand higher operational efficiency, high-power servo drive solutions like the Allen-Bradley Kinetix 7000 stand out for their ability to manage demanding motion control tasks that require fast response and high torque.

The Kinetix 7000 is designed for high-performance, high-power, single-axis integrated applications, offering superior integration with Allen-Bradley Logix platforms and robust built-in safety features, including SIL3-certified Safe Torque Off. It is engineered to maintain premier accuracy during high-speed operation and under fluctuating loads. The Kinetix 7000 is intended not just for use as a standalone servo unit, but also for seamless integration into broader automation systems. This article explores the unique features and capabilities of the Kinetix 7000, providing insights into why this servo drive is strongly preferred for demanding, high-speed applications requiring both high precision and power.

Kinetix 7000 Architecture

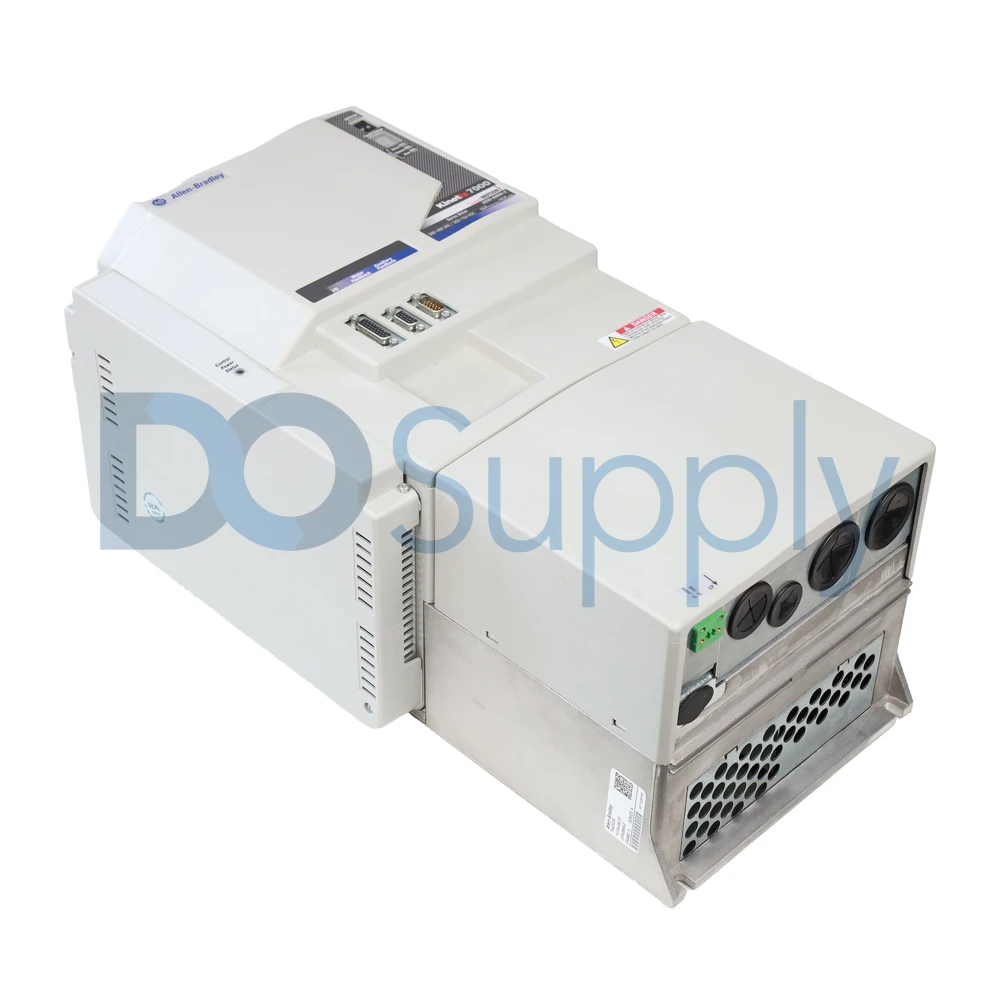

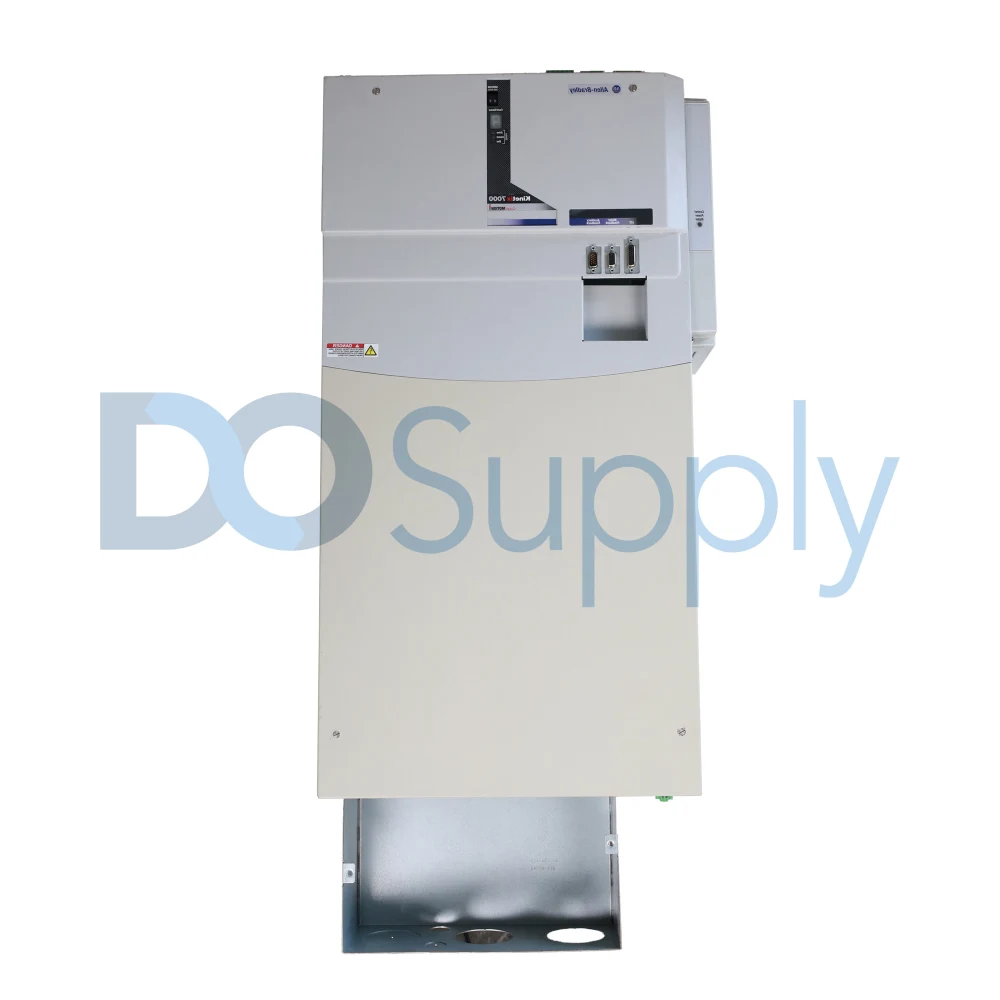

The Kinetix 7000 is a modular, high-power servo drive that is engineered for complex, mission-critical industrial automation systems. It integrates fiber-optic SERCOS communication interfaces, advanced motion-control hardware, and power electronics into a single, scalable platform. The drive ensures exceptional operational reliability through enhanced signal integrity (for both input and feedback signals), excellent switching efficiency, and optimized thermal management, delivering superior precision over lower-tier motion control solutions.

High-Power Output

• Capacity: Kinetix 7000 supports applications with output power requirements in the range 30 to 200 HP/ 22 to 149 kW (40 to 248 A), with three-phase 380 to 480V AC input.
• Applications:  It is designed for heavy-duty machinery, including metal forming, rolling mills, printing presses, large conveyors, and extrusion systems.
• Components: Its power stage utilizes high-performance IGBT-based inverter modules. These modules feature enhanced gate-drive circuits that help minimize switching losses and maintain fast transition times. It features a robust DC-bus power structure designed to manage high ripple currents. It often utilizes active bus conditioning and large capacitor banks to ensure voltage stability. The outcome is a system that provides a consistent, low-distortion current, enabling smooth motor performance even under distorted-load conditions.
• Motor Support: Its compatible rotary servo motors include Kinetix MMA, RDB, and HPK motors, and Kinetix MPM and MPL 400V-class motors.

Integrated Motion Control

• Logix Architecture: The Kinetix 7000 integrates with Allen-Bradley Logix platforms through a SERCOS interface module, using fiber-optic communication to link the Logix controller platform with the high-power servo drive system.
• SERCOS Interface: It utilizes SERCOS fiber-optic cables (Bulletin Kinetix 2090) for robust, high-speed digital communications featuring superior noise immunity.
• Reduced Complexity: Its modular design enables single-axis, high-power motion control with advanced features such as electronic gearing and auto-tuning, which minimizes the need for extensive electrical wiring.

Advanced Feedback Systems

• Versatile Encoder Compatibility: Kinetix 7000 servo drives are compatible with a variety of encoder types, including absolute, resolver, and incremental encoders. This allows engineers and system integrators to select the optimal feedback sensor based on the specific requirements of given applications. Absolute encoders provide instantaneous position retention upon power-up, while incremental encoders deliver high-resolution feedback at a lower cost.
• High-Resolution Feedback: Engineered for precision at high operation speeds, the Kinetix 7000 servo drive utilizes high-speed circuitry and digital signal processing (DSP) units to interpret feedback signals rapidly. It also features integrated interpolation techniques that enhance resolution beyond conventional encoder capabilities, achieving exceptional accuracy in the sub-micron range. This high-resolution feedback is essential for demanding industrial applications, such as semiconductor manufacturing, precision machining, and high-speed robotics.

Modular Design

• Scalable Architecture: The modular design of Kinetix 7000 servo drives facilitates seamless expansion without the need for a total system redesign. For this reason, you can adapt the Kinetix 7000 servo system to changing application demands by increasing power ratings, adding drive axes, or incorporating new functionality axes with minimal redesign required. Additional communication, control, and power modules can also be included to facilitate the system expansion.

Thermal Management Architecture

• Real-Time Thermal Monitoring: They include embedded temperature sensors that continuously monitor the health of critical drive components, including DC bus capacitance, IGBT modules, and control boards, ensuring safe and reliable thermal performance under high load.

Power Quality and Energy Management

• Energy Regeneration: Kinetix 7000 servo drives use regenerative braking to convert the kinetic energy dissipated during deceleration back into usable electricity for the shared DC bus or grid. They use 8720MC regenerative power supplies to return regenerated energy to the common DC bus or the utility AC line, maximizing energy efficiency.
• Harmonic Mitigation and Compliance: They employ advanced harmonic filters and active front-end technologies, like the 8720MC-RPS regenerative power supply, to reduce harmonics.

The Kinetix 7000 capabilities discussed above help ensure clean power and reduce operational costs.

Embedded Processing and Firmware Architecture

• DSP/FPGA Architecture: Kinetix 7000 drives employ Digital Signal Processors (DSPs) for real-time motion control. Also, some specific Kinetix 7000 models include Field-Programmable Gate Arrays (FPGAs) to accelerate high-speed operations.
• Firmware Capabilities: They feature a flash-upgradable firmware that allows for field enhancements and integration of new features without any hardware changes. The firmware includes advanced motion-control functions such as electronic camming, dynamic gearing, and S-curve acceleration.

High-Speed Precision

High-speed precision is where the Kinetix 7000’s high-power design starts to matter beyond raw motor output. Moving a large load quickly is one thing, but keeping that motion controlled, repeatable, and synchronized is the harder part. In applications such as printing, converting, metal forming, and large material handling, even small timing or position errors can show up as poor registration, uneven tension, or unnecessary mechanical stress. That is why the drive’s response to commands, feedback, and changing load conditions becomes so important.

High-Bandwidth Control Loops

• Sub-millisecond Performance: Kinetix 7000 current, velocity, and position control loops operate within sub-millisecond cycle times. This rapid signal processing ensures nearly instantaneous, precise responsiveness to load changes and command inputs.
• Dynamic Load Handling: The Kinetix 7000 control loops allow instant adjustments to velocity and torque, enabling rapid response to dynamic load fluctuations. This feature is ideal in cases where the machine executes operations such as picking, stamping, or cutting, with the load conditions changing very quickly.

Advanced Algorithms

• Predictive Feedforward Control: The Kinetix 7000 uses feedforward control to forecast motion requirements. This makes it fast-acting, as it can anticipate the required speed or torque for the desired motion trajectory, thereby minimizing its reliance on tracking errors and feedback for steady-state accuracy and error compensation.
• Adaptive Real-Time Tuning: The Kinetix 7000 continuously monitors and adjusts control parameters, such as gains, to guarantee maximum system stability even in the presence of variable load conditions or mechanical wear.

Precision Positioning

• Micrometer-Level Accuracy: Through the use of advanced drive control techniques and high-resolution feedback, Kinetix 7000 drives can achieve positioning accuracy to the level of micrometers essential for robotics and semiconductor applications.
• Optimized Speed Regulation: Kinetix 7000 drives deliver smooth acceleration/deceleration profiles, consequently improving product quality, reducing mechanical stress, and enhancing equipment longevity.

Integration with Automation Systems

As previously mentioned, the Kinetix 7000 is engineered for seamless integration into broader automation ecosystems.Key offerings include:

Tightly Coupled Logix Integration

Kinetix 7000 servo drives offer seamless integration with Allen-Bradley ControlLogix and CompactLogix controllers. This premier integration eliminates the need for additional communication gateways, simplifying the overall system design and enabling efficient programming, configuration, and troubleshooting.

Safety Features

• Built-in Safe Torque-Off (STO): Includes a TÜV-certified Ple/ SIL 3, Category 3 STO that allows for safe emergency stops of the connected motor without disconnecting power from the entire servo drive system. The STO safety feature complies with ISO 13849-1 and IEC 61508 international standards.
• Motor Protection: It offers solid-state motor overload protection, including real-time thermal memory algorithms and external thermistor inputs.
• Ruggedness: It is built for extreme industrial environments, with high-performance bearing support and regenerative power supply options (Bulletin 8720-RPSxxxxx).

Advanced Diagnostics & Predictive Maintenance

 The Kinetix 7000 features built-in real-time diagnostic capabilities that enable predictive maintenance by monitoring the drive’s performance and motor health. The servo control system analyzes historical data to anticipate potential future errors and identify motor performance issues, enabling a proactive maintenance strategy to minimize costly downtime and replacements/repairs.

Kinetix 7000 Applications

Allen-Bradley Kinetix 7000 high-power, single-axis servo drives are capable of delivering exceptionally precise, high-speed motion control for a variety of demanding industrial applications, including:

• Automotive Manufacturing: High-speed robotic arms and precise motion synchronization for car assembly lines and material handling.
• Packaging: Used in high-speed, precise cutting, packaging, and labeling of products
• Semiconductor Manufacturing: For micron-precision semiconductor positioning in lithography and other high-load, high-inertia manufacturing processes.
• Printing: For multi-axis coordination and synchronizing multiple rotating drums for high-speed printing tasks
• Metal Forming: For precise, high-torque control of rolling mills and presses under high loads.

Conclusion

The Kinetix 7000high-power, single-axis servo drive stands out for its scalable, modular architecture, high-precision performance, advanced control algorithms, high-speed communication protocols, robust construction, and seamless integration with Rockwell Automation’s Integrated Architecture for optimal system performance. It allows users to scale complex automation systems while maintaining exceptional performance and reliability for demanding mission-critical industrial applications. These advanced features and capabilities make the Kinetix 7000 a premier choice in servo control. If you would like to see how it stacks up to the competitors, we have an article here for you!
