The Allen Bradley drives, known as the Power Flex family, represents a wide array of control modes, features, packaging options, and power ratings to meet the diverse industrial requirements globally. This comprehensive portfolio efficiently integrates with industrial operations, thereby boosting overall productivity. The Power Flex family provides a range of options, such as DC drives, low voltage drives, compact drives, and medium voltage drives, ensuring adaptability across various applications.

In this article, we will explore the technical features and attributes of different Allen Bradley drives, which will help the user in selecting the drive of its own requirement.

Allen Bradley DC Drives: Technical Specifications and Advanced Features

Allen Bradley Power Flex DC drives offer a wide range of power ratings across various voltage inputs, ensuring adaptability for industrial applications. They support motors ranging from 1.5 Hp to 1400 Hp, with current capacities spanning 7 A to 1582 A. Notable features include support for regenerative and non-regenerative configurations, advanced regulator functionality, and flexible feedback and communication options. These drives are equipped with noise and voltage suppression mechanisms for operation in noise-sensitive environments and offer extensive input/output capabilities. Configuration and programming are simplified through integral LCD keypads or software interfaces, with Premier Integration reducing development time by streamlining parameter programming.

Enhancing DC Motor Control with the DC Field Controller

The DC Field Controller, integral to Allen Bradley DC drives, optimizes DC motor and generator field control with precision. It easily integrates into standalone applications or with other Allen Bradley components, offering dynamic regulation and convenient maintenance. Equipped with DPI functionality and flexible communication options, it ensures integration into various automation environments. With extensive I/O options and flash upgradeable firmware, it meets diverse operational demands and future industry standards. Whether standalone or coupled with other components, it enhances motor control capabilities and offers cost-effective solutions for modernizing DC motor control systems.

Allen Bradley Low Voltage Drives

The Allen Bradley low voltage family of drives provides a diverse array of control modes, features, and power ratings. Designed for enhanced connectivity and productivity, these drives, whether standard low voltage or high power, are ideal for applications demanding precise speed, torque, and position control.

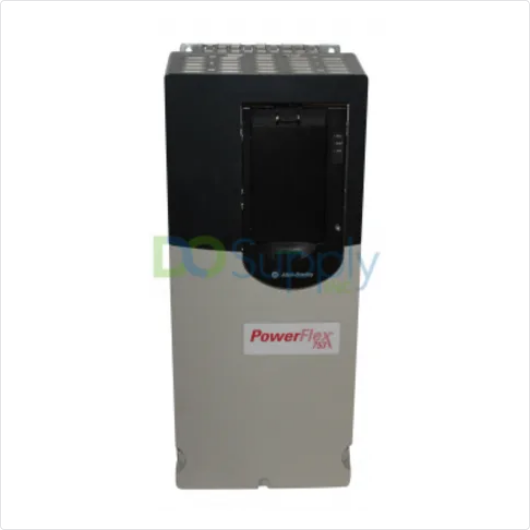

Allen Bradley PowerFlex 753 AC Drives

The Allen Bradley PowerFlex753 AC Drives offer a cost-effective and user-friendly solution for general-purpose applications, particularly those requiring integrated safety features.

Versatile Performance in Compact Design

The Allen Bradley PowerFlex 753 AC Drives offer a broad range of power ratings suited for various voltage inputs, catering to motor applications ranging from 0.5 Hp to 400 Hp. With multiple enclosure options, including IP00/IP20 NEMA/UL Type Open and IP54 NEMA/UL Type 12, they ensure compatibility across diverse installation environments. Integrated with a Dual-port EtherNet/IP Option Module, these drives enable smooth integration with EtherNet/IP networks, simplifying network architecture and minimizing cabling needs. Control options such as V/Hz control, vector control with FORCE technology, and sensorless vector control provide flexibility for different application requirements. Predictive diagnostics enhance reliability, while the slot-based architecture allows for easy integration of feedback, safety features, and additional modules. Configuration and programming are user-friendly and supported by an integral LCD Human Interface Module (HIM).

Integrated Safety Solutions

The Allen Bradley Power Flex 753 drives come equipped with integrated safety options to improve operational safety. The Safe Torque-Off option is certified at PLe/SIL3 CAT 3, providing reliable torque control. The Safe Speed Monitor combines the Safe Torque-Off capability with an embedded safety relay featuring Rockwell Automation Safe-Speed Control core technology. This hardware option is certified PLe/SIL3 CAT 4, offering advanced safety features for critical applications.

Allen Bradley PowerFlex 755 AC Drives

Allen Bradley 755 AC Drives deliver simplicity, flexibility, and superior performance. Featuring a variety of control and hardware options, they also offer the choice of optional embedded safety features.

Key Features

The Allen Bradley drives offer a wide range of power ratings for various voltage inputs, covering applications from 0.5 HP to 2000 HP. They feature diverse enclosure options and pre-engineered Power Option Bays. Integrated Dual-port EtherNet/IP Option Modules simplify network integration. Control options include V/Hz control, vector control, and permanent magnet motor control. Predictive diagnostics enhance reliability, and the configuration and programming are user-friendly. The drives support easy integration with EtherNet/IP and offer multiple option slots for additional modules.

Enhanced Safety Options

Power Flex 753 drives offer advanced safety features, including Safe Torque Off (STO) certified at SIL 3, PLe, Cat 3, and Safe Speed Monitor certified at SIL 3, PLe, Cat 4. An Integrated Safety Functions Option Module ensures advanced safety on an EtherNet/IP network, with safety ratings up to SIL CL3 and PLe Cat 4 when integrated with GuardLogix controllers.

Allen Bradley PowerFlex 700L AC Drives

Allen Bradley 700L AC Drives offer high performance and power in a compact, liquid-cooled design, with options for PowerFlex 700 Vector Control or PowerFlex 700S Control, ensuring energy efficiency and low harmonics.

High-Power Capabilities

The PowerFlex 700L drives deliver high power ratings ranging from 445 kW to 860 kW for 380-480V systems, accommodating motors from 600 Hp to 1150 Hp, with current capabilities from 650 A to 1250 A. Housed in IP20, NEMA Type 1 casing with Rittal enclosure, these drives offer PowerFlex 700 or PowerFlex 700S control options. Featuring Common Industrial Protocol (CIP) communications, regenerative braking, patented liquid-cooled heatsink design, and compliance with IEEE-519 and CE regulations for low AC line harmonics, they ensure energy efficiency and precise control. Integrated active converter and line-side filter enable input voltage boost while maintaining consistent performance. Optional DriveLogix embedded control and easy configuration via integral LCD keypads, remote keypads, or software streamline operation, with Premier Integration simplifying parameter programming via the Logix control platform, reducing development time.

Safety Features

The Safe Torque-Off option, compatible with PowerFlex 700S control, is certified at PLd/SIL2 Cat 3. It swiftly removes rotational power from the motor without affecting the drive’s power supply, facilitating faster start-up after a safety system demand. These safety options are conveniently available as a kit for user installation.

Compact Low Voltage AC Drives

Allen Bradley Compact-class AC Drives offer a straightforward and economical solution for standalone machine-level control applications. Designed for user-friendly operation, this versatile class of drives comes in a compact package, optimizing panel space while improving application flexibility.

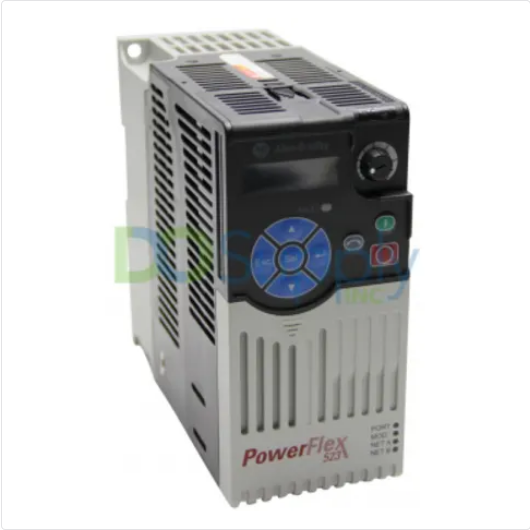

Allen Bradley PowerFlex 523 AC Drives

Allen Bradley PowerFlex 523 AC Drives offer an economical option, perfectly suited for standalone machines. Their innovative modular design ensures swift and hassle-free installation and configuration, enhancing overall efficiency.

Enhanced Performance Features

The Power Flex 523 AC Drives offer a wide power range from 0.2 kW to 22 kW / 0.25 Hp to 30 Hp, suitable for global voltages ranging from 100V to 600V. Their modular design includes a removable control core, streamlining both installation and software configuration processes. These drives boast diverse motor control capabilities such as volts per hertz, sensorless vector control, and sensorless vector control with Economizer mode. Operating in ambient temperatures up to 70°C (158°F), they feature side-by-side mounting with a 50 mm (1.96 in.) air-flow gap at the top and bottom, ensuring efficient ventilation. They support low-cost networking via an integrated RS485/DSI port, facilitating seamless connectivity for networking needs.

Efficiency Boost through PROFINET Integration with Power Flex 523 Drives

The Allen Bradley PowerFlex 523 Drive range has been enhanced with the addition of a PROFINET option card, enabling integration with PROFINET networks. This card facilitates efficient data exchange between the drives and the host controller. By installing the card in PowerFlex 523 Series drives via the main PROFINET device, users gain the ability to directly control the drive, adjust parameters, and monitor real-time status through the PROFINET network, streamlining system operation and maintenance.

Allen Bradley PowerFlex 4M AC Drives

Allen Bradley PowerFlex 4M AC Drives, the smallest and most economical in the Allen Bradley drive series, boast feed-through wiring and straightforward programming, enabling versatility across diverse applications.

Technical Overview

The PowerFlex 4M AC Drives offer a comprehensive range of power ratings manufactured to various voltage specifications. From 100-120V, they span from 0.2-1.1 kW / 0.25-1.5 Hp / 1.6-6 A, while the 200-240V range covers 0.2-7.5 kW / 0.25-10 Hp / 1.6-33 A, and the 380-480V range extends from 0.4-11 kW / 0.5-15 Hp / 1.5-24 A. These drives are housed in IP20-rated, NEMA/UL open-type enclosures, ensuring durability and safety. They feature V/Hz control, slip compensation, and integral RS-485 communications, facilitating reliable operation and communication within systems. These drives can operate efficiently in ambient temperatures of up to 50°C (122°F), with specialized Zero Stacking Drives available for temperatures up to 40°C (104°F). They also offer drive overload protection, ramp regulation, and various configuration and programming options, including integral LCD keypads, remote keypads, or software. Moreover, Premier Integration with Allen Bradley AC drives streamlines parameter programming, reducing development time through the utilization of the Logix control platform.

Allen Bradley PowerFlex 40 AC Drives

PowerFlex 40 AC Drives deliver high-performance motor control for OEMs, machine builders, and end users. Featuring sensorless vector control, they efficiently meet low-speed torque demands. With flexible enclosure options and easy programming, they offer quick installation and configuration.

Technical Overview

Allen Bradley PowerFlex 40 AC Drives offer a wide range of power ratings across various voltage specifications, with enclosure options including IP20 NEMA/UL Type Open and IP66 NEMA/UL Type 4X/12 configurations. These drives operate effectively in temperatures up to 50°C (122°F), with Zero Stacking Drives available for temperatures up to 40°C (104°F). Control features include V/Hz and sensorless vector control, with integral RS-485 communication and optional communication modules for DeviceNet, ControlNet, EtherNet/IP, Profibus DP, BACnet, and LonWorks. Additional features comprise drive overload protection, ramp regulation, flying start, and StepLogic for independent position control. Configuration and programming options include an integral LCD keypad, remote keypad, or software, with Premier Integration simplifying parameter programming through the Logix control platform.

Medium Voltage Drives

The Allen Bradley Medium Voltage AC Drives provide reliable operation and precise speed and torque control for diverse applications, including fans, pumps, conveyors, and mills.

Allen Bradley PowerFlex 7000 Medium Voltage Drive

The air- and liquid-cooled Allen Bradley 7000 medium voltage drive offers a wide power range of 150 to 25,350 kW (200 to 34,000 Hp), rated at 2.4 to 6.6 kV AC. These high-performance drives feature power regeneration capabilities and provide soft-starting, variable speed, torque, direction, and stopping control for standard induction or synchronous AC motors.

Technical Overview

The Allen Bradley 7000 Medium Voltage Drives utilize advanced semiconductor technology and a simplified design for reliability and reduced maintenance. They offer perfect output waveforms for standard motors and support versatile configurations. With quick SGCT replacement and support for long motor cable lengths, these drives efficiently control multiple motors. They also feature regenerative braking and integration with the Logix control platform via EtherNet/IP for enhanced functionality.

Safety Features

The Allen Bradley PowerFlex7000 medium voltage drives offer two safety options: Safe Torque Off control and ArcShield arc-resistant enclosures. Safe Torque Off removes motor power without affecting the drive, allowing faster system restart. It meets SIL 3, PLe, and CAT 3 requirements and is TÜV certified. ArcShield technology reduces arc flash hazards and downtime. The PowerFlex 7000 is a 50 kA-rated arc-resistant drive with full power regeneration capabilities. It meets global arc flash resistance standards and provides Type 2B protection, redirecting arc flash energy away from personnel. The advanced ventilation technology prevents arc flash energy escape, and the four-quadrant operation ensures efficient energy management.

Allen Bradley PowerFlex 6000T variable frequency drives

Allen Bradley PowerFlex 6000T drives are equipped with TotalFORCE technology to ensure uninterrupted performance in heavy industrial applications. Designed for variable torque, constant torque, and high-speed operations up to 120 Hz, these VFDs provide motor control ranging from 2.3 to 11 kV. TotalFORCE technology boosts productivity and reliability by offering better motor control, real-time data monitoring, and predictive analytics to prevent downtime. These smart drives streamline the user experience by integrating with a single control platform for both low and medium-voltage drives.

Efficiency and Control for Permanent Magnet Motors

The Allen Bradley PowerFlex 6000T drives excel in permanent magnet (PM) motor applications, enabling high-efficiency operations with up to a 120 Hz output frequency. They facilitate achieving energy efficiency and sustainability objectives across diverse industries like oil, gas, HVAC, paper, and forestry.  They offer enhanced predictive maintenance capabilities, minimizing downtime by issuing alerts for transformers, airflow, motor and machine bearings, and lubrication systems. These drives bolster cybersecurity with CIP Security-enabled features, heightening security for smart machines, networks, and equipment. They also provide space-saving advantages, integrating secondary precharge support within the existing footprint to save costs and floor space. They offer enhanced configuration flexibility with five standard option slots, including options like ENETR for EtherNet/IP, 13TCOMMP1 for PROFIBUS, Encoder Cards, I/O Modules, and more.

Applications

The Allen Bradley PowerFlex family of drives, including DC, low voltage, and medium voltage options, serves a wide range of industrial applications. From heavy-duty tasks like crane operations to critical operations in conveyor systems and high-performance needs in mining and petrochemicals, these drives provide precise speed and torque control. They are used in industries such as oil and gas, HVAC, water treatment, mining, manufacturing, powering pumps, fans, conveyors, compressors, and various heavy machinery.

Choosing the right Allen Bradley drive

Choosing the right Allen Bradley drive for your needs involves assessing various factors such as power requirements, voltage inputs, control modes, and application-specific features. The Allen Bradley offers a diverse range of drives, including DC, low voltage, and medium voltage options, each designed for different industrial applications. Whether you require precise speed and torque control for heavy-duty tasks like crane operations, critical operations in conveyor systems, or high-performance needs in mining and petrochemicals, the Allen Bradley drives provide versatile solutions. By understanding your specific requirements and matching them with the technical specifications and features of different Allen Bradley drives you can select the optimal drive to gain maximum productivity and efficiency in your industrial operations.

Conclusion

In conclusion, selecting the right Allen Bradley drive is crucial for optimizing industrial operations and achieving maximum productivity. The Allen Bradley Power Flex family offers a wide range of drives, including DC, low voltage, and medium voltage options, each manufactured to meet diverse industrial requirements. Whether you need precise speed and torque control for heavy-duty tasks like crane operations, critical operations in conveyor systems, or high-performance needs in mining and petrochemicals, there’s an Allen Bradley drive to suit your needs. By assessing factors such as power requirements, voltage inputs, control modes, and application-specific features, you can make an informed decision to select the optimal Allen Bradley drive for your specific requirements. With advanced features such as TotalFORCE technology, predictive maintenance capabilities, and cybersecurity enhancements, Allen Bradley drives not only enhance operational efficiency but also ensure reliability and safety in industrial environments.
