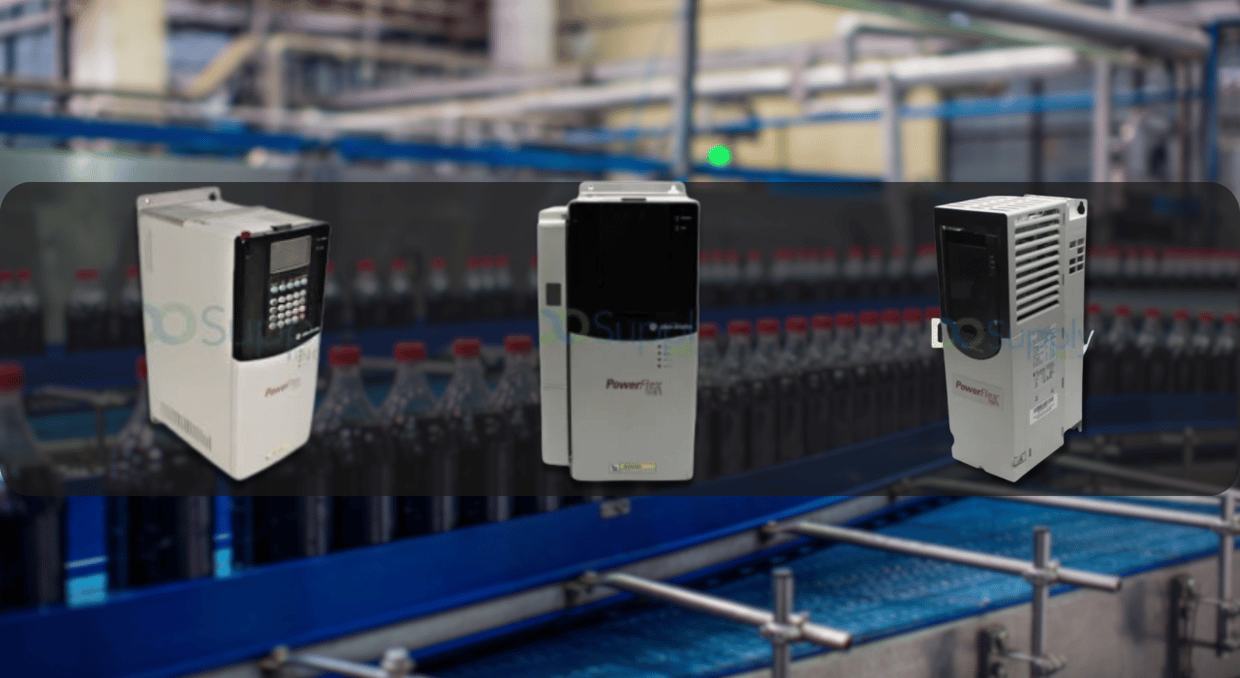

The PowerFlex 7 Series: Power Meets Finesse in Automation

Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.

Learn more

Electric drives are essential to automation systems because they provide precise control over motors so they can run at different torque and speed levels. Automation systems can adapt to fluctuating production needs, maximize energy savings, and improve overall efficiency owing to this control. Here, we will focus on PowerFlex Architecture-class 7-series, which comprises different AC drives from different PowerFlex series. This architecture includes a variety of drives that are easy to use, have high performance, and are tailored to work well in certain applications. In this article, we will be talking about different drive series like:

PowerFlex 70 Drives:

The PowerFlex 70 drives are an example of how power and elegance can coexist in automation. They perform well in various applications, including fans and extruders, thanks to their flexible programming possibilities via LCD or LED HMIs and computer-based setup via DriveExecutive and DriveExplorer software. The available output ratings for PowerFlex 70 drives include 0.5 to 25 Horsepower for 240 Volts AC input, 0.5 to 50 Horsepower for 480 Volts AC input, and 0.5 to 50 Horsepower for 600 Volts AC input. These drives have IP 20 NEMA/UL type 1 enclosures for flexible installation, IP 66 NEMA/UL types 4X/12 enclosures for indoor application, and flange types for effective heatsink mounting. EMC filtering, dynamic brake resistors, communication interfaces, and other built-in features, combined with available adapters, guarantee smooth integration into automation systems. Slip compensation, safe torque-off, and PI control are examples of advanced features that improve performance and establish PowerFlex 70 drives as a benchmark for accuracy and productivity in industrial automation.

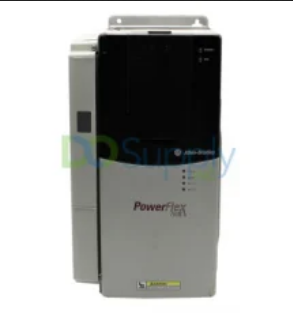

PowerFlex 700 Drives:

The PowerFlex 700 drives hold valuable space within the PowerFlex Architecture-class 7-series for industrial automation applications. They are versatile for a range of applications, including lifting, speed modulation, and oil well operations. They are designed to operate 3-phase induction motors effectively. They cater to various industrial requirements, offering power ratings from 0.37 to 150 horsepower and input voltage classes from 200 to 690 Volts AC (200V-240V, 380V-480V, 500V-600V and then 690 Volts AC). They provide affordable speed control solutions and are especially skilled in variable-torque pump and fan applications. PowerFlex 700 drives make integration and maintenance procedures easier with its cassette architecture, which houses necessary parts, including I/O, control, and encoder choices. These drivers significantly contribute to enhanced productivity and operational efficiencies in an automation environment.

PowerFlex 753 Drives:

The PowerFlex 753 drives, which make up an important part of the PowerFlex Architecture-class 7-series, are adaptable solutions for automation requirements. With an output of up to 270 kW and 400 HP, they are designed for control applications that need versatility and efficiency. Costs are reduced by integrated I/O capabilities, and several enclosure choices (IP 00, IP 20, flange mount, and IP 54) meet different installation needs. It is possible to customize the slot-based drive design with modules for power supply, I/O, communication, or feedback. PowerFlex 753 drives handle a variety of voltage classes, from 200 to 690 Volts AC, to suit a broad spectrum of industrial configurations. Relay outputs and cooling fans have longer operating lives because of predictive diagnostics features, which improve dependability. Integrating LCD HMIs enhances user-friendliness, making PowerFlex 753 drive invaluable partners in streamlining automation procedures.

PowerFlex 755 Drives:

The PowerFlex 755 AC drives are important for automation applications because of their high performance, ease of use, and application flexibility. These drives are compatible with many control choices, hardware configurations, and optional inbuilt safety features. They aim to regulate motors in industrial floor applications, including pumps and conveyors. Through integrated motion on EtherNet/IP modules, the PowerFlex 755 drives easily link with industrial communication networks, enabling connection in star, ring, and linear topologies. They support voltage ranges of 200 to 690 Volts AC, making them suitable for various industrial installations. The LCD HMI module, SP software, DriveTools software, and Connected Components Workbench software make programming and setup easier. Hence, PowerFlex 755 drives are essential for improving productivity and operability in automation operations.

PowerFlex 700S Drives:

The PowerFlex 700S AC drives provide Phase II control for demanding automation applications. When combined with the Logix engine, they provide an affordable control solution using the DriveLogix software. These drives operate effectively with several reset settings for quick voltage/frequency configuration. They meet various industrial demands with power ratings ranging from 1 to 1500 kilowatts across several voltage classes. High-speed data transfer and drive-to-drive synchronization are made possible by the addition of SynchLink. Improved connection may be achieved with optional Ethernet, ControlNet, and serial network communication modules. Several feedback options, such as incremental encoder and resolver, support precise control. PowerFlex 700S drives, certified by ATEX, CE, C-Tick, and UL standards, guarantee compliance and dependability in industrial settings, which helps speed automation procedures.

PowerFlex 750 Drives:

The PowerFlex 750-Series drives provide a reliable industrial automation solution by combining high performance, versatility, and simplicity of use in a range of applications. These drives meet a variety of industrial demands, giving general-purpose control of up to 400 horsepower and 270 kW and delivering maximum flexibility and performance up to 2000 horsepower and 1500 kW. They improve reliability and efficiency with features including integrated safety functions, predictive diagnostics, and embedded control technologies like DeviceLogixTM. Since option cards can be easily integrated into the slot-based design, there is less need for components since there are more possibilities for hardware control. Add-on Ethernet ports and extensible I/O choices are examples of communication capabilities that provide flexibility and connection. Hence, PowerFlex 750-Series drives are designed to integrate and operate seamlessly in industrial automation systems.

PowerFlex 700H Drives:

PowerFlex 700H drives provide industrial automation with flexibility and customization. They come in a number of packaging variants, such as IP54/UL Type 12 (NEMA 12) for harsh environmental settings and IP21/UL Type 1 (NEMA 1) for normal settings. Standard I/O is compatible with a variety of industrial configurations since it includes both analog and digital I/Os operating at 24 V. These drives serve a wide variety of applications with output ratings that span from 200 to 1900 HP at 480V AC, 150 to 2400 HP at 600V AC, and 160 to 2000 kW at 690V AC input. Easy installation and maintenance are made possible by their modular architecture and quick and effective control and data interchange across widely used interfaces, including DeviceNetTM, ControlNetTM, and Ethernet/IPTM, and some are made possible by optional internal communication modules. With its standard I/O functionality and packaging choices, PowerFlex 700H drives provide a complete automation solution.

Conclusion

In conclusion, drives are essential to automation because they provide accurate motor control for a range of industrial applications. There are many AC drives in the PowerFlex Architecture-class 7-series that are designed for certain uses. Each generation of drives improves efficiency and production, from the adaptability of the PowerFlex 700 drives to the sophisticated features of the PowerFlex 755 drives. These drives maximize productivity and save downtime with integrated safety features and predictive diagnostics. Simplified automation procedures are further enhanced by the adaptability of PowerFlex 753 drives and the dependability of PowerFlex 750-Series drives. In general, PowerFlex drives are a prime example of industrial automation’s creativity and efficacy, enabling companies and organizations to accomplish their objectives with maximum efficiency.
