How to Maximize your Production Line with PowerFlex 4 VFDs

The PowerFlex 4 series is designed to meet the needs of global OEMs and end-users seeking affordability, simplicity, and space efficiency. These drives come with essential parts like active control buttons and built-in keypads with local potentiometers right out of the package. PowerFlex 4 drives are the smallest and least expensive model in the PowerFlex drive line, providing strong motor speed control in a tiny package. This article explains how to use PowerFlex 4 Variable Frequency Drives (VFDs) to optimize the efficiency of your manufacturing line. It emphasizes the VFDs’ strong performance and space-saving features that are suitable for various industrial applications. This article will discuss how the production line can be maximized using the PowerFlex 4 Variable Frequency Drives. After that, we will look at some of this series’ example modules.

How PowerFlex 4 VFDs Maximize Production Line?

Input Voltage Ratings

PowerFlex 4 drives support multiple input voltage ratings, such as 100 to 120 Volts AC, 200 to 240 Volts AC, and 380 to 480 Volts AC. Their adaptability makes them suitable for use in a variety of industrial settings, guaranteeing their compatibility with current power systems and enabling smooth integration into different production line configurations.

Enclosure Types

PowerFlex 4 drives are built to last and are available in a variety of enclosure designs, including IP 20 NEMA 1 and IP 66 NEMA 12, 4x. These choices provide a strong defense against external influences, guaranteeing dependable operation under various circumstances and prolonging the drives’ lifetime in challenging industrial environments.

Power Ranges

The PowerFlex 4 series provides adjustable horsepower levels to accommodate a variety of application requirements. Three different configurations of these drives are available: 0.25 to 1.5 HP, 0.25 to 5 HP, and 0.5 to 5 HP. This variety guarantees that customers may choose the right drive for their unique needs, improving production line performance and operating efficiency.

Mounting and Packaging Options

A variety of mounting and packaging solutions are available for the PowerFlex 4 series to accommodate various installation requirements. These drives may maximize space efficiency on the manufacturing line by being installed on DIN rails for Frame A and Frame B drives, or they can be stacked side by side. They have a maximum ambient temperature of 50 degrees Celsius and low spacing requirements.

Remote programming and network solutions

These drives offer strong network solutions and simple programming options, such as a remote LCD keyboard and setup software. This feature allows for centralized control and monitoring, which makes it easier to run the production line effectively and quickly change the drive settings as necessary to achieve peak performance.

Streamlined Parameter and Tag Programming

PowerFlex 4 drives enable easier parameter and tag programming and interface smoothly with the Logix management platform. This connection contributes to overall operating efficiency and lower maintenance costs by streamlining the setup process, simplifying programming, and ensuring consistent performance across the manufacturing line.

High-Quality Performance with Sensor-less Vector Control

The PowerFlex 4 series delivers high-quality performance with its sensor-less vector control feature. This technology ensures reliable and economical operation by adjusting the motor to sustain high torque levels at different speeds. The drive’s improved capacity to manage a variety of production line demands increases overall productivity.

Tolerances to Temperature

PowerFlex 4 drives are built to perform in harsh conditions. When stacked side by side, they can endure temperatures as high as 40 degrees Celsius and as low as 50 degrees Celsius. This temperature tolerance guarantees dependable operation and durability in tough industrial environments, enhancing manufacturing lines’ efficiency over time.

Streamlined Configuration and Use

With a streamlined, integrated keyboard that doesn’t need to be programmed before usage, PowerFlex 4 drives are made with user convenience in mind. Thanks to the integrated keypad, there is less of a learning curve and setup time, so operators can rapidly set up and manage the drives, decreasing downtime and increasing production line productivity.

Minimize Power Supply Disruptions

Using a VFD, such as from the PowerFlex 4, reduces the strain that AC motors impose on the power supply line at startup. Instead of the abrupt spike that AC motors are known for, VFDs begin the voltage at zero and increase it gradually. By gradually increasing, the power supply is not as taxed, and stability is maintained. For delicate equipment, like computers, which might encounter disturbances when an AC motor begins, the difference is more apparent. Integrating PowerFlex 4 VFDs may maximize production line productivity and safeguard delicate equipment from unplanned outages by ensuring seamless startup processes and fewer power supply interruptions.

Examples of VFDs from PowerFlex 4:

22A-A1P5H204:

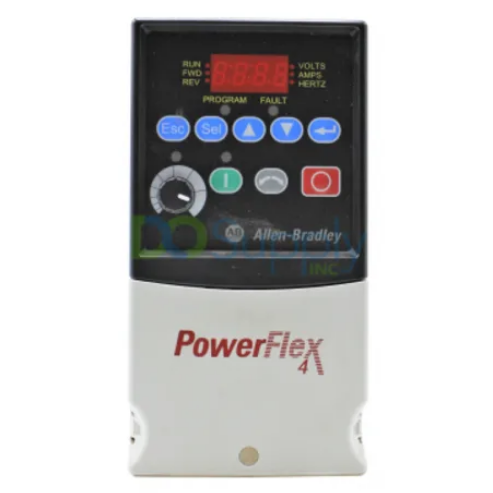

The 22A-A1P5H204, a PowerFlex 4 drive, enhances speed control for conveyors, fans, material handling systems, machine tools, and pumps. Its integral keypad with control keys and local potentiometer is ready for use out of the box, requiring no programming. Designed for cost efficiency and simplicity, it is the smallest and most affordable PowerFlex Drive. The 22A-A1P5H204 features a serial module converter and integral RS-485 communication for connectivity to any DFI port-equipped controller. It supports master and command RTU with standard 03, providing diverse communication and programming. Operating on 200 to 240 Volts AC single-phase electricity at 50 to 60 Hertz, it gives 0.25 Horsepower with 1.5 Amps. Optimizing production line efficiency is made possible by its numerous mounting options, which include DIN rail and panel mounting, as well as its ability to withstand ambient temperatures of up to 50 degrees Celsius.

22A-A3P6N113:

Volts/Hertz (V/Hz) control is used by the PowerFlex 4 series 22A-A3P6N113 to offer modulating speed control for industrial AC motors. It can adjust to certain machine needs thanks to its configurable settings. It produces 0-230 VAC, 3-Phase, 3.6 Amperes, 1.0 HP or 0.75 kW, and an input voltage of 200-240 VAC, 1-Phase, with an input current of 9.2 Amperes. It runs at 97.5% efficiency and has a customizable output frequency of 0-240 Hz. The drive allows for parameter upload, download, and comparison in addition to offline and internet programming. Its five discrete inputs, one N.O./N.C. dry contact output, and one unipolar analog input increase its adaptability and ease of integration into manufacturing processes.

22A-B1P5N104:

With voltage classes of 120, 240, 480, and 600 volts and power ratings ranging from 0.2 to 11 kW (0.25 to 15 HP), the PowerFlex 22A-B1P5N104 is a small, reasonably priced drive. It satisfies the needs of end users and OEMs throughout the world for usability, flexibility, and space savings. Flange mount drives minimize enclosure space, and DIN rail or panel mounting makes installation easy. Minimum spacing is possible with zero stacking at temperatures as high as 40°C. Optimized performance and safety are ensured by the drive’s integrated and external filtering for compliance, detachable MOV for ungrounded systems, DIP switch settable 25V DC sink/source control, and adjustable PWM frequency up to 16 kHz for silent operation.

22A-D2P3F104:

The 22A-D2P3F104 PowerFlex 4 is a 3-phase adjustable drive that uses an LED display and fixed keypad to vary machine speed. Its power rating is 0.75 kW (1 HP), and its output voltage ranges from 380-480 Volts AC to 2.3 Amps. It is connected by an RS-485 communication connection. It dissipates 40W of electricity with an input current of 3.2 Amps and an apparent power of 2.3 KVA. It provides strong circuit protection with its 140M-C2E-B40 motor protector, 100-C09 contactor, and UL Class J fuses. With its programmable relay output, inbuilt brake IGBT, flange mount IP20 enclosure, and digital and analog control inputs, the drive maximizes production line efficiency while offering dependable performance and flexible communication.

Conclusion

In conclusion, there are several advantages that come with incorporating PowerFlex 4 Variable Frequency Drives (VFDs) into your manufacturing line, all of which improve overall performance, dependability, and efficiency. These drives, which are renowned for their cost and small size, provide strong motor speed control that is necessary for a range of industrial applications. Because of their adaptability to a variety of production situations due to their power ranges, enclosure types, and input voltage ratings, they are a great option for OEMs and end users throughout the world who are looking for space-saving and affordable solutions. PowerFlex 4 drives are designed to be easily installed and have a wide variety of mounting choices, such as DIN rail and panel mounting. They are also resistant to damage, even under extreme temperatures. Their sophisticated features, which simplify parameter and tag programming and save maintenance costs, enable centralized management and monitoring. These features include remote programming, robust network solutions, and sensor-less vector control. PowerFlex 4 VFDs reduce power supply interruptions and provide superior performance, which improves your manufacturing line’s operating efficiency and guards against unscheduled outages for delicate equipment. PowerFlex 4 drives, such as the 22A-A1P5H204, 22A-A3P6N113, 22A-B1P5N104, and 22A-D2P3F104, are a dependable and effective option for streamlining your production operations because of their varied capabilities and uses.
