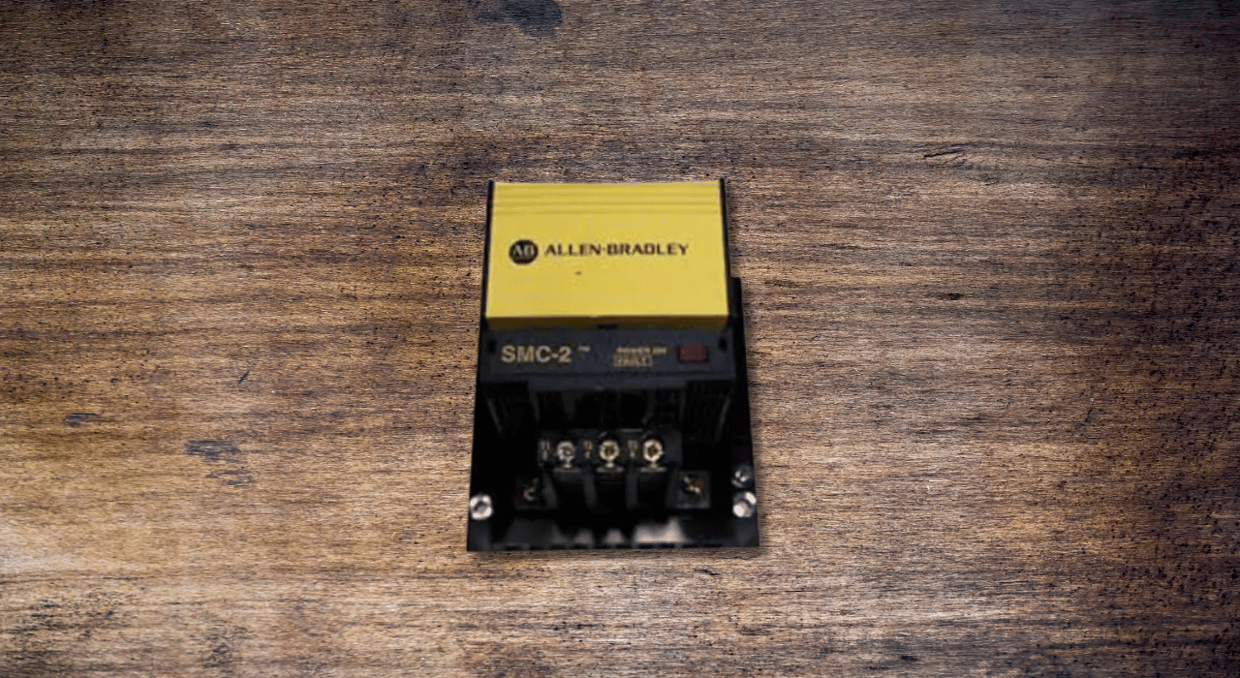

Effective motor control is essential in today’s industrial environment to maximize output, save operating expenses, and guarantee equipment life. The Allen-Bradley SMC-2 series of smart motor controllers stands out for its ability to optimize motor performance across various applications. In this article, we will first discuss various features that boost the motor control efficiency of the SMC-2 and then we will look at some of the example modules from this SMC-2 series.

Features that Boost Motor Control Efficiency

Flexibility in Motor Management

Three common beginning modes are supported by the SMC-2 series: current limit start, full voltage start, and gentle start. Due to its adaptability, users may tailor motor performance to the demands of their applications, minimizing motor wear and tear and increasing operational effectiveness in various situations.

Improving Safety in Operations

The SMC-2 series has an optional soft-stopping capability that needs an interface module. This feature ensures that motors decelerate smoothly, reducing mechanical stress and possible damage and extending the life of the motor and related equipment. An optional protection module with Metal Oxide Varistors (MOVs) for the SMC-2 controllers protects against power line disturbances. In order to guarantee trustworthy performance and the controllers’ longevity under demanding industrial settings, this module protects the Silicon-Controlled Rectifiers (SCRs) against noise and surges.

Adjusting to Varying Power Needs

Multiple voltage classes, such as 200 to 230 V AC, 380 to 460 V AC, and 500 to 575 V AC, are supported by the SMC-2 controllers. Because of its broad voltage support, the SMC-2 series is compatible with a wide range of industrial power systems, making it suitable for a wide range of international applications.

Diverse Current Ratings

The SMC-2 series is available in eight current ratings ranging from 5 to 97 Amps, allowing for fine matching to the power requirements of the motor. Ensuring effective motor functioning, the controllers of this series lower energy waste and enhance system performance under various load scenarios.

Line Frequency Support

The SMC-2 controllers may be used in a variety of geographical locations since they handle line frequencies of both 50 and 60 Hz. Because of its dual-frequency compatibility, the SMC-2 series is more versatile and can be easily integrated into global projects.

Configurations for Series and Motor Controllers

Installation flexibility is provided by the SMC-2, which may be utilized in both motor controller and series controller configurations. This makes it simple to integrate with currently installed electromechanical starters and speeds up the setup procedure, which lowers installation expenses and time.

Interface Options

Direct on/off control, auxiliary connections that may be configured, and an optional soft stop capability are all available as interface choices with the SMC-2 series. These interface choices provide the user with more control over the motor, allowing for more accurate changes and better motor control.

Options for Enclosures

Different levels of dust and water protection are offered by the open, IP 65, and IP 54-rated enclosures for the SMC-2 controllers. Long-term dependability is ensured by these alternatives, which let customers choose the right enclosure type according to the particular environmental requirements of their application.

Energy Saving Feature

The SMC-2 controllers provide an energy-saving feature that reduces power usage when the motor is not running or is only running at a low speed. The SMC-2 series has significantly increased energy efficiency, making it a more economical and ecologically responsible choice for motor management.

Example Modules from the SMC-2 series

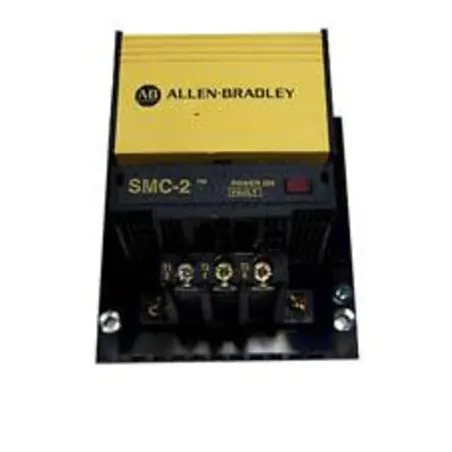

150-A05FB

The SMC-2 series Allen-Bradley 150-A05FB Smart Motor Controller is a solid-state solution for improving motor control efficiency in industrial automation. It is optimized for 3-phase induction motors up to 5 A, 2.2 kW, and 3 Hp, running on a 380 to 480 Volt AC, 50 to 60 Hertz power supply. Its robust NEMA Type 4 (IP65) enclosure, composed of high-temperature thermoplastic, ensures dependability in harsh environments. The front-mounted LED offers unambiguous status indicators, signalling power and fault conditions, like phase loss or a shorted SCR during motor start. The 150-A05FB makes installation easier by removing the need for additional control wire when used with an electromechanical motor starter. It is advised to use an optional protection module, such as a Metal Oxide Varistor, in settings with significant line transients. It is small and light and works well in a temperature range of 0 to 50 degrees Celsius.

150-A09FB

The SMC-2 series includes the adaptable Allen-Bradley 150-A09FB solid-state motor controller, which is designed to increase motor control efficiency in industrial environments. This controller is intended for 380 to 460 Volts AC (±10%, 50 to 60 Hertz, 3-phase), and it offers three different start modes: full voltage, gentle start, and current limit. The 150-A09FB has a 4 kW (0.3 to 5 Hp) capacity and a 9 Amp output rating. It may be set up using DIP or rotary digital switches. Its energy-saving features optimize power utilization when the motor is lightly loaded or unloaded, and it provides stall prevention throughout the motor start and run modes. While the optional protection module guards against line transients, the IP65 (NEMA Type 4) enclosure guarantees endurance in challenging conditions. The little controller, measuring 290 x 154 x 140 mm, functions effectively in a temperature range of 0 to 50°C and a non-condensing humidity of 5 to 95%.

150-A16FB-F1-8L4-NA

The Allen-Bradley 150-A16FB-F1-8L4-NA is an integral part of the SMC-2 Series Smart Motor Controllers, designed to enhance motor control efficiency. This multipurpose device is perfect for a variety of industrial uses since it can handle induction motors rated for 3 to 10 HP and 16 amps. Its seamless integration with electromechanical motor starters simplifies wiring. This 3-phase controller is strong and can survive extreme situations, such as temperatures between 0 and 50°C, altitudes up to 2000 meters, and 95% humidity. It operates within 380-480V AC at 50-60 Hz. Compact in size at 154x290x171 mm, the design is protected by a sturdy NEMA IP96 (Type 4) enclosure. It provides real-time monitoring of power conditions and any problems like phase loss or motor stalls thanks to its LED indicators. The 150-A16FB-F1-8L4-NA is a dependable way to increase the effectiveness of motor control.

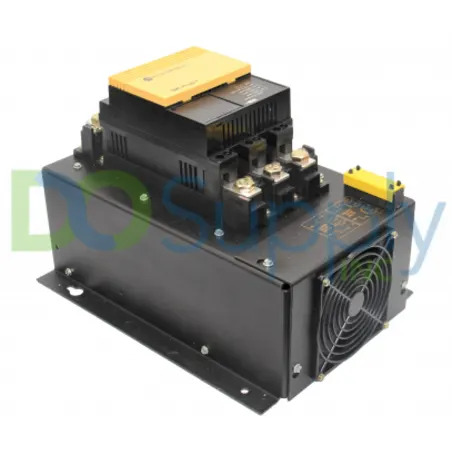

150-A135NBDD

The 150-A135NBDD, solid-state motor controller, is designed to start squirrel-cage motors as efficiently as possible. It can handle motors with a power output of 5 to 100 HP at 480V AC thanks to its remarkable 135 Amps output. Designed to operate in three phases at 200-480V AC, it can produce 37 kW at 230V and 75 kW at 400V, respectively. Its several operating modes and built-in Smart Motor Braking (SMB) stop technology contribute to its adaptability. With just 30 VA needed for the control module and 45 VA for the heatsink fan, the open-frame controller uses very little power. It runs in the 0 to 50°C temperature range and dissipates up to 490 Watts. This controller, which is lightweight at 11.8 kg and measures 336 x 248 x 230 mm, is designed to withstand harsh use and improve motor control effectiveness across a range of power and environmental circumstances.

Conclusion

In conclusion, the SMC-2 series of smart motor controllers from Allen-Bradley considerably improves the efficiency of motor control in a variety of industrial applications. This study examined important characteristics that make the SMC-2 series a dependable option for maximizing motor performance, such as adaptable start modes, energy-saving capabilities, and strong safety measures. Furthermore, several module examples were shown, including the 150-A05FB, 150-A09FB, and 150-A16FB-F1-8L4-NA, to illustrate their adaptability and efficiency in diverse industrial environments. These controllers are essential for contemporary motor management since they provide customized solutions that lower energy consumption, simplify installation, and guarantee long-term dependability.
