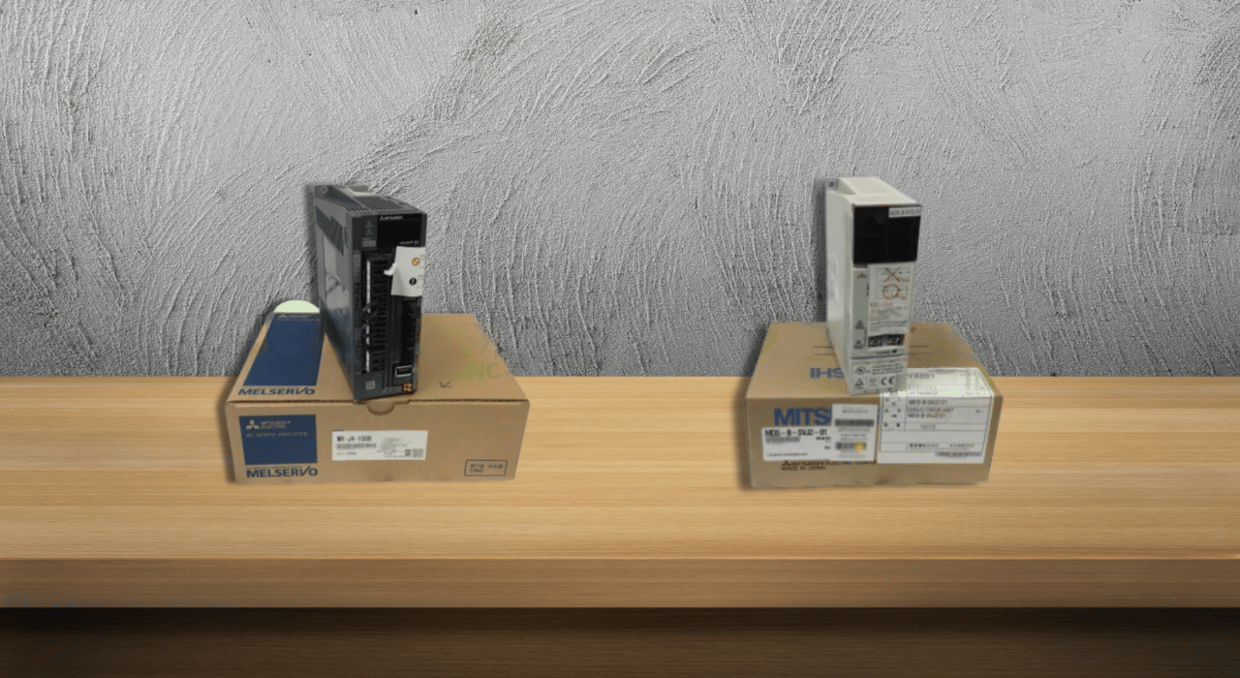

Top 5 Features of Mitsubishi Servo Drives That Enhance Industrial Automation

Mitsubishi servo drives are well known for their great performance, accuracy, and dependability, which can improve industrial automation. The article delves into the important attributes distinguishing the Mitsubishi drive: wide power ranges for diverse uses, sophisticated motion control for smooth accuracy, and integrated safety measures to guarantee operational security. Real-time diagnostics that reduce downtime and adaptable communication options for simple integration with current systems are also covered. Because of all these capabilities, Mitsubishi servo drives are crucial to optimizing contemporary industrial automation processes.

Broad Power Ranges and Built-in Functions

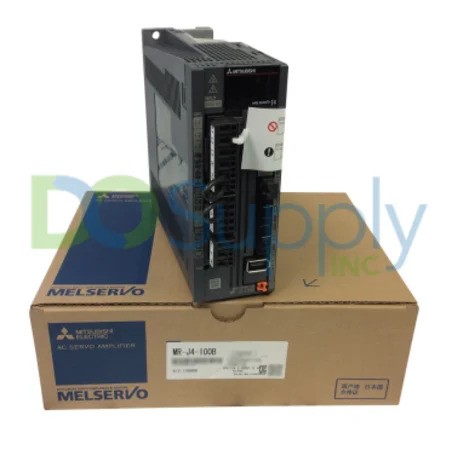

Mitsubishi servo drives come in wide power ranges. For instance, the MELSERVO-JN line of low-power drives (0.05 kW to 1 kW) is perfect for precise applications like micro-machining and tiny robots. Medium-power drives (1 kW to 3.5 kW) from the MR-JE family are appropriate for mid-sized CNC machines and automated handling systems. With drives ranging from 0.1 kW to 22 kW, the MR-J4 series broadens the scope and is suitable for more demanding applications such as assembly lines, high-performance robots, and conveyors. Large CNC machines, metal processing, and material handling systems require high-power drives, which the MDS-C1 and MDS-D/DH series offer up to 55 kW for even more power.

Mitsubishi servo drives offer several integrated features that improve automation effectiveness. Features like auto-tuning, which automatically modifies control settings for maximum performance, are available in the MDS-C1 and MR-J4 series. Additionally, both series have adaptive control and vibration suppression to provide steady operation in fast-paced conditions. These characteristics make the MDS-C1, MR-J4, and MR-JE series perfect for contemporary industrial automation systems requiring precision and dependability. They also greatly minimize downtime and enhance accuracy.

Versatile Voltage and Current Ranges for Industrial Flexibility

Flexible voltage and current ranges are offered by Mitsubishi servo drives, which are designed to satisfy the various demands of industrial automation. The 200V class drives function within a 200V to 240V AC voltage range and offer current levels from 1A to 30A, making them excellent for smaller applications such as robots and tiny CNC machines. These drives are perfect for light industrial and precision activities. With an operating voltage range of 380V to 480V AC and current ratings ranging from 10A to 100A, the 400V class drives are intended for heavy industrial applications, including large-scale automation and heavy equipment operations. Mitsubishi’s’ adaptability guarantees their easy integration into diverse production environments, improving power consumption and performance.

Even more specialized configurations are available in the MDS-C1 and MR-J4 series to meet various automation demands. The MDS-C1 series is appropriate for applications such as big CNC machines and industrial motors since it supports 3-phase 200V and 400V AC with current ratings ranging from 5A to 60A. The MR-J4 series supports a wider range of applications, ranging from tiny motors running at 0.6A to bigger motors with currents of up to 50A. It is available in 100-120V, 200-240V, and 400-480V AC versions. Mitsubishi drives provide dependable, high-performance solutions for small-scale precision jobs as well as big industrial systems, thanks to their flexibility in voltage and current. This increases efficiency and adaptability in automation situations.

Advanced Motion Control with Real-Time Feedback and Integrated Safety Technologies

High-precision and smooth motion are ensured even at high speeds with Mitsubishi Servo Drives, particularly the MDS-C1 series, which offers sophisticated motion control with technologies like Real-Time Auto-Tuning and Predictive Control Algorithms. For intricate industrial applications, these drives deliver precise positioning, synchronization, and speed control due to Real-Time Feedback loops and Direct Drive Technology. Rapid adjustments and excellent control accuracy are provided by the MR-J4 series, which improves performance in small and large-scale automation by leveraging the high-response control of the MELSERVO-J4.

Mitsubishi’s servo drives incorporate sophisticated safety features such as Safe Torque Off (STO), Safe Stop 1 (SS1), and Functional Safety over EtherCAT (FSoE) in addition to motion control. Built into models such as the MR-JE and MDS-DH series, these technologies secure personnel and equipment by preventing unintentional motor movement during maintenance or in the case of a machine malfunction. Mitsubishi drives meet international safety standards, including EN ISO 13849-1 and IEC 61508, improving operational security and minimizing system downtime thanks to these built-in safety mechanisms. Mitsubishi drives are a reliable and effective option for contemporary industrial automation because they combine motion control with integrated safety features.

Flexible Communication and Advanced Diagnostics

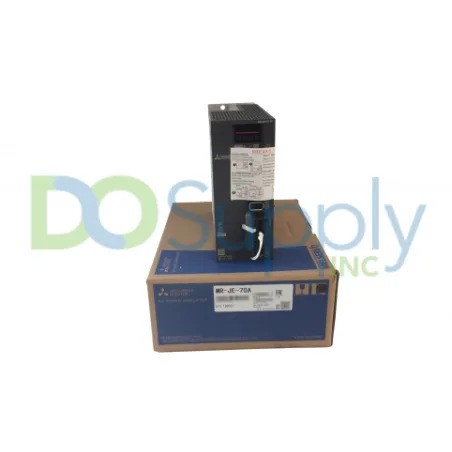

Mitsubishi Servo Drives provides a variety of connection choices by supporting protocols such as PROFINET, CC-Link IE, and EtherCAT. Because of its adaptability, it can be seamlessly integrated with current SCADA systems, PLCs, and other industrial automation devices. Whether high-performance duties are performed with the MR-J4 series or low-cost jobs are performed with the MR-JE series, these drives guarantee excellent communication throughout the manufacturing floor, improving overall system management and diagnostics. Because of the real-time data interchange that this link allows, production parameters may be more easily monitored and adjusted, increasing productivity and flexibility in different industrial setups.

Along with sophisticated diagnostic features, Mitsubishi drives come equipped with Real-Time Monitoring and Predictive Maintenance technology. These capabilities enable ongoing monitoring of the performance and health of the drive, which aids in spotting possible problems before they become serious enough to cause expensive downtime. For example, the MDS-D/DH series has self-diagnostics and comprehensive error logs that allow for rapid troubleshooting and speedier problem resolution. By maximizing operational uptime and improving overall system dependability, real-time monitoring guarantees that industries can continue to operate at high levels of productivity without unneeded disruptions. When combined, these cutting-edge diagnostic and communication capabilities provide Mitsubishi Servo Drives a major competitive advantage in industrial automation.

Seamless Integration with Mitsubishi Ecosystem and High-Speed Response

GOT HMI systems, IQ-R Series controllers, MELSEC PLCs, and other components of the larger Mitsubishi ecosystem can all be seamlessly integrated with Mitsubishi servo drives. Coordinated control, real-time data exchange, and easier programming throughout the automation system are made possible by this one platform. For example, the MR-J4 series is perfectly compatible with MELSEC-Q PLCs, allowing for tighter control and more seamless communication over complex systems. Through a single, unified interface, this integration enhances system performance overall and makes it simpler to maintain and troubleshoot the complete automation configuration. Mitsubishi drives guarantee improved operating efficiency and decreased downtime by simplifying control and monitoring.

High-speed reaction, which is essential for applications like precision manufacturing or high-speed assembly lines, is another area in which Mitsubishi servo drives excel. Drives like the MR-JE and MR-J4 series use sophisticated feedback systems and high-resolution encoders to guarantee precise and fast adjustments while in use. By reducing latency between the drive and controller, technologies such as the MELSERVO high-speed network enable machines to run at full speed without compromising precision. Industries that depend on quick, accurate motions need this quick reaction to be productive and maintain high standards of quality while producing large quantities of work. Mitsubishi’s speed and integration capabilities increase output in a variety of automation settings.

Conclusion

In conclusion, Mitsubishi servo drives provide an extensive feature set that greatly improves industrial automation. They are flexible for a wide range of applications, from tiny precision tasks to large-scale industrial systems, thanks to their vast power ranges and variable voltage options. Mitsubishi drives offer high-speed, precise performance thanks to their sophisticated motion control technologies, which makes them perfect for demanding jobs like CNC milling and robotics. Safe Torque Off (STO) and Safe Stop 1 (SS1) are examples of integrated safety measures that guarantee the protection of the machine and the operator. Moreover, real-time diagnostics and adaptable communication protocols improve system performance, connection, and the ability to do predictive maintenance. These drives enhance efficiency and streamline operations while connecting seamlessly with Mitsubishi’s environment. Mitsubishi servo drives offer dependable, high-performance solutions for today’s automated industries by combining these top five qualities.
