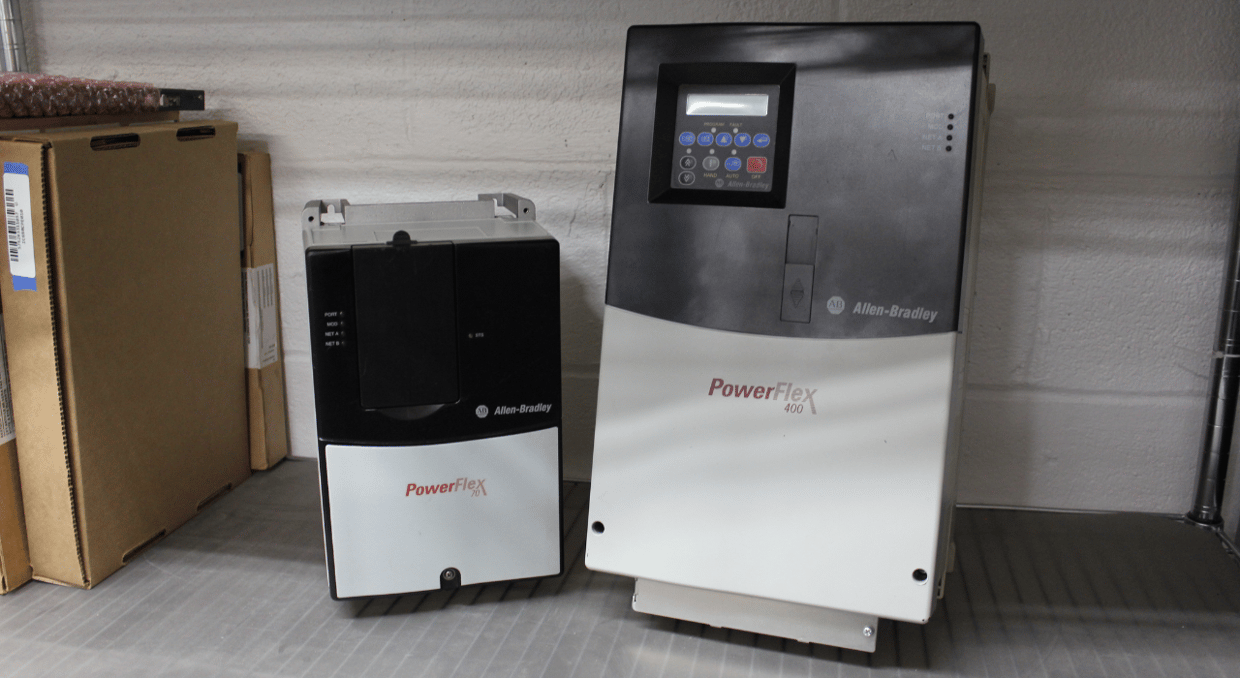

Allen-Bradley Drives: A Deep Dive into the Top Features That Make Them Stand Out

To maximize performance and efficiency in today’s quickly changing industrial landscape, driving solutions that are dependable and adaptable is crucial. With various cutting-edge features designed for various applications, Allen-Bradley drives stand out as a top option. This article explores the key features distinguishing Allen-Bradley drives, such as their wide voltage range, optimal current capacity, strong power ratings, sophisticated control technologies, seamless integration into the different Automation ecosystems, strict safety measures, and tough, weatherproof designs. Businesses may improve their operational skills and guarantee long-lasting success by making well-informed decisions based on an awareness of these critical features.

Broad Voltage Range

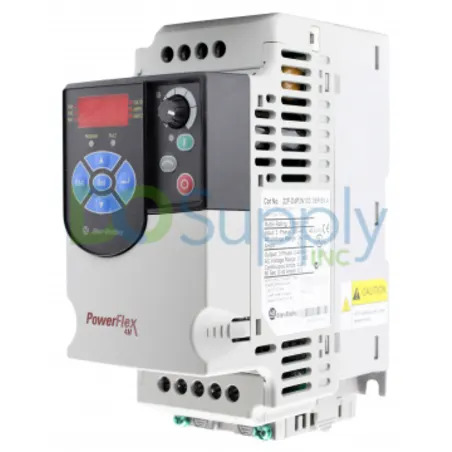

The broad voltage range of Allen-Bradley drives is one of their best features as it provides versatility for a wide range of industrial applications. The PowerFlex 4/4M series of drives, which are perfect for tiny pumps and fans, support a low voltage range of 100-240V AC. On the other hand, the PowerFlex 7000 series, which is intended for high-power applications like mining conveyors and industrial motors, supports a medium voltage range of up to 13.8 kV.

With its ability to handle 100-600V AC, the PowerFlex 525 is a flexible controller for fans, mixers, and conveyors. Operating at 380-480V and 500-600V AC, the PowerFlex 753 is appropriate for heavy machinery such as blowers and compressors. Large cranes and mills, as well as tiny motors, are handled by the PowerFlex 755, which is capable of handling 200–690V AC for larger industrial applications. Because of its broad voltage capacity, which guarantees flexibility in a variety of settings, fewer drive models are required, which streamlines system integration.

Ideal Current Range

The ideal current range of Allen-Bradley drives is a crucial characteristic that qualifies them for a wide range of industrial applications. With a current range of 0.5A to 16A, the PowerFlex 523 drive is perfect for small to medium-duty applications such as fans and conveyors. Cranes, mills, and intricate production lines are just a few of the bigger industrial systems that the PowerFlex 755T can operate. It can handle 2.1A to 1,400A.

The PowerFlex 7000 (Medium Voltage) drive supports large-scale applications like mining operations and heavy-duty machinery with current capabilities in the kilovolt-ampere (kA) range, enabling even higher-power activities. With a current range of 3A to 60A, the Kinetix 5700 servo drive delivers excellent precision in motion control, making it ideal for intricate automation tasks like robotic arms and fast assembly lines. Allen-Bradley drives can meet a broad range of requirements, from tiny machines to big industrial settings, thanks to their extensive current adaptability over many series.

Power Capacity

The power capacity of Allen-Bradley drives assures maximum performance in applications of all sizes, whether it’s a little motor or a huge industrial system. This means that there’s a solution for any power demand.

Small equipment like fans and pumps are the perfect fit for the PowerFlex 4M, which has power ratings ranging from 0.2 kW to 11 kW. The PowerFlex 753 can handle loads ranging from 0.75 kW to 500 kW, which makes it ideal for managing machinery like compressors, blowers, and conveyors in more demanding scenarios. At the upper end, the PowerFlex 755 can handle heavy-duty applications, including mills, processing facilities, and cranes, with power ratings of up to 1,500 kW. The Kinetix 5100 provides servo control with power output ranging from 50W to 15kW, enabling accurate control in motion applications such as manufacturing lines and robots.

Advanced Control and Customization

Advanced control technologies and algorithms are included in Allen-Bradley drives to improve accuracy and performance. For heavy-duty applications like compressors and conveyors, the PowerFlex 755T optimizes motor speed, torque, and economy via the use of torque control and adaptive control algorithms. Using CIP Motion technology, the Kinetix 5700 offers synchronized, real-time motion control for robots and high-speed production. Furthermore, the PowerFlex 525’s Sensorless Vector Control (SVC) and Field-Oriented Control (FOC) provide accurate motor management without the need for feedback sensors, guaranteeing dependable performance in applications with varying loads. The PowerFlex 753’s predictive maintenance algorithms predict degradation, allowing for prompt repair and a reduction in downtime. Safe Torque Off (STO) ensures controlled shutdown in emergencies, which further improves safety. Because of their ability to be customized and their cutting-edge control technologies, Allen-Bradley drives can precisely and efficiently fulfill a wide range of industrial demands.

Connectivity and Integration with Automation Systems

Within the Rockwell Automation ecosystem, Allen-Bradley drives excel in integration and communication, enabling well-integrated industrial control systems. Drives like the PowerFlex 525 and PowerFlex 755 can interact in real-time thanks to EtherNet/IP connection, which enables effective remote diagnostics and monitoring. This lowers downtime and improves operating efficiency.

Datalink technology improves data collecting for performance monitoring and predictive maintenance. Because of their strong connection and integration capabilities, Allen-Bradley drives are an essential part of contemporary industrial automation solutions, streamlining processes and increasing efficiency.

Advanced Safety Features

Industrial settings place a high priority on safety, and Allen-Bradley drives have strong safety measures to safeguard workers and machinery. The PowerFlex 755 and PowerFlex 755T models have the Safe Torque Off (STO) feature, which guarantees that motors may be safely stopped without completely shutting down the system. This feature enables safe maintenance and emergency responses. The Kinetix 5700 series’ Safe Speed Control (SSC) regulates and keeps track of motor speed to avert dangerous situations brought on by fast speeds.

EtherNet/IP and CIP Safety provide for dependable safety communication, while Safety Configurable I/O on the PowerFlex 525 allows for customized safety solutions. When performing manual operations, dangers are reduced by integrated safety features like Emergency Stop and Two-Hand Control. Additionally, redundant safety circuits guarantee that safety functions continue to work even in the event of a failure, and enhanced fault detection and diagnostics allow real-time monitoring, enabling proactive maintenance. When combined, these characteristics improve industry standard compliance and operational reliability.

Robust Design for Harsh Environments

Given their sturdy construction, Allen-Bradley drives are perfect for harsh industrial environments. With its design to withstand harsh temperatures and severe vibrations, the PowerFlex 7000 series ensures dependability in demanding applications like manufacturing and mining. Conformal coatings, which guard against dust, moisture, and corrosion on several models—including the PowerFlex 525—significantly increase the drives’ lifespan in demanding environments. A tough casing that satisfies NEMA 1, NEMA 12 and NEMA 4X classifications are used by the Kinetix 5700 series to offer further defense against inclement weather.

The drives also meet IP55 and IP66 requirements, which guarantees that water and dust cannot enter them. Excellent performance in situations with high levels of heat and pollutants is ensured by the use of high-quality components and innovative thermal management technology. Because of their sturdy construction, Allen-Bradley drives can withstand a lot of abuse while still providing dependable performance, which makes them ideal for a variety of industrial uses.

Conclusion

In conclusion, Allen-Bradley drives are a top option for industrial applications because they provide a wide range of cutting-edge features that improve performance, economy, and security. Their wide variety of voltages and ideal currents satisfy different operating requirements, and their strong power ratings guarantee that they can manage systems of any size. Within the Rockwell Automation ecosystem, sophisticated control technologies and seamless connection further optimize processes and enhance monitoring capabilities. Furthermore, they prioritize safety, as seen by features like Safe Torque Off and Safe Speed Control, which protect both workers and equipment. Allen-Bradley drives offer dependable, long-lasting solutions for contemporary industrial difficulties thanks to their robust designs intended for hostile environments and compliance with NEMA and IP requirements.
