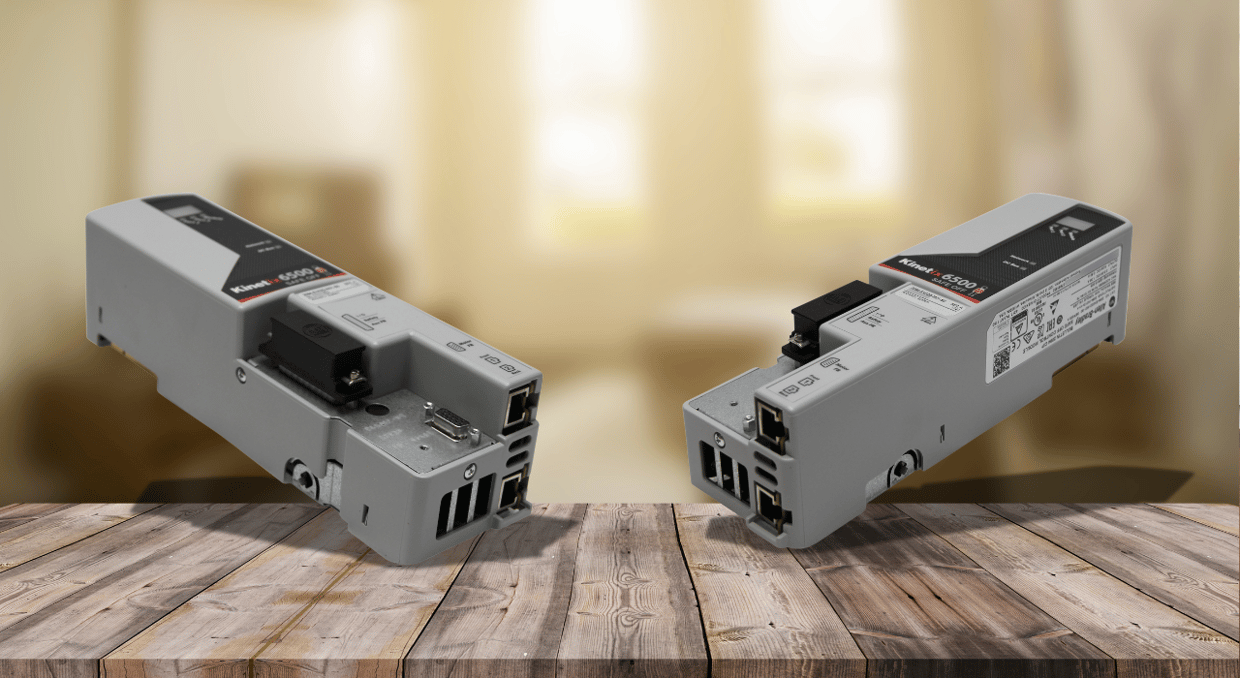

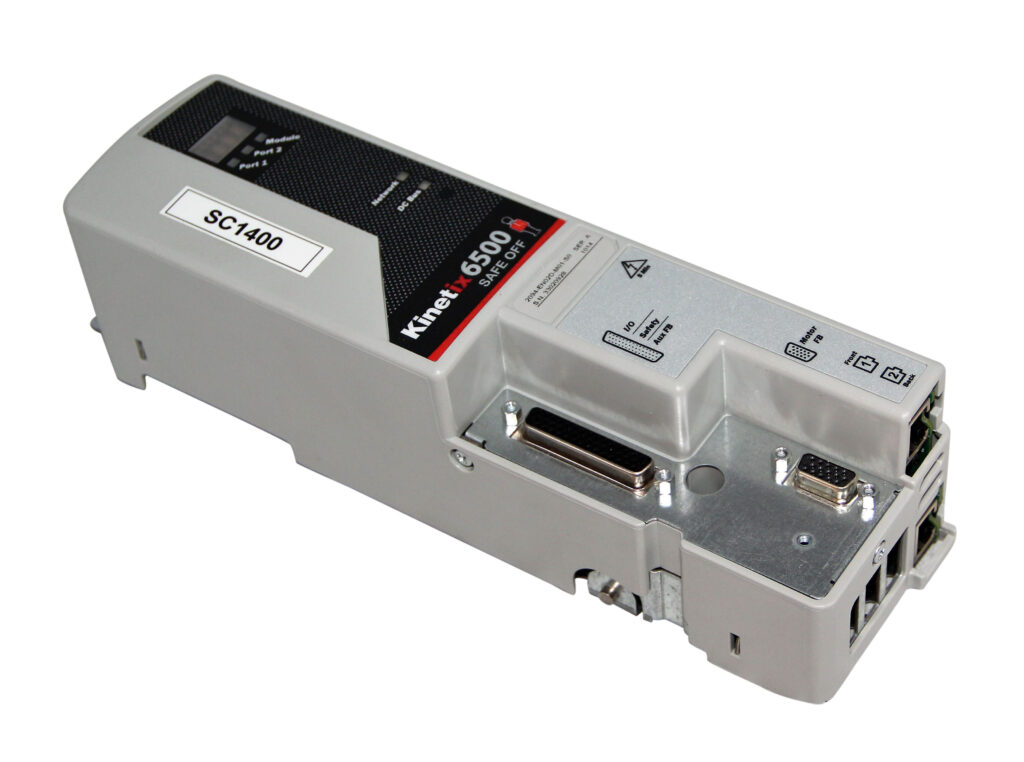

Scalable Solutions: How Kinetix 6500 Fits into Your Growing Needs

These Kinetix 6500 servo drives from Rockwell Automation come equipped with many features that are compatible with the increasing demands of modern automation. These features include a flexible network architecture, embedded safety, and modular designs. These features allow you to scale for the future while integrating motor control efficiently, elevating a plant’s performance. This article draws on the features offered by the Kinetix 6500 and explains how it fits the growing need for machine builders.

Enhanced Control and Simplicity with Integrated Motion on EtherNet/IP

In Kinetix 6500 servo drives, Rockwell Automation’s EtherNet/IP network is integrated with CIP Sync and CIP Motion technologies. Both of these technologies are built on the CIP (Common Industrial Protocol) from the ODVA. This standard is widely adopted, resulting in a flexible network that enhances system performance, simplifies setup, and allows for real-time information flow.

Key Benefits of EtherNet/IP Integration

• Unified Network for Machine Support: The Kinetix 6500 uses a single EtherNet/IP network to eliminate the need for a separate motion network (and its associated control modules). It can support a range of commercial and industrial devices with no proprietary hardware required.
• Standard Ethernet Protocol: The EtherNet/IP uses unmodified Ethernet. By doing so, the plant-wide network integration becomes simple. The performance is enhanced with real-time control and information flow.
• Time Synchronization: The CIP Motion and CIP Sync technologies help synchronize I/O, drives, and other devices. This enables coordinated motion for complex applications.

The Kinetix 6500 drives have the ability to manage both motion and other EtherNet/IP-compliant devices on a single network. This makes the Kinetix 6500 an ideal solution for expanding facilities without adding proprietary systems. The plant-wide network can improve decision-making, cost, and operational efficiency.

Embedded Safety Features to Protect Operators and Reduce Downtime

The Kinetix 6500 drives have embedded safety functions like Safe Speed Monitoring (S1) and Safe Torque-Off (S0). Both of these features provide SIL CL3, Cat. 4, PL e Safety Performance to ensure safety compliance.

Safe Speed Monitoring Features

• Safe Speed has an eye over the speed of your application when needed. It can initiate Safe Stop, if the speed exceeds the Safe Speed.
• It supports many of the built-in functions like Safe Stop, Zero Speed Monitoring, Safe Limited Speed, Safe Maximum Speed, and Safe Direction Monitoring. Door Monitoring and Control, Enabling Switch Control, and Safe Max Accel Monitoring are also available.
• It features web-based (and Internet Explorer-based) configuration. Hence, the input and output devices can be flexibly selected.

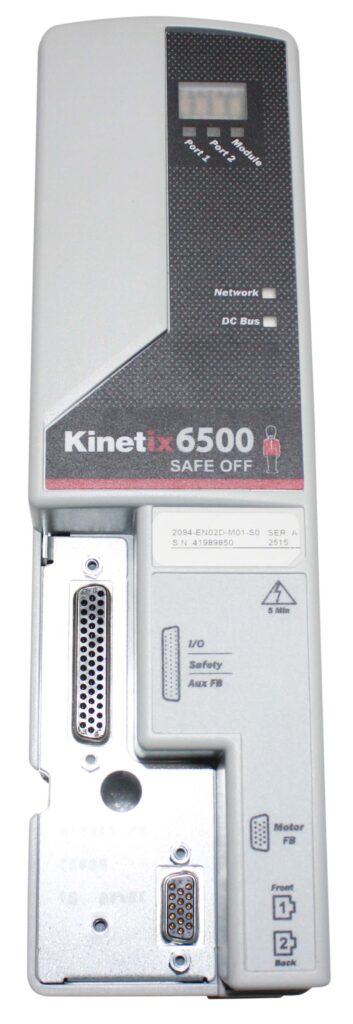

• The drives (with the 2094-EN02D-M01-S1 control option) have TUV-certified safety ratings that meet IEC 61508 SIL 3 and ISO 13849 PL standards.

Safe Torque-Off (STO) Features

• STO allows the drive output to be safely disabled to remove the torque from the motor without having to cut the complete power of the machine.
• It simplifies the wiring and provides brilliant safety
• The TCO (Total Cost of Ownership) is lower with STO compared to the other alternatives.

These embedded safety options allow the Kinetix 6500 drives to provide superior safety performance with an enhanced uptime and a safer work environment.

Adaptable and Cost-Saving Modular Design

The Kinetix 6500’s modular design is one of its most selling features. The modular design contributes to flexibility, reducing the total system’s cost. Each of the modules is interchangeable. This allows for upgrades or replacements without replacing the entire drive. Here are some of the key advantages:

• With the interchangeable control modules, its easier to adapt to new requirements. The control modules can be switched out as the needs change.
• Since the individual modules can be replaced independently, the number of spare parts needed is also reduced.
• The process of diagnosing and troubleshooting a problem is accelerated.
• The modular control modules allow the drives to accommodate new power ranges or control types. This eases the transition to newer technologies as there will be new modules catering to these advancements.

With the modular approach, the machine builders can adjust to new needs without incurring excessive costs.

Comprehensive Connectivity and Network Resilience

Dual Ethernet ports enable various topology options. The following are some features:

• Device Level Ring (DLR) is an ODVA standard that provides single-fault tolerance. This prevents network downtime without additional switches.
• With the support for hybrid topology, machines can integrate various devices on a common subnet. This is a cost-effective setup for complex applications.
• The drives also support extended linear segments, a topology option that allows for a longer application setup without connecting each device to a central switch, reducing the cable requirements.
• The Embedded Switch Technology curbs the requirement for external switches in linear and DLR topologies.

These options in the Kinetix 6500 are particularly suited to dynamic and demanding industrial applications.

Kinetix 6500 System Components

Following are the key components that help with configuring a system with Kinetix 6500:

• ControlLogix Controllers (L6X/L7X) are compatible with 1756-ENeT EtherNet/IP modules, supporting up to 100 axes for each controller in a large system.
• Managed or unmanaged Stratix switches enable various network topologies based on application needs.

Together, these components form a reliable integrated motion system that simplifies control.

Proven Kinetix 6000 Foundation

The Kinetix 6500 adds significant enhancements for scalability, safety, and network integration.

• The Kinetix 6500 drives offer the same trusted performance as the Kinetix 6000 but with enhanced connectivity and modularity.
• The drives support hundreds of devices on EtherNet/IP, from I/O and robots to torque tools and actuators.
• It uses standard Ethernet and provides a future-proof solution to leverage existing infrastructure.

With the Kinetix 6500’s backward compatibility, the other proven Kinetix 6000 platforms can also be leveraged with more benefits.

Supported Motors and Actuators

Following are the types of motors and actuators supported by Kinetix 6500:

• Rotary Motors: MP-Series Low Inertia, Medium Inertia, Food Grade, Stainless Steel, and RDD-Series Direct Drive.
• Linear Motors: LDC-Series Iron Core.
• Linear Actuators: MP-Series Linear Stages, Multi-axis Stages, and Electric Cylinder.

The compatibility allows for the customization of solutions for various applications, from high-speed assembly to food and beverage processing.

Recommended Cabling for Optimal Performance

For maximum signal integrity and minimum interference, it is officially recommended to use the Shielded Twisted Pair (STP) cables with the Kinetix 6500. Allen-Bradley shielded Ethernet cables are recommended (part numbers 1585J-M8CBJM-0M3, 1585J-M8CBJM-0M4, and others up to 78 meters) for reliable drive-to-drive connections.

Conclusion

The Kinetix 6500 series drive is a comprehensive solution for companies seeking to optimize motion control and enhance safety within a single, scalable network. With integrated safety features, modular design, flexible connectivity, and proven performance, it provides an efficient and future-ready platform. Designed to meet the evolving needs of automation, the Kinetix 6500 is equipped to handle today’s challenges while preparing for tomorrow’s advancements.
