Why the PowerFlex 700 is Still a Reliable Choice for Automation

The PowerFlex 700 series from Allen-Bradley continues to be a reliable and versatile choice for modern automation systems across various industries. Known for its broad voltage and power range, advanced motor control methods, and flexible I/O capabilities, the series caters to various applications. From robust enclosure options and efficient communication protocols to precise motor control and integrated design, the PowerFlex 700 series excels in performance, energy efficiency, and ease of integration. This article explores the key features of the PowerFlex 700 series, highlighting its reliability and suitability for a diverse range of automation needs. Later in this article, we will discuss some of the example modules.

Features that make the PowerFlex 700 a Reliable Choice for Automation

Wide Voltage and Power Range:

The PowerFlex 700 series’ remarkably broad voltage and power range, which serves a variety of industrial applications, makes it a dependable option for automation. The drives, which are made to accommodate different operational requirements, can handle input voltage classes ranging from 200–240V, which have power ratings of 0.37–66 kW, to 690V, which can provide up to 132 kW. This adaptability allows for a smooth transition into current systems while supporting a variety of motor specifications. In industries that depend on medium-voltage equipment, the 380–480V range provides power outputs ranging from 0.37 to 132 kW, making it perfect for mid-tier applications such as material handling and conveyor systems. Meanwhile, the 500–600V class is advantageous for high-capacity configurations, providing power ratings of up to 150 HP, making the PowerFlex 700 especially appropriate for demanding applications in heavy machinery and oil wells. Because of its versatility, the PowerFlex 700 is a key component of contemporary automation systems, providing dependable performance, energy efficiency, and operational flexibility.

Motor Control Methods:

Because of its strong motor control methods, which guarantee accuracy, effectiveness, and versatility in a range of industrial applications, the PowerFlex 700 series is a dependable option for automation. These drives offer outstanding motor performance with volts per hertz, sensorless vector control, and the unique FORCE Technology. Allen-Bradley’s FORCE Technology is one unique patented vector control system that works well with or without an encoder and increases adaptability in various configurations. Incorporating an adjustable voltage control approach allows for even more precise motor operation, satisfying certain process requirements. The PowerFlex 700 series is reliable for contemporary automation systems needing high-performance motor control. These sophisticated algorithms guarantee seamless operation, precise speed regulation, and excellent torque management.

Enclosure Types:

The PowerFlex 700 series’ adaptable enclosure solutions, which are made to satisfy a variety of applications and environmental requirements, continue to make it a dependable alternative for automation. IP00, NEMA Open/Flange type, NEMA Type 1, and IP20 NEMA / UL Type open enclosures are among the available options, guaranteeing protection and installation flexibility. The IP54 wall-mounted and flange-mounted enclosures are perfect for industrial situations because they offer exceptional protection against water and dust in more demanding conditions. For small installations, the zero-stacking enclosure design maximizes space use. With this variety of enclosure choices, PowerFlex 700 drives can be easily integrated into any system, providing performance and dependability for a broad range of automation applications.

Communication Protocols:

The PowerFlex 700 series’ optional connectivity adapters, which guarantee a smooth integration into contemporary industrial networks, make it a dependable solution for automation. Through modules for EtherNet/IP, DeviceNet, and ControlNet networks, these drives provide reliable connectivity with support for Common Industrial Protocol (CIP) communications. Furthermore, the series offers flexibility for other industrial network protocols, enabling customers to customize the communication configuration to meet their unique system needs. This adaptability supports improvements in industrial automation while guaranteeing compatibility with legacy systems. USB adapters further simplify system configuration, which provides effective programming and monitoring. PowerFlex 700 drives may serve as essential parts in a variety of automation applications thanks to their ability to connect with many network types, providing dependable and future-proof performance.

I/O Capabilities:

The PowerFlex 700 series’ flexible onboard input and output (I/O) options, which offer improved control and flexibility in a variety of applications, continue to make it a dependable option for automation and use. Adapting to various control scenarios, the drives have six digital inputs that support 24V DC or 115V AC power sources. The series provides two bipolar analog outputs that can be configured for voltage or current types and two analog inputs that can handle bipolar voltage or current signals for accurate analog control. A dedicated PTC input provides additional security when monitoring motor temperature. Additionally, three relay outputs ensure reliable interfacing with external devices. This broad I/O design boosts the versatility of PowerFlex 700 drives, reinforcing their position as trustworthy solutions for modern automation systems.

Motor Types and Precision Positioning:

With its sophisticated positioning features and specific motor control capabilities, the PowerFlex 700 series is a dependable option for automation. These drives, which are specifically made for three-phase AC induction motors, provide accuracy and optimal performance in industrial settings while guaranteeing compatibility with motor types that are industry standards. The PowerFlex 700 provides two reliable techniques for positioning tasks: Position or Speed Profiling and Indexing. These characteristics allow for exact control over speed and movement, which makes the drives appropriate for robotics and material handling applications that demand precision placement. The PowerFlex 700 series continues to be a dependable option for businesses looking for reliable, high-performance automation solutions that are suited to their operational requirements by fusing motor-specific control with sophisticated positioning capabilities.

Integrated Design and Temperature Resilience:

The PowerFlex 700 series’ integrated components and capacity to operate in a range of temperature settings make it a dependable option for automation. With an inbuilt brake resistor, EMC filtering, and a communication link, these drives provide simplified operation and save control system space by minimizing the need for extra hardware. With temperatures ranging from 0 to 50°C for open IP 20 enclosures, the series is built to withstand harsh conditions and function well without derating. The drives’ storage temperature range of -40 to 70°C guarantees their longevity throughout transportation and prolonged downtime. Because of its strong temperature tolerance and small size, the PowerFlex 700 is a reliable option for contemporary automation systems.

Example Modules

20BB015A3AYNBND0:

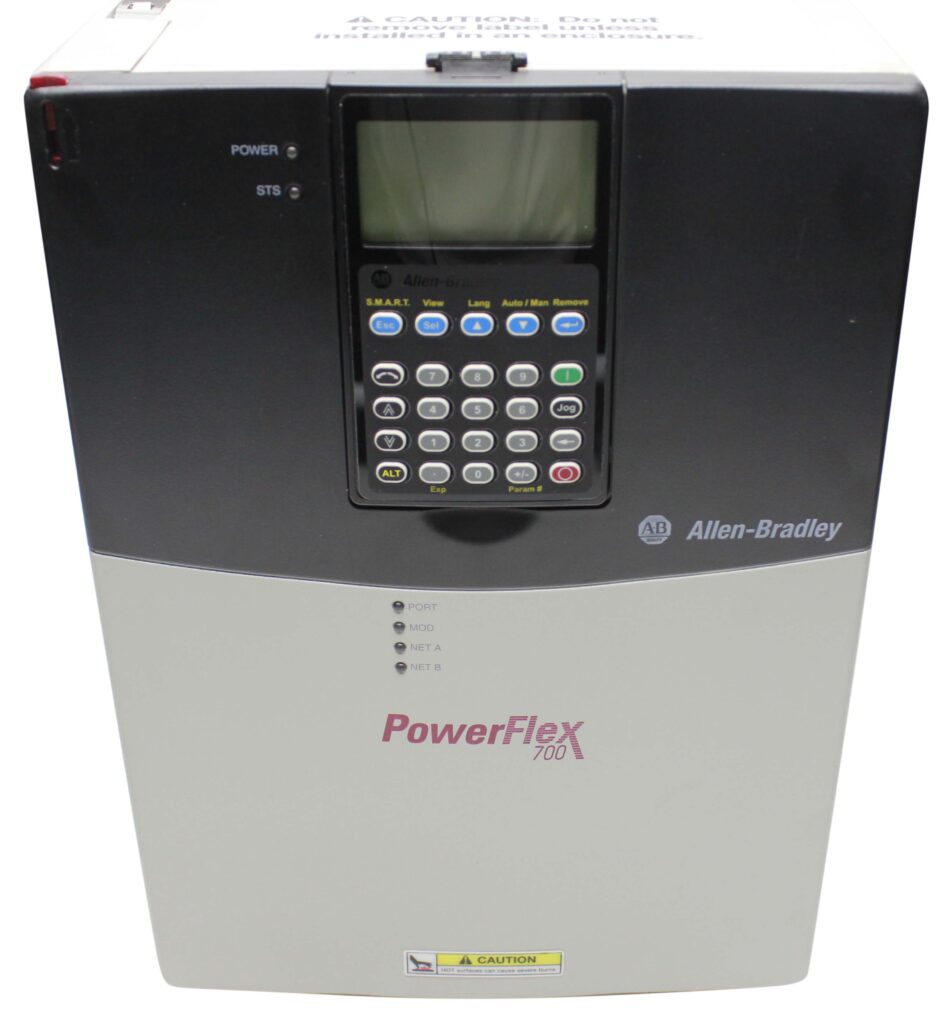

The 20BB015A3AYNBND0 model of the PowerFlex 700 series, with its adaptable design and easy-to-use features, is a dependable option for automation. Installation and upkeep are made easier with an IP20 NEMA Type 1 enclosure and detachable conduit plate. Global consumers may access it thanks to the LCD backlit display’s excellent, multilingual support. The drive may be easily customized because of its microprocessor-based usefulness, transforming it into a tiny PLC for motor control. In addition, its 5.0 HP rating, internal filtering, zero-stacking installation, and 15 Amp current make it a dependable and space-efficient option for contemporary automation systems.

20BC015A0AYNANA0:

The PowerFlex 700 series, which includes the 20BC015A0AYNANA0 model, is still a dependable option for automation because of its strong features and user-friendliness. It provides dependable performance for three-phase motor control with an output current of 15.4 A and an AC input of 400V. The IP20/type 1 enclosure and built-in dynamic brake resistor save the panel area, and the conformal coating guarantees longevity. Status LEDs are useful to users because they make monitoring and troubleshooting simple. The LCD HMI with graphics support improves user engagement, and the drive’s adjustable voltage management and different stop modes allow for flexible operation, making it a reliable option for a variety of applications.

20BD011A0AYNANC0:

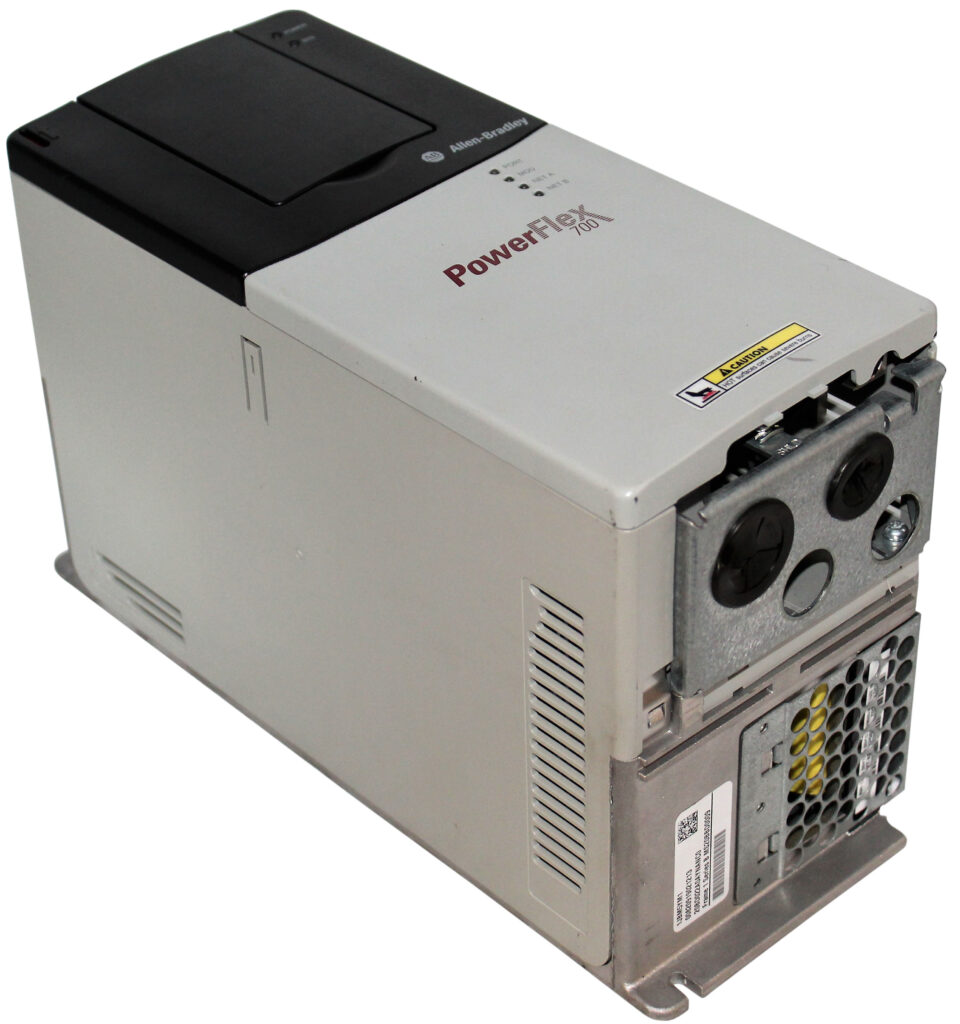

The 20BD011A0AYNANC0 PowerFlex 700 drive is a good option for automation because of its robust features and space-saving design. It has an IP20/Type 1 enclosure, a 5 HP heavy-duty rating, an 11 Amp current, and a dynamic brake transistor. Its integrated EMC filter, internal communications, and dynamic brake transistor simplify integration and energy management, removing the need for external components. Its user-friendly LCD HMI with a large backlit display and multiple language options makes it a cost-effective, space-efficient solution for a variety of automation needs.

Final Thoughts

In conclusion, the Allen-Bradley PowerFlex 700 series is a reliable and versatile solution for modern automation needs across various industries. Its wide voltage and power range, advanced motor control methods, flexible I/O capabilities, and robust enclosure options delivers reliable performance, energy efficiency, and seamless integration. The series’ adaptability to different operational requirements, communication flexibility, and motor-specific control features make it an ideal choice for applications ranging from material handling to precision positioning. The PowerFlex 700 series continues to support diverse industrial systems with its dependable, high-performance solutions.

The PowerFlex 700 is a formidable drive ready to take your automation solution to the next level. We carry the models you’ve read about above and many more, and we offer repair services to breathe new life into your old drives. If this isn’t exactly what you need, feel free to give us a call anyway, and we can help you find the right drive. We also have a guide on keeping your PowerFlex 700 healthy here.
