Revolutionizing Industry: The Power of Kinetix 7000

The Kinetix 7000 high-power servo drives are revolutionizing the industry with their advanced capabilities. With several safety measures to safeguard operators and increase efficiency, the Kinetix 7000 drives can operate both synchronous permanent magnet motors and asynchronous induction motors with ease. These servo drives are designed specifically for applications that need output power ranging from 22 to 149 kilowatts. Those drives, which can accept 3-phase input power from 380 to 480 Volts AC and have a continuous power output range of 112 to 150 kW, effortlessly integrate into the Logix platform to provide coherent motion control for high-power single-axis applications. Drives from the Kinetic 7000 series also have 8720MC Regenerative Power Supplies (RPS), which enable regenerative braking and motor power using the 8720MC line reactor. Upgraded safety features, such as the SIL3-certified safe torque-off capability, guarantee operational dependability and safeguard individuals. This characteristic has played a vital role in establishing the Kinetix 7000 drives as the main player in the advancement of industrial automation.

Now, lets just move towards different modules offered by this series and the specifications they have:

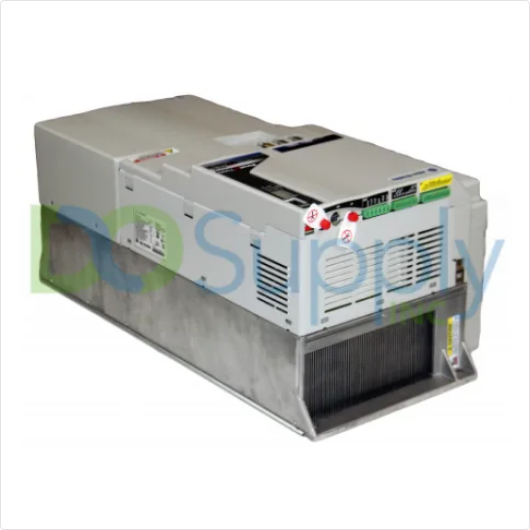

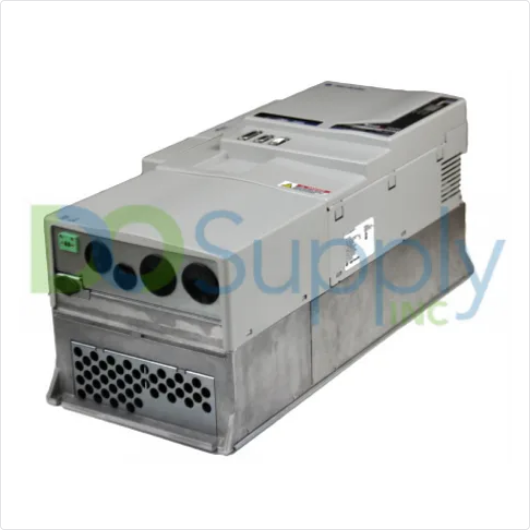

2099-BM06-S:

The Kinetix 7000 servo drive series’ “2099-BM06-S” module has noteworthy technological specifications that represent a revolutionary development in the industry. It is compatible with a variety of power supply topologies and can handle input voltages from 342 to 528 Volts AC rms for three-phase systems and 380 to 480 Volts AC nominal. It can also handle a wide range of DC input voltages from 450 to 750 Volts DC. In addition to an AC input frequency range of 47–63 Hertz, its constant output current of 56.0 Amperes guarantees continued performance under difficult circumstances. The module’s strong performance capabilities are attributed to its continuous output power of 22 kWatts and torque of 16 lbin (1.8 Nm). With its small size of 20.37 x 10.0 x 8.83 inches (517.5 x 254.12 x 224.3 mm), it may be used in a lot of different industrial settings. As a result, the module is an important advancement in the field of industrial automation technology, enabling improved motion control.

2099-BM07-S:

The Kinetix 7000 servo drive series’ “2099-BM07-S” module can produce 30 kW of continuous power, which is a significant amount of energy for a variety of uses. Its input frequency (AC) range of 47-63 Hz guarantees compatibility with various working situations, while its DC input voltage range of 450-750 Volts DC fits a variety of power supply designs. The module can operate consistently under a range of loads thanks to its nominal input current of 47.7 A and continuous output current of 52 A. Its 73A output peak current is noteworthy because it permits brief spikes in power consumption. It provides flexible connecting choices with its array of connectors, which include digital/analog input/output connectors, motor feedback, and auxiliary feedback connectors. Communication efficiency is improved by the addition of two fiber-optic communication connections with data speeds of 4 and 8 Mbps. In summary, the “2099-BM07-S” module is a revolutionary development in the industry that offers higher operational efficiency via better power supply and communication capabilities.

2099-BM08-S:

A part of the Kinetix 7000 series high-power servo drives, the “2099-BM08-S” module showcases important advancements in the industry. With a nominal range of 380 to 480 Volts AC, it can accept input voltages between 342 and 528 Volts AC rms for three-phase systems, guaranteeing compatibility with a variety of power sources. It uses electricity effectively, with a nominal AC input current of 59.6 Amperes and a DC input current of 69.7 Amperes. The most remarkable aspect of this module is its continuous output current, which can reach 92.0 Amperes and provides reliable operation with a range of loads. It also provides 37 kWatts of constant output power, which guarantees sufficient power supply for industrial applications. It offers stability and dependability in operation with a torque of 16 lbin (1.8 Nm) and a total capacitance of 3000 Microfarads. The module has dimensions of 20.37 x 10.0 x 8.83 inches (517.5 x 254.12 x 224.3 mm), which guarantee compatibility with typical industrial settings and encourage its wider use.

2099-BM09-S:

The “2099-BM09-S” module from the Kinetix 7000 servo drive series has certain technological specifications that help in revolutionizing the industry. It shows compatibility with a variety of power inputs with a DC input voltage range of 450-750 Volts DC and an AC input current (nominal rms) of 90.1 Amperes. Its 105 Ampere DC input current makes effective power use possible. Notably, the module can operate continuously under a variety of load situations thanks to its constant output current, which is 0 to 135 Amperes. With a 56 kWatt constant output power, it provides sufficient power for industrial uses. Operating at 32 lbin (3.6 Nm) torque and 4500 Microfarads total capacitance, it guarantees stability and dependability. With dimensions of 25.37 x 13.07 x 11.29 inches (644.5 x 331.9 x 286.7 mm) and a temperature range of 32-122 degrees Fahrenheit (0-50 degrees Celsius), this module is ready to transform industrial automation processes by providing improved power delivery and stability in a variety of industrial applications.

2099-BM10-S:

The Kinetix 7000 servo drive series’ “2099-BM10-S” module has useful characteristics that contribute to the industrial revolution. It guarantees a reliable power supply with an AC input current (nom-rms) of 117 amps and a DC input current of 137 amps. It operates between 32 and 122 degrees Fahrenheit (0 and 50 degrees Celsius), ensuring dependability in a variety of environmental circumstances. Its 38.47 x 13.07 x 11.29 in (977.1 x 331.9 x 286.7 mm) proportions provide a small yet effective form factor. The module may be used with a variety of power sources since it functions throughout the 47–63 Hz range of AC input frequencies. With a torque of 133 lbin (15 Nm) and a continuous output power (nom) of 75 kWatts, it offers significant performance possibilities. It contributes to a paradigm change in operational excellence by improving stability in industrial applications with a total capacitance of 6000 microfarads.

2099-BM11-S:

With its cutting-edge technological features, the “2099-BM11-S” module from the Kinetix 7000 servo drive family has the potential to transform industry. With a continuous output power (nom) of 112 kWatts and a continuous output current (0-peak) of 254 Amperes, it guarantees unmatched power supply for demanding applications. With its broad DC input voltage range of 450-750 Volts DC and AC input frequency range of 47-63 Hertz, it provides versatility as well as compatibility with a variety of power sources. It balances performance and compactness with dimensions of 38.47 x 16.90 x 11.3 in (977.1 x 429.2 x 282.7 mm). The operating temperature range of this module, which is 32–122 °F (0–50 °C), ensures dependable performance in a range of climatic circumstances. Furthermore, it is setting new benchmarks for stability, efficiency, and precision in industrial automation with its impressive Total Capacitance of 8400 Microfarads and Torque of 104 lbin (12 Nm).

2099-BM12-S:

With an input voltage range of 450 to 750 volts DC and an AC input voltage range of 342 to 528 volts rms (3 Phase), the “2099-BM12-S” module from the Kinetix 7000 servo drive series is compatible with a variety of Industrial systems. It offers strong power performance with an AC input current (nom rms) of 233 amps and a DC input current of 281 amps. Its high-demand applications are highlighted by its Continuous Output Power (nom) of 149 kWatts and Continuous Output Current (0-peak) of 351 Amperes. With dimensions of 38.47 x 16.90 x 11.3 in (977.1 x 429.2 x 282.7 mm) and an AC input frequency range of 47–63 Hz, this device provides flexibility and adaptability in industrial environments. With its combined total Capacitance of 8400 Microfarads and working temperature range of 32-122 °F (0-50 °C), this module pushes the boundaries of industrial innovation.

Conclusion

In conclusion, the Kinetix 7000 servo drive series is proof of the unwavering search for innovation in the industry. These servo drives are driving a revolution in industry by radically changing the way industrial processes are monitored and controlled, thanks to their sophisticated capabilities and sturdy design. The fact that they can run both synchronous permanent magnet motors and asynchronous induction motors highlights how versatile and appropriate they are for a variety of uses. From the compact “2099-BM06-S” to the robust “2099-BM12-S,” these drives provide a variety of features designed to satisfy certain operating needs. These drives, which prioritize efficiency, safety, and flexibility, are revolutionizing industrial processes by integrating easily into a variety of configurations and providing unmatched performance.
