Energy Savings and Motor Protection with SMC-2

Imagine cutting your energy costs by a significant margin while simultaneously extending the life of your motors; it sounds like a win-win, right? This isn’t a futuristic dream but a reality with the Allen Bradley SMC-2 series of motor controllers. As industries grapple with soaring energy prices and the ever-present need for reliable motor performance, solutions like the SMC-2 emerge as game-changers. These motor controllers offer a unique blend of efficiency and protection, ensuring your operations run smoothly and cost-effectively. In this article, we’ll dive into the features, technical specifications, and benefits of the SMC-2, showcasing why it stands out in the market and how it can be a valuable asset for various industries.

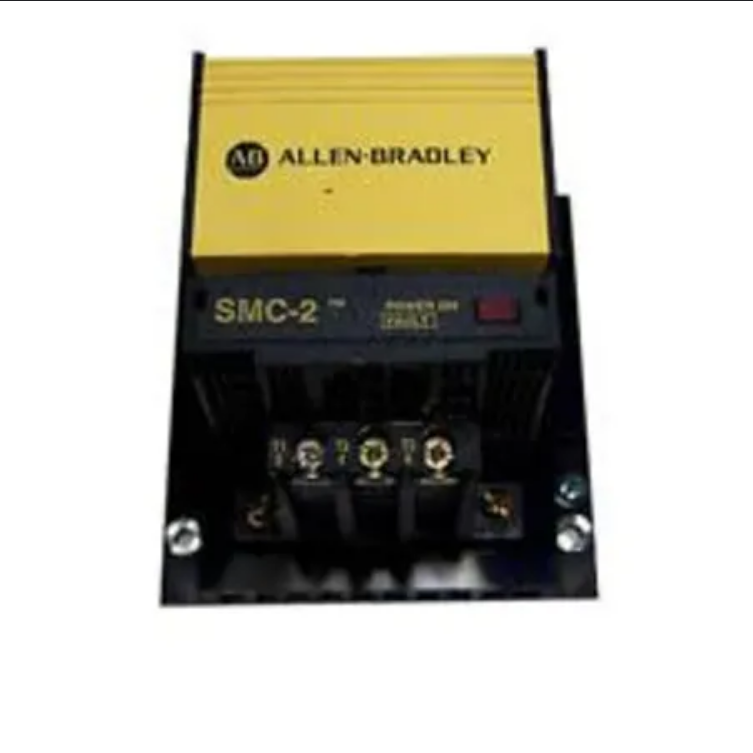

Understanding the Allen Bradley SMC-2

The Allen Bradley SMC-2 series of motor controllers is a standout solution for managing 3-phase squirrel-cage induction motors. These controllers are recognized for their efficiency, comprehensive motor protection features, and ease of use, making them valuable assets in various industrial settings.

Key Features

The SMC-2 series offers multiple starting modes to cater to different operational needs:

• Soft Start: This mode gradually ramps up the motor speed, reducing mechanical stress on both the motor and connected machinery.
• Full Voltage Start: Provides immediate full power to the motor, ideal for applications requiring instant full-speed operation.
• Current Limit Start: Controls the inrush current to a predefined value, protecting the motor and electrical network from high startup currents.

These controllers support input voltages ranging from 200V to 575V AC at 50/60 Hz and current ratings from 5A to 97A, making them adaptable to various motor sizes and power requirements. They operate effectively in ambient temperatures from 0 to 50°C (32 to 122°F) and can be stored in temperatures ranging from -40 to 85°C (-40 to 185°F)​.

User-Friendly Interface

The SMC-2 is designed with user convenience in mind. It includes:

• DIP and Rotary Digital Switches: Simplify setup and adjustments.
• LED Status Indicators: Provide real-time operational status and fault detection, making it easier for operators to manage and maintain the system.

Compliance and Safety

The SMC-2 series complies with international safety and performance standards such as CE, CSA, and UL. This compliance ensures that the controllers meet rigorous safety criteria, providing users with confidence in their reliability and safety​.

Adaptive Control

Another noteworthy feature is its adaptive control capability. The SMC-2 can automatically adjust to varying load conditions, optimizing performance without the need for manual intervention. This is particularly beneficial in applications with fluctuating loads, such as conveyor systems and pumps.

Energy Savings with SMC-2

The Allen Bradley SMC-2 motor controllers are designed to optimize energy consumption, which translates into significant cost savings for businesses. Let’s explore how these controllers achieve energy efficiency and the benefits they bring.

Traditional motor starters often cause a substantial surge in current when motors start, leading to high energy consumption and stress on the electrical system. The SMC-2 addresses this issue with its soft start feature, which gradually increases motor speed, thereby reducing the initial inrush current. This controlled acceleration helps in minimizing energy spikes and lowers demand charges from utility providers, making the operation more cost-effective.

Another way the SMC-2 enhances energy efficiency is through its continuous monitoring and adaptive control. The controller constantly checks the motor’s performance and adjusts the power input to match the load requirements. During periods of low demand, it reduces the motor’s power input, conserving energy without compromising performance. This feature is particularly beneficial for operations with fluctuating loads, such as conveyor systems or HVAC units.

Financially, the SMC-2 offers substantial savings. The reduction in energy consumption directly lowers electricity bills, which can be significant for large industrial operations. Furthermore, by reducing mechanical and electrical stress on motors, the SMC-2 extends its lifespan, leading to lower maintenance and repair costs. This not only reduces downtime but also ensures that the equipment runs smoothly and reliably over a longer period.

Motor Health and Protection

The SMC-2 motor controllers not only enhance energy efficiency but also play a critical role in maintaining motor health and ensuring long-term operational reliability.

Comprehensive Motor Protection

One of the standout features of the SMC-2 is its comprehensive motor protection capabilities. This is crucial because motors are often subjected to various stresses that can lead to failures, costly repairs, and downtime.

Phase Loss Detection: The SMC-2 continuously monitors the motor’s phases. If it detects a phase loss, which can cause significant motor damage and reduce efficiency, the controller immediately takes action to mitigate the issue. This proactive approach prevents further damage and helps maintain smooth operation.

Shorted SCR Detection: Silicon-controlled rectifiers (SCRs) are key components in motor controllers. A shorted SCR can lead to uncontrolled current flow, causing motor overheating and potential failure. The SMC-2 detects such faults early, shutting down the motor to prevent damage and alerting operators to the issue.

Stall Protection: Motors can stall due to various reasons, such as excessive load or mechanical failure. The SMC-2 detects stalls by monitoring the motor’s speed and current. When a stall is detected, the controller intervenes to stop the motor, preventing further damage and avoiding costly repairs.

Reducing Mechanical and Electrical Stress

The SMC-2’s soft start and stop features significantly reduce mechanical and electrical stress on motors. By gradually ramping up and down the motor speed, the controller minimizes the abrupt forces that can cause wear and tear. This gentle handling extends the motor’s lifespan and enhances reliability.

In practical terms, this means fewer maintenance issues and less frequent need for repairs. For example, a manufacturing plant using the SMC-2 reported a noticeable reduction in motor failures and extended maintenance intervals, which translated to lower maintenance costs and improved uptime.

Real-Time Monitoring and Diagnostics

The SMC-2 is equipped with advanced monitoring and diagnostic tools. These tools provide real-time data on motor performance, allowing operators to identify and address potential issues before they escalate into major problems. Features like LED status indicators and digital switches make monitoring the system and making necessary adjustments easy.

This real-time monitoring is particularly beneficial in preventing unplanned downtime. By detecting and addressing issues early, the SMC-2 ensures that motors operate smoothly and efficiently, which is critical for maintaining productivity in industrial environments.

Practical Applications and Use Cases

The versatility of the Allen Bradley SMC-2 motor controllers makes them suitable for a wide range of industries and applications. Their ability to enhance energy efficiency, protect motor health, and improve overall operational reliability has made them a preferred choice in many sectors. Let’s explore some of the practical applications and real-world use cases of the SMC-2.

Industrial Manufacturing

In manufacturing environments, machinery and motors are the backbone of operations. The SMC-2 controllers are extensively used in this sector to ensure smooth and efficient motor operations. By providing a soft start, these controllers reduce the mechanical stress on conveyors, pumps, and other equipment, leading to longer machinery life and reduced maintenance needs.

For instance, a manufacturing plant specializing in automotive parts reported significant improvements in operational efficiency after integrating the SMC-2. The reduction in motor failures and energy consumption helped the plant achieve its sustainability goals while also cutting down on operational costs.

HVAC Systems

Heating, Ventilation, and Air Conditioning (HVAC) systems rely heavily on motors to regulate temperature and airflow. The SMC-2 controllers play a critical role in these systems by ensuring that motors run efficiently and are protected from common issues such as phase loss and electrical overloads. The soft start feature is particularly beneficial in HVAC applications, as it prevents sudden surges that can damage the system and cause energy waste.

Water Treatment Facilities

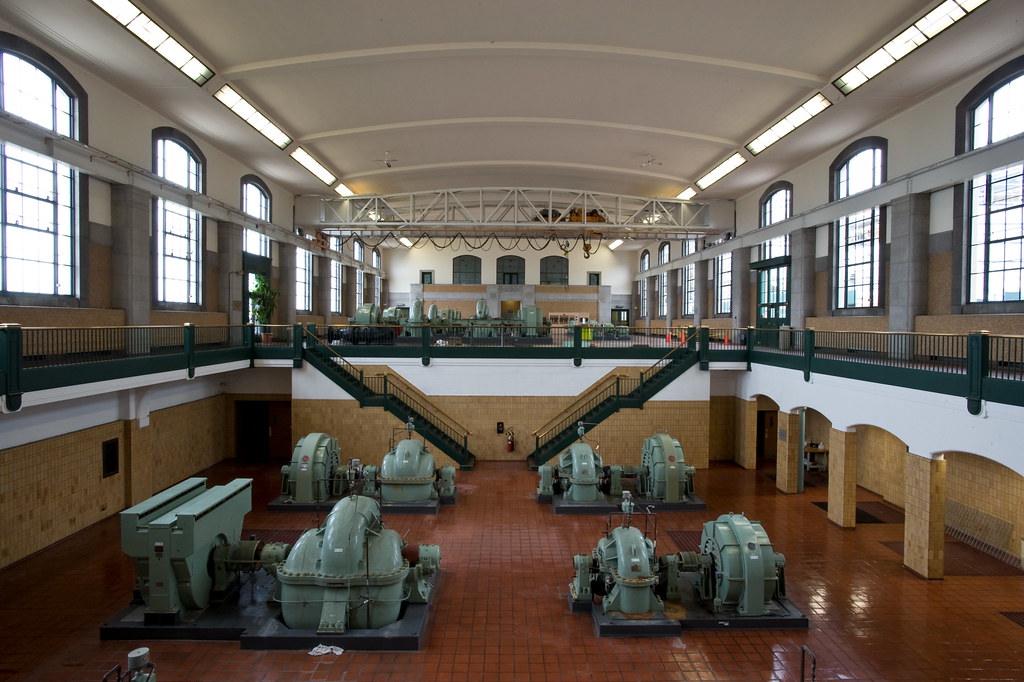

Water treatment plants use numerous pumps and motors to manage the flow and treatment of water. The SMC-2 controllers are ideal for these environments due to their robust protection features and energy efficiency. By ensuring smooth operation and protecting motors from stalling or phase loss, the SMC-2 helps maintain continuous and reliable water treatment processes.

A municipal water treatment facility integrated the SMC-2 to control its pumping stations. The result was a significant reduction in energy consumption and maintenance costs, as well as improved reliability in water supply and treatment operations.

Agricultural Equipment

Motors are used in various agricultural equipment, from irrigation systems to processing machinery. The SMC-2 controllers help protect these motors from harsh operating conditions and ensure they run efficiently. The controllers’ ability to adapt to varying load conditions is particularly useful in agricultural applications, where demand can fluctuate based on seasonal activities.

A large agricultural cooperative adopted the SMC-2 for its irrigation systems and grain processing facilities. The controllers’ energy-saving features and robust protection mechanisms led to reduced energy costs and less frequent equipment downtime, ultimately enhancing productivity and profitability.

Final Thoughts

The Allen Bradley SMC-2 motor controllers stand out as an essential solution for businesses aiming to enhance energy efficiency, protect motor health, and boost operational reliability. These controllers integrate advanced features that address the common challenges of motor operation, providing substantial benefits across various industries.

Energy efficiency is a significant advantage of the SMC-2. By reducing inrush currents and optimizing motor performance, these controllers help businesses cut down on electricity bills and minimize their environmental footprint. This is achieved through mechanisms like the soft start feature, which smoothens the motor’s acceleration, and adaptive control, which adjusts the motor’s power input to match load requirements.

Motor protection is another critical aspect where the SMC-2 excels. It continuously monitors key parameters and protects against issues such as phase loss, shorted SCRs, and stalls. This proactive approach not only extends the lifespan of motors but also reduces maintenance costs and prevents costly downtime.

The versatility of the SMC-2 makes it suitable for a wide range of applications, from manufacturing plants and HVAC systems to water treatment facilities and agricultural operations. Its ability to adapt to varying load conditions and provide real-time monitoring ensures that motors operate efficiently and reliably, regardless of the application.

Businesses that have adopted the SMC-2 have reported significant improvements in energy efficiency and operational reliability. For example, manufacturing plants have seen reduced energy consumption and fewer motor failures, while HVAC systems have benefited from enhanced efficiency and lower operational costs.

In summary, the Allen Bradley SMC-2 motor controllers offer a robust and efficient solution for modern industrial needs. They provide a comprehensive approach to motor management, combining energy savings, motor protection, and operational versatility. By integrating the SMC-2 into their operations, businesses can achieve substantial cost savings, improve equipment longevity, and maintain smooth and efficient processes. Whether in manufacturing, HVAC, water treatment, or agriculture, the SMC-2 stands as a valuable investment for optimizing performance and reducing expenses.
