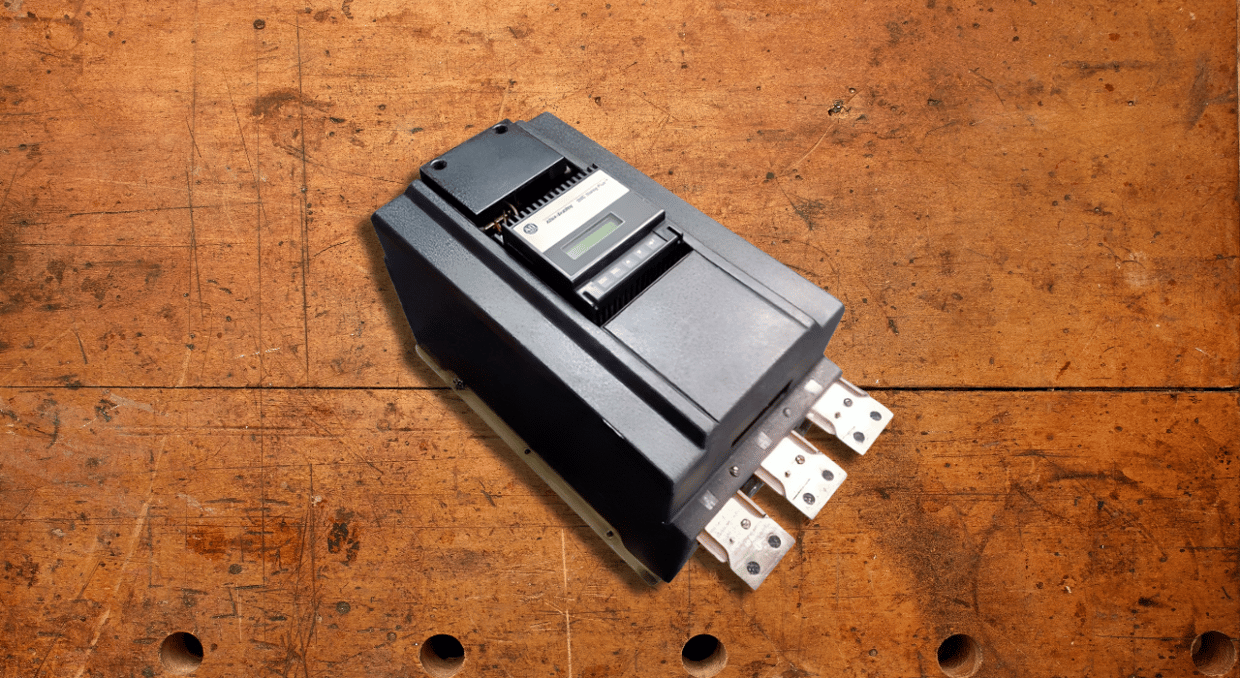

Soft Starters Simplified: The SMC Dialog Plus Explained

Effective motor control and equipment protection are essential for maximizing output and reducing downtime in industrial settings. Allen-Bradley’s sophisticated soft starter, the SMC Dialog Plus, is an effective method for achieving smooth motor operations. In addition to extending the life of your equipment, this device incorporates contemporary motor protection, diagnostics, and communication capabilities while reducing mechanical stress during motor startup and stopping. The main mode of operations and characteristics of the SMC Dialog Plus will be discussed in this article. Firstly, let’s start with understanding a soft starter. After that, we will discuss some of the features of the SMC Dialog Plus.

What are soft starters?

To regulate the acceleration and deceleration of electric motors and provide a smoother start and shutdown, soft starters are utilized, in both commercial and industrial settings. Motors typically draw a lot of inrush current when they are turned on, which can put the motor and the system it is attached to under mechanical and electrical stress. By progressively raising the voltage applied to the motor, soft starters assist in lowering this inrush current and provide a stable, controlled beginning. This prolongs the life of the motor and the machinery it drives, avoids unexpected shocks, and lessens component wear.

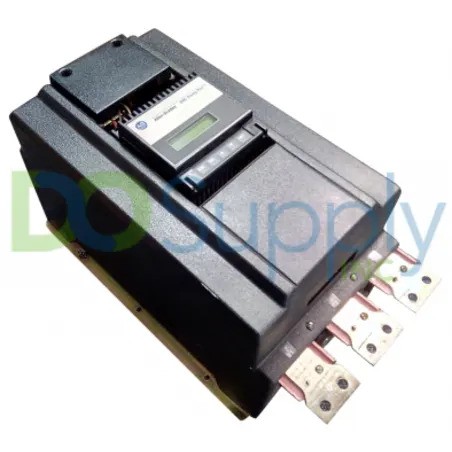

What is SMC Dialog Plus?

SMC Dialog Plus is a sophisticated soft starter made specifically for managing and safeguarding AC motors. Controlling the voltage delivered during startup and shutdown reduces electrical inrush and mechanical stress and gives motors a smooth, progressive start and stop. With its many configuration choices and cutting-edge protective features, this soft starter is incredibly adaptable and may help prolong motor life, save energy usage, and guard against damage to connected equipment.

Modes of Operations

Soft Start

By progressively raising the motor voltage, the Soft Start mode offers a smooth acceleration. A programmed torque value, ranging from 0 to 90% of the locked rotor torque, is used to start the motor. By gradually increasing the voltage during a ramp time of 0–30 seconds, the motor may improve speed while reducing energy spikes and mechanical stress.

Soft Start with Selectable Kickoff

To help overcome load inertia during launch, this option incorporates a quick initial kickoff. Before the soft start ramp starts, a strong current pulse that is set to 550% of the motor’s full load current is applied for 0.0–2.0 seconds. For loads that require a more powerful initial push, this boost gives the motor more torque.

Start of Current Limit

When limiting the maximum beginning current is required, this starting mode is employed. It is possible to configure the current limit for 50–600% of the full load current.

Two Ramp Start

Applications with different loads and, thus, different starting torque need to benefit from this beginning mode. With the Dual Ramp Start, the user may choose between two distinct Soft Start profiles, each with its ramp duration and beginning torque levels. Initial torque levels may be adjusted between 0 and 90% of locked rotor torque, and acceleration ramp periods can be programmed between 0 and 30 seconds. Note: Only the regular controller is compatible with Dual Ramp.

Full Voltage Start

This mode is used for applications requiring across-the-line starting. The ramp time is less than 1/4 second.

Features of SMC Dialog Box

Rated Operational Voltage

With its adaptable electrical ratings, the SMC Dialog Plus soft starter supports worldwide applications by accommodating a wide range of operating voltages. It provides an operating voltage range of 200–480V AC and 200–600V AC (–15%, +10%) by UL/CSA/NEMA standards. It functions in the 200–415V and 200–500V ranges according to IEC specifications. Because of its adaptability, it may be used in a variety of industrial settings, guaranteeing compliance with local power regulations and offering dependable motor control.

Maximum Heat Dissipation and Current Rating

The SMC Dialog Plus soft starter can handle a range of motor loads since it is designed to control both heat dissipation and high current ratings. At a current rating of 110 A, heat dissipation begins at 24 W and increases to 1000 W at 2760 A. For example, the device dissipates 240 W of heat in heavy-duty applications that need 935 A, guaranteeing dependable operation and extended equipment life. Because of this feature, it is perfect for applications where strong currents are frequently encountered, such as conveyor systems or pumps. Safe and effective motor control is ensured by the SMC Dialog Plus, which regulates heat at every load level.

Built-in SCANport Communication

The SMC Dialog Plus soft starter may be easily connected to a variety of Allen-Bradley devices due to its standard SCANport communication interface. Connections to the Bulletin 1201 Human Interface Module and many Bulletin 1203 Communication Modules, such as DeviceNet, Allen-Bradley Remote I/O, and RS-232/422/485-DF1, are made easier by this serial port. For example, real-time monitoring and control are made possible by linking the soft starter with a DeviceNet network, which improves automation in industrial settings. The SMC Dialog Plus is the perfect option for contemporary, networked industrial settings because of its integrated communication capacity, which simplifies system integration and expedites data transmission.

Phase Rebalance

The dynamic Phase Rebalance function of the SMC Dialog Plus controller automatically corrects voltage imbalances in three-phase systems. It promotes optimal performance and may even prolong motor life by balancing the currents drawn by the motor through adjustments to the voltage output. Production may continue unhindered because this built-in capability doesn’t require a complicated setup. Phase Rebalance, for instance, helps maintain steady motor performance in a manufacturing facility with varying loads, minimizing wear and tear. It’s crucial to remember that this feature works best when the Bulletin 825 Converter Module and Cat. No. 150-NFS fanning strips are used.

Operating Temperature Range and Environmental Conditions

The SMC Dialog Plus soft starter is made to function reliably in a variety of settings by operating efficiently within a predetermined temperature range. While covered installations may only operate between 0 and +40 °C (32 and 104 °F), open installations can operate between 0 and +50 °C (32 and 122 °F). It can also tolerate non-condensing humidity levels of 5 to 95%, which makes it appropriate for a range of industrial environments, including manufacturing plants and outdoor applications. With a Pollution Degree 2 rating, the device can function in moderately polluted conditions, guaranteeing stability and lifespan.

Protection and Diagnostics

To guarantee dependable operation and defend against any problems, the SMC Dialog Plus soft starter is outfitted with extensive protection and diagnostic capabilities. In addition to phase reversal, Undervoltage, and overvoltage situations, it keeps an eye out for conditions including power outages, line failures, voltage imbalance, and excessive starts per hour. It also monitors open gate faults, overload, underload, communication errors, controller temperature, and stall and jam situations. To ensure constant performance and save downtime, the soft starter in a conveyor system, for instance, will immediately engage protective measures to avoid damage if the motor detects an overload condition.

Final Thoughts

In conclusion, the SMC Dialog Plus soft starter from Allen-Bradley is an essential tool for effective motor control and equipment protection in industrial settings. By facilitating smooth motor operations, it minimizes mechanical stress during startup and shutdown, extending the life of equipment. Its extensive features—including various operational modes like Soft Start and Full Voltage Start—enable tailored performance for diverse applications. The soft starter supports a wide operational voltage range and manages heat dissipation effectively across high current ratings. With built-in SCANport communication, Phase Rebalance, and robust protection and diagnostics, the SMC Dialog Plus ensures reliability, reduces downtime, and enhances productivity in modern automation environments. If you have any questions or would like help with picking out the perfect SMC Dialog Plus for your needs, our dedicated sales and technical support team at DO Supply is on standby Monday through Friday, 8 am to 5 pm EST through phone or email. If you like tips on how to set up the SMC Dialog Plus, feel free to check out our guide here.
