Maintenance Tips for Kinetix 3 Drives: Ensuring Longevity and Reliability

In a factory, a part without anything moving in or on it isn’t really paid all too much attention to maintenance wise. But like any piece of precision equipment, the Kinetix 3 component servo drive doesn’t just keep running indefinitely without a little help. If you neglect it, you might find yourself in the territory of unexpected downtime, frantic troubleshooting, and begrudgingly explaining why production has come to a standstill. To keep these drives performing at their best, a bit of maintenance and preventative care goes a long way, and here is just how you can do that:

Dust, Debris, and Airflow Management

Servo drives, including the Kinetix 3, rely on proper ventilation and cooling to function optimally. Heat is the sworn enemy of electronics, and dust buildup is like throwing a blanket over your drive and hoping for the best. Make it a habit to inspect the drive’s environment regularly. Enclosures should be properly sealed, and if your system operates in a particularly dusty or humid setting, consider adding additional filtering or sealing measures.

When cleaning, avoid the temptation to blast the drive with compressed air, as this can push dust deeper into the components. Instead, use a low-static vacuum or a soft brush to remove buildup from vents and heat sinks. If your drive is installed in an enclosure with forced ventilation, ensure fans are operational and that airflow paths remain unobstructed.

Proper Wiring and Connection Integrity

A loose or compromised connection can be the culprit behind erratic behavior, overheating, or even outright failure. Over time, thermal cycling and vibrations can cause terminals to loosen. That’s why it’s important to inspect the wiring connections during routine maintenance for signs of wear, fraying, or corrosion.

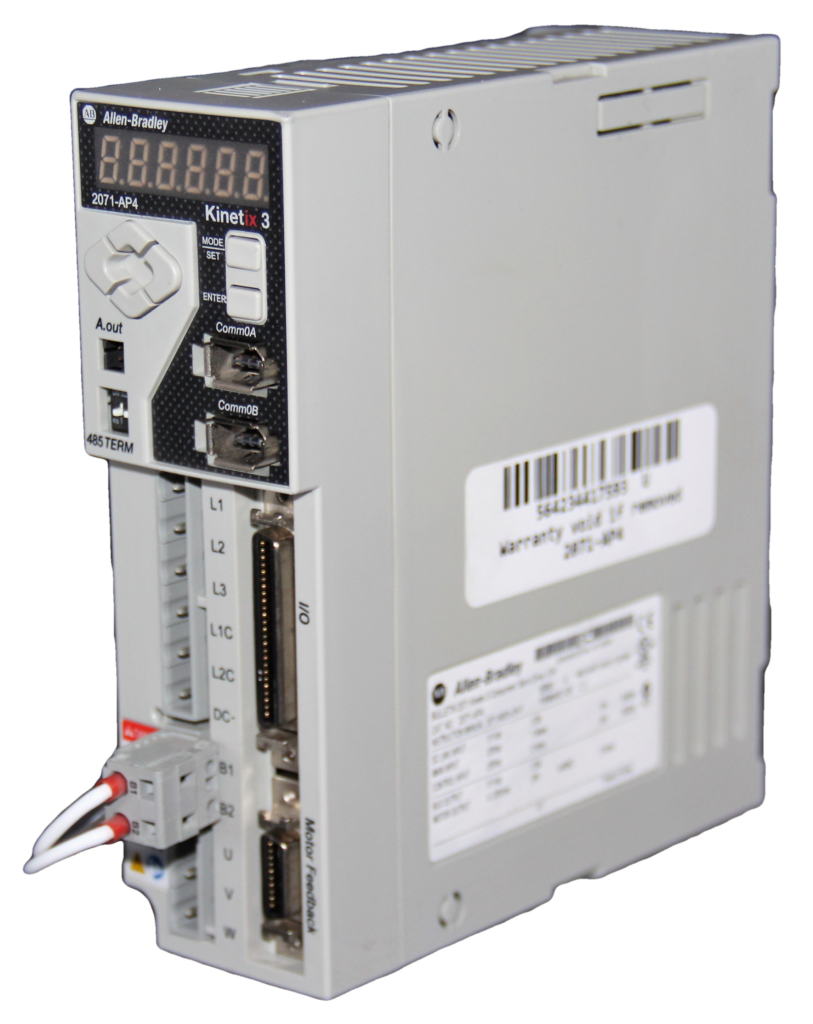

For Kinetix 3 drives, check the input power (IPD) connector, motor power (MP) connector, and I/O (IOD) connections. The input power connections should be tight and free of oxidation, while the motor power and feedback wiring should be properly shielded and secured to prevent electrical noise interference. Bonding techniques, such as using shielded cables with proper grounding, significantly reduce the risk of performance degradation due to electrical noise.

Avoiding Thermal Stress

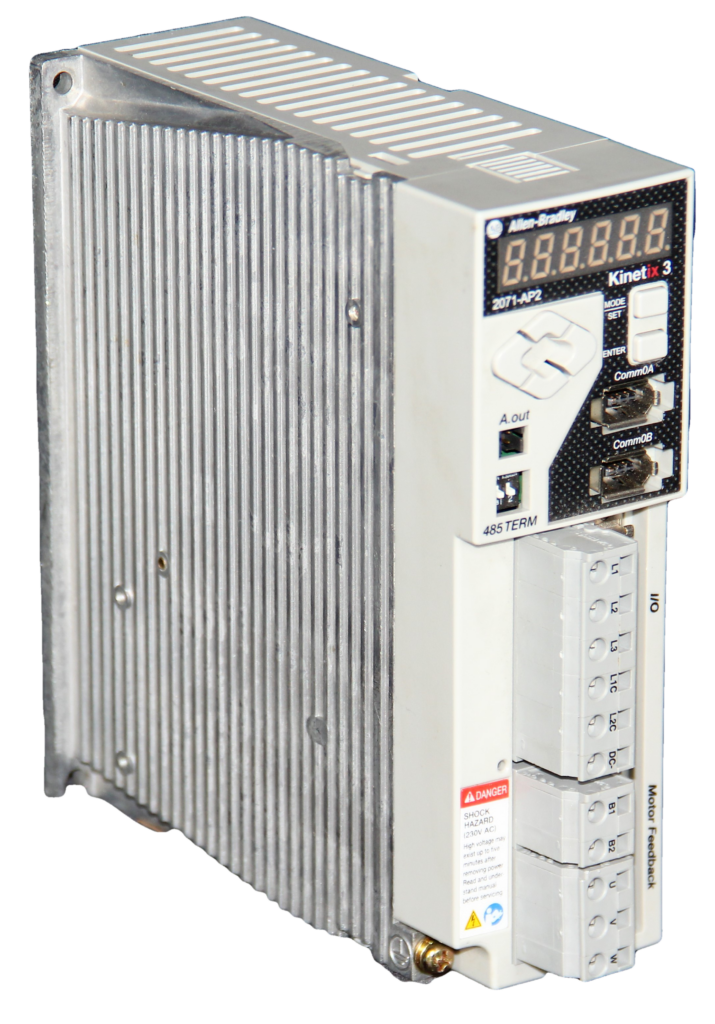

The Kinetix 3 series is designed to dissipate heat efficiently, but only if it’s given the proper clearance. Ensure that at least 50 mm (2 inches) of space is maintained around the drive to allow for adequate airflow. If installed alongside other heat-generating equipment, consider repositioning components to prevent hotspots.

If the ambient temperature regularly exceeds the drive’s rating upper limit (typically 50°C), additional cooling measures may be necessary. Heat sinks, forced air cooling, or even liquid cooling solutions in extreme environments can help extend the drive’s lifespan.

Monitoring Load and Overcurrent Protection

Running a drive near or at its maximum load capacity for extended periods accelerates wear and increases the likelihood of faults. If the drive frequently triggers overcurrent warnings or faults, it may be operating beyond its intended parameters. A routine load analysis can help identify whether the drive is properly sized for the application or if adjustments, such as derating or adding an additional drive, are necessary.

Kinetix 3 drives include internal solid-state motor short-circuit protection, but branch circuit protection should also be implemented using appropriately rated fuses. Bussmann FNQ-R fuses are commonly recommended, but selecting the correct class (CC, J, or RK5) is crucial to ensuring safe operation as per the owner’s manual.

Regular Fault and Status Checks

No one likes surprises when it comes to equipment failures. The built-in 7-segment status indicator on Kinetix 3 drives provides diagnostic information at a short glance, though it is always good practice to periodically check for any stored faults or warnings that can help detect minor issues before they escalate into costly failures.

For example, fault codes related to overvoltage, under-voltage, or excessive temperature should be addressed immediately. If a fault repeats despite resetting, it’s often a sign of an underlying issue, such as a failing cooling system or unstable input power. If you find yourself in this situation, we at Do Supply have a team of experts who specialize in repairing faulty and broken drives. So, while it may be too late to prevent it, it’s not too late to save it.

Surge and Power Protection Measures

One often overlooked aspect of drive maintenance is making sure that stable and clean power is supplied to the input. Voltage spikes and power surges can damage internal components over time, leading to unpredictable failures. Using surge protectors, line reactors, or isolation transformers can help mitigate these risks, particularly in facilities with unstable power supplies or frequent electrical disturbances.

That also means that the grounding system is periodically checked and maintained, as poor grounding can introduce electrical noise and transient voltages, which can negatively impact drive performance and lifespan.

Periodic Motor Health Checks

Since servo drives and motors work together, neglecting motor health can directly impact drive longevity by causing extra stress from misaligned motors or mechanical load issues. Inspecting the motors for signs of wear, excessive vibration, or overheating and regularly checking encoder feedback signals for consistency is a good way to prevent premature wear on the drive and increase the system’s efficiency.

If an application involves frequent high-speed or high-torque changes, consider implementing torque and velocity monitoring to identify any anomalies that might indicate mechanical or electrical strain on the system. We also have an article dedicated to drive maintenance Here.

Establishing a Routine Maintenance Schedule

The key to long-term reliability is proactive maintenance rather than reactive repairs. A structured maintenance schedule ensures that minor issues are caught before they become major failures. While we understand that having a strict maintenance schedule for drives like these sometimes isn’t feasible time-wise, doing basic monthly checks is still leagues better than not checking at all. Here’s how you can set up an effective maintenance routine for your Kinetix 3 drive:

• Daily Checks: Visually inspect the drive for loose connections, signs of overheating, unusual noises, or fault indicators.
• Weekly Maintenance: Clean dust buildup, verify airflow paths, and check for excessive motor vibration.
• Monthly Inspections: Tighten wiring connections, inspect cooling fans, and ensure that environmental conditions (humidity, temperature, and contamination levels) are within safe operating limits.
• Quarterly Tests: Run diagnostic checks on load conditions, overcurrent protection, and grounding integrity.
• Annual Overhaul: Conduct a thorough inspection of drive components, verify proper torque on all electrical connections, and replace worn components such as cooling fans or connectors.

By documenting each maintenance activity and tracking performance trends, you can identify patterns that might indicate an emerging issue. A well-planned schedule reduces unexpected failures, improves efficiency, and extends the operational life of your Kinetix 3 series drive.

Final Thoughts

A well-maintained Kinetix 3 drive is a very reliable drive. You significantly extend its lifespan while minimizing downtime by keeping it clean, keeping secure connections, maintaining proper temperature control, and proactively addressing potential issues. Think of it more as a long-term investment, one that pays off in uninterrupted production and fewer headaches. Taking the time to implement these maintenance strategies now means fewer urgent troubleshooting sessions later. But, as we explained earlier, we do offer to fix not only Kinetix drives but also other Allen-Bradley drives. We also offer a wide selection of Kinetix 3 series drives that are backed by our 2-year Do Supply warranty for that added piece of mind. Feel free to email or call us today to schedule a repair or buy your next drive.
