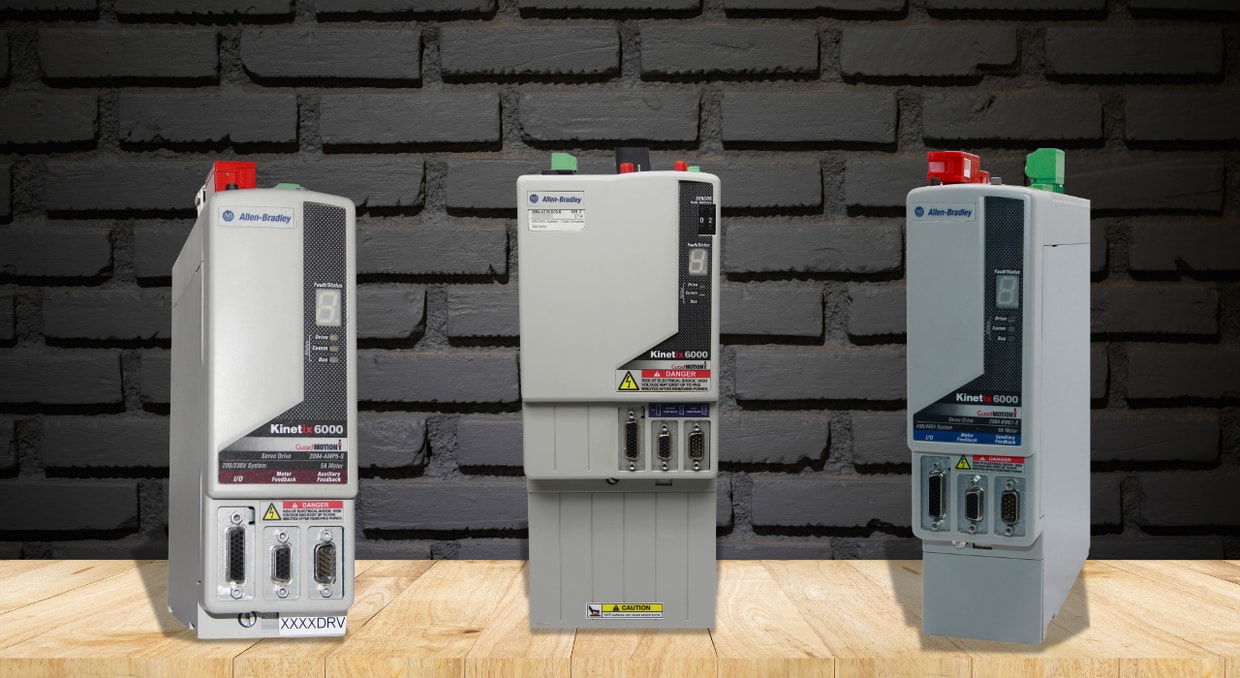

Retrofit Ready: Integrating Kinetix 6000 Drives into Legacy Machines

Retrofitting legacy machines with modern motion control systems is a cost-effective way to extend equipment life, enhance performance, and meet today’s industrial demands. The Allen-Bradley Kinetix 6000 multi-axis servo drive family provides a powerful solution for such upgrades, combining advanced control features, integrated safety, and flexible configuration options in a compact design. These drives simplify programming, wiring, and diagnostics, improving motion precision, machine responsiveness, and operational efficiency. With seamless integration into the Logix platform and support for Sercos Integrated Motion, the Kinetix 6000 series enables manufacturers to modernize older equipment without costly redesigns. Featuring models like the 2094-AC05-MP5-S, 2094-AC32-M05-S, and 2094-AMP5-S, the Kinetix 6000 is retrofit-ready for demanding motion applications across diverse industrial environments.

Enhanced System Performance and Efficiency

The Kinetix 6000 offers an instant performance and operational efficiency boost when upgrading outdated equipment.  It simplifies programming, wiring, and diagnostics by reducing engineering and installation time.  The drives incorporate Advanced motion control into antiquated systems, improving machine responsiveness, decreasing downtime, and raising overall production.  Older machines can enjoy synchronized motion and simplified control thanks to the smooth interaction with current Logix platforms.  Manufacturers may increase system performance and prolong the life of legacy equipment using Kinetix 6000 without undertaking extensive mechanical changes or redesigns.

Wide Power Output and Global Voltage Support

The Kinetix 6000 is adaptable enough for a range of retrofit applications, from light-duty machines to medium-power systems, thanks to its continuous power output range of 0.3 to 3 kW.  Because of its wide input voltage tolerance of 195-265V AC or 324-528V AC and its compliance with frequencies between 47 and 63 Hz, it may be easily integrated into older systems with a variety of electrical standards.  This removes the need for expensive voltage converters or electrical redesigns in retrofits.  With the Kinetix 6000, you can modernize legacy equipment worldwide, increasing the operating range and flexibility of antiquated technology while guaranteeing dependable performance under current plant power circumstances.

High Bandwidth Loop Control for Precise Motion

Slow or imprecise motion control is a common problem with legacy devices. Retrofitting with the Kinetix 6000, which has a 500 Hz velocity loop bandwidth and a 1300 Hz current loop bandwidth, introduces advanced loop control. The outcome is smoother motion, less mechanical wear, and higher-quality products. The Kinetix 6000 upgrade helps legacy systems close the performance gap between older gear and newer automation technologies by giving them precise control capabilities that enable them to handle complicated, high-speed applications.

Advanced Feedback and Safety Features

By using the Kinetix 6000 to retrofit outdated equipment, integrated safety measures and contemporary feedback alternatives are introduced.  By supporting multi-turn absolute encoders, the drive ensures accurate position monitoring and does away with the necessity for regular homing procedures.  By lowering drive torque without cutting power, the integrated Safe Torque-Off (STO) feature adds a crucial safety layer and complies with modern safety standards.  Furthermore, legacy computers can confidently handle fluctuating load needs thanks to the peak augmentation configuration.  These characteristics improve operational dependability and control accuracy while conforming older systems with modern safety regulations.

Flexible Power and Configuration Options

Adapting to current power arrangements is one of the challenges in retrofitting outdated devices.  The Kinetix 6000 facilitates simple integration into a variety of electrical systems by supporting both DC common-bus configurations and 3-phase AC connections with or without Line Interface Modules (LIMs).  Because of its adaptability, refit projects don’t require expensive power system overhauls.  The Kinetix 6000 requires little modification to be integrated into the current infrastructure, whether replacing old drives or adding new motion axes.  It is a workable alternative for gradual and machine enhancements because of its adaptable power options, guaranteeing that legacy equipment may be upgraded without causing major disruptions.

Integrated Multi-Axis Motion Control

Complex changes are frequently needed to upgrade older equipment for multi-axis control.  This is made easier by the Kinetix 6000’s built-in multi-axis motion capabilities via the Logix control platform.  The drive offers precise control over the operations of older machines because of its specific inputs, which include axis enable, home, overtravel, and registration inputs.  This facilitates retrofitting machines needing coordinated axis control or synchronized motions.  Manufacturers may simplify commissioning and maintenance while enabling enhanced multi-axis capabilities for older machinery by bringing obsolete systems into compliance with contemporary motion standards by combining motion control onto a single platform.

Compact Design with Exceptional Performance

One of the most frequent problems when converting older equipment is space constraints.  Because of its small size, the Kinetix 6000 is perfect for installations with limited space for control panels or machine enclosures.  Despite its compact size, the drive provides excellent performance, guaranteeing dependable operation in demanding applications.  Because of its space-efficient design, fewer panel expansions or adjustments are required, which lowers retrofit costs.  Its easy-to-use design also makes future upgrades, maintenance, and wiring simple.  Historical systems may be brought up to current motion control requirements with the Kinetix 6000 without sacrificing available space or necessitating major structural alterations to current equipment.

Compatibility with Kinetix Motion Ecosystem

The Kinetix 6000 is retrofit-friendly because of its connectivity with the larger Kinetix Integrated Motion environment.  It integrates easily with Kinetix 6200 drives, Series B and C power rails, and Kinetix 6000M IDM systems, enabling legacy machines to use cutting-edge motion solutions without having to replace their current configurations.  Phased retrofits, in which new motion technologies are progressively added to older components, are made possible by this compatibility.  Manufacturers can confidently update outdated equipment by utilizing the Kinetix ecosystem, which guarantees long-term scalability, easier maintenance, and compliance with the most recent Allen-Bradley automation standards, all while optimizing the return on current expenditures.

Example Modules

2094-AC05-MP5-S

The Allen-Bradley 2094-AC05-MP5-S is a 3-phase Integrated Axis Module (IAM) from the Kinetix 6000 series, offering STO functionality with a 200- 230V AC input, a 9A inverter, and a 3 kW converter section. Operating at 325V DC nominal, it supports Sercos Integrated Motion and includes internal motor short-circuit protection. With CE and UL certifications, it features multiple connectors for power, feedback, STO, and communication, plus diagnostic LEDs and a fault indicator. Rated for circuits up to 200,000A (with proper protection), it supports seamless integration with other drives, ensuring flexible, high-performance motion control in demanding industrial applications.

2094-AC32-M05-S

The Allen-Bradley 2094-AC32-M05-S is a 200V-class IAM from the Kinetix 6000 series, featuring STO functionality. It supports high-performance motion control in multi-axis applications with a 500V AC input, 49A inverter, and 23 kW converter. Delivering up to 100A at 50°C, it offers advanced control in a compact, modular design that simplifies wiring and reduces panel space. It is designed for upright mounting and requires proper airflow clearance and a common earth ground for system protection. Ideal for integrated motion solutions, it enhances throughput and precision in demanding industrial environments while minimizing installation complexity.

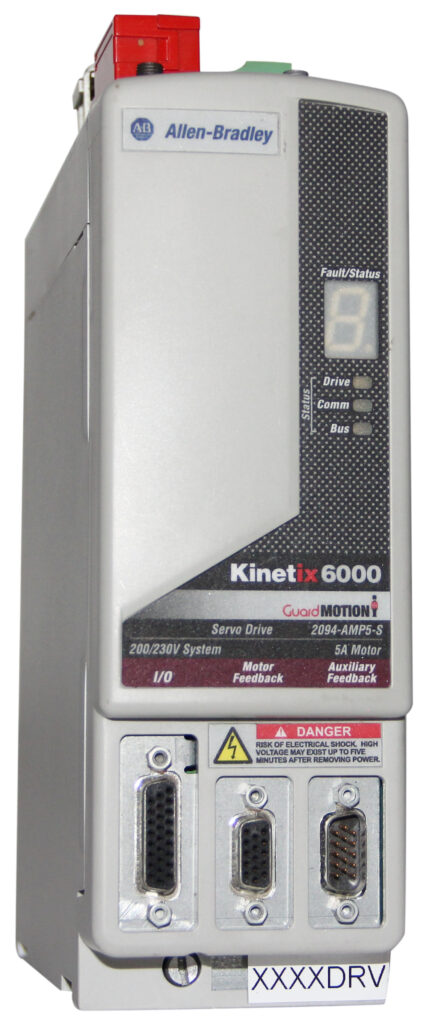

2094-AMP5-S

A 200V-class Axis Module (AM) from the Kinetix 6000 servo drive family, the Allen-Bradley 2094-AMP5-S is intended for high-performance, multi-axis motion control.  It has a 1.2 kW continuous power output with a 5A continuous inverter current at 230V DC with STO for CAT 3 and PLe compliance.  It is perfect for versatile machine layouts because of its small, modular form, which makes wiring, installation, and diagnostics easier.  It functions in temperatures ranging from 0°C to 50°C and has a 200,000A short-circuit current rating.  Each 8-axis power rail may accommodate up to seven modules, integrating smoothly with Logix for sophisticated control and effective system operation.

Final Thoughts

In conclusion, the Kinetix 6000 multi-axis servo drives offer a reliable, efficient solution for retrofitting legacy machines, combining advanced motion control, integrated safety, and seamless system integration. These drives minimize installation complexity and engineering costs by simplifying wiring, reducing panel space, and supporting a wide range of power configurations. Models like the 2094-AC05-MP5-S, 2094-AC32-M05-S, and 2094-AMP5-S deliver the flexibility needed to meet diverse industrial motion demands while enhancing machine precision and throughput. Backed by trusted performance, the Kinetix 6000 series allows manufacturers to upgrade outdated systems confidently, improving productivity and extending equipment lifespan.
