The 2711-B5A2X is designed as an operator terminal with a compact size and robust functionality. It features a 5.5-inch liquid crystal display (LCD) that operates at a resolution of 256 x 128 pixels.
In Stock Ships Today
4.9
Free UPS Ground on All Orders!
+1 (919) 205-4392
Allen Bradley Panelview 550
The PanelView Standard 550 Graphic Terminals have a 5.5 in. monochrome flat-panel display with 256 x 128 resolution. The touch screen version of the PanelView 550 terminal is available only with 24V DC power. These terminals support operator input via keypad, via touch screen or via keypad with touch screen. These units feature a halogen backlight in Series A - Series G of the 2711-K5 and 2711-B5 versions and Series A 2711-T5 versions. The later series such as the Series H 2711-B5/2711-K5 versions feature a Blue LCD display that has a backlight built into the unit. We have replacement Panelview 550 units in stock and ready to ship today!
Learn more
Browse Panelview 550
Browse available units in our catalog of Panelview 550.

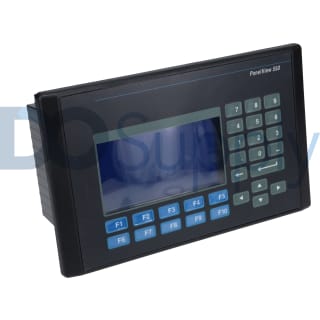

2711-B5A3
DH-485 Communication and RS-232 Printer Port
Available
5.0

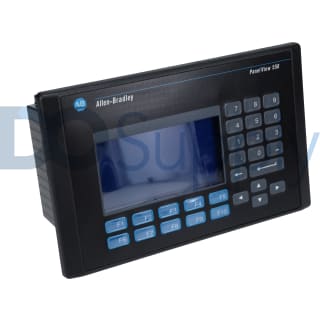

2711-B5A3L1
DH-485 Communication and RS-232 Printer Port
In Stock Ships Today
5.0
2711-B5A3X
This PanelView interface operates at an input voltage of 85 to 264 VAC and is suited for 3-phase applications. It features a touch screen designed for easy navigation and a keypad that includes functi
Available
4.8
2711-B5A5
RS-232 (DH-485) Communication Port
In Stock Ships Today
4.8
2711-B5A5L1
RS-232 (DH-485) Communication Port
Call
4.8
2711-B5A5X
This Allen Bradley Panelview 550 operator interface model features a monochrome LCD with a size of 5.5 inches. The user can navigate through options via a touchscreen in combination with a keypad. The
In Stock Ships Today
5.0
2711-B5A8
DH+ Communication and RS-232 Printer Port
In Stock Ships Today
5.0
2711-B5A8L1
DH+ Communication and RS-232 Printer Port
In Stock Ships Today
4.9
2711-B5A8X
This operator interface terminal features a 5.3-inch monochrome LCD and offers a resolution of 256 x 128 pixels. Its input capabilities include both a keypad and touchscreen interface, along with 10 f
Available
4.9
Showing 21-30 of
88
results
About Panelview 550
The Panelview 550 terminal series is a series of high-performance operator terminal manufactured by Allen-Bradley. These high-performance operator terminals are designed to meet the users’ needs, with a space-saving construction and a flat panel design. The Panelview 550 series terminals come with the monochrome screens, with the keypad/touchscreen input option combination. The screen size is 5.5 inches diagonal and it is an LCD monochrome display with a pixel resolution of 256 x 128. The Panelview 550 touch-only operator interface terminals feature a 30% smaller size. The Panelview 550 terminals come with 10 functional keys and numeric keypads. The terminals feature cursor control keys and 3.4 inches of installed depth. The Panelview 550 terminals feature a voltage supply of 85 to 264 Volts AC and 47 to 63 Hertz. The power consumption is 45 VA maximum.
The Panelview 550 terminals should be installed in well-protected environments to ensure optimal performance. When installing the Panelview 550 terminals, use a panel or enclosure to protect the internal circuitry. The standard operator interfaces feature indoor use ratings only and they should be properly mounted in panels or enclosures with equivalent ratings. During installation, ensure that there is enough space within the enclosure to ensure that there is adequate ventilation and to prevent overheating. The heat that is produced by other devices can result in overheating, affecting the functionality of these terminals. The ambient operating temperature range around the Panelview 550 terminals should be 0 to 55 degrees Celsius. Ensure that there is a provision for accessing the back panel of the terminals to support wiring, device maintenance, and the installation of a memory card as well as easy troubleshooting.
PanelView 550 Startup Failure
If your PanelView 550 fails to startup properly, always check the power supply first. Ensure the terminal is receiving the correct voltage and that the wiring and connections to the power source are valid. In addition, you should also ensure the DC power positive and negative are attached to the proper terminals.
PanelView 550 Status Indicators
The status indicators are located on the back of your PanelView 550 terminal. The COMM indicator is green and reflects communication. The FAULT indicator is red and reflects hardware faults. Upon startup, the fault indicator should be off and the comm indicator on. If the fault indicator flashes a few times at startup, this is not a concern. However, if both indicators are off you should check the power cable. See the table below to interpret the terminal's indicator status:
| Indicator | Status | Meaning |
| Comm | On | Normal Operation |
| Off |
Fault Present- Ensure controller is in run mode. Check baud settings of controller/terminal. Check for proper controller connections. |
|
| Blinking | Failed to establish communication | |
| Fault | On |
Fault Present - Restart terminal. If the error persists, the terminal requires servicing. Click here for information about DO Supply's repair service. |
| Off | Normal Operation | |
| Blinking | No applications loaded/application is corrupt. Reload the application. |
| Indicator | Status | Meaning |
| Comm | On | Normal operation |
| Off | Hardware failure | |
| Blinking | Failed to establish communication | |
| Fault | On | Hardware failure. |
| Off | Normal operation | |
| Blinking | Application not loaded/application is corrupt |
| Indicator | Status | Meaning |
| Comm | On | Normal operation |
| Off | Communication non-functional | |
| Blinking | Failed to establish communication, PLC may be in program mode | |
| Fault | On |
Fault Present - Check baud rate and rack settings. Ensure proper connections from terminal to controller. Verify remote I/O is enabled. |
| Off | Normal Operation | |
| Blinking | Application not loaded/application is corrupt |
PanelView 550 Application Issues
| Issue | Possible Cause | Action |
| Failed Application Download (Initial Attempt) | Disconnected Communication Cable | Check cable type and connection |
| Improper Computer COM Port Selection | Ensure you have the correct COM port number in PanelBuilder32 or WinPFT software | |
| Communication Settings/Rate Incorrect | Ensure computer and terminal share the same communication settings | |
| Failed Application Download (Subsequent Attempts) | Communication Settings/Rate Incorrect | Ensure computer and terminal share the same communication settings. Adjust settings in the Communication Setup screen |
| Application File Name Appears as ******* | Invalid Application | Redownload application |
| Unusable Application Due to Error | Download new application | |
| Failed Application Transfer from Memory Card | Memory card incorrectly installed | Reinstall, verify its installed correctly |
| Application to Large for Terminal Memory | Reduce application size | |
| Incorrect Data Checksum | Ensure memory card is properly seated. It is possible the application may be corrupt | |
| File Format Invalid | Verify file format (.PVA) | |
| Failed Application Transfer to Memory Card | Memory card incorrectly installed | Reinstall, verify its installed correctly |
| Memory Card May be Wire Protected | Change memory card protection switch | |
| Another File on the Memory Card | Erase/reformat card | |
| Application to Large | Reduce application size, erase/reformat card | |
| Memory Card Format Invalid | Replace/reformat card | |
| Incorrect Data Checksum | Ensure card is installed correctly | |
| Application Does Not Exist | Ensure application exists |
Repair Your PanelView 550
Here at DO Supply, we offer repair services for your Allen-Bradley products, such as the Allen-Bradley PanelView 550. For more information or to request a quote, click here.
