A Comprehensive Guide to Mitsubishi HG Series

The Mitsubishi HG-Series is a line of servo motors known for their accuracy, dependability, and versatility. The Mitsubishi HG-Series modules will be covered in this article, which will serve as a complete guide followed by a discussion of several common characteristics such as Rated Torque, Operating Voltage, Output Power Capacity, Protection Ratings, and their rated and maximum speed. First of all, let’s discuss some modules:

HG-JR534K

A High-performance AC brushless rotary servo motor for accurate industrial automation is the Mitsubishi HG-JR534K. This 500W (0.5kW) rated output motor has a 22-bit resolution feedback mechanism, providing precise position control. It efficiently balances power and speed, delivering a rated torque of 1.6 Nm at a rotating speed of 3000 RPM while operating on a 400V AC class supply voltage. The motor’s IP67 environmental protection classification ensures durability against dust and water, making it perfect for demanding industrial situations. Its 90×90 mm flange mounting option allows for adaptable installation. For dependable electrical connections, it also has two MS-type connectors. This module works efficiently between the temperature range of 0 degrees Celsius to 40 degrees Celsius and can adjust to environmental changes. Its integrated oil seal increases longevity and reduces maintenance requirements. Furthermore, homing is unnecessary at commencement because the motor’s absolute feedback encoder simplifies operations. This Mitsubishi servo motor with a 1.5A rated current is a solid option for applications requiring accurate motion control.

HG-KR053

Due to its standard shaft form, this efficient Mitsubishi HG-KR053 module is used in many industrial systems. This module is a perfect choice for applications requiring speed and accuracy, having a nominal speed of 3000 rpm and reaching a maximum speed of 6000 rpm. This motor is designed for jobs requiring delicate control instead of raw force despite its low 0.05kW rated power. A strong 0.56 Nm is the maximum torque, providing flexibility in managing abrupt load changes or transient high-power demands. The torque of 0.16 Newton-meter is enough for precision motion applications. Because of its efficiency in sustaining steady performance during continuous operation, the power rate attained at the rated torque is 5.63 kW/s. This module has a current capacity of about 3.2 amperes and a rated current of approximately 0.9 amperes, ensuring energy efficiency and lower operating expenses. Its design makes it suitable for situations where load balancing and motor efficiency are critical, with an ideal suggested load/motor inertia moment ratio of 17 times or fewer. Its advanced speed/position detector, a 22-bit encoder that works with incremental and absolute position systems, is a notable feature. With its remarkable resolution of 4194304 pulses per revolution, this encoder raises the bar for servo motor revolution precision.

HG-SR102K

This module of the HG-SR series is well-known for its dependability and effectiveness in a range of settings. With a rated capacity of 1 kW, the module is appropriate for industrial environments requiring moderate to high power requirements. This module has a torque of 4.7 Newton-meter, and it provides a strong rotating force for different mechanical tasks. Its torque value of 14.3 Nm can withstand heavy loads and demanding circumstances. This module has a speed of 2000 rpm, and as a result, the motor runs smoothly and offers sufficient energy and speed for precise work. This servo motor can pace up to 3000 rpm at its maximum speed, meeting the needs of systems that require high speed. The motor’s measured inertia of 11.6 kg*cm2 indicates its responsiveness and capacity to withstand dynamic variations in load and speed. Because of its straight shaft, the motor may be incorporated and used with various mechanical systems. It performs exceptionally well in terms of robustness and operational safety, having an IP67-protection class rating and exhibiting resistance to moisture and dust—critical factors in tough industrial situations. Because of its absolute and incremental encoder type, the motor may be precisely controlled using a variety of feedback systems. The encoder’s remarkable resolution of 4194304 pulses per revolution provides unmatched position and speed feedback for applications needing precise control and great accuracy.

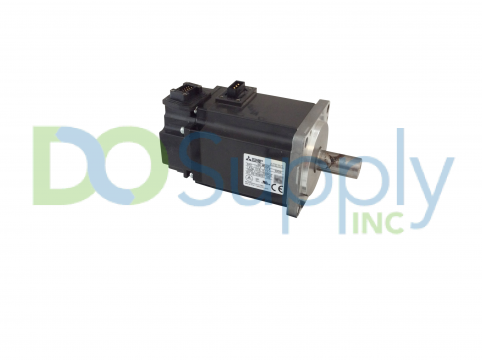

HG-MR43K

This servo motor module is designed when accurate motion control is necessary. Its shaft, which has a keyway and key, guarantees a stable and precise fit with mechanical systems. A high-resolution 22-bit encoder built into the motor provides accurate feedback for precise positioning and movement control. At 400 watts (0.4kW), the HG-MR43K provides sufficient power and energy performance for a broad spectrum of purposes. With a theoretical limited torque of 1.3 Nm and an output current of 2.6A, it is ideal for applications requiring modest torque. The motor achieves its ideal power-to-speed balance at 3000 RPM when it reaches its maximum permitted speed. Its adaptable design is aided by its flange mounting feature, making placement straightforward in various settings. The IP65 protective classification makes the HG-MR43K immune to dust and water, making it a great choice for severe environments.

HG-KR73B

This rotary servo motor, HG-KR73B, from the Mitsubishi HG series, represents the union of precise control and great efficiency in automation. This module, which stands out for having a straight shaft design, is further improved by having an integrated electromagnetic brake that provides better control and safety during dynamic operations. This servo motor’s 22-bit absolute feedback encoder is one of its primary features. The motor uses 4.8 amps of rated current while operating on a 200V AC source, which aligns with typical industrial power needs. The HG-KR73B’s rated active power of 750W, or 0.75kW, is enough for a variety of moderate power applications. With a spinning speed of 3000 rpm, which can be adjusted to a maximum of 6000 rpm, it suits both normal and high-speed demands. The motor’s standard torque of 2.4 Nm combines energy delivered and efficacy. It is more sensitive because of its very low moment of inertia (0.000137 kg.m^2 or 1.37 kg.cm^2). The motor has a 4-pin rectangular connector, making electrical connections easier to understand and guarantee dependable and safe integration into various systems.

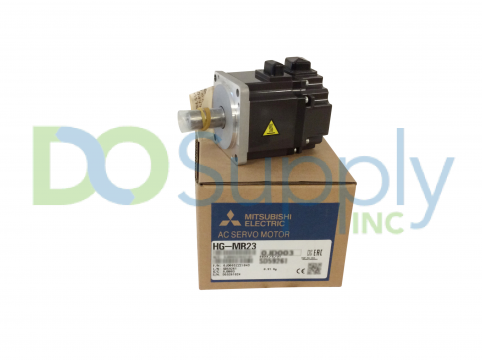

HG-MR23

The high-performance servo motor “HG-MR23” was created for industrial automation applications requiring accuracy and compactness. This motor has a nominal capacity of 0.2 kilowatts and is intended for low to average-energy applications. It can do tasks demanding consistent and controlled action thanks to its specified torque of 0.64 Newton-meter. Because the motor can produce an ideal torque of 1.9 Newton-meter, it can efficiently handle peak loads. Since the HG-MR23 balances speed and torque while working at the recommended rate of 3000 RPM, it may be used in a variety of industrial applications. The motor can accelerate to an elevated speed of 6000 RPM, which is suitable for fast operations. With an inertia of 0.0865 kg*cm2, it can react quickly to variations in load and speed. Because of its straight shaft construction, the HG-MR23 is compatible with a variety of mechanical systems. With an IP65 protection certification, it is impervious to rain and dust, which is essential for preserving dependability in challenging industrial settings. The motor is supplied by an AC 200-volt supply, which is in line with typical industrial power needs. With its absolute/incremental encoder, the HG-MR23 offers accurate feedback for control over both position and speed. Due to its small size (60 x 77.1 x 76.6 mm), it is a great option for situations where space is limited. This motor, which weighs only 910 grams, is a prime example of Mitsubishi’s dedication to producing automation components that are both lightweight and powerful.

Mitsubishi HG-Series Common Features

Optimal Temperature:

The Mitsubishi HG Series typically operates between 0 degrees Celsius and +40 degrees Celsius (32°F and 104°F). This range is selected to guarantee that the motors can function well in most industrial settings, which frequently have temperature variations due to cooling systems, climate, and machine heat production. The HG-MR43K, HG-KR73B, and HG-SR102K modules all function within the same temperature range.

Operating Voltage:

The Mitsubishi HG Series’ operating voltage is normally 200 volts AC. Since this voltage range is commonly found in industrial settings, these motors may be employed in a variety of sectors. This typical alternating current voltage was selected as a compromise between supplying sufficient power for high-performance activities and preserving interoperability with conventional industrial electrical systems. The majority of modules, including HG-JR534K, HG-KR13B, HG-SR102BK, and HG-KR73K, function with this standard operating voltage.

Rated Speed:

The best speed at which the Mitsubishi HG Series motors can reliably and effectively produce the specified performance is known as the “rated speed.” The average speed of the Mitsubishi HG Series varies; however, most motors operate at this speed. This range typically revolves around 3000 (RPM), which is a benchmark speed that strikes a compromise between motor lifetime, torque, and efficiency. For instance, the average rated speed of the modules HG-KR23B, HG-KR43B, HG-KR73, and HG-SR102 is 3000 (RPM).

Torque:

A key feature of servo motors is torque, which is the rotational force the motor can produce. Torque is a crucial parameter in the Mitsubishi HG Series, determining the motor’s capacity to drive a load. Typically having a nominal (or rated) torque and a maximum torque capacity, the series comprises motors with various torque values to suit different industrial applications. The maximum torque is the greatest torque a motor can create for brief periods without overheating or suffering damage. In contrast, the nominal torque is the sustained torque the motor can give continually. Within the HG Series, which includes modules such as the HG-KR13B, HG-KR053, HG-KR23J, HG-MR43K, and HG-SR102B, have the torque ranging from a minimal value of about 2.4 Nm to a highest torque of 8.4 Nm.

Protection Class:

A key feature that indicates a servo motor’s degree of protection against environmental elements like dust and moisture is its Protection Class, represented by its Ingress Protection (IP) rating. The motor’s adaptability for different industrial settings is largely determined by this rating, particularly in cases when exposure to such factors is a problem. The IP65 and IP67 protection ratings are typically the most common in the Mitsubishi HG Series. The HG-JR534K and HG-SR102 modules have an IP67 rating, whereas the HG-KR053, HG-KR13, HG-KR13B, and HG-MR43K modules have an IP65 rating.

Output Power Capacity:

A crucial component of servo motors is their output power capacity, which shows the highest power they can attain when used. It’s a crucial factor because it directly affects the motor’s capacity to drive a load, particularly in demanding industrial settings. Many motors in the Mitsubishi HG Series have an output power capability in the range of 0.5Kw-0.75 kW. This capacity is a flexible option that balances performance and energy usage. It is adequate for various industrial uses, offering the necessary power for most medium-duty jobs while preserving efficiency. As an illustration, the output power capacity of the modules HG-KR053, HG-KR13, HG-KR13B, HG-MR43K, HG-JR534K, and HG-SR102 is approximately lies between 0.5Kw- 0.75 kW.

Conclusion

In conclusion, these motors from the Mitsubishi HG-Series are a prime example of cutting-edge engineering and adaptability in automation. Every servo motor in this series has been painstakingly crafted to meet the needs of various industrial settings, exhibiting an amazing combination of accuracy, effectiveness, and longevity. One example of the series’ dedication to high performance and versatility is the HG-JR534K. It is perfect for complex automation jobs because its 22-bit resolution feedback mechanism and 500W output provide extremely accurate position control. Environmental protection features like its IP67 rating guarantee that it is suitable for use in even the most demanding industrial settings. In the same way, the HG-KR053 shows how the series can support high-speed operations without sacrificing precision, thanks to its standard shaft shape and exceptional speed capabilities. Its sophisticated speed/position sensors and effective energy management further highlight the series’ emphasis on power and accuracy. With its 1 kW capacity and strong torque, the HG-SR102K is another noteworthy example ideal for heavy-duty applications. Its durable construction and IP67 certification guarantee its dependability and lifespan in various industrial environments. The HG-MR43K and HG-KR73B modules also highlight the accuracy and versatility of the series. Their IP65 certifications mean they can withstand various conditions and provide accurate and dependable control. The ideal operating temperature range, standard operating voltage, and constant rated speed—common to all models in the series—underscore the series’ design philosophy. These features guarantee that the motors are suitable for a large number of industrial sectors and applications and are highly adaptable. This series ‘ universality demonstrates Mitsubishi’s ability to create a series that can easily fit into various industrial installations. Furthermore, customers may select motors according to particular operating requirements thanks to the series’ spectrum of torque options, which vary from nominal to maximum. The HG-Series provides a motor that can efficiently fulfill the demands of applications requiring continuous force or brief bursts of high power. The IP65 and IP67 protection class ratings for the various modules further emphasize how the series is prepared for harsh conditions. These motors are designed to endure and perform flawlessly in various environments, including damp and dusty workshops, resulting in the least maintenance and downtime.
