Mitsubishi GOT2000 Selection Guide

Mitsubishi Electric’s GOT2000 series is the evolution of operator control, offering a lineup of advanced human-machine interface (HMI) terminals that cater to a wide array of industrial needs. From the compact and efficient GS2107-WTBD to the expansive and feature-rich GT2510-VTBD, the GOT2000 series provides a range of options to fit any application. With enhanced functionality, superior graphics, and intuitive operation, these HMIs are designed to streamline complex processes and improve user interaction. Each model, including the GS2107-WTBD, GS2110-WTBD, GT2308-VTBD, GT2310-VTBD, GT2505-VTBD, GT2508-VTBD, GT2508-VTBA, and GT2510-VTBD, is crafted to offer exceptional performance and connectivity, bringing seamless integration and effortless control right to the fingertips of operators. Embrace the power of innovation with the GOT2000 series and experience the pinnacle of automation excellence.

GS2107-WTBD: Compact and Versatile

The Mitsubishi GS2107-WTBD is an integral component for any industrial setting that demands high-performance monitoring and control. This HMI comes with a 7-inch TFT color LCD, providing a clear and vibrant interface with a resolution of 800 x 480 pixels, ensuring sharp and detailed visuals for operators.

Key Specifications:

• Display: 7-inch TFT color LCD with a high-resolution interface of 800 x 480 for crisp imagery.
• Dimension: Compact horizontal format with 154 x 85.9 mm (6.06 x 3.38 inches), allowing for easy panel integration.
• Color Range: Supports 65,536 colors, offering a vivid display for enhanced user interaction.
• Touch Panel: Equipped with an analog resistive film touch panel for responsive input.
• Memory: 9MB of built-in flash memory for robust data and application storage.
• Connectivity: For comprehensive communication options, multiple built-in interfaces, including RS-422, RS-232, Ethernet, USB, and SD Card.
• Power Efficiency: Operates on a 24VDC power supply, with a low power consumption of 6.5W or less.
• Construction: Sleek and durable design, with dimensions 206 x 155 x 50 mm (8.11 x 6.11 x 1.97 inches) and a weight of just 0.9 kg, making it suitable for various installation environments.

The GS2107-WTBD is an HMI that doesn’t just fulfill the basic requirements; it goes beyond providing a user-friendly experience, effortless connectivity, and reliable performance. Its streamlined dimensions and power efficiency make it an excellent choice for systems where space and energy consumption are critical considerations.

GS2110-WTBD: Enhanced Interface for Superior Control

The GS2110-WTBD is a standout model in Mitsubishi’s GOT2000 series. It offers a larger 10-inch TFT color LCD for advanced interface management. Its wider screen enhances operational visibility and user interaction for a range of industrial applications.

Key Specifications:

• Display Size: 10 inches, providing ample space for complex interface management.
• Resolution: 800 x 480 pixels, ensuring detailed and clear visual output.
• Color Support: Capable of displaying 65,536 colors, allowing for a vibrant and engaging user experience.
• Input Voltage: Operates with a 24 Volts DC power supply.
• Power Efficiency: Consumes only 7.6 Watts with backlight, highlighting energy-efficient design.
• Weight: At just 1.3 kilograms, it combines a lightweight profile with robust functionality.
• Dimensions: 272 x 214 x 56 millimeters, designed to fit in various installation settings.
• Durability: Front panel rated at IP65F, ensuring protection against dust and water jets.
• Memory: Equipped with 9 MB of flash memory to support essential application data.
• Connectivity Options: Includes USB, RS-232, RS-422, and Ethernet ports for versatile networking capabilities.

With its IP65F-rated front panel and self-cooling system, the GS2110-WTBD is crafted for longevity and reliable performance in demanding environments. The unit’s self-cooling mechanism and grounding resistance specification ensure stable operation up to an altitude of 2000 meters, making it a resilient choice for various industrial settings.

GT2308-VTBD: Durable and Intuitive HMI for Enhanced Visualization

The GT2308-VTBD from Mitsubishi Electric is a rugged and intuitive graphic operation terminal designed to enhance visualization and control in industrial applications. Its 8.4-inch TFT color LCD provides crystal-clear graphics and reliable touch functionality, perfect for operators requiring precise control and monitoring.

Key Specifications:

• Display Option: 8.4-inch TFT color LCD, offering a VGA resolution of 640 x 480 dots for clean visuals.
• Color Support: Displays up to 65,536 colors, enabling rich and vibrant visual feedback.
• Screen Size: The practical dimensions of 170.9 x 128.2 mm (6.73 x 5.05 inches) fit well in diverse control panel setups.
• Supply Voltage: Flexible power input with 100-240V AC, accommodating various power systems.
• Backlight: LED backlight designed for longevity, boasting approximately 50,000 hours of life.
• Memory: Equipped with 9 MB of storage and operation memory, facilitating advanced application and data handling.
• Environmental Ratings: Front panel with IP67F and control panel interior with IP2X protection against dust and moisture.
• Weight: At 1.5 kg, it strikes a balance between durability and ease of installation.

Engineered for demanding environments, the GT2308-VTBD is built to last. Its protective construction meets international standards, including CE, UL, cUL, EAC, and KC. It is a testament to the GOT2000 series’ commitment to providing reliable, user-friendly HMIs that can withstand the rigors of industrial use while offering superior performance.

GT2310-VTBD: Advanced Connectivity for Complex Systems

The GT2310-VTBD Graphic Panel HMI from Mitsubishi Electric is a versatile and powerful interface designed to streamline complex industrial processes. Its 10.4-inch TFT display and multiple hardware interface options make it a central hub for seamless machine operation and monitoring.

Key Specifications:

• Display: 10.4-inch TFT with 65k color support for a rich, engaging visual experience.
• Resolution: Offers a clear 640×480 VGA display for detailed interface management.
• Connectivity: Equipped with multiple interfaces including Industrial Ethernet, RS-232, RS-422, and RS-485, ensuring comprehensive communication capabilities.
• Memory: Boasts 9 MB of memory, providing ample space for application data and user configurations.
• Protection: The front panel is rated IP67 for high protection against dust and moisture, ensuring durability in harsh environments.
• Power Supply: Requires a standard 24V DC input, compatible with most industrial power systems.
• Dimensions: Compact and robust build, measuring 303mm in width and 218mm in height, with a depth of only 56mm.
• Usability: Features USB connectivity for easy data transfer and integration with USB-enabled devices.

With its robust features and advanced connectivity options, the GT2310-VTBD is engineered for those requiring a reliable, user-friendly interface that can manage extensive data and provide precise control. Its broad compatibility and support for TCP/IP protocol make it an excellent choice for modern industrial settings where communication and uptime are critical.

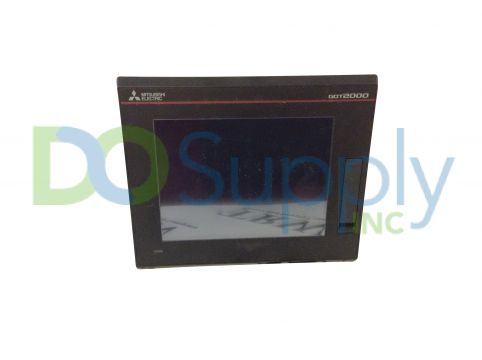

GT2505-VTBD: Robust Multi-Channel HMI for Dynamic Control

The GT2505-VTBD from Mitsubishi Electric’s GOT2000 series stands out as a dynamic and robust human-machine interface (HMI). Designed for multifaceted industrial applications, this HMI’s multi-channel functionality facilitates efficient data visualization and control.

Key Specifications:

• Display: 5.7-inch TFT with a resolution of 640×480 pixels, providing clear and detailed visuals.
• Color Depth: Capable of displaying a vast color spectrum with 65,536 colors for a vivid operator interface.
• Protection Class: Rated IP67, this product offers full protection against dust and water ingress and is suitable for challenging industrial environments.
• Memory: Equipped with 32MB of internal storage and 80MB of operational RAM, ensuring ample space for complex applications.
• Connectivity: Features an Ethernet port and supports MODBUS, Ethernet, and CC-Link networks, alongside RS-232 and RS-422/485 ports for extensive compatibility.
• Power Supply: Requires a 24V DC input, aligning with standard industrial power sources.
• Multi-Channel Function: Comes with four channels, allowing simultaneous monitoring and operation of multiple devices.

The GT2505-VTBD’s advanced capabilities make it an excellent choice for operators needing a compact yet powerful interface to handle multiple tasks in real time. Compliance with CE, UL/cUL, and EAC standards further ensures that this HMI meets the highest safety and operational criteria.

GT2508-VTBA: Intuitive and Resilient Interface for Complex Environments

The GT2508-VTBA is part of Mitsubishi’s GOT2000 series, providing a robust interface designed to withstand the demands of complex industrial environments. With its 8.4-inch display and advanced functionality, this HMI is engineered for operators who need reliability without sacrificing visual quality or touch responsiveness.

Key Specifications:

• Display: 8.4-inch TFT with a VGA resolution of 640 x 480 pixels, ensuring clear, detailed visuals.
• Memory: 80MB of internal memory allows sophisticated application and data management.
• Connectivity: This product includes several input and output ports, along with support for Modbus TCP/IP, Ethernet/IP, and DeviceNet, offering versatile networking solutions.
• Protection: The IP67 rating on the front panel affirms its resilience against dust and moisture in harsh industrial settings.
• Touch Panel: This panel features an analog resistive film that can register input even when the operator is wearing gloves.
• Supply Voltage: Flexible with an input range of 100-240 VAC, accommodating various electrical standards.
• Design: Boasts a landscape orientation with a sleek black panel color, complementing any control room aesthetics.

Designed for ease of operation, the GT2508-VTBA supports multi-language functionality and gesture control, enhancing user interaction. Its landscape screen aspect provides a broader viewing area for monitoring and controlling tasks, which is essential for safety and efficiency in industrial operations.

GT2508-VTBD: Versatile and High-Capacity

The GT2508-VTBD, a vital component of Mitsubishi Electric’s GOT2000 series, offers a sophisticated interface with ample screen real estate and versatile functionality for industrial applications. It’s designed to deliver performance and durability with a user-friendly experience.

Key Specifications:

• Display: 8.4-inch vibrant TFT color LCD with VGA resolution (640 x 480).
• Screen Capacity: Can display up to 40 characters by 30 lines using a 16-dot standard font or 53 characters by 40 lines using a 12-dot standard font, supporting 65,536 colors for rich visual output.
• Brightness Adjustment: Features 32 levels of brightness, allowing customization for various lighting conditions.
• Memory: Includes 32 MB of storage (ROM) and 80 MB for operation (RAM).
• Screen Registration: Can register up to 4096 screens, offering expansive control over display management.
• Backlight Life: LED backlight with approximately 60,000 hours of life, ensuring long-term reliability.
• Touch Panel: Equipped with an analog resistive film for precise touch input.

Boasting a practical combination of screen capacity, memory, and longevity, the GT2508-VTBD HMI is built to accommodate a broad spectrum of industrial demands, from process control to complex automation tasks. This model’s extensive screen registration and adjustable brightness levels ensure it can adapt to a wide range of operational contexts, making it a versatile choice for various industrial environments.

GT2510-VTBD: High-Performance HMI for Advanced Industrial Use

The GT2510-VTBD HMI is Mitsubishi’s response to the demand for high-performance user interfaces in industrial settings. It’s crafted to provide optimal control and monitoring with its large 10.4-inch display, delivering crisp visuals and robust functionality for complex operations.

Key Specifications:

• Screen Size: A generous 10.4-inch display for extensive monitoring capabilities.
• Resolution: Clear visuals with a resolution of 640 x 480, ensuring detailed data representation.
• Display Colors: Supports 65,536 colors, offering a vibrant and dynamic visual experience.
• Power Supply: Efficient operation with 24VDC input and a noise-resistant power supply suitable for industrial environments.
• Power Consumption: Economical with a maximum load of 33W and a standalone operation of 10W.
• Noise Resistance: Robust design withstanding noise voltages of 500Vp-p, ensuring reliability in electrically volatile settings.
• Memory: 32MB of storage ROM and 80MB of operational RAM to handle demanding applications.
• Clock Accuracy: Maintains timekeeping precision with an internal clock accuracy of ±90 seconds per month.
• Connectivity: Features RS-232, Ethernet, SD Memory Card, and USB interfaces for flexible communication and data transfer options.
• Dimensions and Weight: Compact dimensions of 303mm x 218mm x 52mm and a weight of 2.1 kg, facilitating installation in various setups.

The GT2510-VTBD stands out with its advanced interface controls, memory capacity, and precision engineering, making it a preferred choice for those who need a powerful yet user-friendly HMI. This model is engineered to perform in space-constrained environments while maintaining ease of handling and maintenance, ensuring it meets the rigorous demands of modern industrial applications.

GOT2000 Series Selection Guide

When selecting an HMI from Mitsubishi’s GOT2000 series, consider the following aspects to determine the best fit for your operational requirements:

Display and Interface:

• The GS2107-WTBD, with its 7-inch display, and the GT2505-VTBD, with a 5.7-inch display, are ideal for compact spaces requiring clear visibility.
• If a larger screen is needed for complex interactions, the GT2310-VTBD and GT2510-VTBD both offer 10.4-inch displays with robust touch panels.

Memory and Processing Power:

• The GT2508-VTBA and GT2510-VTBD have 80MB of RAM, which is suitable for more demanding applications requiring substantial data handling.
• For less intensive applications, the GT2308-VTBD with 9MB of flash memory and the GS2110-WTBD with 9MB of memory offer efficient performance.

Connectivity and Integration:

• For environments that require multiple types of connections, the GT2508-VTBA and GT2310-VTBD provide a broad range of interfaces, including Ethernet, USB, and RS series ports.
• The GT2510-VTBD stands out for its advanced networking capabilities, making it the best choice for systems that need to communicate with various devices and controllers.

Environmental Durability:

• The GT2505-VTBD and GT2510-VTBD have front panels rated IP67, making them suitable for harsh industrial conditions.
• For indoor applications or less demanding environmental conditions, the GS2107-WTBD and GT2308-VTBD, with their IP67F ratings, provide sufficient protection.

Installation and Maintenance:

• All models are designed with ease of installation in mind, but the lightweight and compact design of the GS2107-WTBD makes it particularly easy to handle.
• The GT2508-VTBD and GT2510-VTBD offer more extensive features and are still designed for straightforward maintenance.

This guide is meant to streamline the selection process by highlighting the distinguishing features of each model in the GOT2000 series. Each HMI is engineered to meet Mitsubishi’s high standards for quality and reliability, ensuring that any choice from this series will enhance the efficiency and control of your industrial automation systems.

Final Thoughts

Mitsubishi Electric’s GOT2000 series is engineered to meet the diverse demands of today’s industrial automation landscape. With a range of HMIs that marry robust functionality with user-centered design, the series ensures that every operator can find a model suited to their unique requirements. Whether the compact GS2107-WTBD, the versatile GT2310-VTBD, or the high-capacity GT2510-VTBD, each HMI brings Mitsubishi’s reliable performance to the table.
