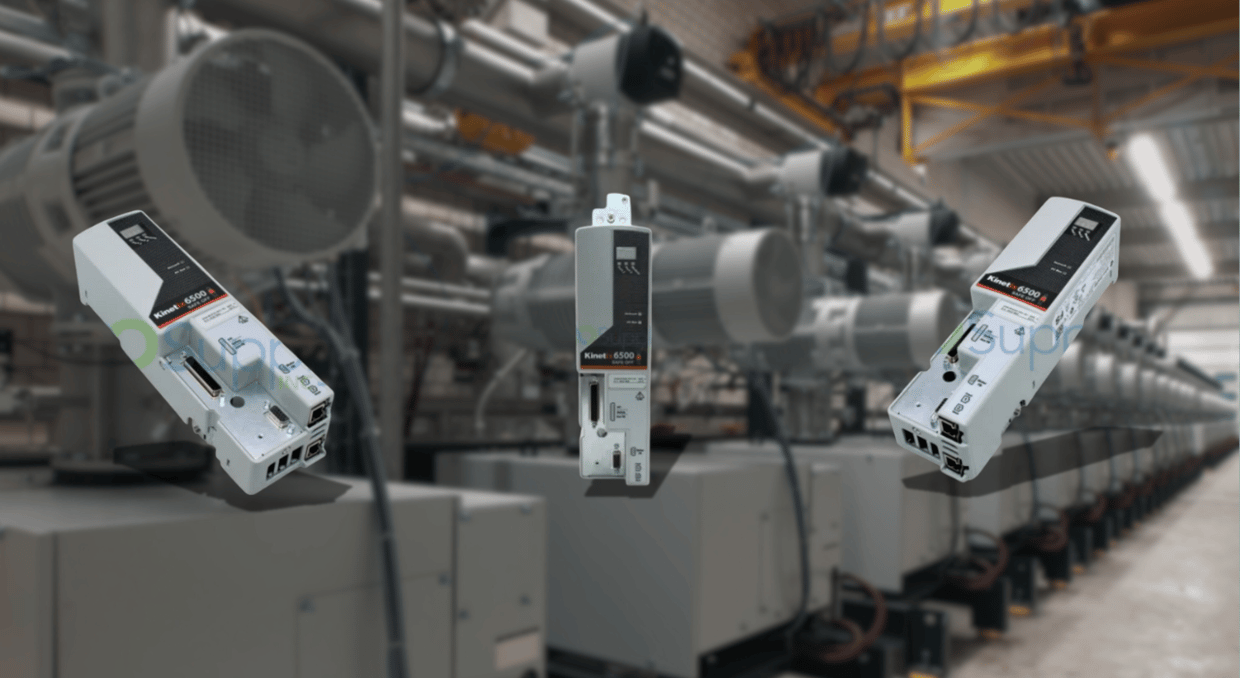

The Kinetix 6500: Hardware Selection Made Easy

The Kinetix 6500 EtherNet/IP-enabled servo drives represent a cutting-edge solution within the 2094-Bulletin category of devices. These drives provide seamless integration with a range of linked devices, including high-performance servos, input and output modules, AC drives, and smart actuators. They do this by combining high-performance motion capabilities with the flexible, open EtherNet/IP network. In this article, we are going to explain the different technical specifications of the Kinetix 6500 first. Then, we will explain different modules within this series, and at the end, we will discuss some of the benefits of the drives of Kinetix 6500.

Input Voltage Range

The Kinetix 6500 drives are congenial with different international power standards since they are manufactured to bear a significant input-voltage range of 324-528 Volts Alternating Current 3-phase. Their broad voltage range helps them to get integrated into various electrical systems, which increases their usefulness and comfort in industrial settings.

Standard Ethernet Network Compatibility

For this series, the need for a separate connection network is removed, and standard Ethernet network compatibility is added. By using the current network infrastructure for motion control activities, you can minimize overall costs, setup complexity, and simplify system design.

Switchable Control Modules

Switchable control modules on the servo drives of this series make it simple to switch between various networks and safety features. Because of its adaptability to a range of industrial circumstances and support for a variety of operational needs, it helps to ensure safe and effective operations.

Advanced Safety Features

The Kinetix 6500 drives provide improved operator safety with their sophisticated safety features, which include maximum acceleration monitoring, zero speed monitoring, safe direction monitoring, and safe stop. These characteristics lower the chance of accidents and increase worker safety by enabling safe machine operation in restricted situations and dependable access to protected regions.

Some of the modules that this series offers are described below:

2094-EN02D-M01-S0

The Kinetix 6500 motion control system’s 2094-EN02D-M01-S0 control module has two Ethernet ports and Safe Torque Off (STO) safety features. It has an axis performance of 500 microseconds and communicates via Ethernet using twisted pair connections. Important features include connections for I/O and motor feedback in addition to status indicators for the DC Bus, Network, Module, and Ports. It uses integrated axes and axes modules for operation, and it attaches to the Kinetix power rail.

• This module is compatible with elevations up to 3000 meters with derating and operates within the range of 0-50°C and up to 95% humidity (non-condensing).
• This module complies with all the Safety requirements like SIL CL3, PLe, and CAT 4. Optimized for smooth interaction with the Logix platform, it provides streamlined wiring and improves multi-axis motion control.

This drive provides flexibility and cutting-edge functions for different industrial settings by supporting CIP Sync and CIP Motion on Ethernet/IP.

2094-EN02D-M01-S1

In the Kinetix 6500 series, the 2094-EN02D-M01-S1 is a safe speed monitoring control module that offers dual-port and twisted pair Ethernet/IP network connectivity. This module should be kept between -40 and 70°C (-40 to 158°F) and operates within the range of 0 and 50°C (32-122°F).

• The module works well at elevations up to 1000 meters, with derating up to 3000 meters, and supports 5 to 95% non-condensing relative humidity.
• The 2094-EN02D-M01-S1 allows for multi-axis integrated motion control and connects easily to the Logix platform.
• It supports the SERCOS interface for Kinetix 6000 drive compatibility and provides enhanced functionality inside the Bulletin-2094 Kinetix 6500/6200 drive range.

 This guarantees adaptable and effective operations by enabling users to make use of sophisticated program capabilities as required. The module is a great option for demanding industrial applications because of its strong design and wide range of capabilities.

2094-SE02F-M00-S0

The Kinetix 6500 series, which includes the 2094-SE02F-M00-S0 control module, is renowned for its safe-speed feature. These drives provide an output power of 1.2 to 22 kilowatts and are designed for 3-phase operation through an input voltage of 324-528 Volts Alternating Current. The system setup and maintenance are made simpler by the modular architecture.

• Safe Stop, Safe Direction Monitoring, Safe Torque-Off, Safe Maximum Speed, Safe Zero Speed Monitoring, and Safe Speed Monitor are various important safety features.
•  For EN954-1 (Category 3) compliance, the Safe Torque-Off function does not need an external relay and is certified to ISO 13849-1 PLe/SIL3 requirements.
•  If the safety circuit is triggered, this feature prevents the drive from restarting. The module functions via the Sercos interface and is compatible with Logix 5000 controllers.
• It has one Ethernet port and status indicators for DC-bus, drive, communication, and port.
• It weighs 0.68 kg, has a 0.2-meter cable for connection, and is UL and CE-approved.

Now, we will be discussing some of the benefits of Kinetix 6500:

 Kinetix 6500 Benefits

Integrated Motion on Ethernet/IP

• For consistency and interoperability, it makes use of ODVA’s CIP Motion and CIP Sync technologies, which are based on the Common Industrial Protocol (CIP).
• To handle real-time control and information flow, this series optimizes plant-wide operations and improves decision-making and business performance, using standard, unmodified Ethernet.
• For demanding applications, time synchronization of drives, I/O, and other conforming devices with Ethernet/IP offers the necessary performance.
• Automated configuration based on catalog numbers makes Kinetix 6500 drive, motor, and actuator setup easier.
• Without the need for proprietary hardware or software, integration with a wide range of corporate, commercial, and industrial equipment is made possible via a standard Ethernet connection.

Embedded Safety

• Integrated security measures minimize the number of components and wire terminations to lower the overall system cost.
• Increases operator safety by using integrated safety features.
• Decreases downtime, increasing machine availability.
• Streamlines the commissioning and installation procedures.
• Helps ensure effective maintenance and operation by offering superior machine information and diagnostics.

Conclusion

In conclusion, within the 2094-Bulletin category, the Kinetix 6500 Ethernet/IP-enabled servo drives are distinguished as high-performance, adaptable solutions that offer sophisticated motion capabilities that can be easily integrated with different linked devices. These drives provide a complete and adaptable control system for motors that matches the requirements of various industrial settings. They are designed to improve operational efficiency and safety. With their wide input voltage range of 324 to 528 volts AC, these drives provide future-proof versatility and ease of integration and management within current infrastructures. Certain modules in this series, such as the 2094-EN02D-M01-S0, 2094-EN02D-M01-S1, and 2094-SE02F-M00-S0, provide special features and advantages, like sturdy designs appropriate for demanding industrial applications and sophisticated safety capabilities. These modules guarantee operational safety and efficiency with features like safe torque-off, safe speed monitoring, and effective multi-axis control. The Kinetix 6500 series’ approach to streamlining system design, cutting costs, and improving machine performance and operator safety is shown by its integration with Ethernet/IP and integrated safety features. Consequently, the Kinetix 6500 servo drives are a great option for contemporary industrial automation requirements as they provide a complete solution that supports sophisticated motion control applications.
