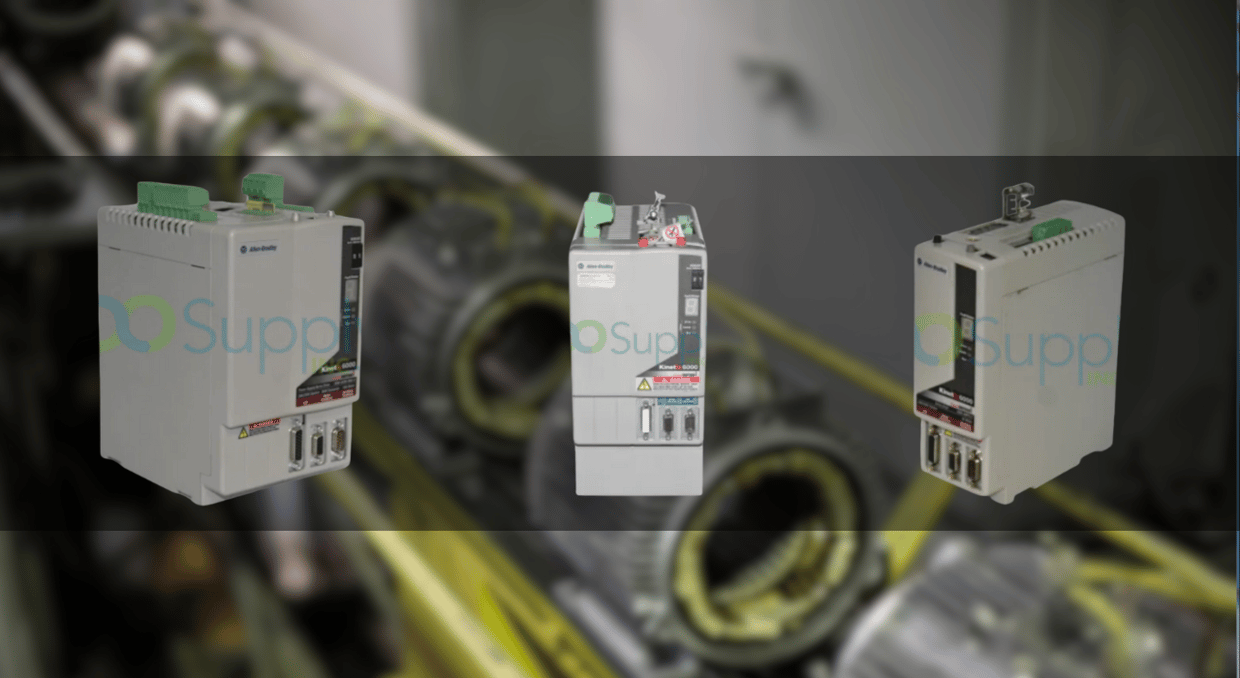

Mastering Motor Control: A Comprehensive Guide to the Kinetix 6000 Series Drives

In the dynamic world of industrial automation, efficiency and precision are key. The Kinetix 6000 drives are here to revolutionize your operations, offering a cutting-edge solution that boosts system performance while slashing costs and saving valuable time. These multi-axis drives are designed to streamline programming, wiring, diagnostics, and machine operation, significantly accelerating the engineering and installation processes. For industries tackling demanding motion applications, the Kinetix 6000 series provides unmatched flexibility and efficiency, ensuring your systems run smoothly and effectively.

Power and Flexibility

With a continuous power output range of 0.3 to 3 kilowatts, these drives are versatile enough to meet the needs of various applications. They are built to handle global voltage requirements, making them suitable for diverse industrial environments.

Technical Specifications

• Input Voltage Range: 195 to 265 Volts AC or 324 to 528 Volts AC.
• Input Frequency Range: 47 to 63 Hertz.
• Velocity Loop Bandwidth: 500 Hertz.
• Current Loop Bandwidth: 1300 Hertz.

These specifications ensure that the Kinetix 6000 drives provide precise and reliable performance, even under rigorous conditions.

Advanced Control Options

The Kinetix 6000 series includes features that cater to complex motion control needs.

• Multi-turn Absolute Encoders: Enhance positioning accuracy and feedback resolution.
• Safe Torque-Off (STO): Built-in safety functionality that ensures machine safety by disabling the drive without removing power.
• Peak Enhancement Configuration: Provides additional torque during peak demands, optimizing performance during critical moments.

Streamlined Processes for Faster Implementation

One of the standout advantages of the Kinetix 6000 drives is the significant reduction in time and effort required for setup and operation. By simplifying programming, wiring, and diagnostics, these drives make it easier for engineers to get systems up and running swiftly. This reduction in engineering and installation time translates to faster project completion and quicker return on investment.

Meeting Global Standards

Designed to meet global voltage requirements, the Kinetix 6000 drives are equipped to handle varying power conditions across different regions. This adaptability makes them an excellent choice for multinational operations or companies looking to standardize their equipment across various locations.

Enhanced Safety and Reliability

Safety is paramount in any industrial setting, and the Kinetix 6000 drives excel in this area with their Safe Torque-Off feature. This built-in safety functionality ensures that the drives can be quickly and safely disabled without cutting power, protecting both machinery and operators. The drives robust design and advanced control options contribute to their overall reliability and performance.

Key Features

Integrated Motion Solution

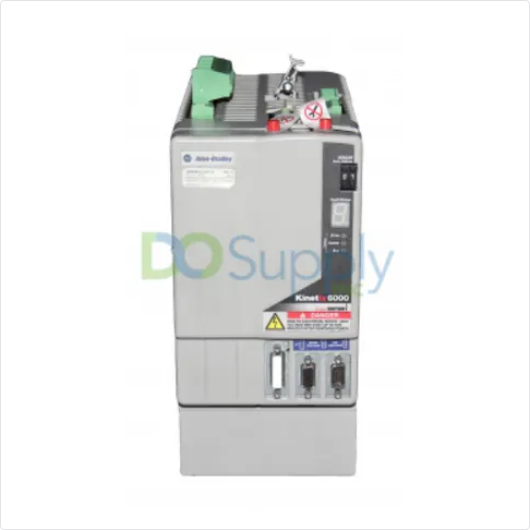

The Kinetix 6000 multi-axis servo drives are designed to provide a seamless Kinetix Integrated Motion solution for various drive, motor, and actuator applications. Central to this system are the Integrated Axis Modules (IAM) and Axis Modules (AM).

Integrated Axis Modules (IAM)

• These modules feature a safe torque-off function and are available for 200V or 400V-class AC input power.
• Each IAM includes an inverter and converter section, with the peak enhancement feature available on 400V-class (Series B and later) IAM modules.

Axis Modules (AM)

• AM modules also include a safe torque-off function and serve as shared DC-bus inverters.
• Rated for 200V or 400V-class operation, AM modules must be paired with an IAM module.
• The peak enhancement feature is available on 400V-class (Series B and later) AM modules.

Logix 5000 Controllers

The integration with Logix 5000 controllers is facilitated through advanced communication interfaces, ensuring smooth operation and control.

Sercos Interface Module/PCI Card

• This module acts as a link between the ControlLogix, CompactLogix, and SoftLogix controllers and the Kinetix 6000 drive system.
• The communication link uses the IEC 61491 SErial Real-time Communication System (Sercos) protocol over a fiber-optic cable.

Kinetix 6000M IPIM Module

• This module connects to the EtherNet/IP network, providing capabilities for monitoring, diagnostics, and firmware upgrades.

Compatible Rotary Servo Motors

The Kinetix 6000 drives are compatible with a wide range of rotary servo motors, offering flexibility for various applications.

Motor Types:

• Kinetix MPL, MPM, MPF, and MPS (200V and 400V-class)
• 1326AB (M2L/S2L) and 1326AB (resolver)
• F-Series motors

Compatible Linear Actuators

For linear motion applications, the Kinetix 6000 drives support several linear actuators, enhancing the system’s versatility.

Kinetix MP

• Compatible with MPAS (200V and 400V-class) single-axis actuators and MPMA multi-axis integrated linear stages.
• Also supports MPAR and MPAI (200V and 400V-class) electric cylinders.

Kinetix LDAT

• These integrated linear actuators are compatible with 200V and 400V-class drive systems.

Resistive Brake Module (RBM)

The Resistive Brake Modules (RBM) are an integral part of the Kinetix 6000 system, providing additional safety features.

Features

• The RBM includes a safety contactor for use in a control circuit.
• Contactors and resistors are housed within the module, allowing the motor leads to be disconnected from the drive, bringing the permanent magnet motor to an immediate stop.
• This module is designed to provide immediate braking but does not mount to the power rail.

The Kinetix 6000 multi-axis servo drives offer a comprehensive and integrated motion solution, ensuring compatibility with a wide range of motors, actuators, and controllers. With advanced features like safe torque-off and peak enhancement, these drives are ideal for various industrial applications, providing precision, reliability, and ease of use.

Optimized Hardware Installation

The Kinetix 6000 drives are built with convenience and efficiency in mind, ensuring that hardware installation is straightforward yet robust. Key installation requirements include:

• 3-Phase AC Configurations: Whether used with or without line interface modules (LIMs), these drives support versatile 3-phase AC configurations to suit various industrial needs.
• DC Common-Bus Configurations: The drives are also compatible with DC common-bus configurations, enhancing their adaptability in different settings.

Efficient and Compact Design

When it comes to industrial automation, the Kinetix 6000 drives set a new standard for performance and efficiency. Designed with a focus on excellence, these drives feature a sleek and compact design that optimizes space without compromising on power. This thoughtful engineering ensures that the Kinetix 6000 drives consistently deliver outstanding performance, making them an ideal choice for modern multi-axis motion systems. Their integration capabilities highlight the advanced technology behind these drives, providing a reliable and efficient solution for a wide range of applications.

• Axis Enable Input: For straightforward and reliable axis activation.
• Home Input: Ensuring accurate and repeatable homing operations.
• Overtravel Inputs: Providing safety and protection against excessive travel.
• Registration Inputs: For precise timing and registration tasks.

Benefits of Kinetix 6000 Multi-Axis Drives

• Optimal Performance: Designed for modern industrial automation needs.
• Ease of Installation: Simplified and robust hardware setup.
• Unparalleled Integration Capabilities: Enhances existing systems or facilitates new automation solutions.
• Precision and Reliability: Essential for maintaining a competitive edge in today’s market.

In conclusion, the Kinetix 6000 multi-axis drives are a transformative solution in industrial automation, offering unmatched performance, efficiency, and versatility. They streamline programming, wiring, diagnostics, and machine operation, significantly reducing engineering and installation time, thus lowering costs and speeding up project timelines. With features like safe torque-off, peak enhancement, and seamless integration with Logix 5000 controllers, the Kinetix 6000 drives meet the rigorous demands of modern motion control applications. Whether enhancing existing systems or implementing new automation solutions, the Kinetix 6000 series delivers the precision, reliability, and flexibility needed to excel in today’s competitive industrial landscape. Supporting a wide range of rotary and linear actuators and adaptable to global voltage standards, these drives are designed to optimize performance and ensure consistent, top-notch results.
