Mastering the Basics: A Beginner’s Guide to Allen Bradley Drives

The Allen-Bradley family offers various industrial drives designed to cater to diverse global applications. From DC drives to low-voltage, compact, and medium-voltage options, this article provides comprehensive control modes and power ratings to suit various operational needs. Known for seamless integration into industrial systems, these drives enhance productivity and operational efficiency.

In this article, we delve into the key technical features and functionalities of Allen-Bradley drives. This guide simplifies the selection process by breaking down the attributes of each drive type, empowering users to identify the right solution for their unique requirements. Whether optimizing energy consumption, ensuring motor protection, or achieving precise control, this beginner-friendly overview ensures an informed approach to drive selection, making industrial automation accessible and efficient for all levels of expertise.

Features of DC Drives

Power Ratings

The PowerFlex DC drives offer extensive power and voltage capabilities for diverse industrial motion control needs. With input ranges from 200V to 690V AC, they support power ratings from 1.5 Hp to 1400 Hp and current up to 1582 A. Engineered solutions extend DC motor control up to 6000 Hp, providing scalability for demanding applications. These drives ensure efficiency and adaptability, making them an ideal choice for various industries.

Communication Protocols

Several Allen-Bradley DPI (Drive Peripheral Interface) communication adapters are easily integrated with the PowerFlex DC Field Controller (Bulletin 23PFC) and PowerFlex digital DC drives (Bulletin 20P), providing improved connection. The supported adapters are BACnet, ControlNet, EtherNet/IP, DeviceNet, PROFIBUS, Modbus RTU, and RS-485 DF1. To optimize operations in contemporary automation systems, this wide compatibility guarantees simple integration into a variety of industrial networks, facilitating effective data interchange and control.

Environmental Specifications

 PowerFlex digital DC drives operate effectively between 32 and 122°F (0 and 50 °C) without power derating and are designed for dependable performance in harsh settings. They need dry, clean conditions to be installed. Important features include a 152 mm displacement or 1G peak vibration tolerance, a 5–85% non-condensing working humidity, and a 95% storage humidity. These drives function up to 3,300 feet in altitude, with derating beyond that. They can withstand mechanical shocks of 15G for 11 milliseconds. The temperature range for storage is -25 to 55 °C (-13 to 131°F).

Advanced Motor Control and Precision

To ensure smooth interaction with other PowerFlex drives, PowerFlex DC drives are made for both non-regenerative and regenerative motor control. They streamline diagnostics, cut down on setup time, and simplify tag and parameter programming. They are perfect for hoisting applications because of features like Flying Start mode, which enables seamless synchronization with spinning motors, and TorqProve technology, which guarantees coordinated management of mechanical brakes and motor loads. With torque adjustment as accurate as ±1% under closed-loop control and speed regulation of up to 0.1% utilizing encoder or tachometer feedback, these drives provide strong performance that can handle a full motor load at zero speed.

Low-Voltage Drives from Allen-Bradley

The Allen-Bradley low-voltage drive family provides a diverse selection of control modes, functions, and power ratings. Suitable for conventional low-voltage and high-power applications, these drives excel in scenarios that demand precise speed, torque, and position control. They are specifically designed to enhance productivity and improve connectivity.

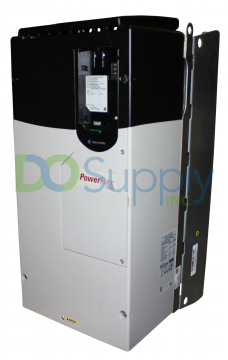

PowerFlex 753 AC Drive

With power ratings ranging from 0.5 HP to 400 HP, the Allen-Bradley PowerFlex 753 AC Drives provide flexible motor control and can handle a range of voltage inputs. IP00/IP20 NEMA/UL Type Open and IP54 NEMA/UL Type 12 are two enclosure solutions that guarantee flexibility in various installation situations. A dual-port Ethernet/IP Option Module makes network integration easier by cutting down on cabling and simplifying design. Application flexibility is provided by control modes such as V/Hz, sensorless vector control, and vector control using FORCE technology. Predictive diagnostics increase dependability, and the slot-based design accommodates extra modules, safety measures, and feedback. The integrated LCD Human Interface Module (HIM) makes configuration simple.

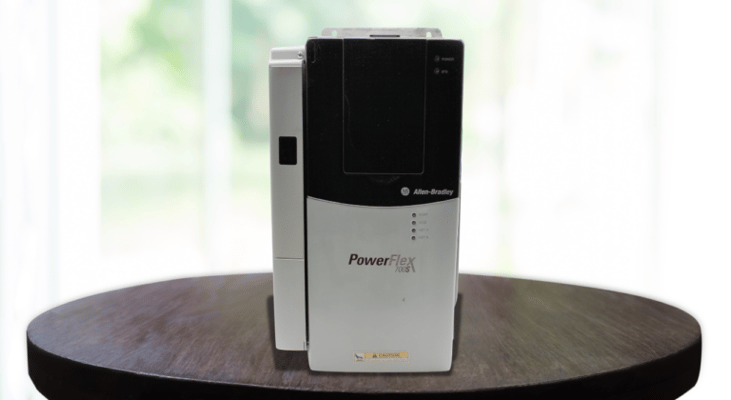

755 AC Drives

Allen-Bradley 755 AC Drives offer simplicity, adaptability, and excellent performance for various applications. They may be used in a variety of settings due to their power ratings, which range from 0.5 HP to 2000 HP, and their numerous container possibilities. Safe Torque Off (STO) and Safe Speed Monitor are advanced safety features certified up to SIL 3, PLe, and Cat 4. Integrated Safety Features GuardLogix controllers and EtherNet/IP safety may be seamlessly integrated thanks to Option Modules. Control modes include vector control, V/Hz, and permanent magnet motor control to provide versatility for the application. While dual-port EtherNet/IP Option Modules simplify network connection, predictive diagnostics improve dependability. Customization is made easier by modular choices and user-friendly settings.

Compact-Class Low Voltage AC Drives

Compact-class AC drives from Allen Bradley provide a simple and affordable option for stand-alone machine-level control applications. This adaptable family of drives is intended to be easy to use and comes in a small form that maximizes panel area and increases application versatility.

PowerFlex 523 AC Drives

The PowerFlex 523 AC Drives can handle worldwide voltages between 100V and 600V and have a power range of 0.2 kW to 22 kW (0.25 HP to 30 HP). A detachable control core in its modular architecture facilitates simple software configuration and installation. They offer versatility for a range of applications with motor control choices such as volts per hertz, sensorless vector control, and sensorless vector control with Economizer mode. These drives are made to withstand ambient temperatures of up to 70°C (158°F) and have effective side-by-side installation for ventilation. Additionally, they provide smooth communication using an inbuilt RS485/DSI interface for low-cost networking.

PowerFlex 4M AC Drives

With variants for 100- 120V (0.2-1.1 kW), 200- 240V (0.2-7.5 kW), and 380- 480V (0.4-11 kW) systems, the PowerFlex 4M AC Drives provide a wide power range. These drives are kept in NEMA/UL open-type enclosures with an IP20 rating for longevity and security. For dependable operation, they have RS-485 connectivity, slip correction, and V/Hz regulation. With a maximum working temperature of 50°C (122°F), they include ramp control and overload safety. Integral LCD keypads, remote keypads, or software make configuration easier, and Premier Integration with Allen Bradley AC drives uses the Logix control platform to cut down on development time.

Medium Voltage Drives

For a variety of applications, such as fans, pumps, conveyors, and mills, Allen-Bradley Medium-Voltage AC Drives offer dependable performance and accurate speed and torque control.

7000 Series Drives

At 2.4 to 6.6 kV AC, the Allen-Bradley PowerFlex 7000 medium voltage drives provide a broad power range of 150 kW to 25,350 kW (200 to 34,000 horsepower). With power regeneration capabilities, these high-performance drives offer conventional induction or synchronous AC motors, soft-starting, variable speed, torque, and stopping control. They are compliant with SIL 3, PLe, and CAT 3 and have ArcShield arc-resistant enclosures and Safe Torque Off control. While the drives provide complete power regeneration and Type 2B protection, ArcShield technology lessens the risk of arc flash, guaranteeing efficiency and safety in demanding applications.

 6000T Variable Frequency Drives

With TotalFORCE technology, Allen-Bradley PowerFlex 6000T drives offer dependable performance in demanding industrial applications. These VFDs provide high-speed operations up to 120 Hz, variable torque, and constant torque and motor control between 2.3 and 11 kV. By providing better motor control, real-time data monitoring, and predictive analytics to avoid downtime, TotalFORCE technology increases productivity. These smart drives, which are made to integrate seamlessly, combine low and medium-voltage drive control onto a single platform, making operation easier and improving dependability in tough industrial settings.

Servo Drives

For applications needing exact speed, position, and torque control, Allen-Bradley servo drives are made to provide high-performance motion control. These drives are essential to sectors including CNC machines, packaging, material handling, and robotics. Servo drives guarantee precise and seamless motor operation even under variable load circumstances by fusing sophisticated algorithms with real-time feedback.

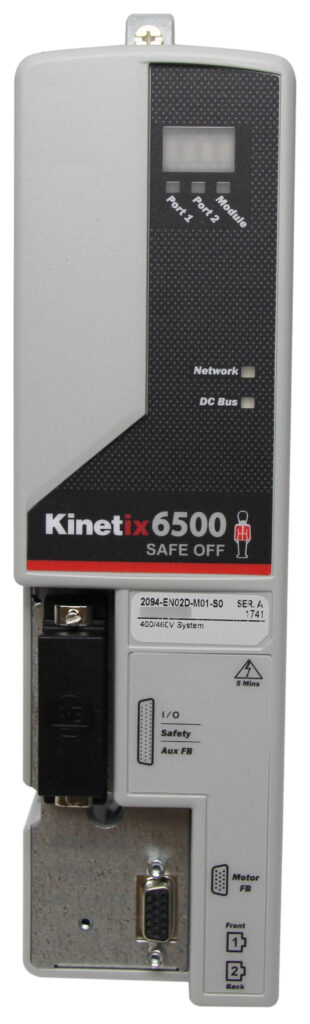

Kinetix 6500 Drives

In an open EtherNet/IP network, Allen-Bradley’s Kinetix 6500 EtherNet/IP-enabled servo drives provide a reliable solution for high-performance motion control. These drives enhance machine efficiency and operator safety by integrating easily with a variety of devices, including smart actuators, AC drives, and other EtherNet/IP devices. A broad output range of 1.2 to 22 kW and an input voltage range of 324- 528V AC are important features. A useful tool for understanding drive systems, the Kinetix 6500 offers scalable, adaptable solutions for changing industrial automation demands thanks to its interoperability with a variety of software platforms and integrated safety features like safe stop and torque-off.

Kinetix 300 Series

EtherNet/IP indexing servo drives from Allen-Bradley’s Kinetix 300 series are made to integrate easily into a single communication network. These drives provide dependable performance with output power ranging from 400 watts to 3 kilowatts and voltage compatibility for both single-phase and three-phase operation. They include built-in memory for automated device replacement and can manage up to 32 indices and five different index kinds. CompactLogix controllers and other Allen-Bradley actuators may be integrated with Kinetix 300 drives and are perfect for applications like tool-changing machinery, packing, and assembly because they have safety features like safe torque-off.

Final Thoughts

In conclusion, the Allen-Bradley family offers a comprehensive range of drives designed to meet the diverse needs of industrial automation. From DC drives to low- and medium-voltage AC drives and VFD solutions, these drives deliver precise motor control, enhanced productivity, and seamless integration with various systems. By understanding key features such as communication protocols, safety options, and advanced motor control, users can make informed decisions when selecting the right drive for their application. Whether optimizing energy consumption, ensuring safety, or boosting efficiency, this beginner’s guide provides the foundational knowledge needed to master Allen-Bradley drives and maximize their potential in industrial environments.
