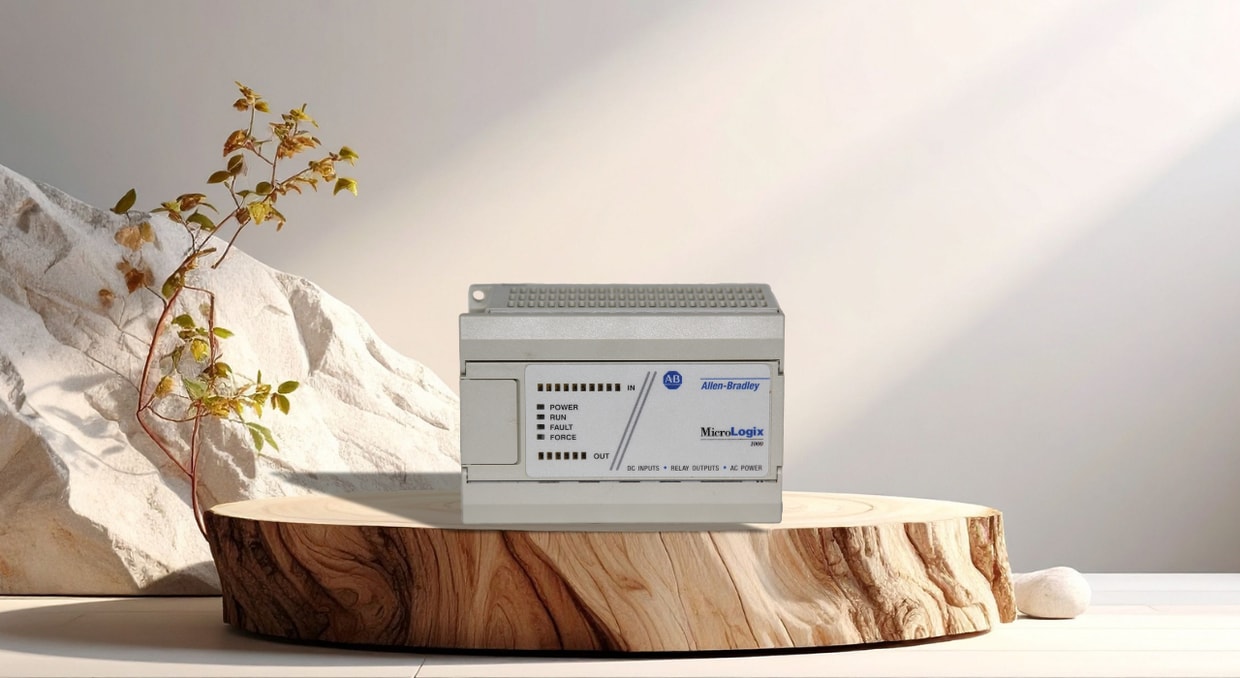

MicroLogix in Industrial Settings: Why Small PLCs Still Matter

Despite the rapid shift to high-performance PAC platforms, IIoT-enabled automation, and industrial 4.0, the MicroLogix Programmable Logic Controllers remain deeply integrated into industrial operations globally. Originally launched by Allen-Bradley (Rockwell Automation) to replace larger, hard-wired relay-logic control systems, MicroLogix PLCs have evolved into robust, reliable, and instruction-rich control platforms capable of handling a wide range of discrete and analog automation tasks.

The exceptional balance between reliability, cost, simplicity, ease of programming, long-term deployability, and electrical ruggedness is what makes the MicroLogix family a lasting success, rather than its sheer processing capabilities. In industrial engineering settings where determinism, uptime, and ease of maintenance are prioritized over advanced features, the MicroLogix series remains a reliable, dependable workhorse. This article explores why the MicroLogix series still matters.

Why Small PLCs Still Matter

Despite the increasing adoption of edge processing platforms, MQTT-driven manufacturing clouds, OPC UA-enabled controllers, and AI-based supervisory systems, a significant percentage of the global industrial base still relies on scan-based, deterministic, ladder-logic control rather than distributed analytics. MicroLogix programmable controllers remain relevant because they provide electrically hardened I/O hardware, long-term stable control functions, and deterministic execution that newer, software-based controllers and Programmable Automation Controllers (PACs) do not provide.

Ease of Use

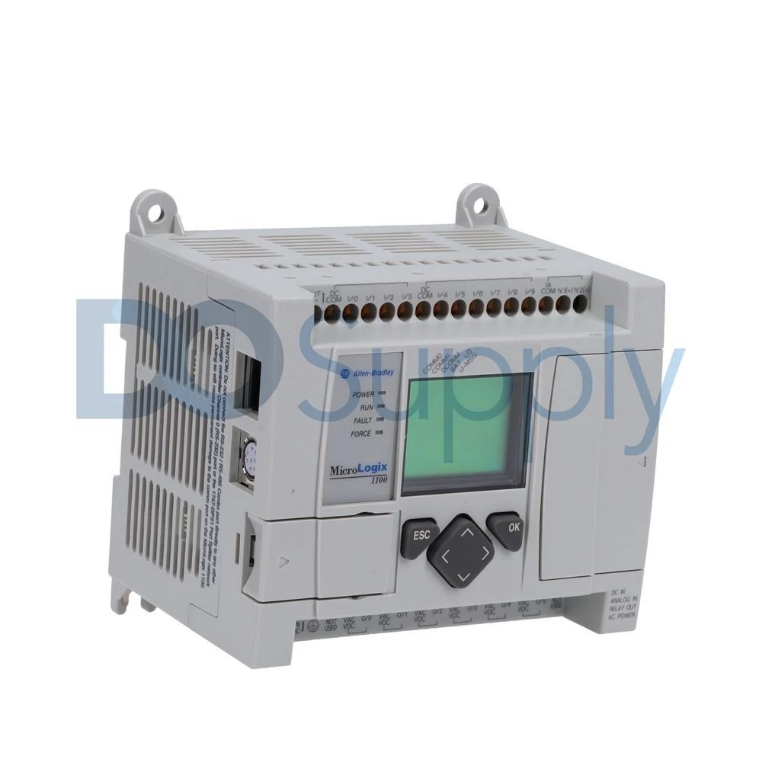

MicroLogix controllers are considered easy to use because they support Ladder Logic – a widely used, graphical, and intuitive PLC programming language.  They also support all other IEC 61131-2 standardized PLC programming languages: Instruction List, Function Block Diagram, Sequential Function Chart, and Structured Text. This allows users the flexibility to choose the most appropriate language for their tasks. In addition, some MicroLogix controller models, like MicroLogix 1400, include an inbuilt LCD panel with a backlight. The LCD allows users to view the I/O and controller status, monitor and manipulate the Ethernet network configuration, and read or write any integer, binary, or floating-point data elements, as the display is user-configurable.

Reliable Performance Engineering

The MicroLogix series operates on a cyclic, single-task, deterministic scan model in which I/O servicing, program execution, and communication functions occur in a repetitive, fixed sequence. In contrast to multitasking PAC and PLC systems that rely on multicore, preemptive scheduling, MicroLogix controllers process ladder logic sequentially using a single-threaded execution environment. This results in fully predictable execution timing, ensuring reliable performance engineering.

Deterministic Scan Time

MicroLogix controllers operate in a repeatable, fixed processing sequence that involves: Input image acquisition, Ladder program execution,  Background communication servicing, and Output image refresh. This strictly deterministic and linear operating model allows for precise prediction of the total execution time, communication load, and instruction mix. Deterministic timing is vital in tightly synchronized machine automation, where timing predictability ensures coordinated motion sequencing, accurate interlocking, and repeatable fault recognition.

Scan times vary depending on the MicroLogix controller model and task complexity. For example, the performance specification scan time in a lightly loaded MicroLogix 1000 PLC is typically below a millisecond. The value increases to several milliseconds in a fully configured MicroLogix 1400 controller, performing PID control, analog processing, and DF1/Ethernet/IP communications.

Analog Processing

Although they are often perceived as discrete-only PLCs, most MicroLogix variants provide embedded analog I/O with 12-bit to 14-bit resolution.  The analog input circuitry incorporates amplitude scaling, hardware filtering, and automatic engineering unit conversion. These features enable MicroLogix control systems to consistently and accurately process measurement signals from RTDs, thermocouples, and pressure transducers, even in electrically noisy industrial environments.

Closed-loop Control

With built-in PID instructions, MicroLogix controllers can routinely control critical industrial process variables such as temperature, pressure, level, and flow rate. The MicroLogix PID instructions include time proportional output, derivative filtering, internal bias adjustment, manual/auto transfer, and anti-windup protection. These features offer a robust solution for closed-loop control tasks, eliminating the need for standalone PID controllers.

Streamlined Data Processing

At the start of each program scan cycle, the MicroLogix processor performs an input scan, synchronously acquiring all discrete and analog input signals from remote I/O adapters and the I/O backplane into the input image table, which is stored in the controller’s volatile memory. Program execution then operates on the buffered input data rather than directly on physical terminals. Upon completion of the logic execution, the processor transfers the output image, ensuring that the contents of the output image file (O) are copied to the physical output channel. This scan-based I/O architecture prevents contact bounce artifacts, race conditions, and unintended output oscillation, which is particularly useful in electrically noisy environments, solenoid actuation, and high-speed electrochemical sequencing.

Time-Based Data Logging Capabilities

MicroLogix controllers provide event-triggered or time-based data logging capabilities, where the controller data (such as I/O status and alarm condition records) is stored with an optional time stamp in a different 128 Kbyte memory area for further analysis.

Versatile Communication Options

All MicroLogix controller models include at least one built-in RS-232C serial port that supports DH-485, DF1 Half-Duplex Slave, and DF1 Full-Duplex protocols. They communicate with operator interfaces, personal computers, other PLCs, and various peripheral devices via Ethernet, SCADA, open point-to-point, and DeviceNet protocols.

Compact Design

MicroLogix PLCs feature a compact, all-in-one design that consolidates the power supply, CPU, and I/O into a single unit, which differentiates them from larger, modular PACs and PLCs. When every bit of machine enclosure space counts, this integrated design approach offered by MicroLogix PLCs is ideal for maximizing efficiency and value. Maintaining a small footprint also ensures space for additional components, in case of future expansion needs. In addition, the small footprint of MicroLogix controllers also contributes to keeping heat dissipation under control by allowing for more airflow, and in many cases, ensuring less power consumption compared to larger control platforms.

Cost-Effectiveness

Compact PLCs, like the MicroLogix series, are generally less expensive than modular alternatives as they are designed for simpler and standalone applications; they tend to be “ready to go” for such use cases. Having a perfectly fitting product for your exact needs ensures that you can avoid excessive unused performance overhead and extra budget for the rest of your components. A small and specialized PLC unit is often easier to design, implement, and replace compared to larger “do-it-all” controller solutions.

Applications

The MicroLogix excels in a variety of industrial applications, including:

Packaging Machines

MicroLogix controllers are extensively deployed in high-speed packaging systems such as robotic palletizers and form-fill-seal equipment due to their ability to execute discrete, high-frequency control tasks with tightly regulated electromechanical timing. In robotic palletizers, MicroLogix controllers coordinate electric or hydraulic actuators via fully interlocked load logic to prevent mechanical collisions. This deterministic coordination ensures uniform compressive loading, repeatable packaging geometry, and optimized cycle rates, enhancing overall equipment effectiveness. In form-fill-seal applications, the MicroLogix analog input channels monitor temperature in thermocouples from sealing assemblies, while PID loops regulate heater power to ±2 °C (±35.6°F) for thermal stability.

Conveyor and Material Handling Systems

In these systems, MicroLogix controllers function as deterministic real-time controllers governing accumulation logic, electromechanical transport, and safety interlocked motion. The MicroLogix cyclic scan engine ensures deterministic, high-speed, single-scan processing for inputs like photoelectric sensors, proximity switches, and encoder-derived speed feedback. Discrete I/O interfaces, Variable Frequency Drives (VFD) run/stop commands, motor starters, pneumatic actuators, and solenoid diverters, while high-speed counter channels are used to process encoder shaft pulse accumulation to attain precise index control and linear position.

HVAC Automation

MicroLogix PLCs function as the primary centralized electromechanical platform that regulates thermal energy transfer, airflow, and hydronic pumping circuits in HVAC installations. The MicroLogix controller calculates real-time fluid dynamics and thermal conditions through its analog inputs from thermistors, RTDs, differential pressure sensors, and humidity transducers. At the same time, its PID loops are programmed to regulate VAV damper actuators, chilled-water valve position, and supply fan VFD speed.

Water and Wastewater Pumping Stations

In industrial and municipal pump stations, MicroLogix controllers are typically used as process automation platforms for flow regulation, pump staging, and level-dependent automation. Ultrasonic sensors, 4-20mA level sensors, and pressure transmitters are integrated into the MicroLogix 12-14-bit Analog/Digital conversion hardware. This makes it possible to assess the operating conditions of the hydraulic system used in Water and Wastewater pumping stations. The MicroLogix discrete I/O circuits are then used to precisely control the hydraulic system solenoid valves and VFD run commands, and PID loops are used to manage critical parameters such as sump level, differential head conditions, and discharge pressure.

Heavy Industrial Machinery Control

MicroLogix PLCs serve as rugged automation controllers responsible for managing pneumatic, hydraulic, and electromechanical subsystems across heavy industrial equipment. This is due to their advanced capabilities to withstand mechanical shock, vibration, electrical shock, and extreme temperature variations, which are inherent in harsh industrial environments.

Food and Beverage Batching Systems

In the food and beverage industry, MicroLogix PLCs provide volumetric and gravimetric batch control, essential for both regulatory compliance and process repeatability. Signals from connected PLC inputs, such as flow meters, load cells, and level sensors, are obtained via the MicroLogix controller analog module. The programmed PID algorithms then regulate the batching systems to achieve strict batch tolerances. Integrated timers govern blending duration, thermal conditioning period, and mixer residence time, required for fermentation and pasteurization processes.

Final Thoughts

MicroLogix proves itself to be a versatile family of PLC often found in all corners of the world. Everywhere from food and beverage to packing machines. They remain cost effective and resilient to years of use. Its a couple of the reasons why we choose to keep these quality PLCs in stock. We also carry ControlLogix, CompactLogix, and more. While we do offer a repair service, we also have this maintenance guide for the MicroLogix PLC here. Swing by our site or give us a call today and we can match you with the right equipment for the right job.
